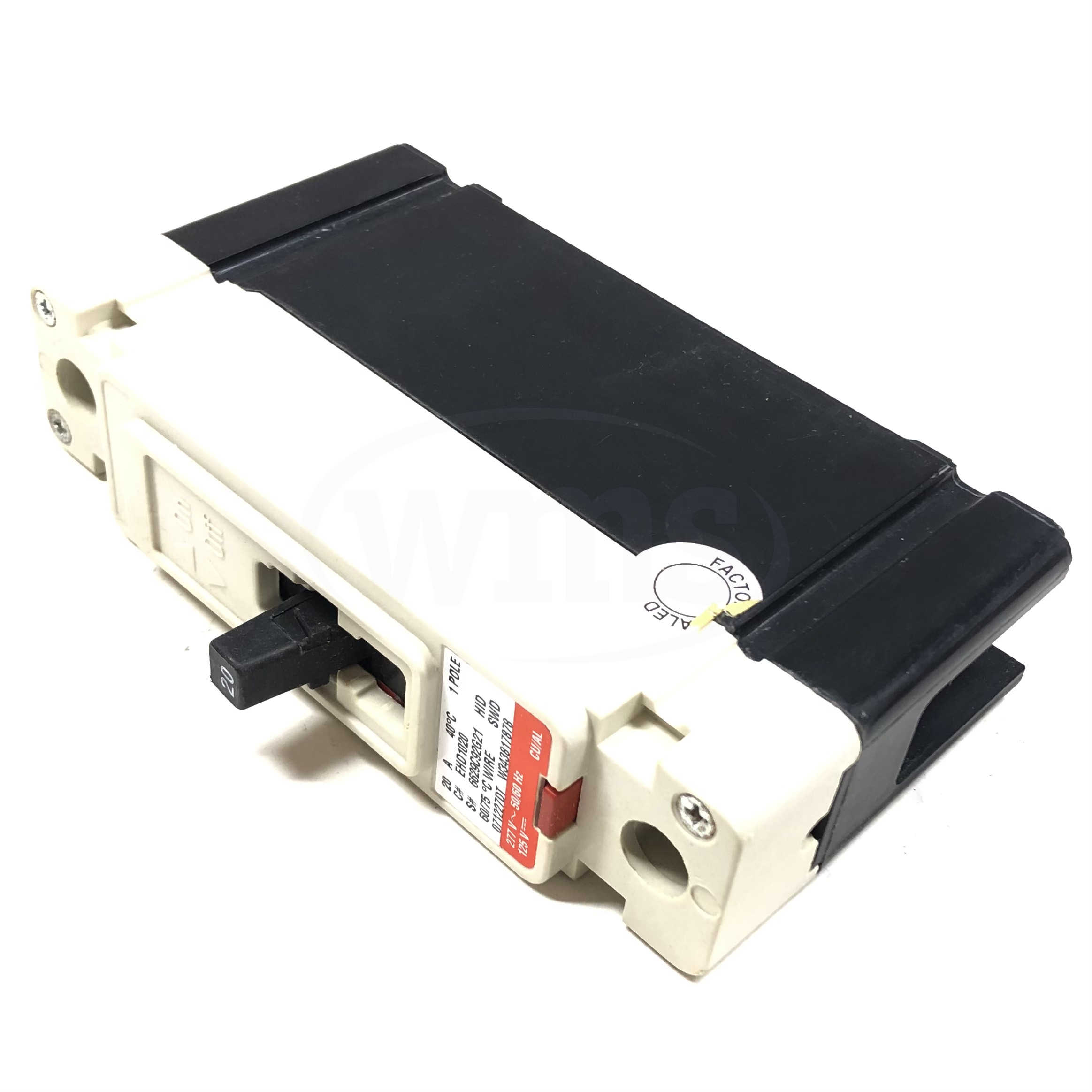

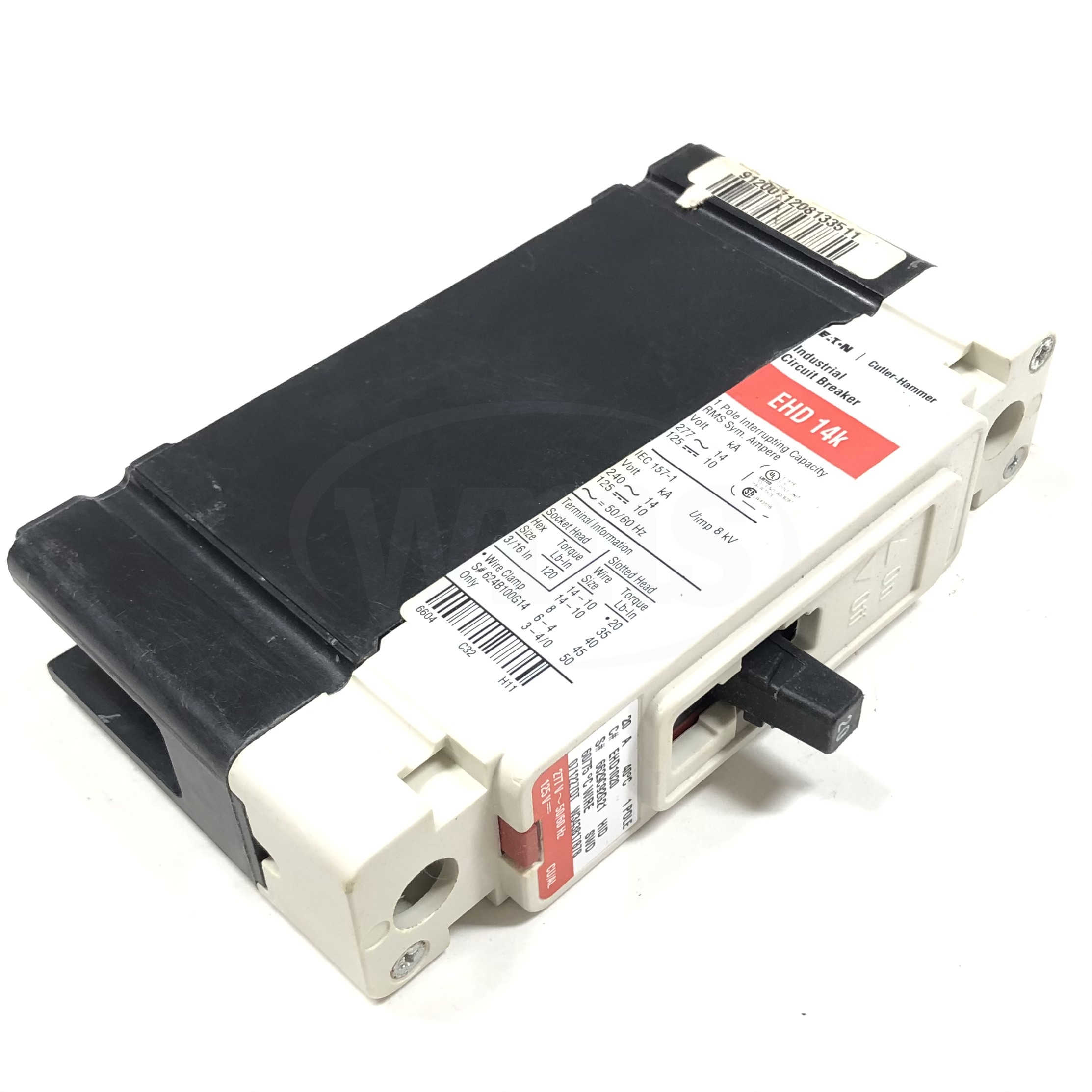

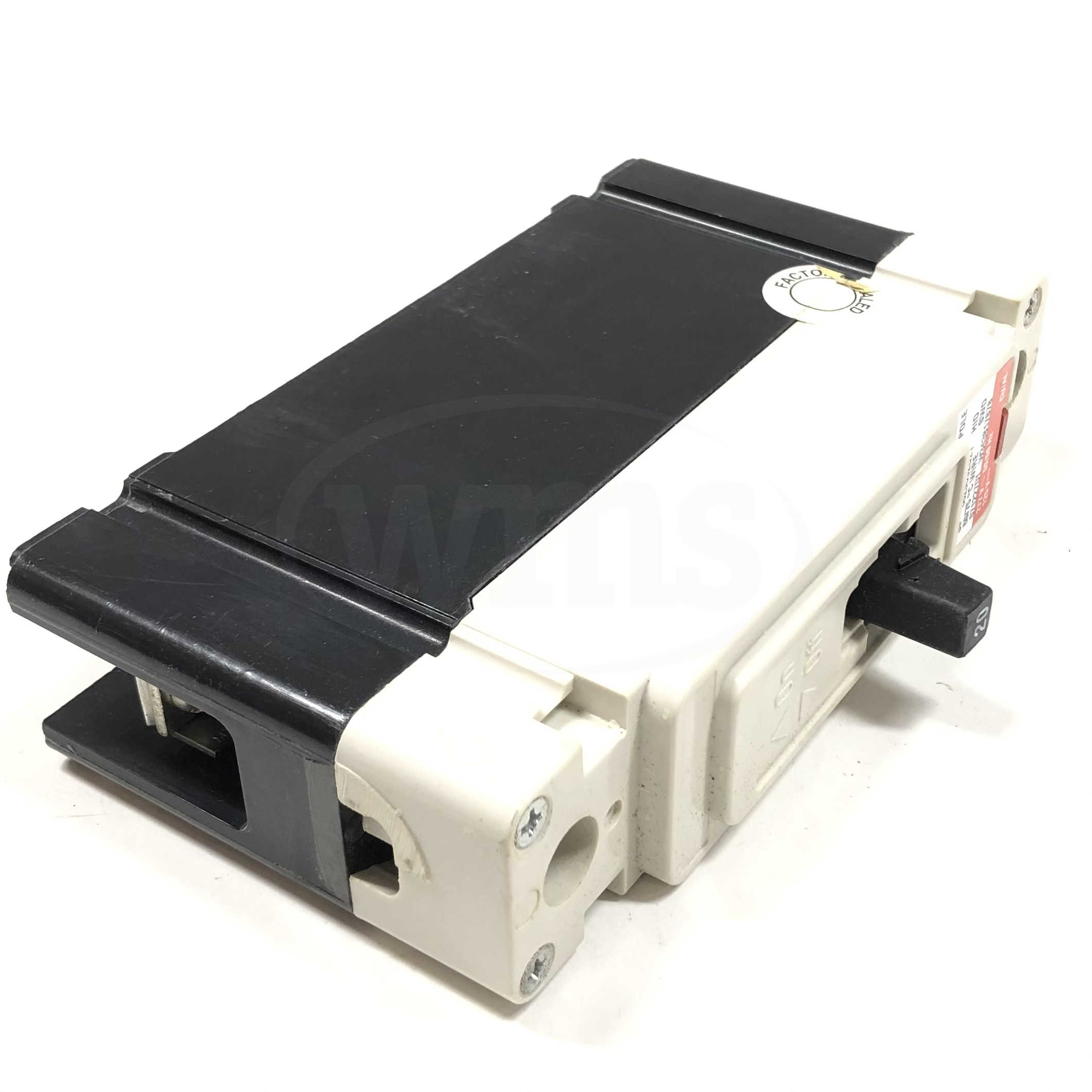

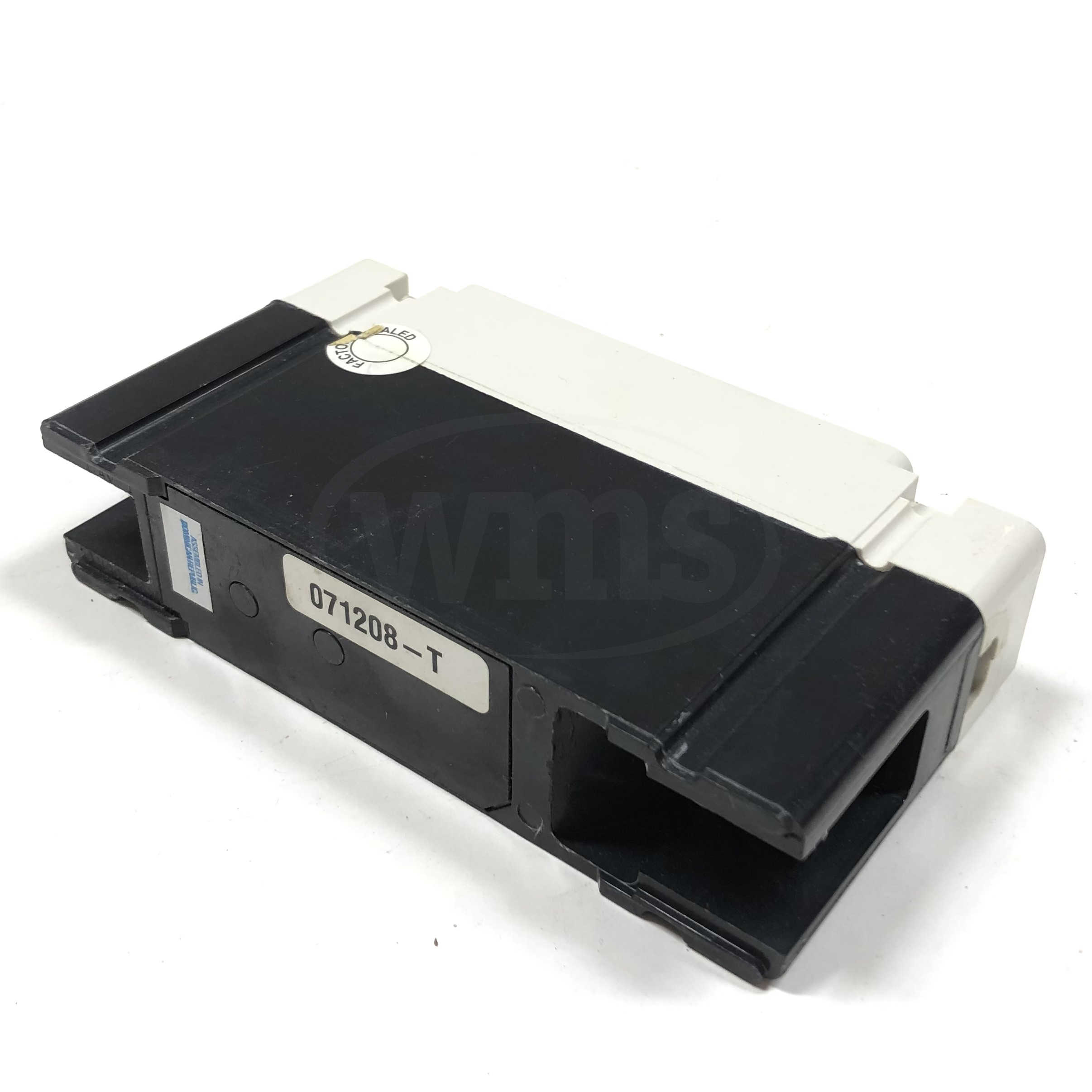

Series C, F-frame Molded Case Circuit Breaker

EHD1020

UPC:786679317327

Dimensions:

• Height: 6 IN
• Length: 3.38 IN
• Width: 1.38 IN

Warranties:

•  Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Specifications:

• Amperage Rating: 20A
• Number Of Poles: Single-pole
• Frame Size: F-frame
• Maximum Voltage: 14 kAIC at 480V
• Series: Series C
• Trip Type: Thermal magnetic

Supporting documents:

• Eatons Volume 4-Circuit Protection
• EHD1 2D Drawing Xchange
• EHD1 2D PDF
• EHD1 3D Model Xchange
• Counterfeit and Gray Market Awareness Guide
• MOEM MCCB Product Selection Guide
• Installation Instructions for EHD, EDB, EDS, ED, EDH, EDC, FDB, FD, HFD, FDC, HFDDC Circuit Breakers and Molded Case Switches
• Time Current Curves for Series C® F-Frame Circuit Breakers
• Types EHD and FDB 10 Amperes AB DE-ION Circuit Breakers
• F-Frame 310+ Molded-case circuit breakers 15-225A
• F-frame Molded Case Circuit Breaker Drawing
• EHD1 3D Inventor
