/Products/Electric Motors/3 Phase/Baldor/TE - Foot Mounted/EM4400T Baldor 100HP Electric Motor, 1785 RPM

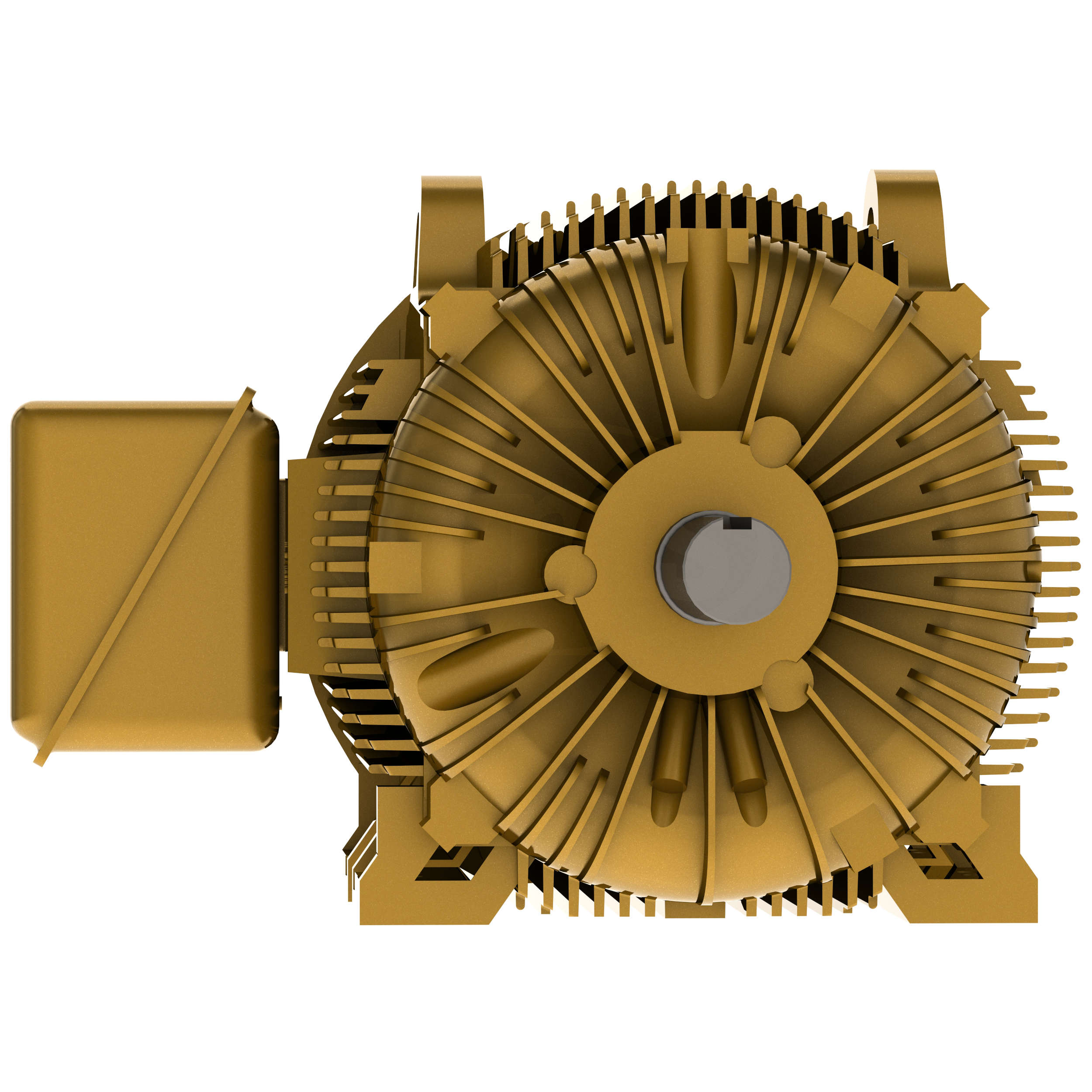

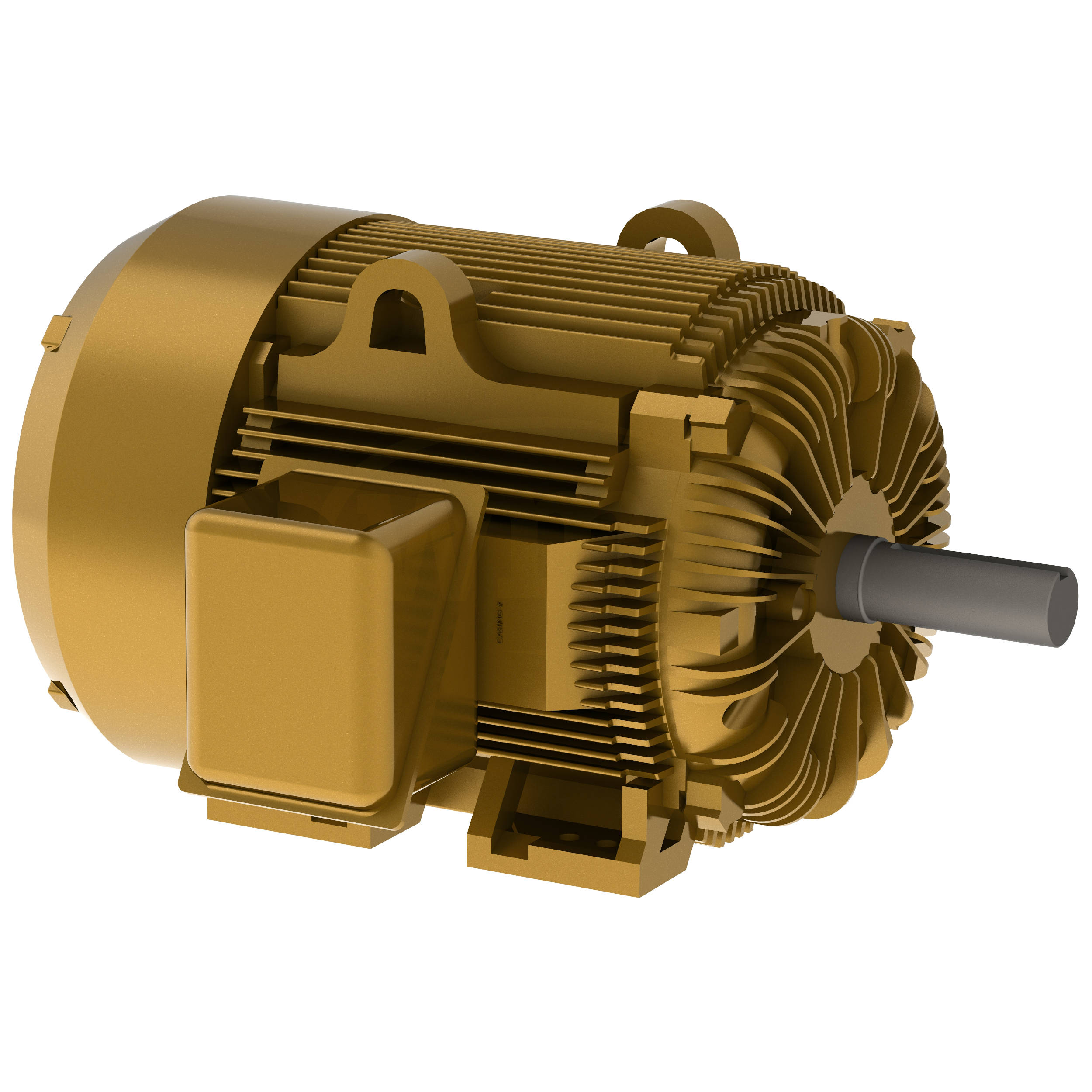

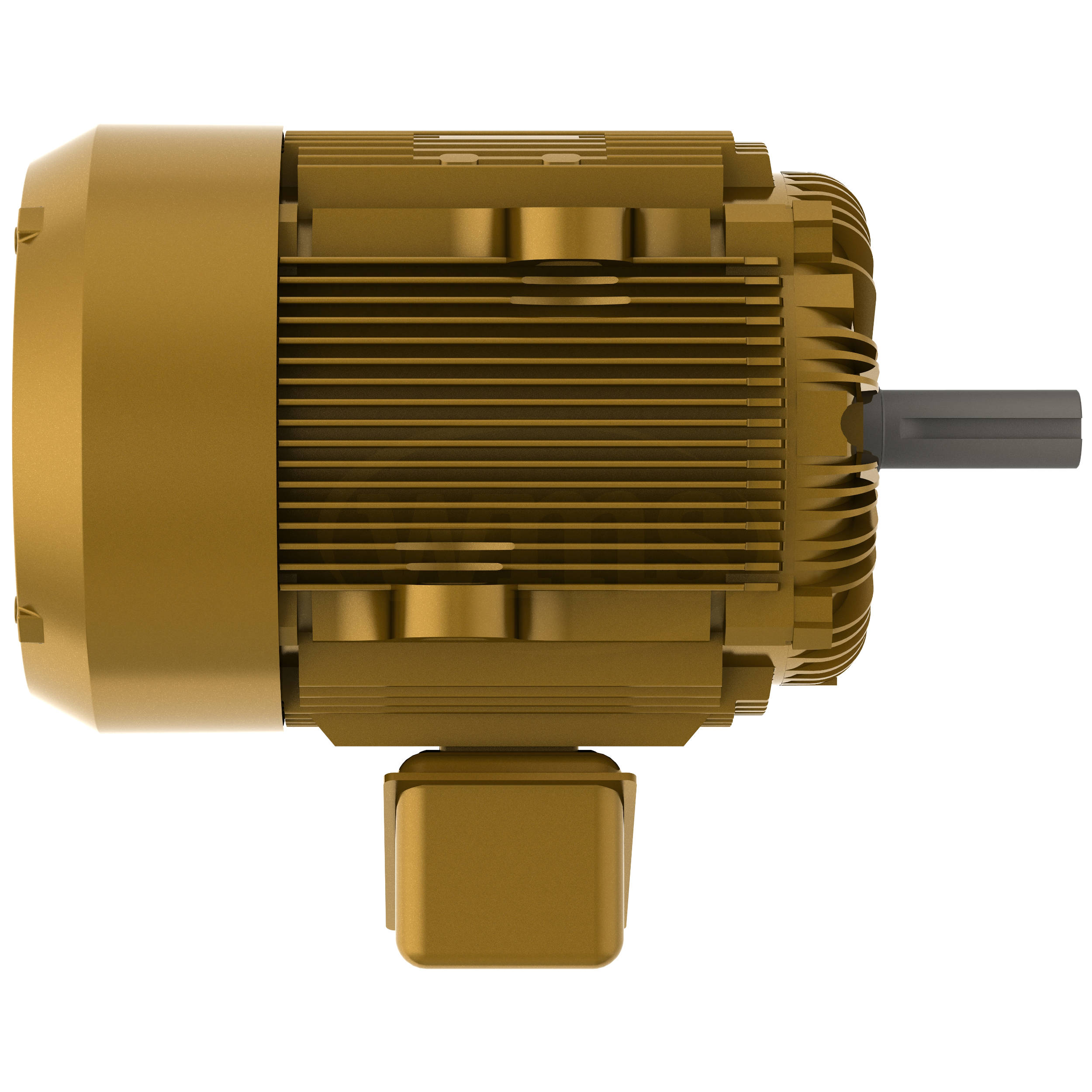

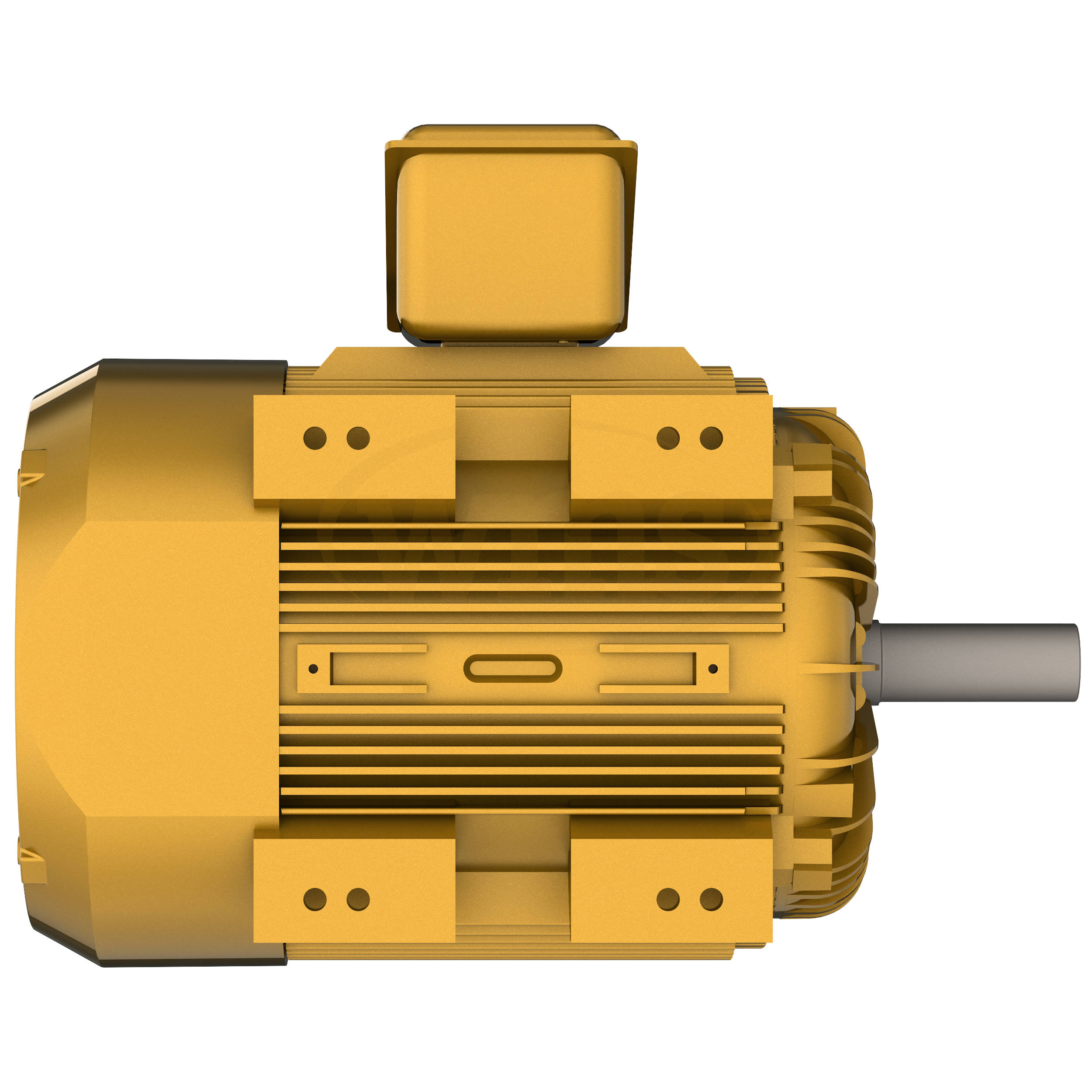

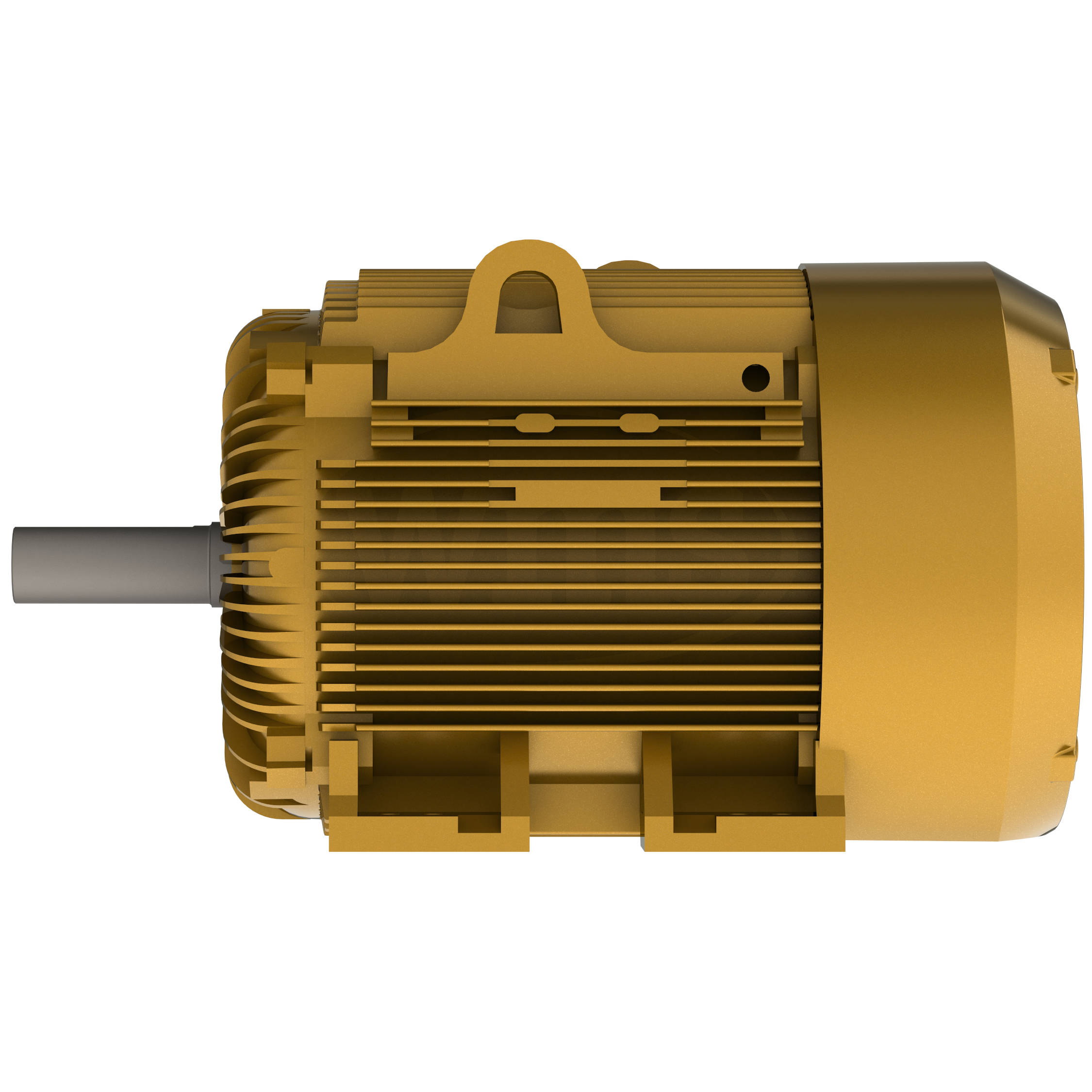

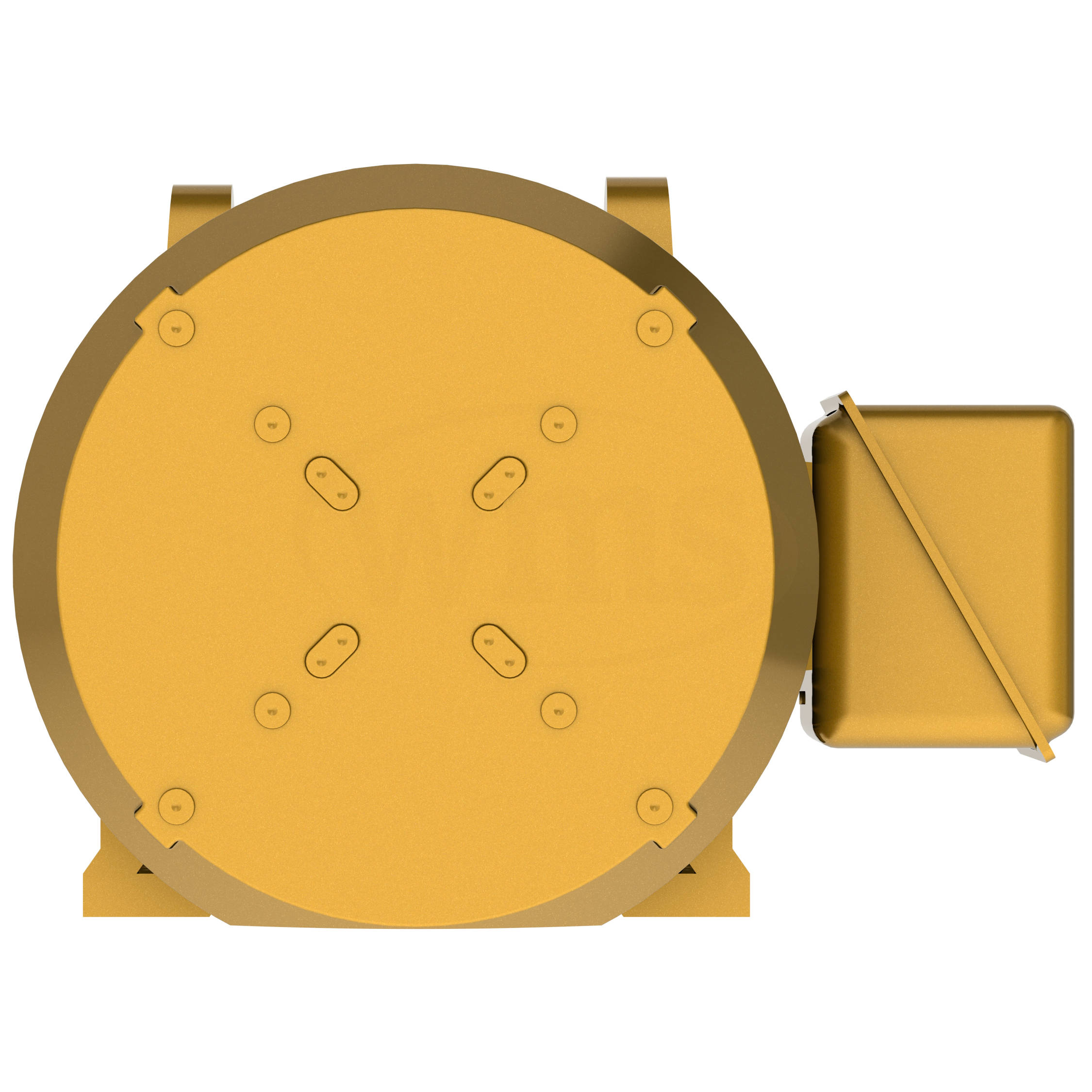

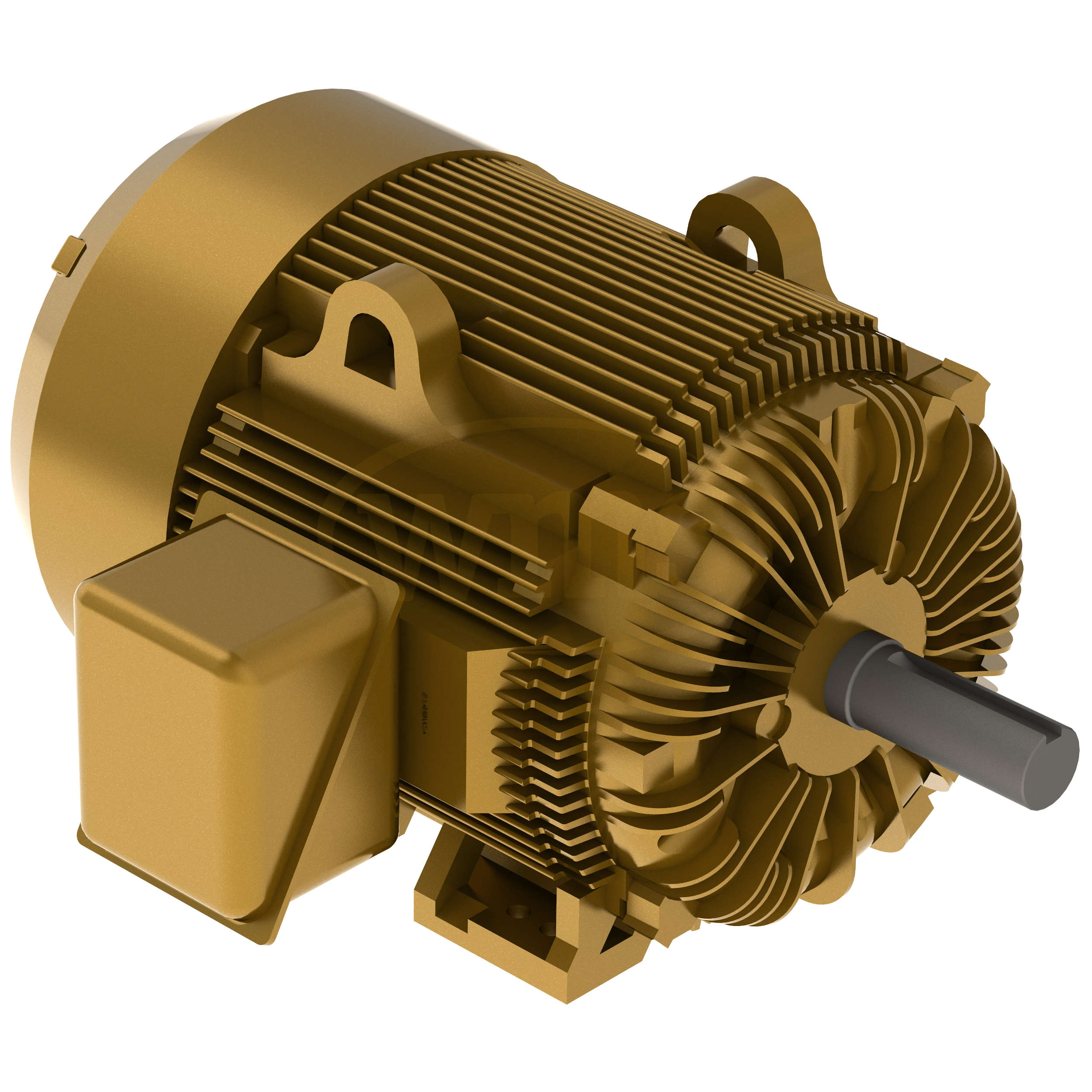

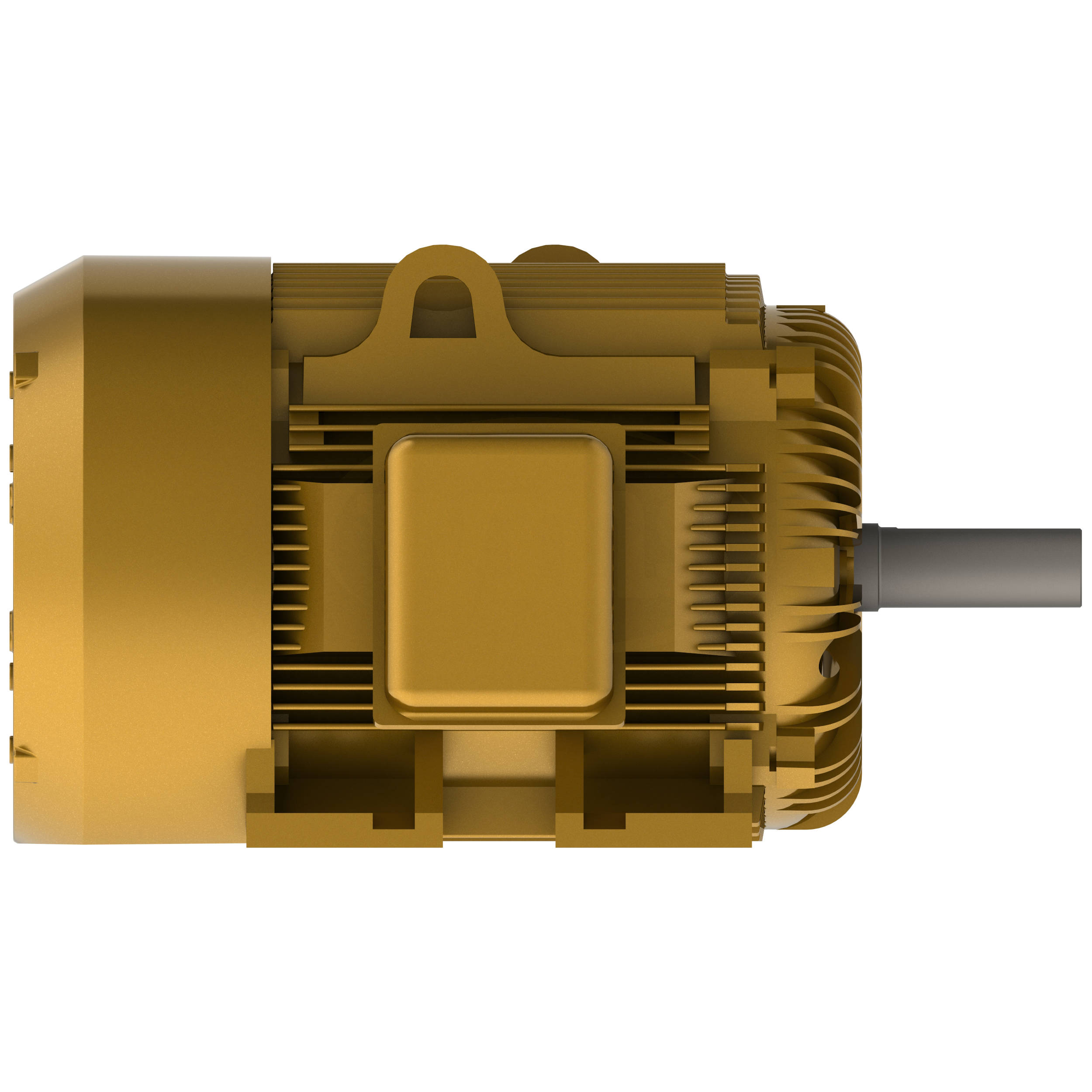

Click Image to Expand

Product ID: EM4400T

EM4400T Baldor 100HP Electric Motor, 1785 RPM

MFG: Baldor Electric Company
MFG Part Number: EM4400T

Selected accessories will also be added to cart
$11,676.97 / Each
Quantity:
TEFC, 405T Frame, 230/460VAC 60Hz 3-Phase, Foot Mount, Cast Iron, A40064M, 2-7/8" Keyed Shaft

Specifications

Specs

Output 100.000 hp
Phase 3
Synchronous Speed 1,800 rpm
Frequency 60.00 Hz
Voltage 230 V
460 V
Frame Material Iron
Frame 405T
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CCSA US
CSA EEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Current 224.0 A @ 230 V
112.0 A @ 460 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.4%
Feedback Device No feedback
Heater Indicator No heater
High Voltage Full Load Amps 112.0 A
Insulation Class F
Inverter Code Inverter ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 2 AWG
Motor Standards NEMA
Motor Type A40064M
Number of Poles 4
Overall Length 38.04 in
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.875 in
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1,785 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None

Applications

Features

Nameplate

Nameplate

CAT.NO. EM4400T SPEC NO. P40G3923
HP 100 AMPS 224/112 VOLTS 230/460 DESIGN B
FRAME 405T RPM 1785 HZ 60 AMB 40 SF 1.15
DRIVE END BEARING 80BC03J30X PHASE 3 DUTY CONT INSUL.CLASS F
OPP D.E. BEARING 80BC03J30X TYPE P ENCL TEFC CODE G
SER.NO. POWER FACTOR 87 NEMA-NOM-EFFICIENCY 95.4
MAX CORR KVAR 18 GUARANTEED EFFICIENCY 94.5
NEMA NOM/CSA QUOTED EFF
MOTOR WEIGHT
NP2383L
