/Products/Pumps/Ashland Pump/Effluent Pumps/Ashland Effluent Pumps, 208 & 230VAC/EP45M2-20 Ashland 1/2HP Effluent Pump, 230VAC Single Phase
Click Image to Expand

Product ID: EP45M2-20

EP45M2-20 Ashland 1/2HP Effluent Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: EP45M2-20

Available Stock: 1
Selected accessories will also be added to cart
$576.64 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

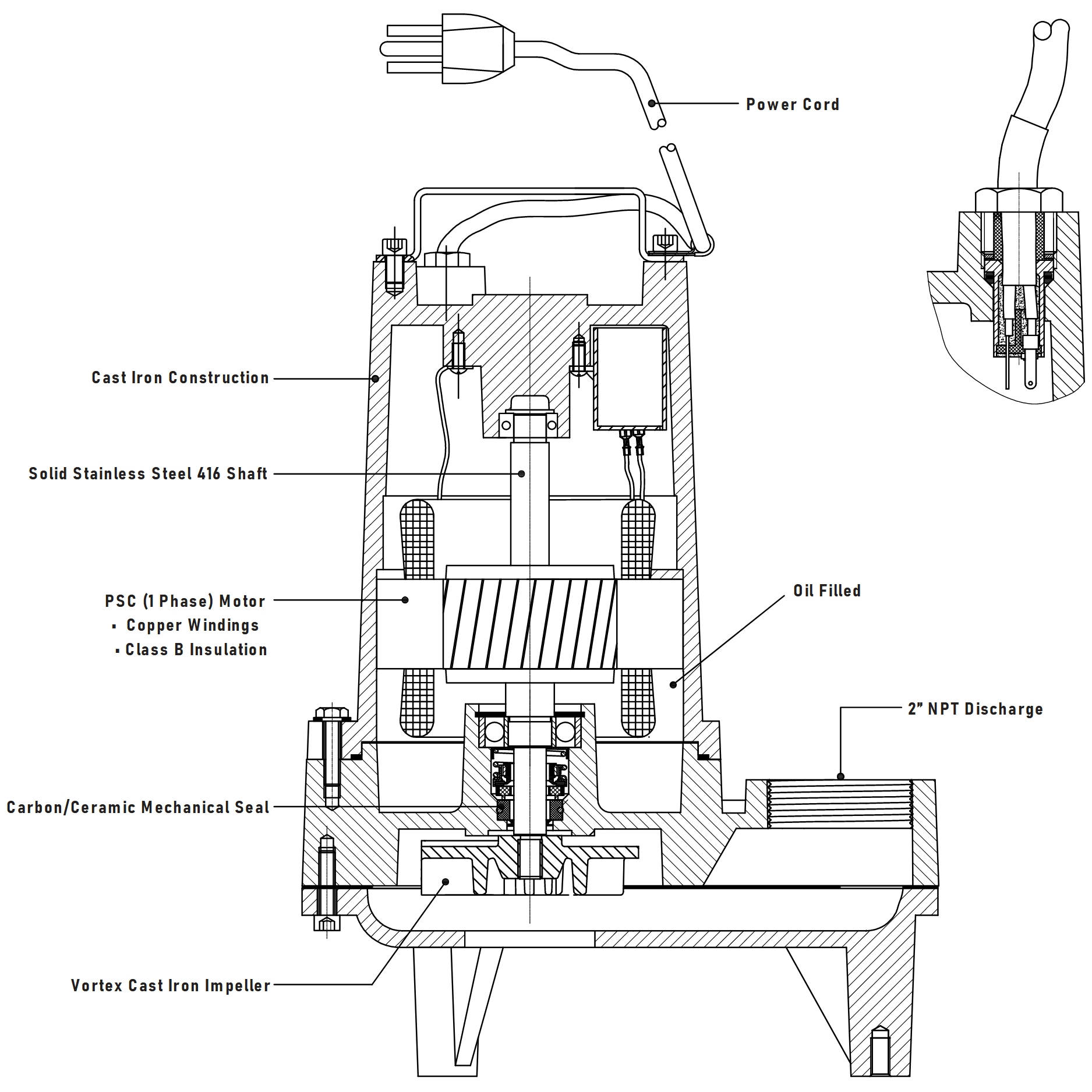

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4? solids handling
  • 2? NPT discharge

Specifications

BrandAshland Pump
ModelEP45M2-20
HP0.50 HP
Voltage230VAC 60Hz Single Phase
RPM3450 RPM
Full Load Amps5.5 Amps
NEMA Start CodeP
Cord TypeSJTW 18/3C
Cord Power Size16AWG/3C
Cord O.D.0.34"
Discharge Size2" NPT
Impeller TypeRecessed Cast Iron Vortex
Cable Length20'
Maximum Liquid Temperature104?F
Intermittent
Acceptable pH Range6 - 8
Maximum Stator Temperature130?C
Sensor Cord Type16/3C
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftStainless Steel 430
HardwareSST
O-RingsNBR
Mechanical SealSingle Mechanical
Carbon Ceramic
Upper Bearing6000
Lower Bearing6203

Links

Input Phase
Single Phase
Input Voltage
230VAC
Speed
3450RPM
Horsepower
1/2HP
Type
Effluent Pump
Color
Green
