/Products/Electric Motors/Single Phase/Marathon/Farm Duty/F103 Marathon 3/4HP Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: F103

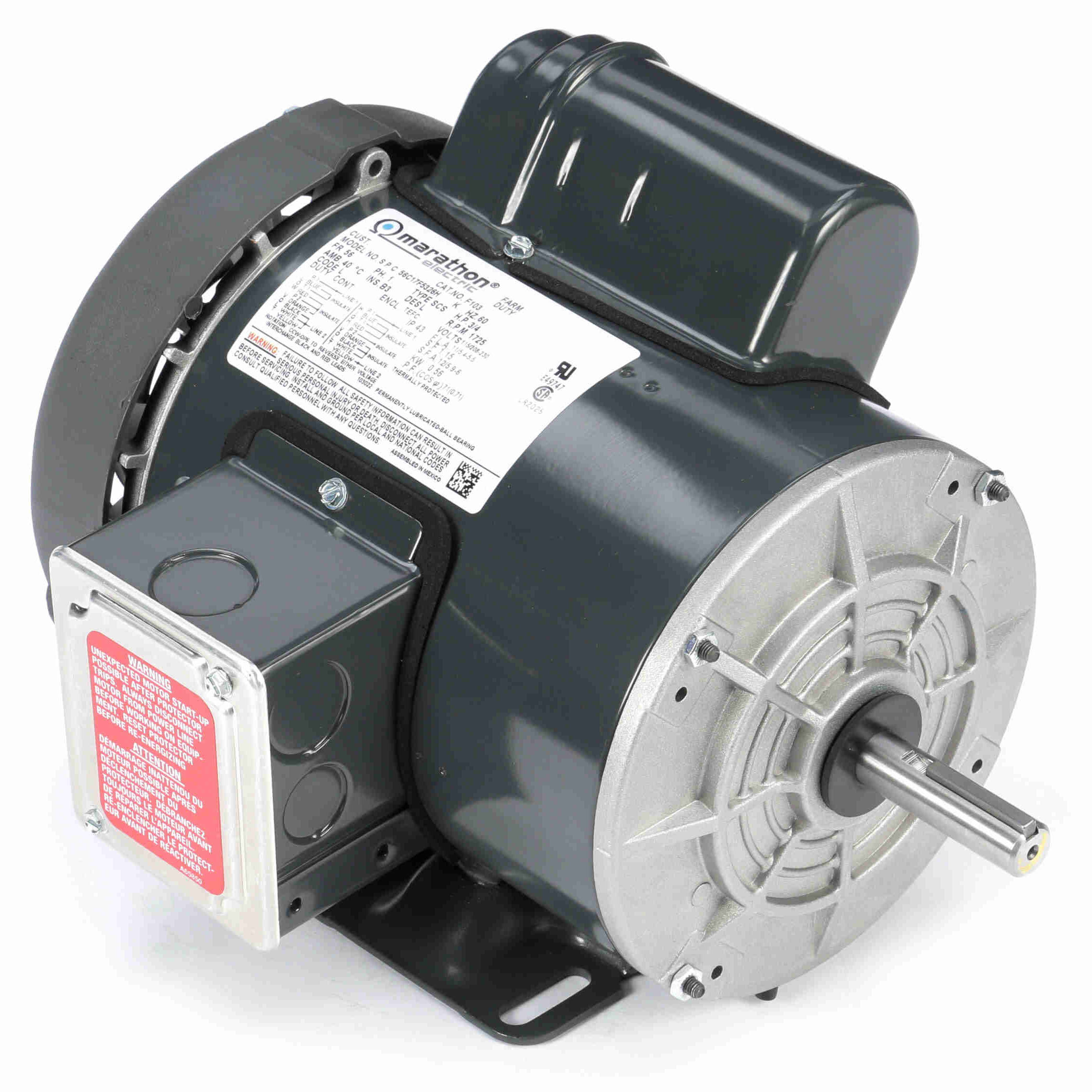

F103 Marathon 3/4HP Farm Duty Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: F103

Selected accessories will also be added to cart
$309.97 / Each
Quantity:
TEFC, 56 Frame, 115/208-230V Single Phase 60Hz, Rigid Base, 056C17F5326

Features

Features
  • Shaft end mechanically locked on C-face models
  • Capacitor start design for high starting torque
  • Shaft slinger
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains

General Specifications

General Specifications
Model :056C17F5326 Catalog No :F103
Part Description :3/4,1800,TEFC,56,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.75 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :11.0/5.4-5.5 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :70.5 % Duty :Continous
Insulation Class :B Design Code :L
KVA Code :L Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :12.32 in Frame Length :7.06 in
Shaft Diameter :0.625 in Shaft Extension :2.32 in
Assembly/Box Mounting :F1 Only UPC :722856027771
Weight :29.00 LB

Speed & Load Characteristics
