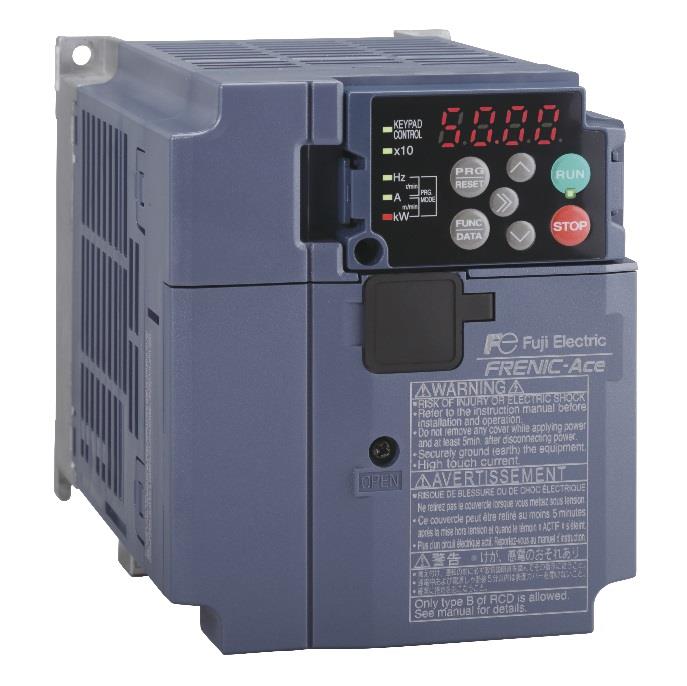

The FRENIC-Ace is a high performance, full-featured Drive designed to suit a wide variety of applications including fans, pumps, specialized machinery and more. Equipped with 200 steps of customizable logic and PMAC motor control, the FRENIC-Ace provides compact, but powerful multi-rated specification solutions for virtually all AC drive applications and comes standard with an industry-leading 3-year warranty.
| Nominal Motor HP [kW] | 2 Hp [1.5 kW] (ND)
1.5 Hp [1.1 kW] (HD & HND)
1 Hp [0.75 kW] (HHD) |
|---|
| Rated Output Capacity kVA | 3.1 kVA (ND)
2.6 kVA (HD & HND)
1.9 kVA (HHD) |
|---|
| Rated Output Voltage | 3 Phase, 380-480 Volt (with AVR) |
|---|
| Rated Output Current | 4.1 Amps (HD)
3.4 Amps (HD & HND)
2.5 Amps (HHD) |
|---|
| Rated Overload Capability | 120 % of nominal current for 1 minute (ND & HND)
150 % of nominal current for 1 minute (HD)
150 % of nominal current for 1 minute or 200% of nominal current for 0.5 seconds (HHD) |
|---|
| Main Power Supply Input | 3 Phase, 380 to 480 Volt, 50/60 Hz (With AVR) |
|---|
| Voltage / Frequency Variations | Voltage: +10 % to -15%
Voltage Unbalance: 2% or less
Frequency: +5% to -5% |
|---|
Rated Current Input without DC Reactor
[with DC Reactor] | 4.8 Amps [2.9 Amps] (ND)
3.9 Amps [2.1 Amps] (HD & HND)
3.1 Amps [1.6 Amps] (HHD) |
|---|
| Required Power Supply Capacity | 2.1 kVA (ND)
1.5 kVA (HD & HND)
1.2 kVA(HHD) |
|---|
| Braking Torque | 50 % (ND)
68 % (HD & HND)
100 % (HHD) |
|---|
| DC Braking | Starting frequency: 0.0 to 60.0 Hz
Braking Time: 0.0 to 30.0 Seconds
Braking Level: 0 to 60 % (ND),0 to 80 % (HD & HND), 0-100 % (HHD) of nominal current |
|---|
| Braking Chopper | Built-In |
|---|
| Braking Resister | Optional |
|---|
| Minimum Connectable Resistance | 200 ? |
|---|
| DC Reactor | Optional, DCR4-1.5 (ND & HD & HND)
Optional, DCR4-0.75 (HHD) |
|---|
| Cooling | Nautral Cooling |
|---|
| Optional Din Rail Mount | RMA-E2-2.2 |
|---|
| EMC Filter | Optional |
|---|
| List Price | $510.00 |
|---|

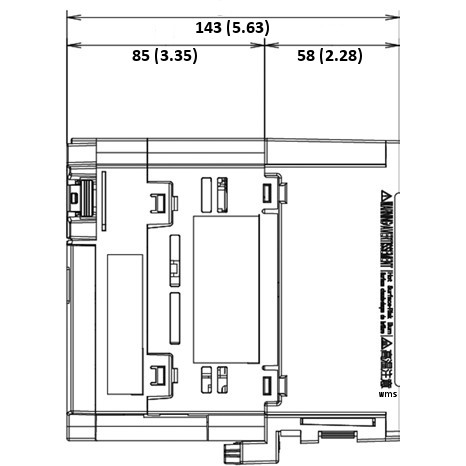

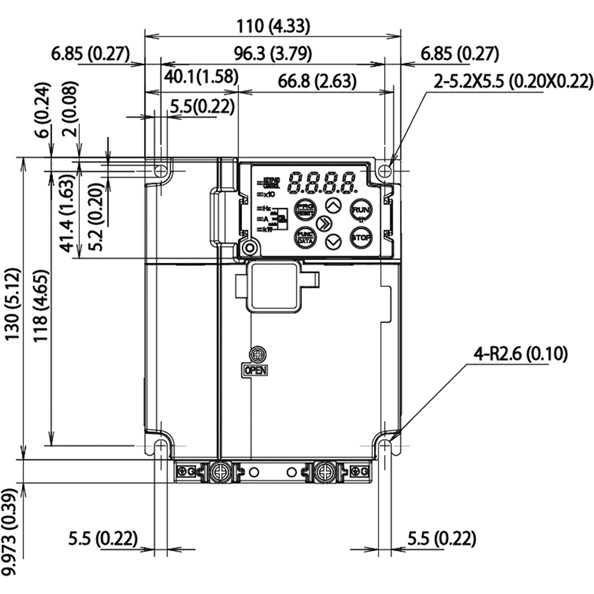

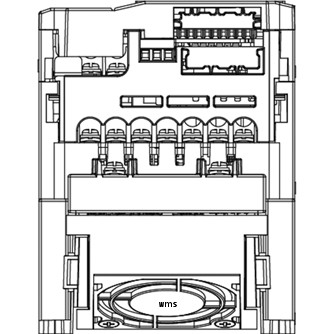

| Dimensions | 4.33" x 5.51" x 5.63" |
|---|
| Weight | 3.3 lbs |
|---|
| Warranty | 3 Years |
|---|
| Enclosure | IP20, UL Open Type
UL Type 1 by Option Kit, NEMA1-12E2-24 |
|---|
| Ambient Temperature | Standard (Open Type): -10 to +50 ?C / 14 to 122 ?F (HHD/HND)
NEMA 1/UL Type 1: -10 to+40 ?C / 14 to 104 ?F (HHD/HND) |
|---|
| Storage Temperature | -25 to +65?C (-13 to 149 ?F) |
|---|
| Humidity | 5 to 95% Relative Humidity (without condensation) |
|---|
| Installation Location | Indoors |
|---|
| Altitude | <3,300ft (1,000m)
1000-1500m .97 Output Current Derating Factor
1500-2000m .95 Output Current Derating Factor
2000-2500m .91 Output Current Derating Factor
2500-3000m .88 Output Current Derating Factor |
|---|
| UL / cUL 508C C22.2 No.14 |
|---|
| CE |
|---|
| RoHs |
|---|
| GOST-R |
|---|
| KC |
|---|
| EN / ISOc13849-1:2008 cat. 3/PL:e |
|---|
| Control | V/F Control
V/F Control with Slip Compensation
Dynamic Torque Vector Control
V/F Control with Encoder (Optional)
Vector Control with Encoder (Optional)
PM Motor Sensorless Vector Control |
|---|
| Output Stability | Analog setting: +/-0.2% of maximum frequency
Digital setting: +/-0.01% of maximum frequency (by keypad settings) |
|---|
| Output Frequency | Max 500Hz |
|---|
| Speed Control Range | 1:1500 IM Vector Control w/encoder
1:100 IM V/F w/encoder
1:10 PM Sensorless Vector Control |
|---|
| Digital Inputs | (7) X1 - X5, FWD, & REV Programmable, 60 selectable functions |
|---|
| Analog Inputs | (1) -0 to +10Vdc
(1) -4 to 20mA |
|---|
| Digital Outputs | (1) From C Relay
(2) Transistor Output, 78 Selectable Functions |

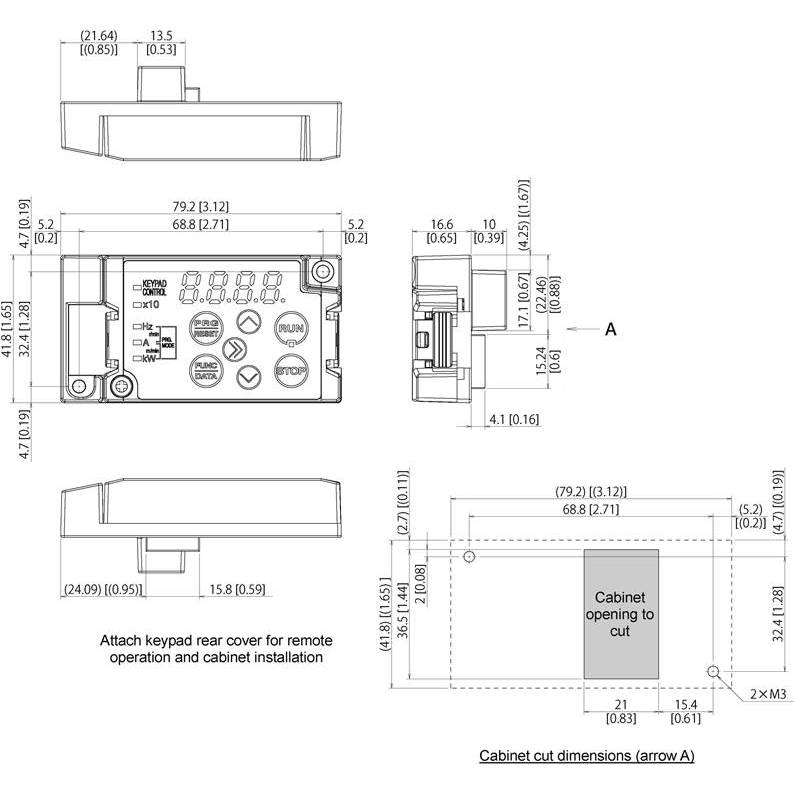

|---|
| Analog Output: Selectable Type | (2) 0 to 10Vdc or 4 to 20mA, 19 Selectable Output Signal Functions. |
|---|
| RS-485 Connections | (2) RJ45 Port Terminal |
|---|
| Operator's Keypad with LED Display | Indicating System Operation and Associated Value
Conversion, Status of I/O, Operations and Alarms |
|---|
| Keypad Indications | Operations, Number of times unit placed in operation, Duration
and kWh output |
|---|
| 24Vdc Output Terminal | 100mA Maximum Supply |
|---|
* Normal Duty
Heavy Duty
High Carrier Frequency Normal Duty
High Carrier Frequency Heavy Duty
