Product ID: FRN700F1S-4U

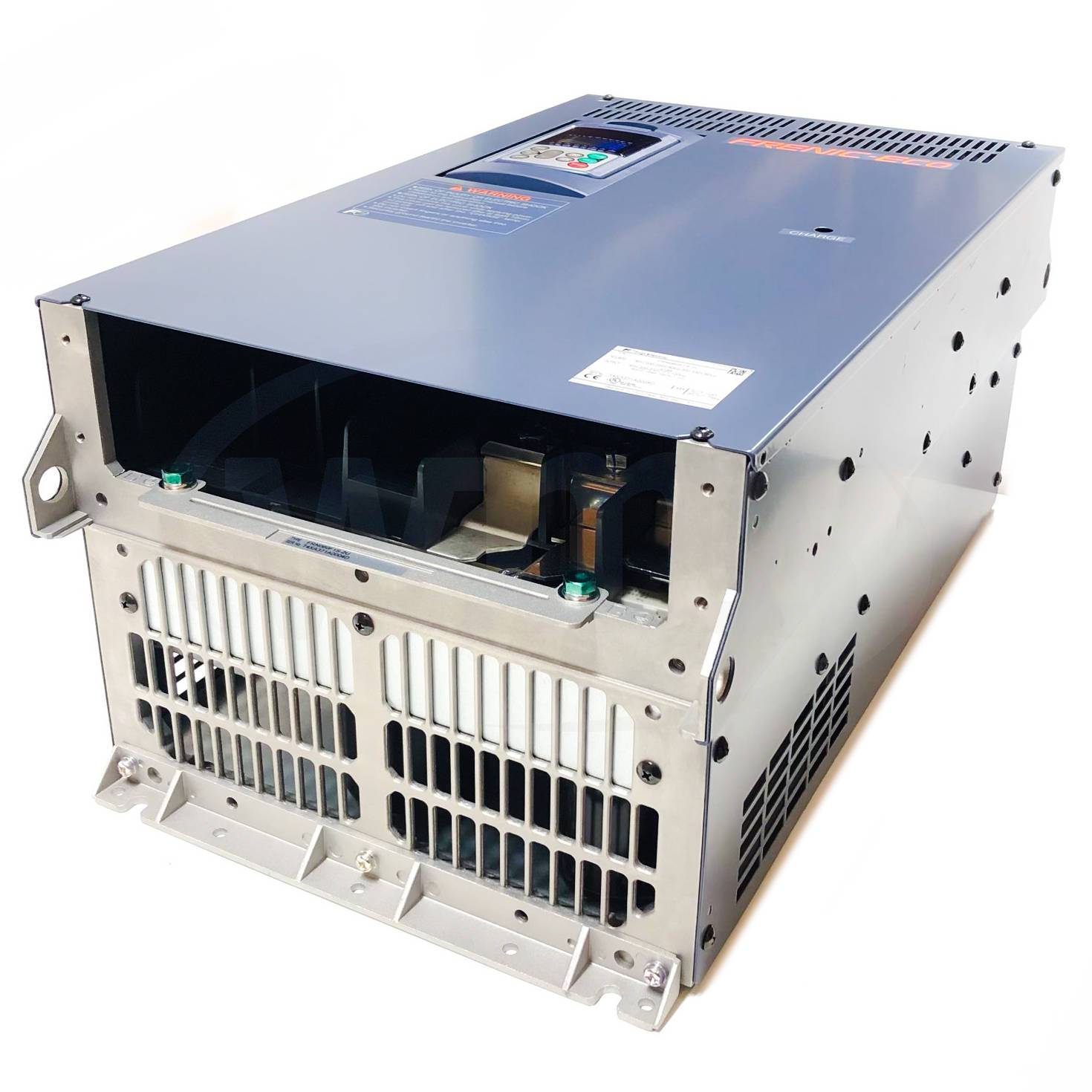

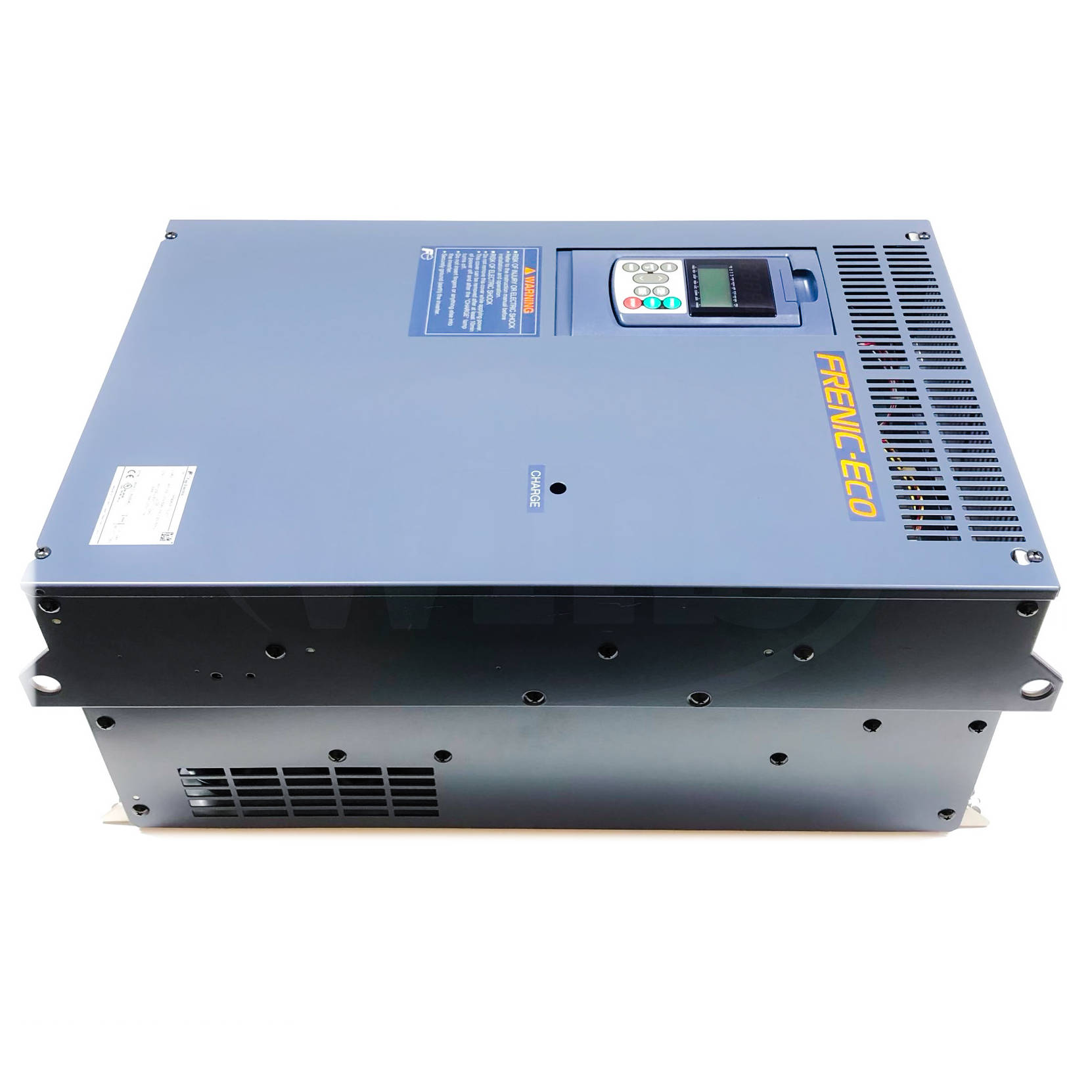

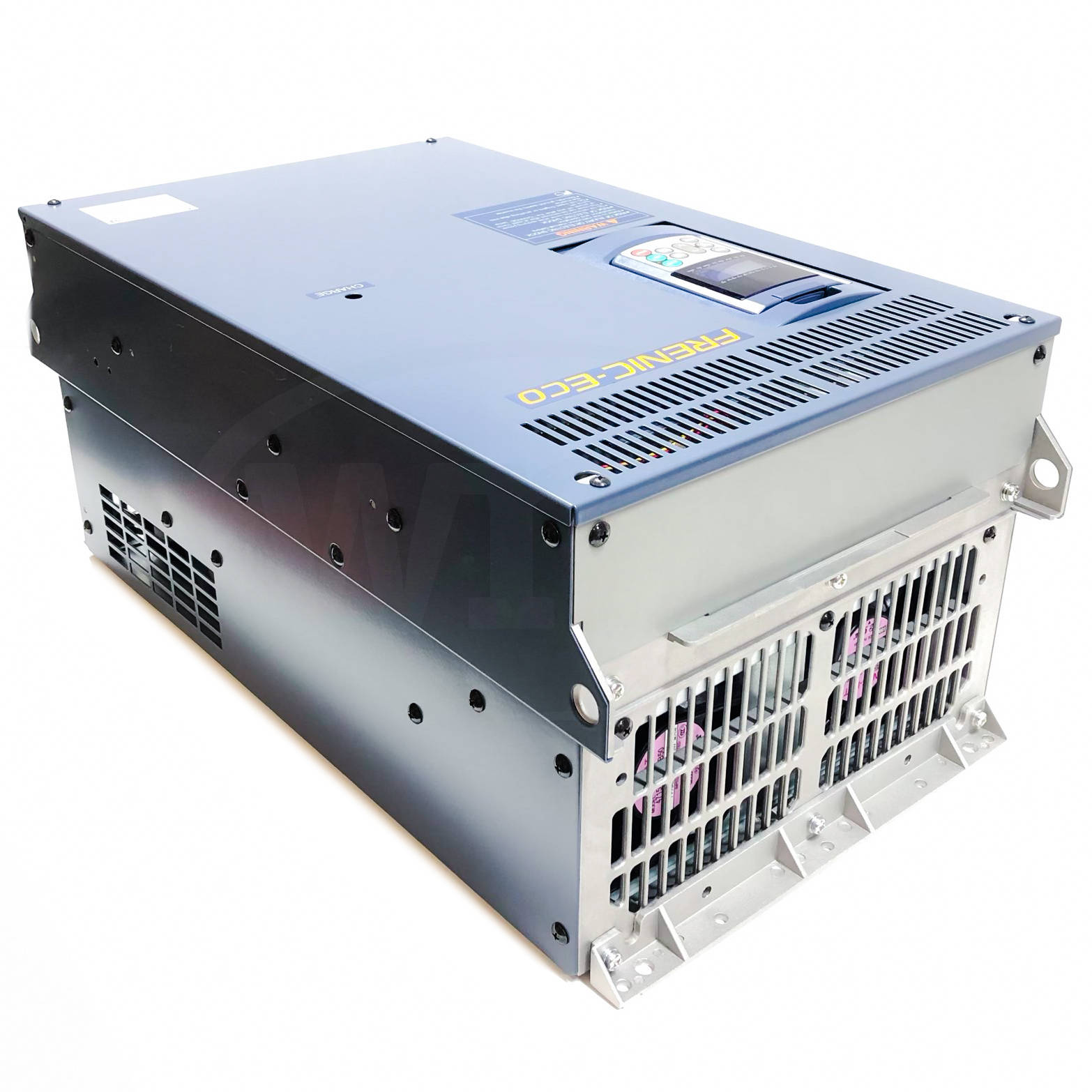

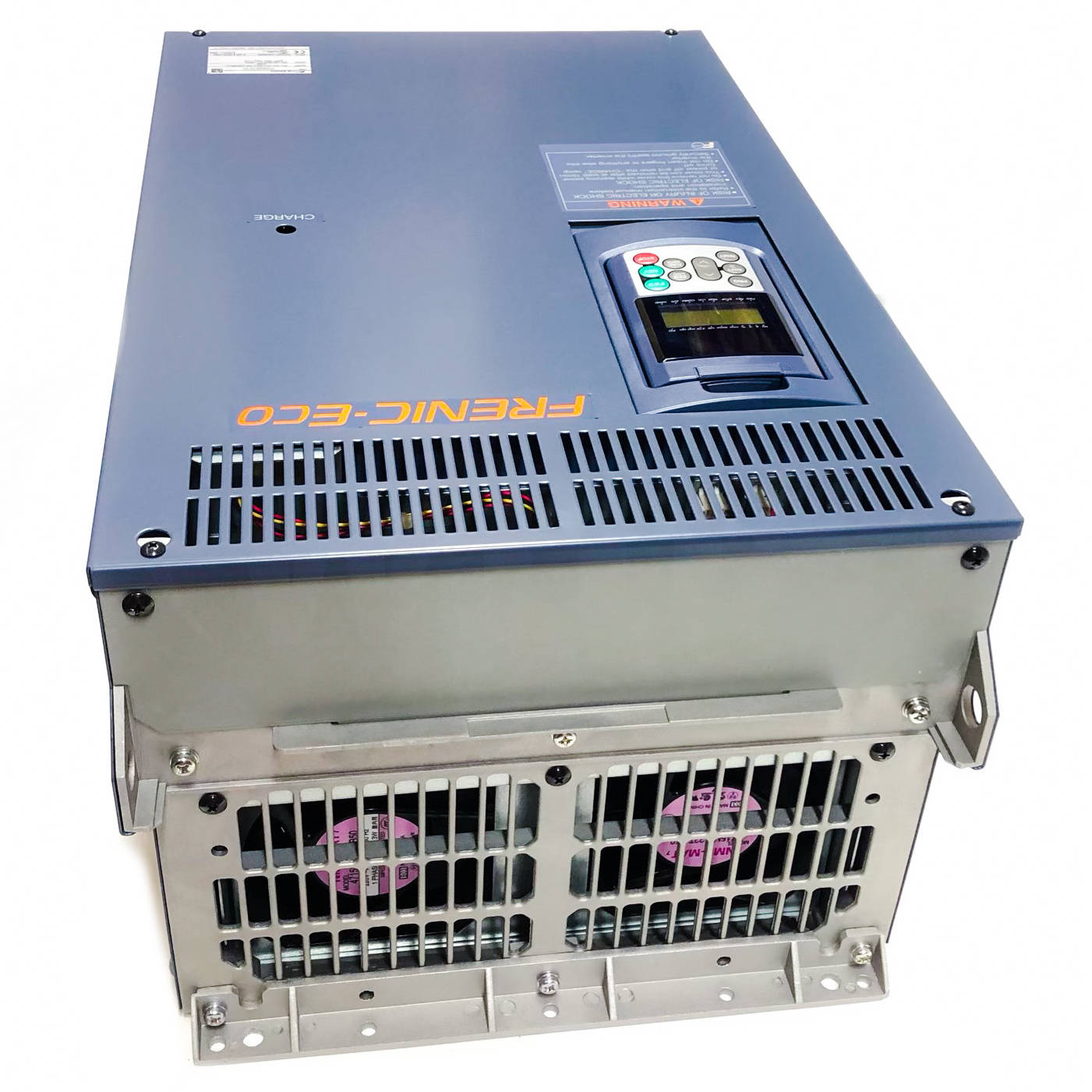

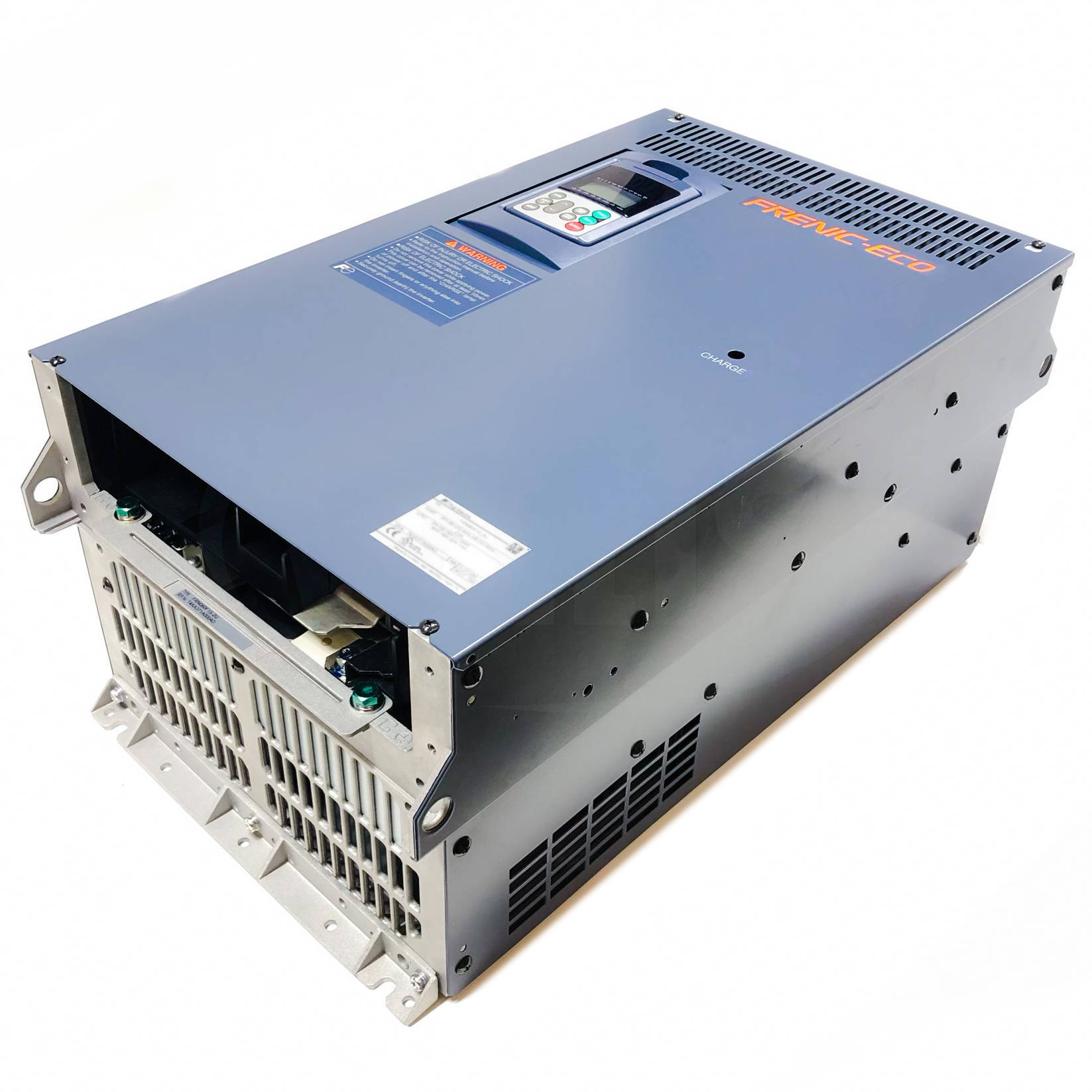

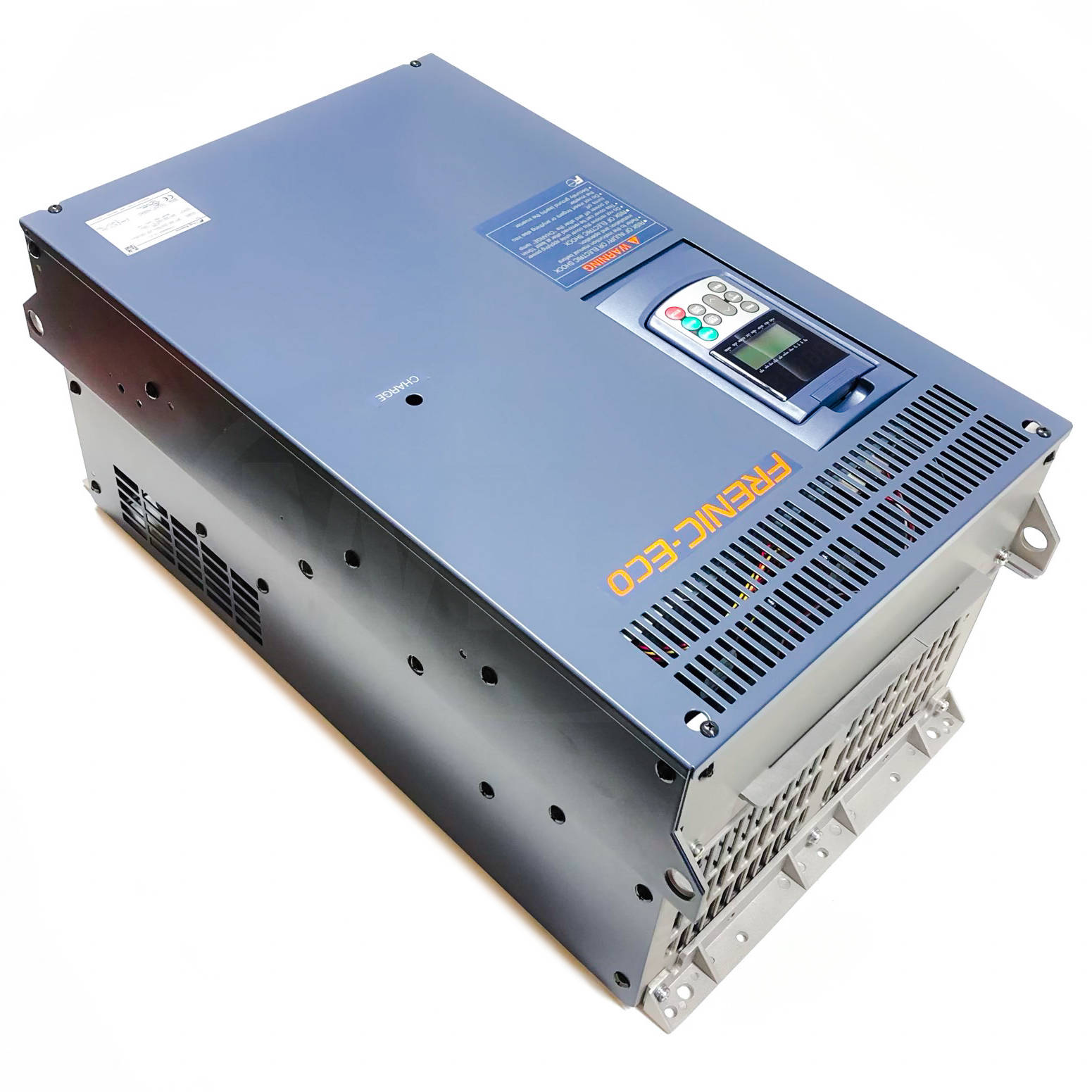

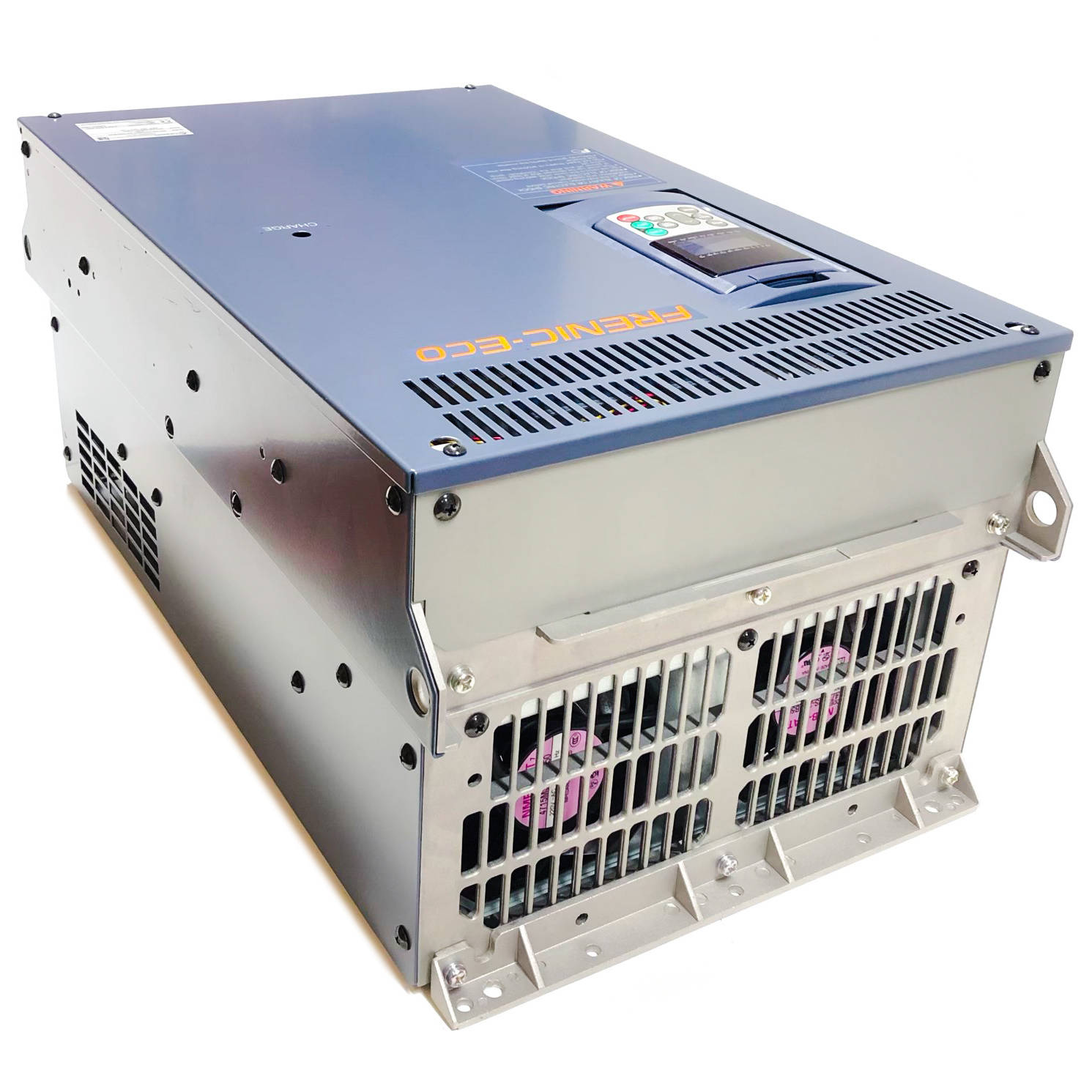

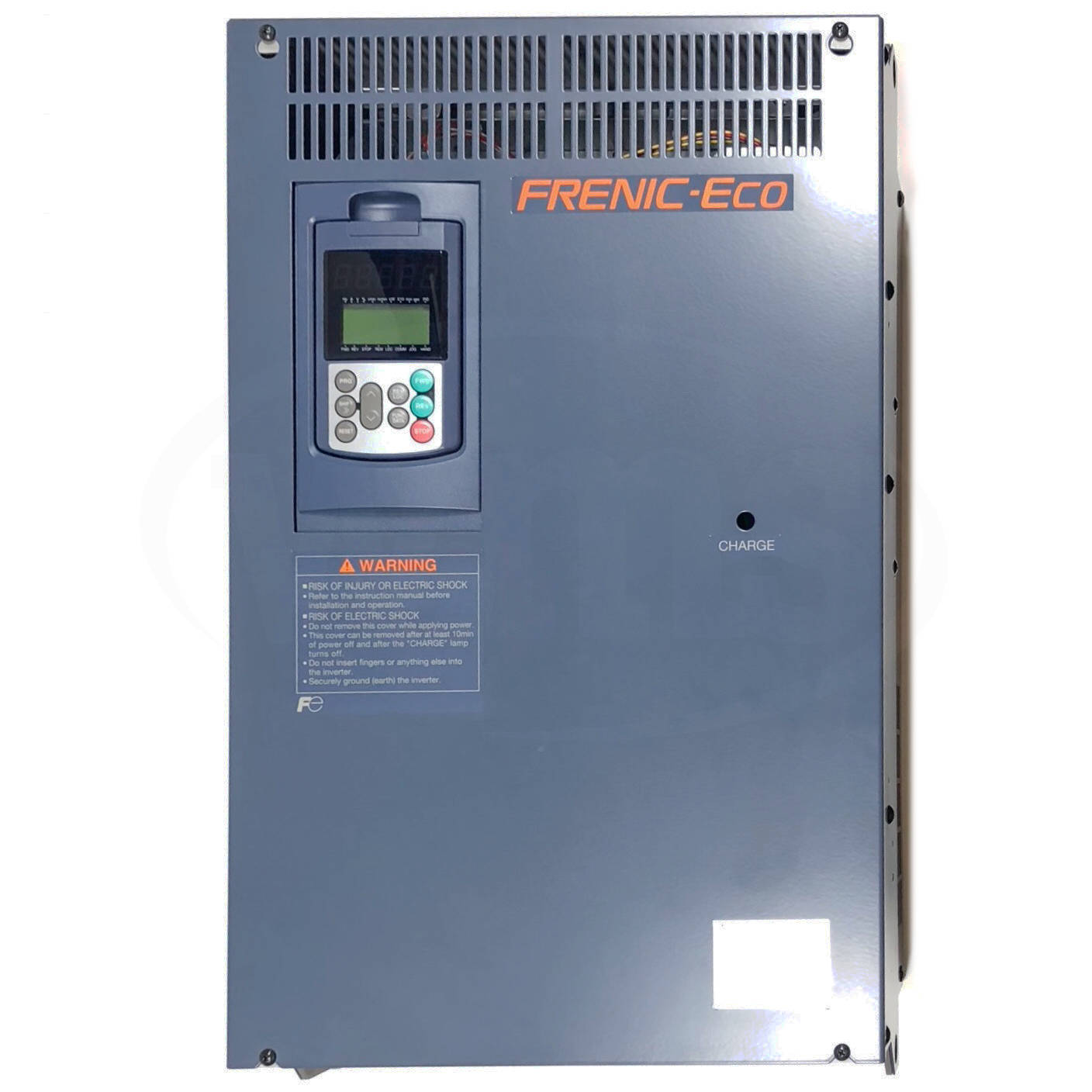

FRN700F1S-4U 700 HP Fuji FRENIC-Eco Inverter/VFD 460V

MFG: Fuji Electric Corp. of America
MFG Part Number: FRN700F1S-4U

Temporarily out of stock
Selected accessories will also be added to cart
$42,105.60 / Each
3 Phase Input (460V 3-Phase Output) Rated 200 HP with 1 Phase Input
Accessories
Select any of the accessories below to purchase them with this inventory item:

Description

Fuji Electric?s FRENIC-Eco series is environmentally friendly by helping to significantly reduce energy use. These drives feature a small footprint for tight installations, network compatibility, and long-term reliability for three-phase applications ranging from 1 HP up to 900 HP. These high performance AC drives / variable frequency drives (VFD) / v/ Hz vector drives are optimized for HVAC applications, such as chillers, air handlers, and fan coils.

General Specifications

BrandFuji Electric Corp of America
ModelFRN700F1S-4U
SeriesFRENIC-ECO
Nominal Motor HP700 HP
Input Voltage3 Phase
380-480VAC
50/60Hz
Output Capacity840 Amps
669 kVA
Overload Capability120% of rated current for 1 minute
EnclosureIP00, UL Open Type
Mass783 lbs
355 kg
Ambient TemperatureUL Open Type: +14 to +122?F (-10 to +50?C)

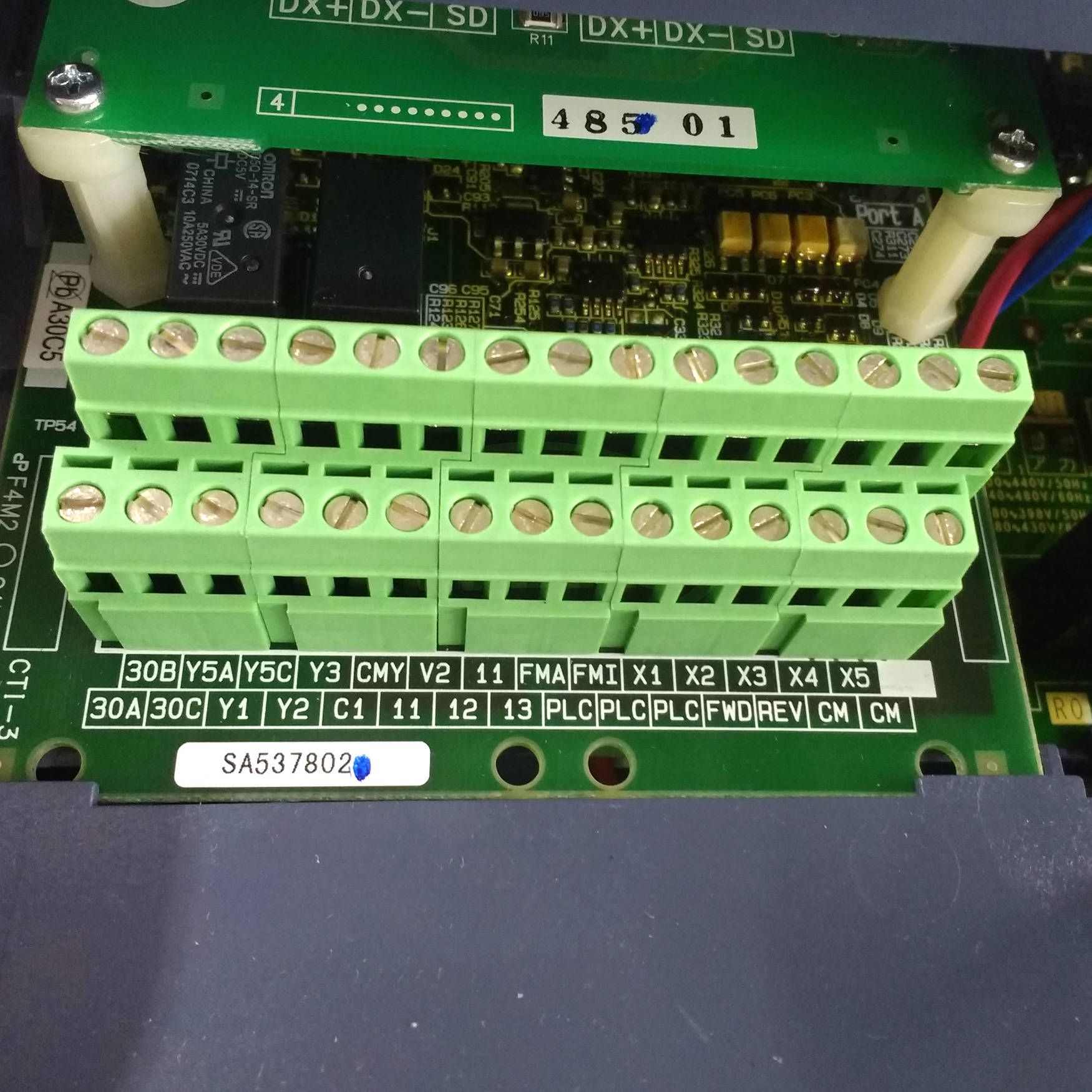

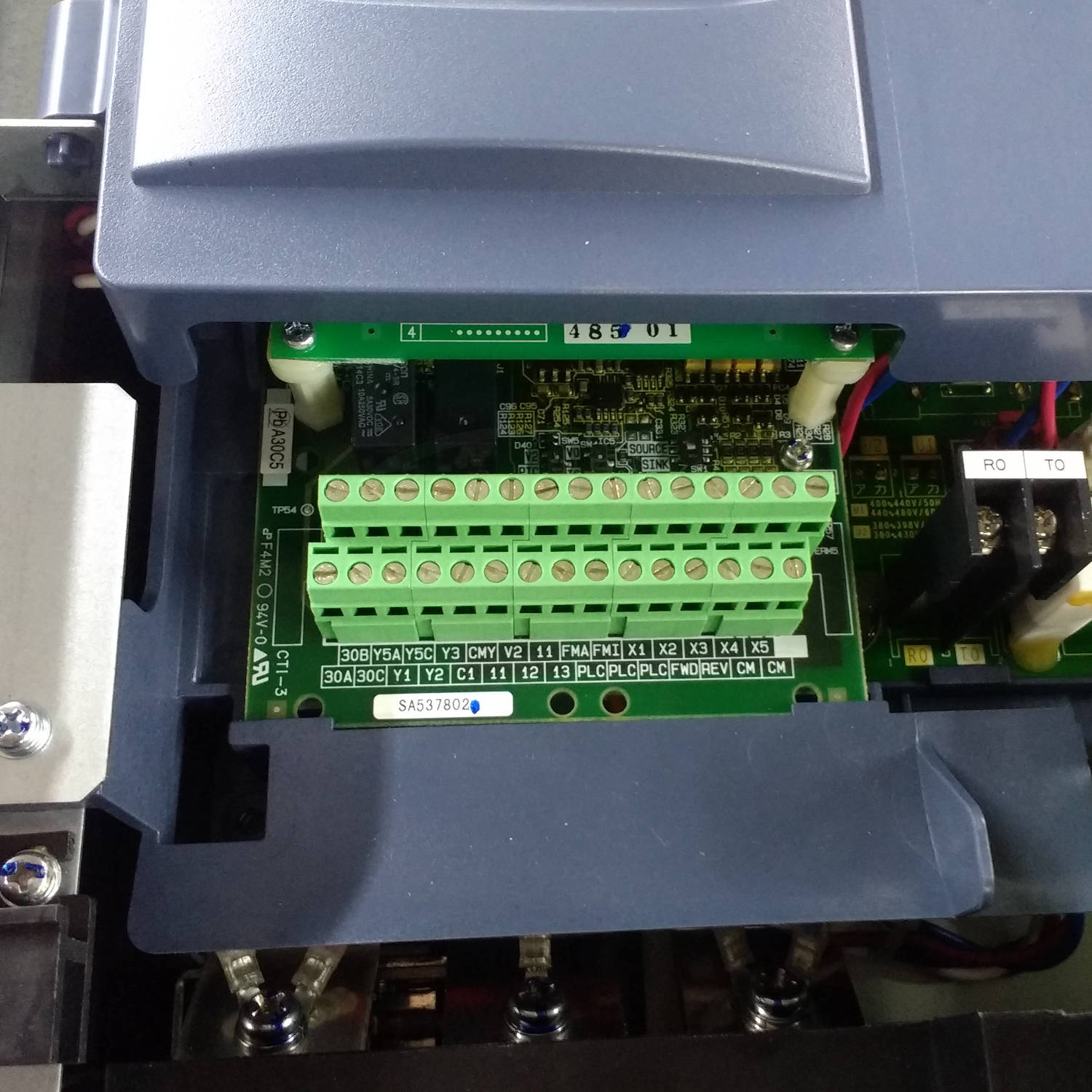

Inputs / Outputs

Analog InputsTwo 0 to +10VDC
One 4 to 20mA
Digital InputsFive Programmable Inputs
Analog OutputsOne 0 to +10VDC or 4 to 20mA
One 4 to 20mA
Digital OutputsOne Form C (1NO/1NC) 0.3Amps @ 230VAC
One Form A (1NO) 0.3Amps @ 230VAC
Transistor OutputsOne 50mA @ 27VDC
Power Supply24VAC 50mA Max

Documentation

Input Voltage
380 to 480VAC
Horsepower
700HP
Series
FRENIC-ECO
