Fuji Electric’s new low voltage FRENIC-HVAC series are slim-type inverters designed for energy savings and optimal control of fan and pump applications. These inverters have key features such as a real time clock, PID (4) controls, torque vector control, removable keypad, fire mode and filter clogging prevention functions. Reduce cost and power consumption with the high-performance FRENIC-HVAC.
460V, 50/60Hz, 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN001AR1L-4U
460V, 50/60Hz, 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN001AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN002AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN002AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN003AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)

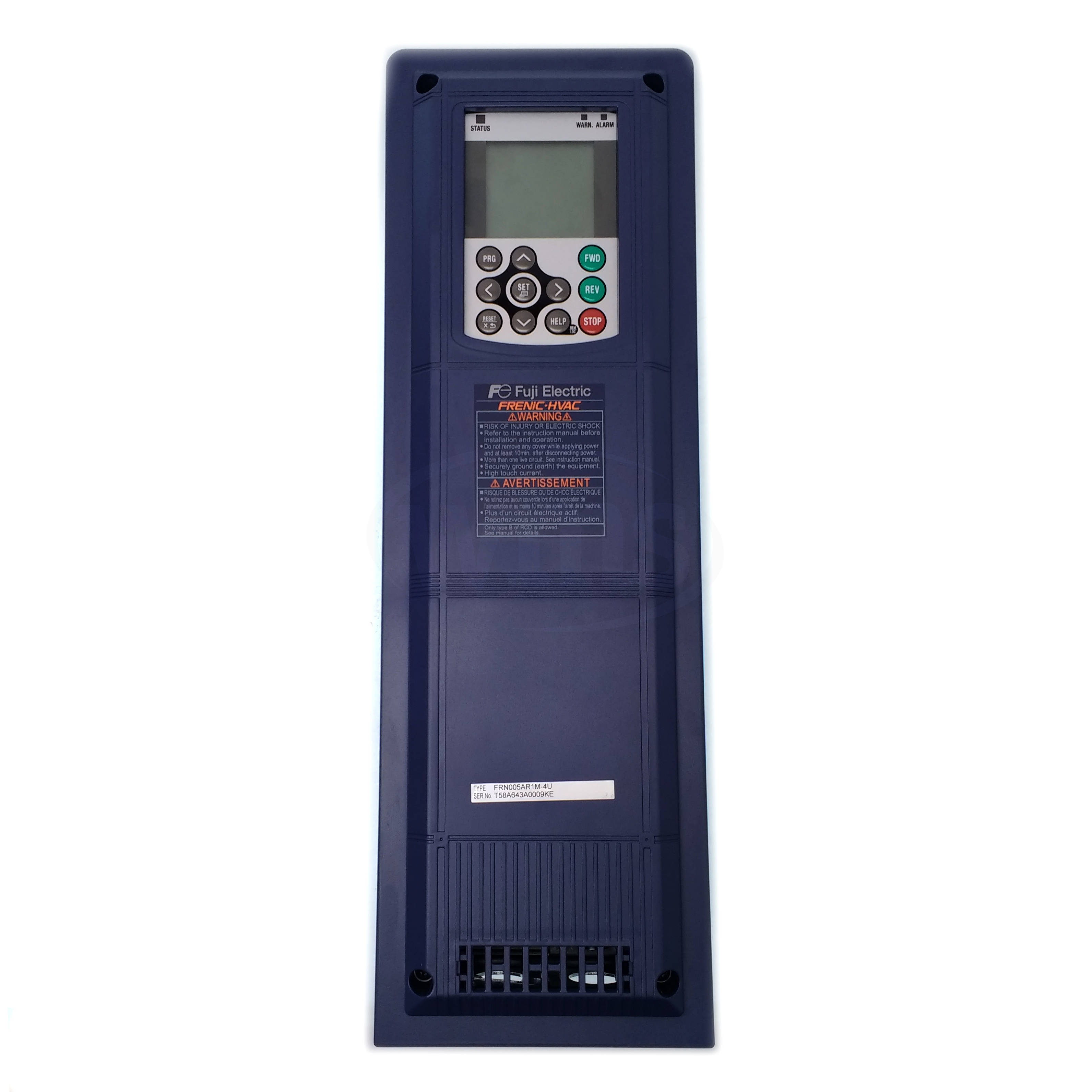

FRN003AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN005AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN005AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN007AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN007AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN010AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
FRN010AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN015AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN015AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN020AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN020AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN025AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN025AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN030AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 23.00" x 7.99" x 10.30" (H x W x D)
FRN030AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 25.40" x 7.99" x 10.30" (H x W x D)

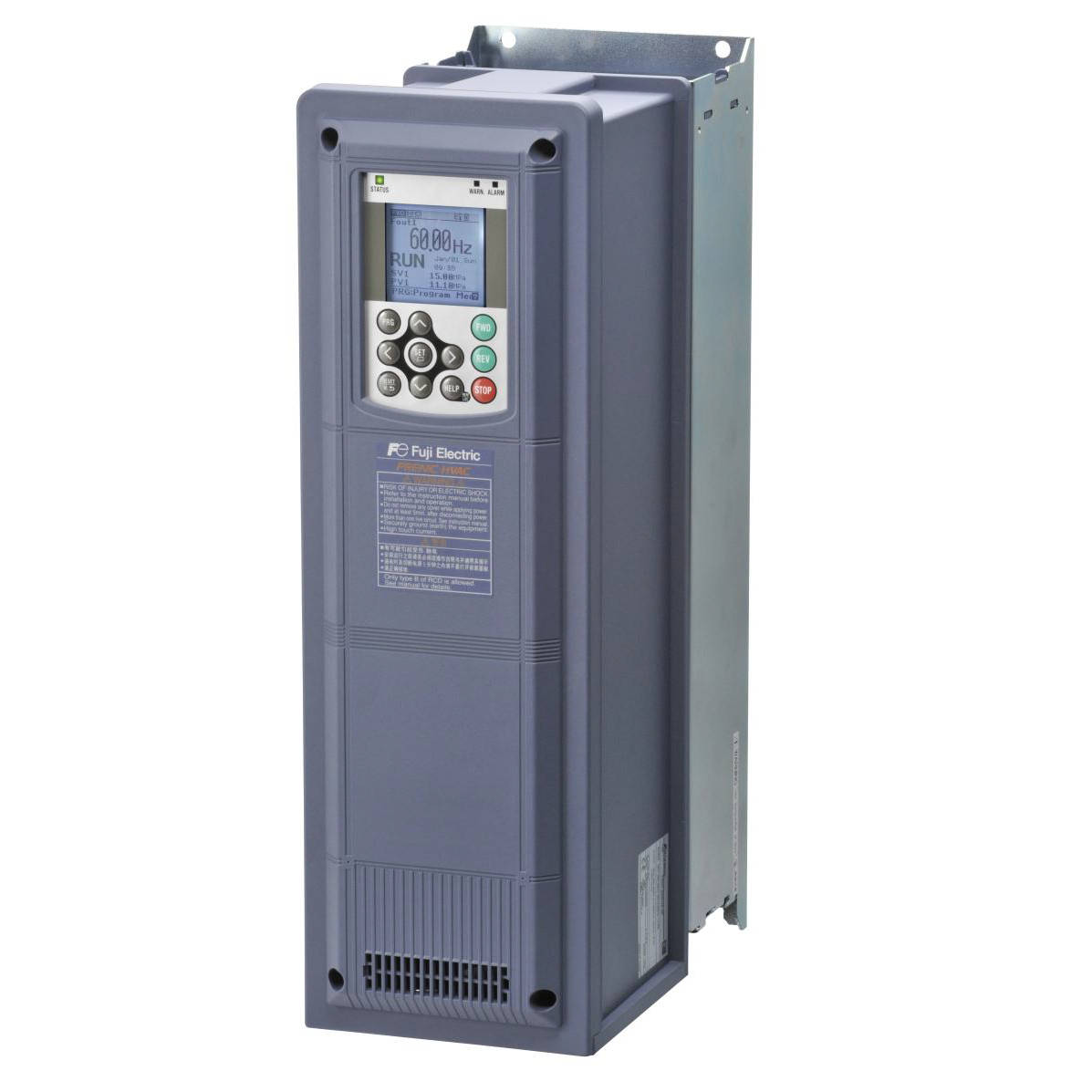

FRN040AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 25.40" x 7.99" x 10.30" (H x W x D)
FRN040AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 25.40" x 7.99" x 10.30" (H x W x D)
FRN050AR1L-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 25.40" x 7.99" x 10.30" (H x W x D)
FRN050AR1M-4U
460V, 50/60Hz, Single or 3 Phase Input (0-460V, 0-120Hz, 3-Phase Output), IP55/UL Type 12 Enclosure, 29.00" x 10.40" x 11.20" (H x W x D)
FRN060AR1L-4U
