Product ID: H16MM

H16MM "H" Style Bushing, 16MM Bore

MFG: Browning (Emerson Power Transmission Products)
MFG Part Number: H16MM

Available Stock: 2
Selected accessories will also be added to cart
$6.16 / Each


Brand Various
Part Number H16MM
Bore 16mm
Keyseat 5mm x 2.5mm
Country of Origin Various

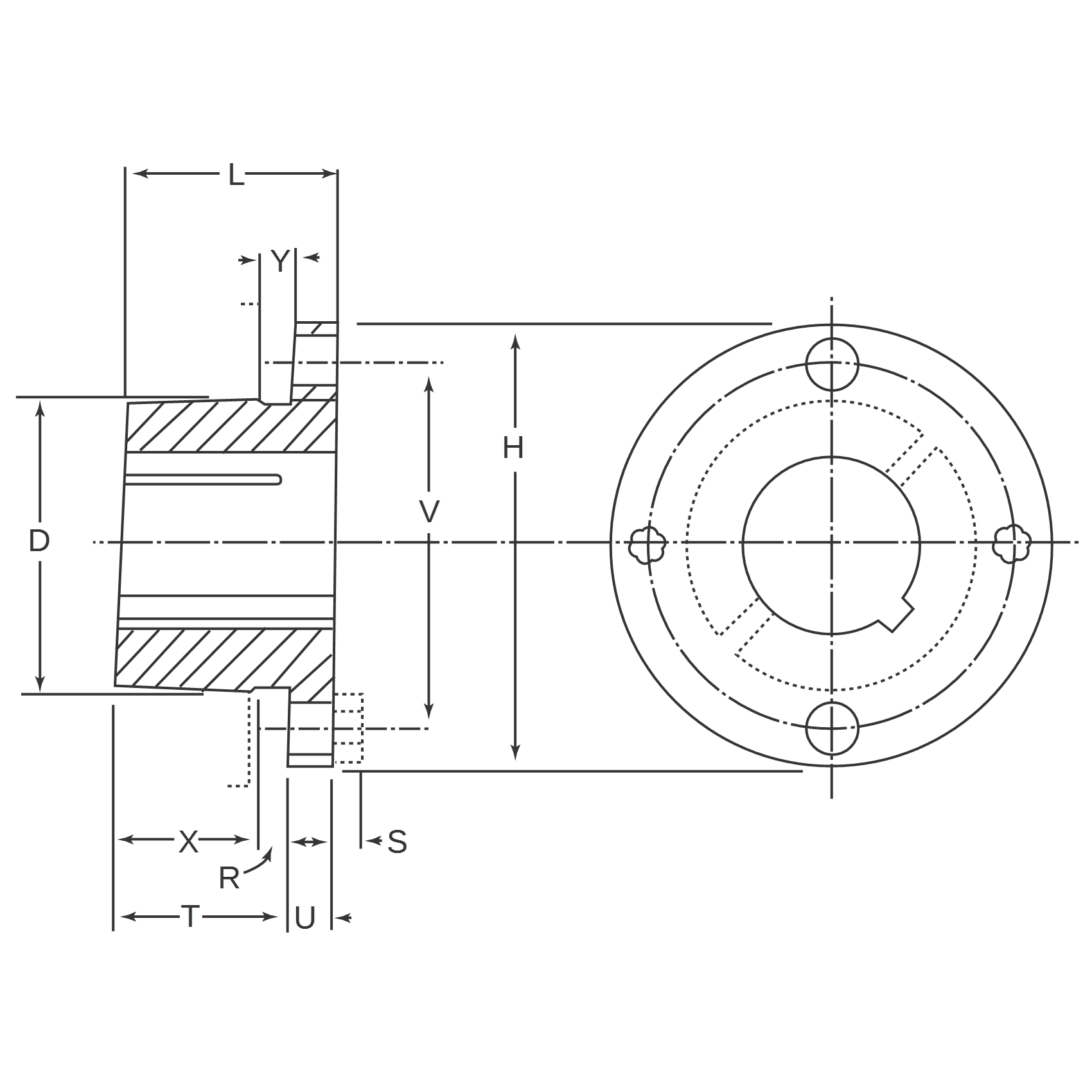

Dimension "L" 1-1/4"
Dimension "U" 1/4"
Dimension "T" 1"
Dimension "D" 1.625" (Large End)
1.570" (Small End)
Dimension "H" 2-1/2"
Dimension "V" 2"
Dimension "X" 7/8"
Dimension "Y" 3/16"
Dimension "R" 1/8"
Dimension "S" 3/16"
Number of Screws/Bolts 2
Screw/Bolt Size
Wrench Torque
