/Products/Pulleys & Sheaves/H Bushings/H22MM AMEC "H" Style Taper Bushing, 22MM Bore
Click Image to Expand

Product ID: H22MM

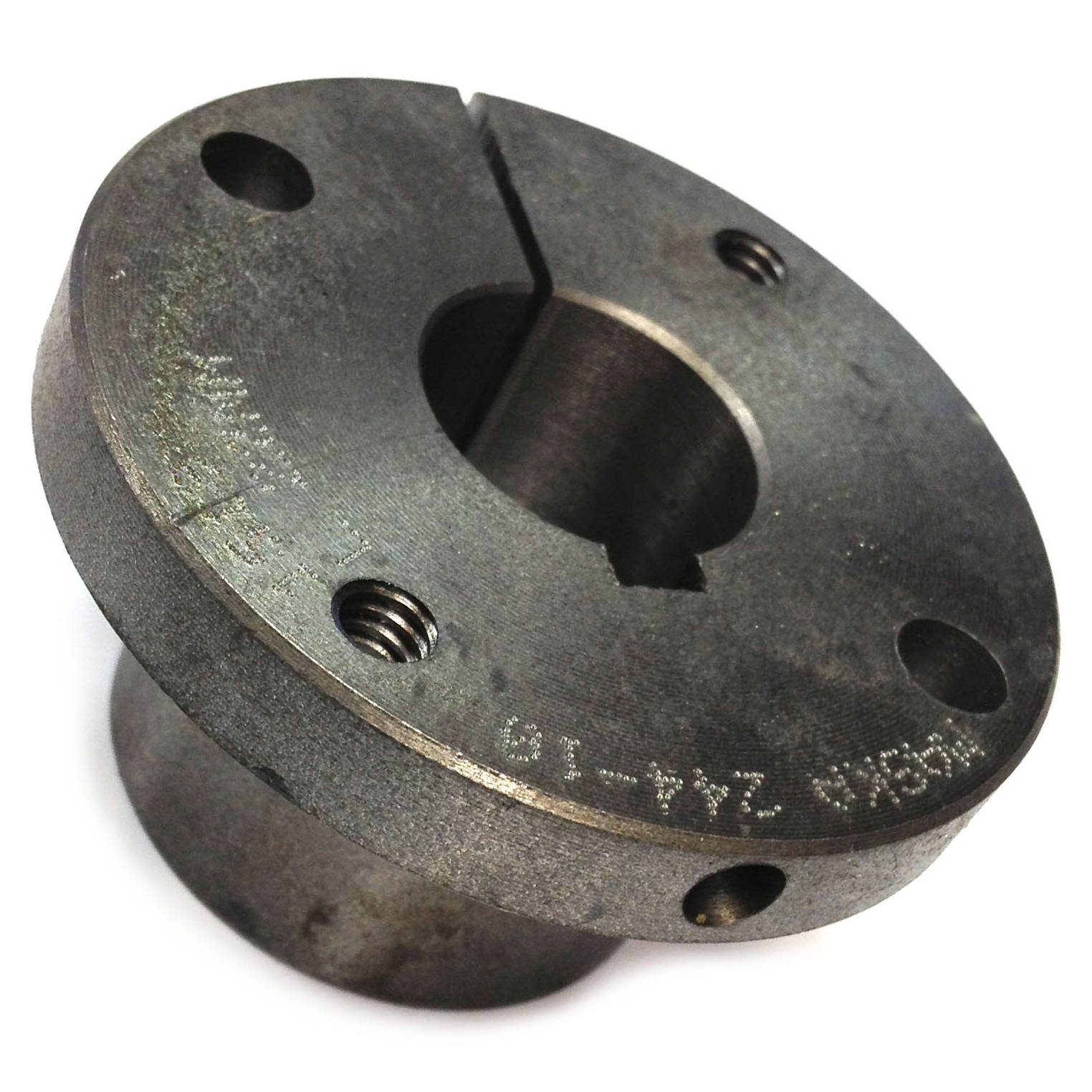

H22MM AMEC "H" Style Taper Bushing, 22MM Bore

MFG: AMEC Industry, Inc
MFG Part Number: H22MM

Available Stock: 1
Selected accessories will also be added to cart
$7.49 / Each
Quantity:

Specifications

Brand Various
AMEC
Part Number H22MM
H-22MM
Bore 22mm
Keyseat 6mm x 3mm
UPC
Country of Origin Various

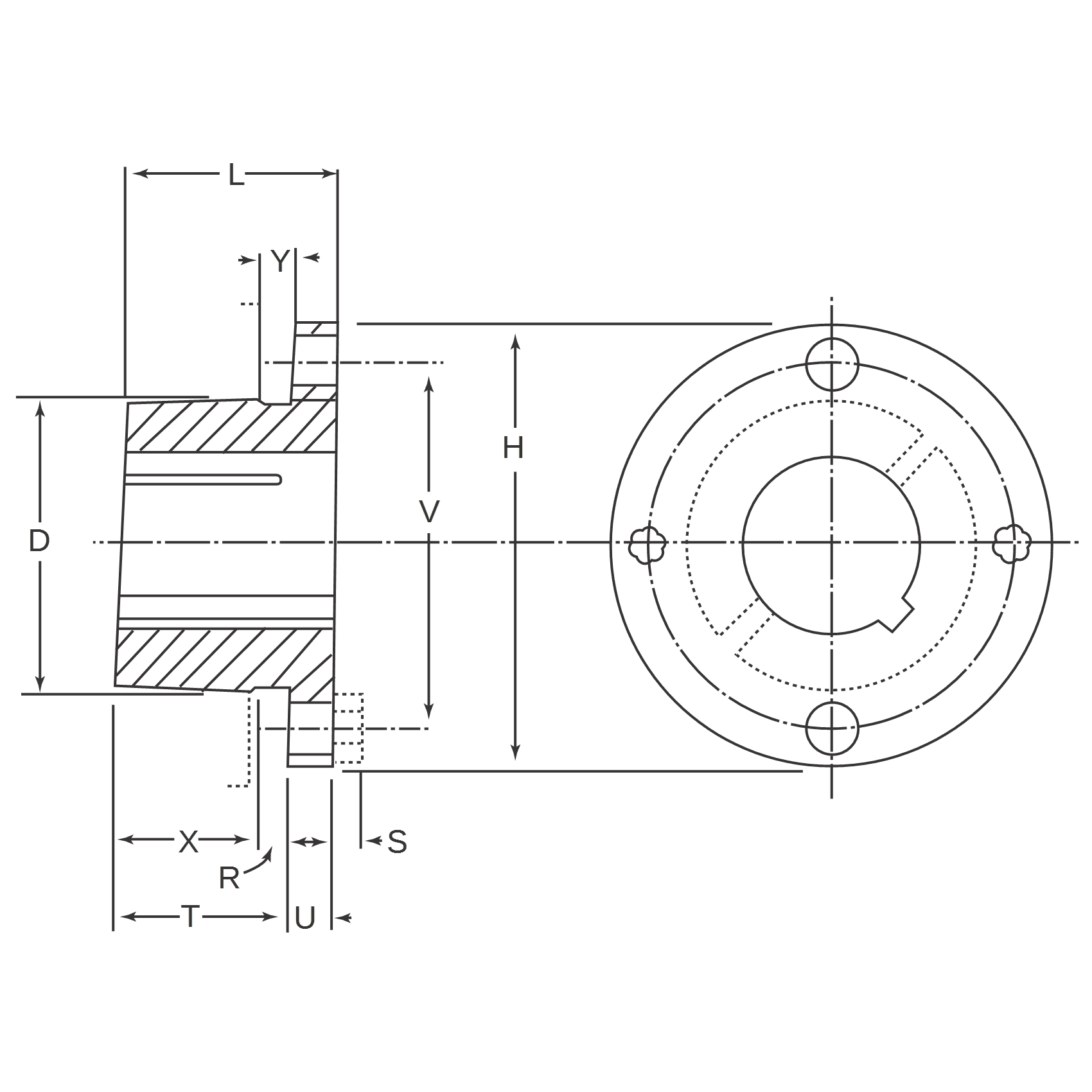

Dimension "L" 1-1/4"
Dimension "U" 1/4"
Dimension "T" 1"
Dimension "D" 1.625" (Large End)
1.570" (Small End)
Dimension "H" 2-1/2"
Dimension "V" 2"
Dimension "X" 7/8"
Dimension "Y" 3/16"
Dimension "R" 1/8"
Dimension "S" 3/16"
Number of Screws/Bolts 2
Screw/Bolt Size
Wrench Torque
