Product ID: H25MM

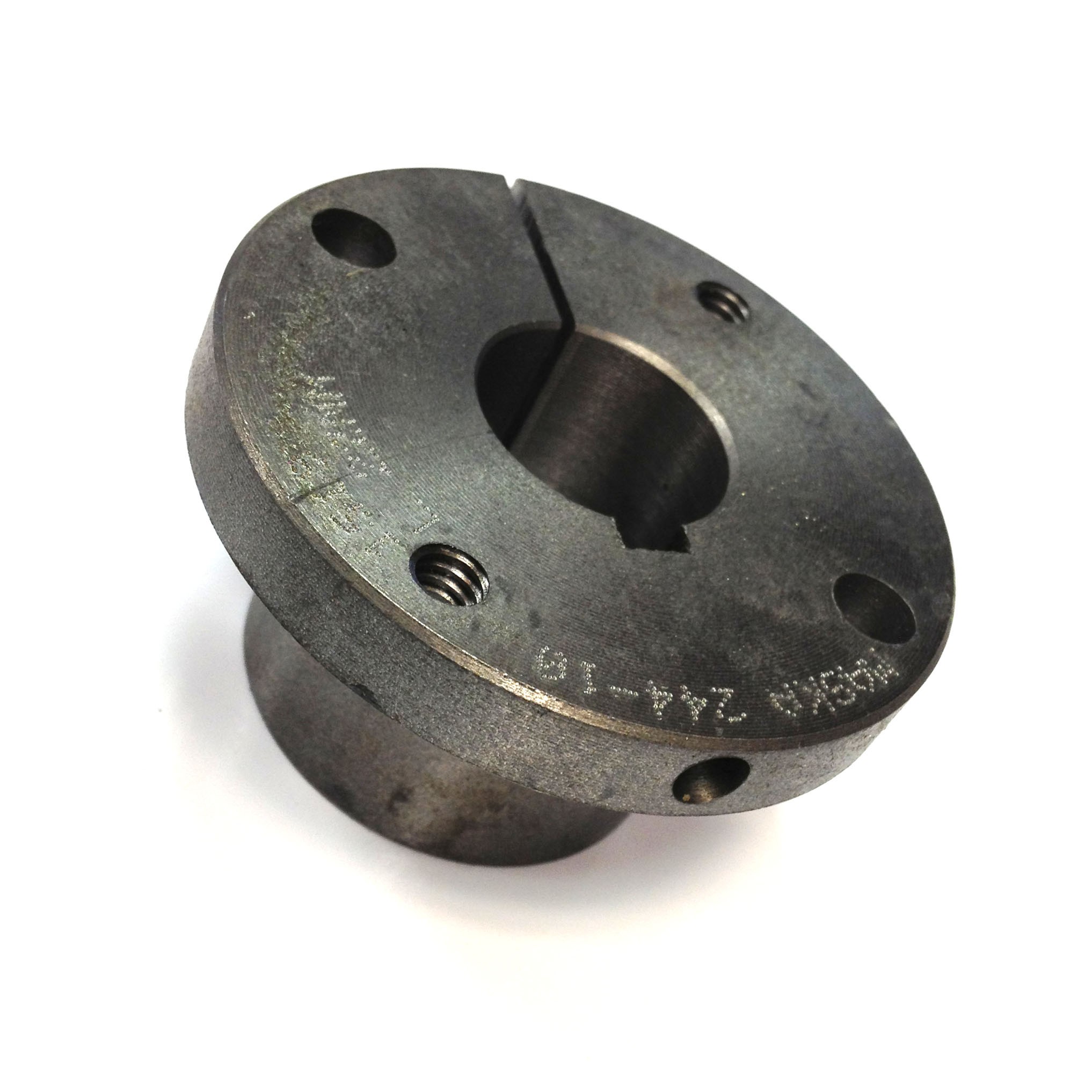

H25MM "H" Style Bushing, 25MM Bore

Available Stock: 2
Selected accessories will also be added to cart
$5.20 / Each


Brand Various
Part Number H25MM
Bore 25mm
Keyseat 8mm x 3.5mm
Country of Origin Various

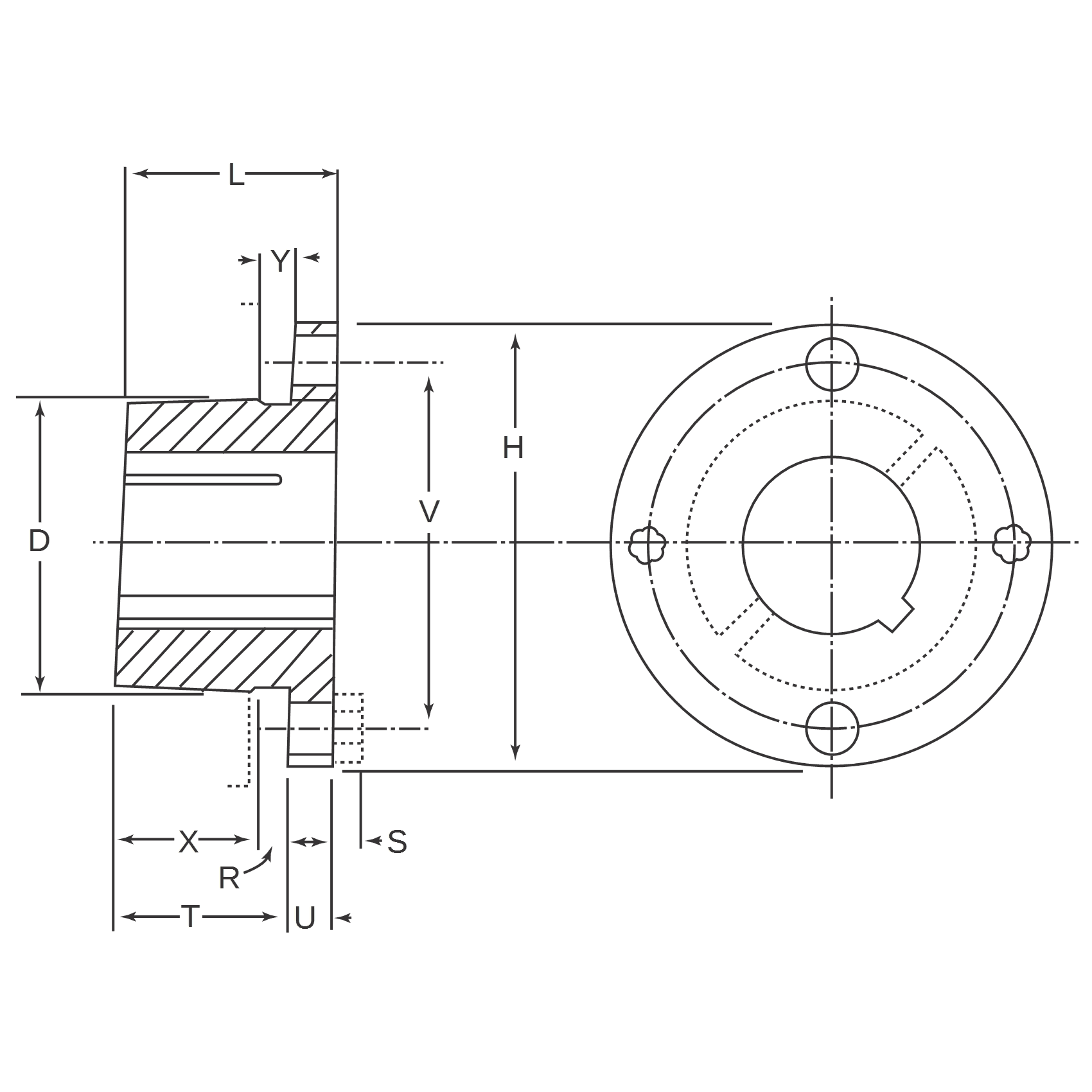

Dimension "L" 1-1/4"
Dimension "U" 1/4"
Dimension "T" 1"
Dimension "D" 1.625" (Large End)
1.570" (Small End)
Dimension "H" 2-1/2"
Dimension "V" 2"
Dimension "X" 7/8"
Dimension "Y" 3/16"
Dimension "R" 1/8"
Dimension "S" 3/16"
Number of Screws/Bolts 2
Screw/Bolt Size
Wrench Torque
