/Products/Electric Motors/3 Phase/Century/Condenser Fan/H667V1 Century 1HP Condenser Fan Electric Motor, 1140RPM
Click Image to Expand

Product ID: H667V1

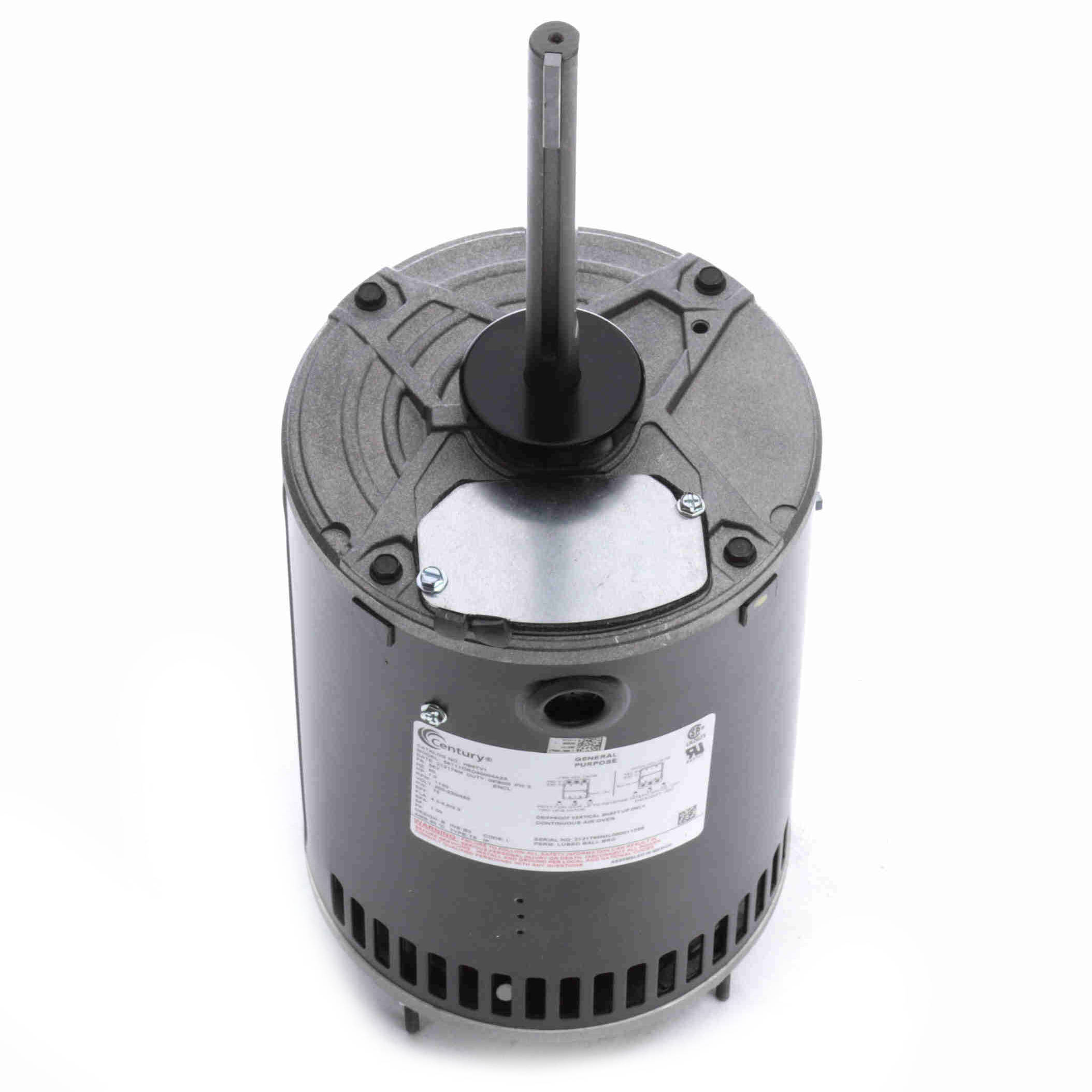

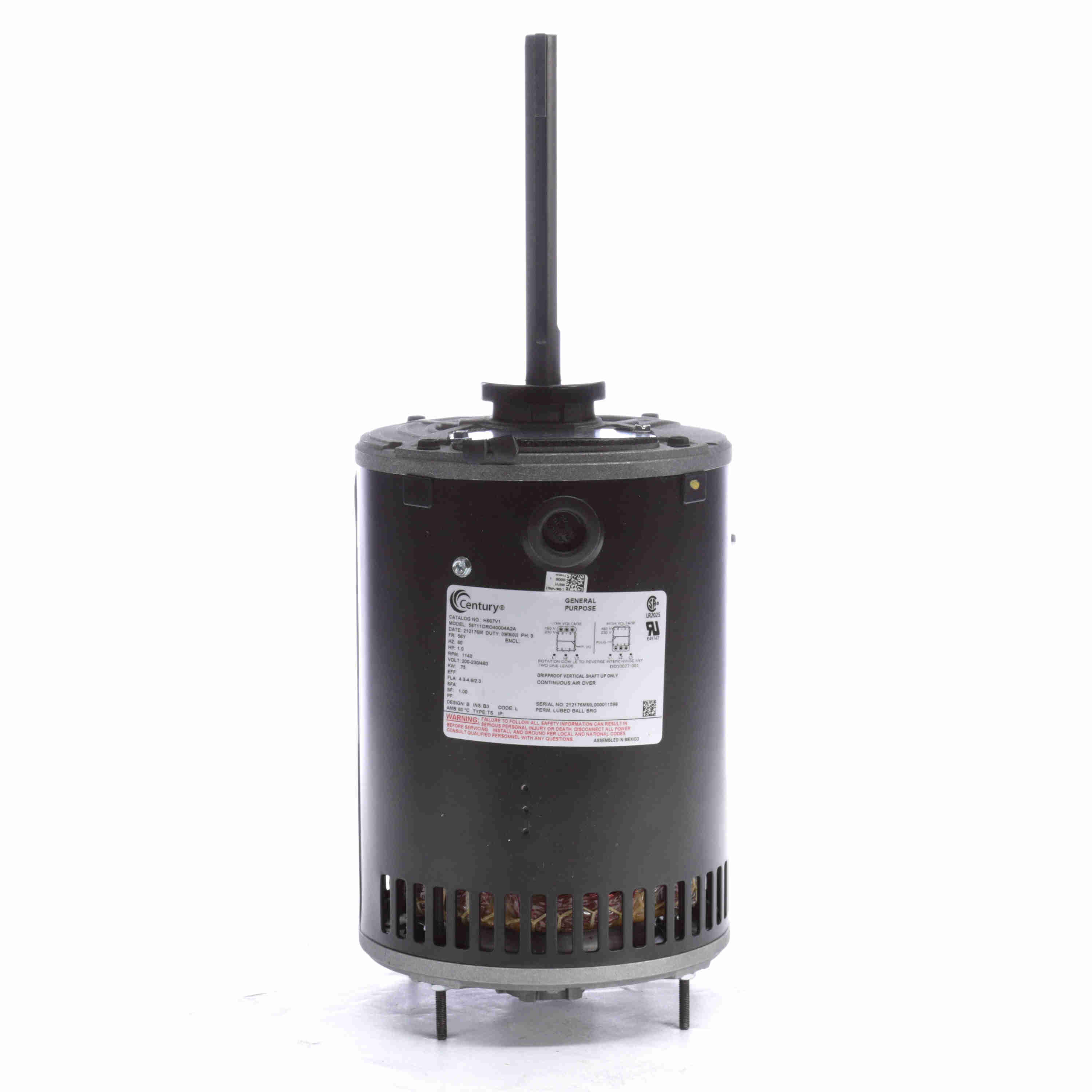

H667V1 Century 1HP Condenser Fan Electric Motor, 1140RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H667V1

Selected accessories will also be added to cart
$689.97 / Each
Quantity:
OAO, 56Y Frame, 200-230/460VAC 3-Phase 60Hz, Round Body, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • Reversible

General Specifications

General Specifications
Model : Catalog No : H667V1
Part Description : 1,1140,OAO,56Y,3/60/200-230/460 Category : Condenser Fans
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1.0 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 200-230/460 V
Current : 4.3-4.6/2.3 A Speed : 1140 RPM
Service Factor : 1 Phase : 3
Duty : Continuous Insulation Class : B
Frame : 56Y Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 60 °C
UL : Recognized CSA : Y
CE : Y

Technical Specifications

Technical Specifications
Electrical Type : Three Phase Starting Method : Across The Line
Poles : 6 Rotation : Reversible
Mounting : Round Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Keyed Overall Length : 16.52 in
Frame Length : 8.15 in Shaft Diameter : 0.625 in
Shaft Extension : 6.06 in UPC : 786674074126
Weight : 31.00 LB

Speed & Load Characteristics
