/Products/Phase Converters/Maxiphase/Maxiphase 460 Volt Phase Converters TEFC/HDHV10-303R Maxiphase Rotary Phase Converter

Product ID: HDHV10-303R

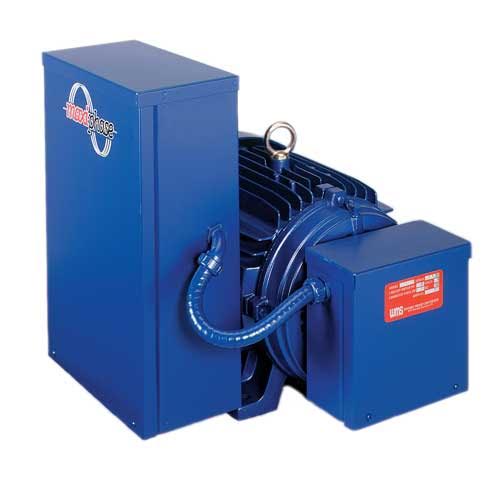

HDHV10-303R Maxiphase Rotary Phase Converter

MFG: Maxiphase Converters
MFG Part Number: HDHV10-303R

Selected accessories will also be added to cart

$3,800.00 / Each

Quantity:

Specifications

Model
Largest Single Load	15 HP
Maximum Combined Load	45 HP
Voltage	460 Volts
Frequency	60Hz
No Load Amperage	5.0 Amps
"a" Dimension	22 Inches
"b" Dimension	21 Inches
"c" Dimension	23 Inches
Motor Enclosure	TEFC
Motor Frame Size	284T
Input Circuit Breaker Rating	100 Amp
Input Wire Size	#4 Minimum
Approximate Weight	400 lbs
Notes

Product Information Links:

WMS Maxiphase

NP0254S 25 HP Teco-Westinghouse Cast Iron Electric Motor, 1800 RPM

NP0254S 25 HP Teco-Westinghouse Cast Iron Electric Motor, 1800 RPM

284TS, 3 Phase, 230/460VAC 60Hz

MFG: TECO-Westinghouse

NP0254S

$1,549.97 / Each

SFC66T10K291B-F Cornell Dubilier Run Capacitor

SFC66T10K291B-F Cornell Dubilier Run Capacitor

10 Mfd, 660 Vac, 50/60Hz., SFC66T10K291B-F
Available Stock: 217

MFG: Cornell Dubilier

SFC66T10K291B-F

$22.04 / Each

CAP250320384-NGM HI-TORQ Start Capacitor

CAP250320384-NGM HI-TORQ Start Capacitor

Mfd 320-384 uF, 250 VAC, 50/60 Hz.
Available Stock: 2

MFG: Hi-Torq Capacitors

CAP250320384-NGM

$51.10 / Each

002758.02 Leeson Stationary Switch

002758.02 Leeson Stationary Switch

Available Stock: 27

MFG: Leeson Electric (Regal Rexnord)

LSN 5

$28.90 / Each

RS 158 Centrifugal Switch for Maxiphase Converter

RS 158 Centrifugal Switch for Maxiphase Converter

1-5/8" Bore
Available Stock: 20

MFG: Maxiphase Converters

RS 158

$84.97 / Each

WMS003WIRE-CAP 3-Wire Capacitor Harness, White

WMS003WIRE-CAP 3-Wire Capacitor Harness, White

Available Stock: 34

MFG: Witmer Motor Service

WMS003WIRE-CAP

$4.50 / Each

NMLT50 1/2^ PVC Straight Liquid Tight Connector

NMLT50 1/2" PVC Straight Liquid Tight Connector

Available Stock: 23

MFG: Arlington Industries, Inc.

NMLT50

$4.52 / Each

NMLT9050 1/2^ 90° PVC Liquid Tight Connector

NMLT9050 1/2" 90° PVC Liquid Tight Connector

Available Stock: 27

MFG: Arlington Industries, Inc.

NMLT9050

$7.16 / Each

C25DNF340C Eaton Definite Purpose Contactor

C25DNF340C Eaton Definite Purpose Contactor

3-Pole, 40 Amp, Open, 440-480VAC 50/60Hz Coil
Available Stock: 6

C25DNF340C

$118.44 / Each

27599 #10-32 x 3.5^ Round Slotted Machine Screw

27599 #10-32 x 3.5" Round Slotted Machine Screw

Steel, Zinc Finish
Available Stock: 144

MFG: Fastenal Company

NB27599

$0.32 / Each

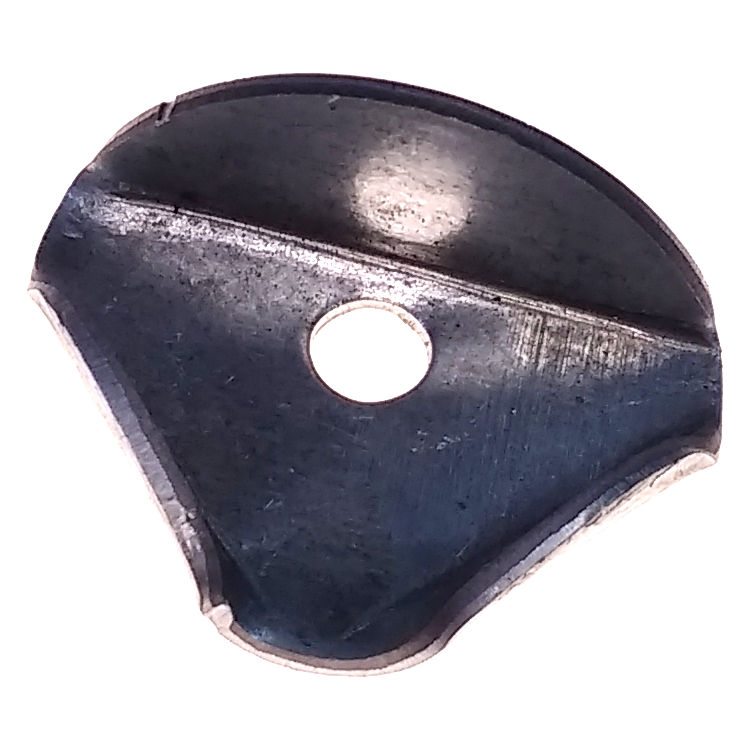

3-Bend Capacitor Washer

3-Bend Capacitor Washer

Available Stock: 308

3BEND

$1.51 / Each

4-Bend Capacitor Washer

4-Bend Capacitor Washer

Available Stock: 36

MFG: Witmer Motor Service

4BEND

$2.80 / Each

27601 #10-32 x 5^ Round Slotted Machine Screw

27601 #10-32 x 5" Round Slotted Machine Screw

Steel, Zinc Finish
Available Stock: 118

MFG: Fastenal Company

NB27601

$1.68 / Each

36030 Fastenal #10-32 Zinc Plated Machine Screw Nut

36030 Fastenal #10-32 Zinc Plated Machine Screw Nut

Low Carbon

MFG: Fastenal Company

NB36030

$0.05 / Each

Enclosure

TEFC

Input Voltage

460VAC

Enclosure

TEFC

Series

HVC
