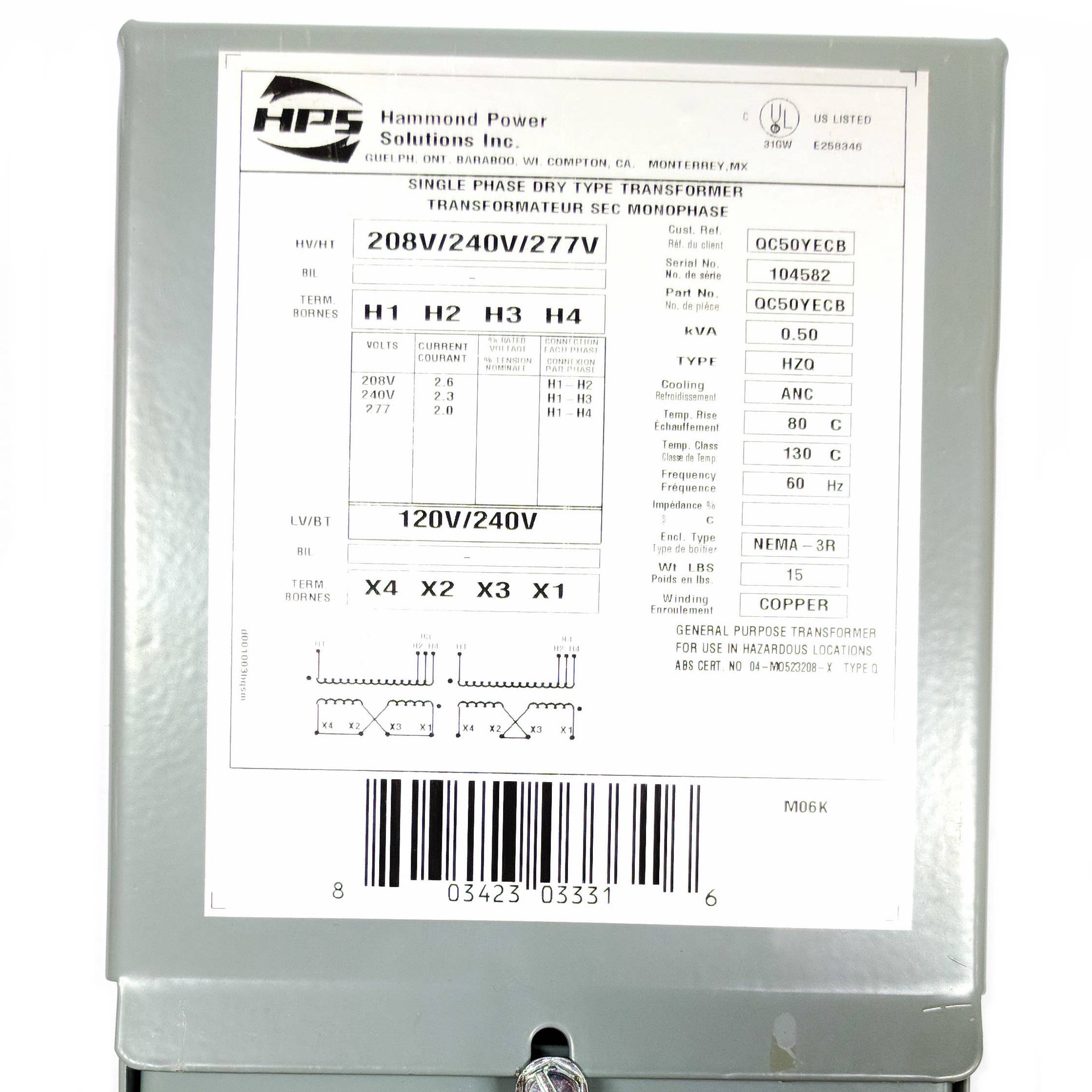

Hammond Power, QC50YECB, Encapsulated Dry Type Distribution Transformer, 0.5kVA, 1Ph, 208/240/277 Pri/120/240 Sec, Nema 3R Enclosure,
General Purpose Transformer for use in Hazardous Locations.
Specifications
Brand Hammond Transformers
Type Encapsulated Dry Type Distribution Transformer
kVa 0.5
Primary Voltage 208, 240, 277
Secondary Voltage 120, 240
Phase 1
Winding Material Copper
Enclosure Nema 3R
Width 5
Depth 4.75
Height 9.25
Dimensions (WxDxH) 5.00 x 4.75 x 9.25
Mtg. Type W
Case Style NQ2
Wiring Diagram SCD 18
