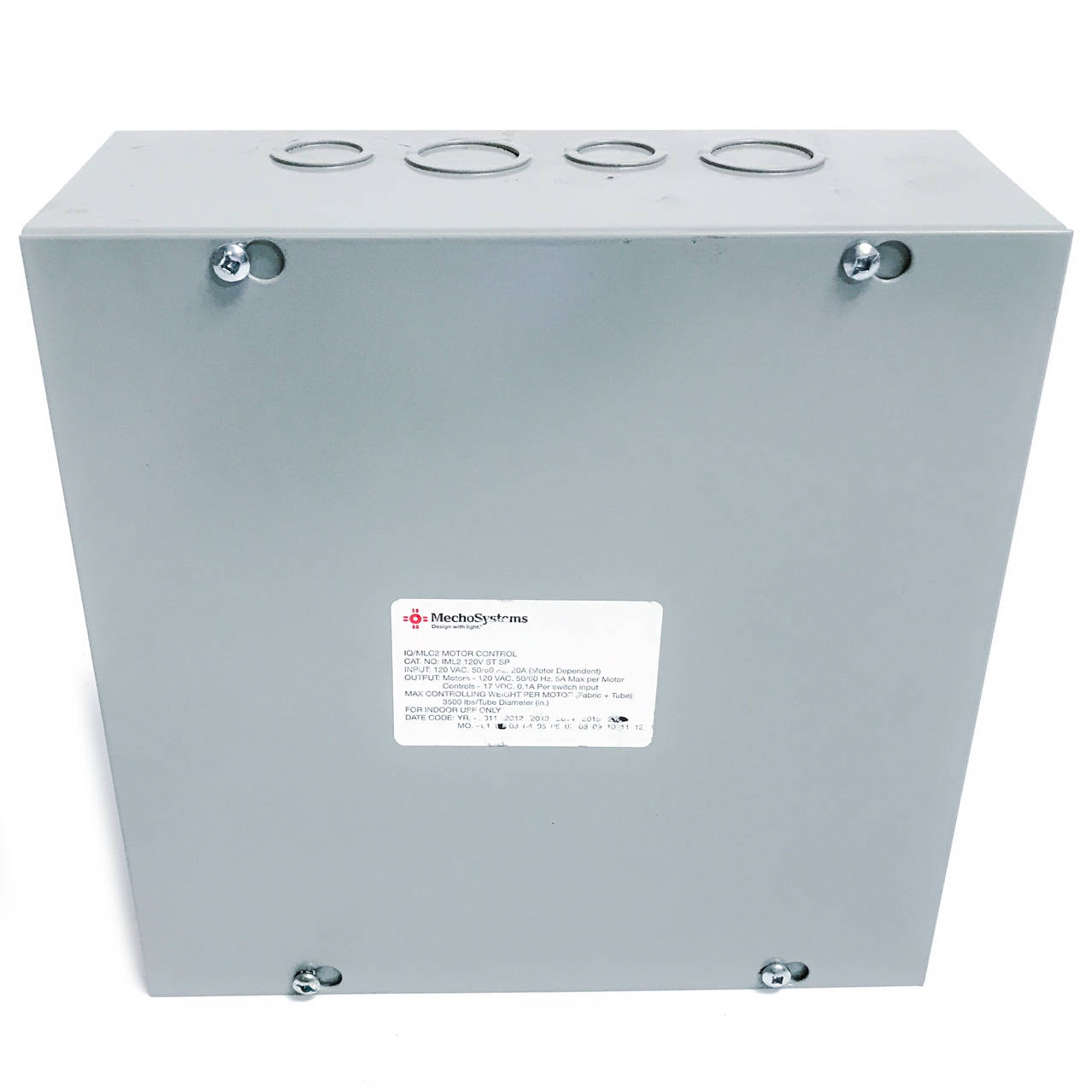

IQ/MLC2® Specification Submittal
IQ/MLC2 Standard 120VAC

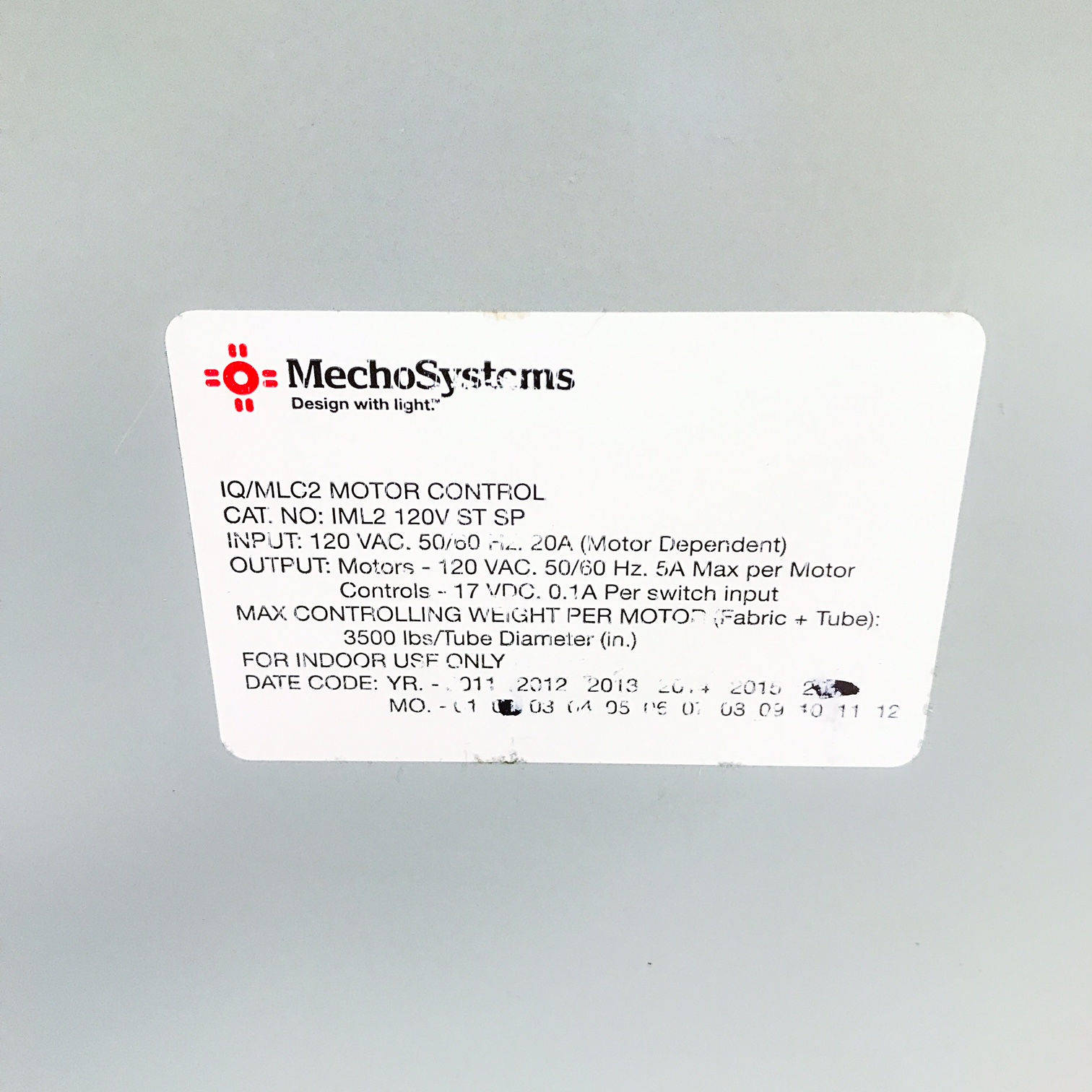

Stock No. IML2 120V ST SP
Features

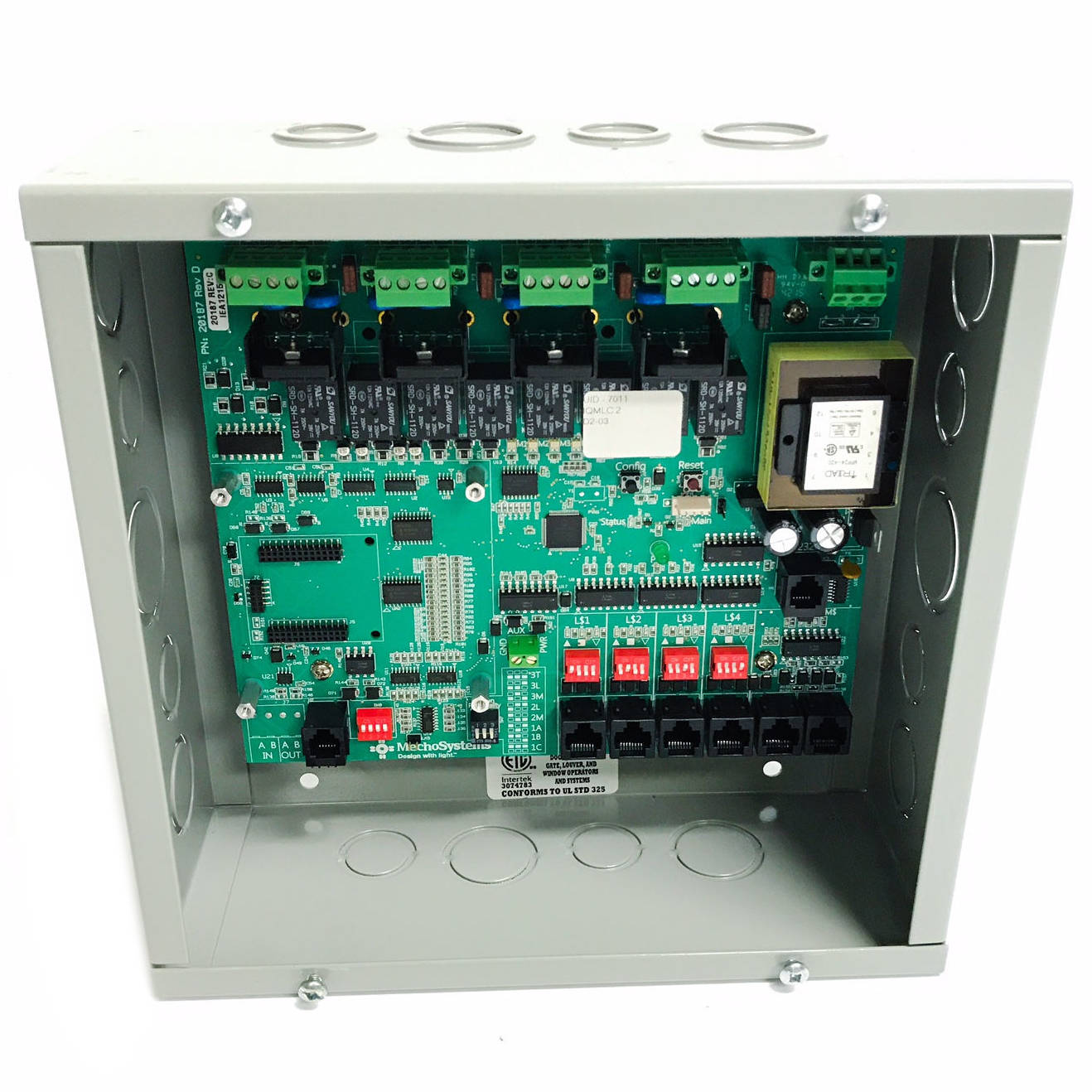

• Four-motor, networked shade controller operates motorized shades equipped with standard line- voltage motors.

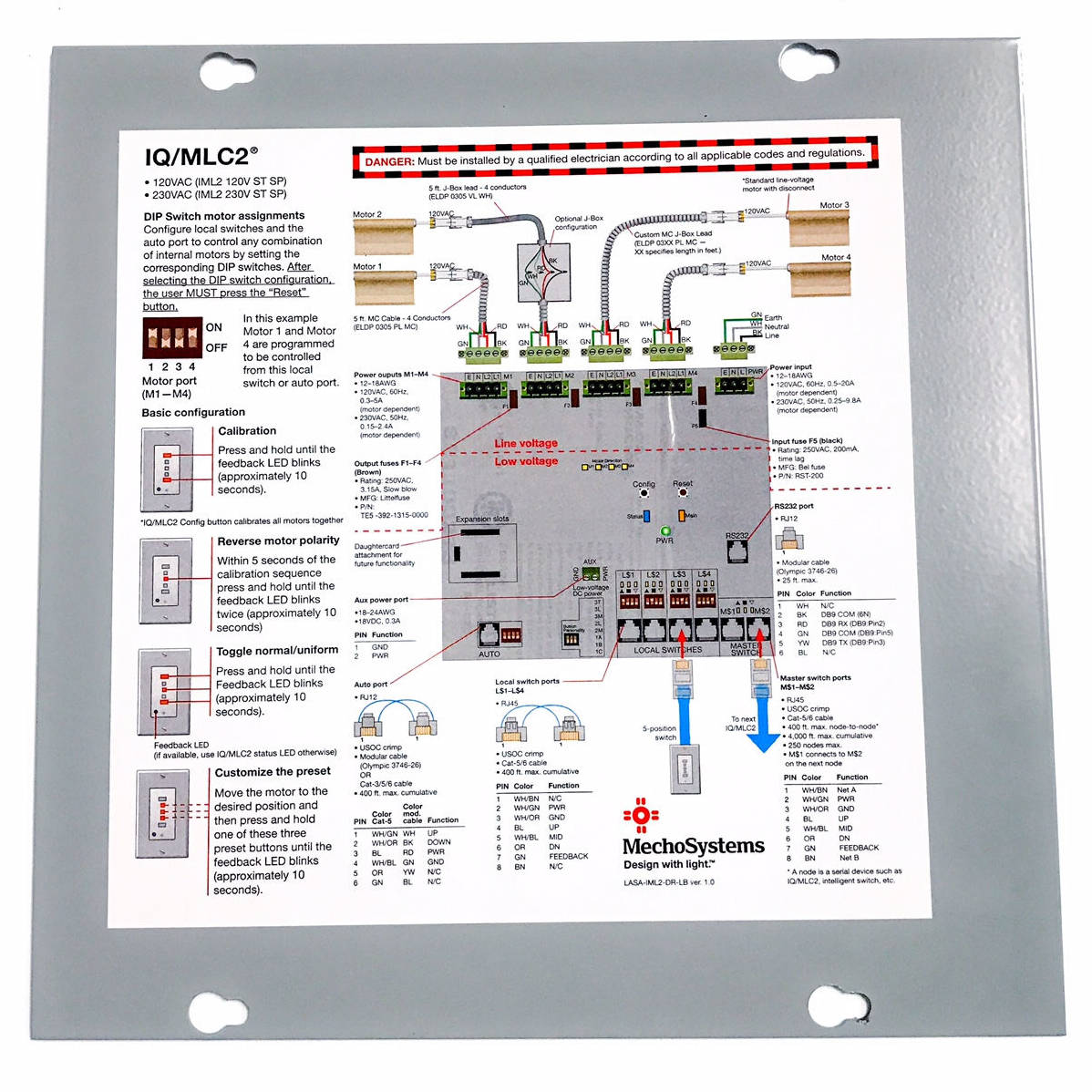

• Provides four (4) DIP-switch configurable local control ports, which permit control of any combination of the four motors within the controller via dry contact.
• Reprogramming of local control port motor assignments is possible through DIP switches with out needing to access the motor.
• Master control port offers dry-contact group control of all four internal motors.
• Master control port enables control, via daisy chaining, of up to 250 IQ/MLC2 units or 1,000 motors (2,000 motors if using the optional 4-Motor Expander Daughter Card).
• Control ports offer one-touch shade positioning to five (5) alignment points, including three (3) midwindow presets.
• Control ports can provide power to low-voltage control accessories up to 18VDC, 300mA total.
• Preset positions default to 25%, 50%, and 75% of the shade height but are programmable to offer hem bar alignment across windows of
different sizes.
• Uniform mode forces groups of shades to operate to predetermined alignment points.
• Switch personality selection enables operation of shades from 1-button, 2-button, and 3-button switches
• Ease of use
- Removable, two-piece line-voltage terminal block connectors.
- Troubleshooting LEDs.
• Integrated RS485 half-duplex, CSMA-CA communication network expands control options:
- Allows up to 250 nodes per network.
- Enables two-way communication.
- Uses standard Cat-5 network cable.
• Integration capability with third-party devices via RS232 and dry-contact; requires no additional interface devices.
• Automation port offers daylighting control using photosensors and scheduler-based operation, as well as remote control using IR and RF wireless controls.
• Modular expansion port enables control of up to four (4) pairs of motors using the IQ/MLC2 4-Motor Expansion Card.
• Brownout protection protects against memory loss and unreliable operation during low-line conditions.
• Flash-upgradable firmware promote flexibility for custom requirements and future enhancements.
• ETL listed to UL 325.
• CSA 22.2 No. 247 compliant.
