/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/Oil Burner/J1025 Marathon 1/3HP HVAC/R Electric Motor, 3600RPM
Click Image to Expand

Product ID: J1025

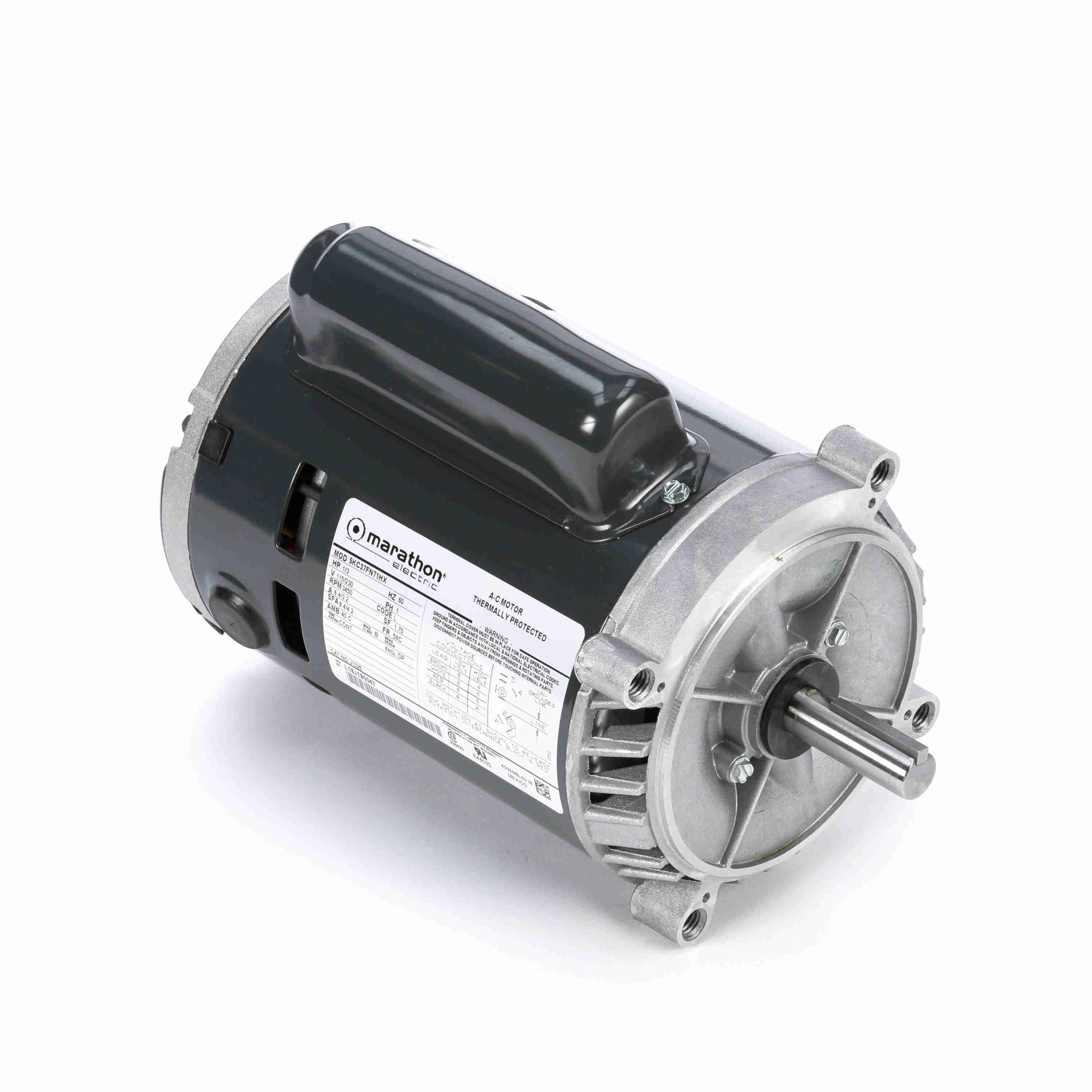

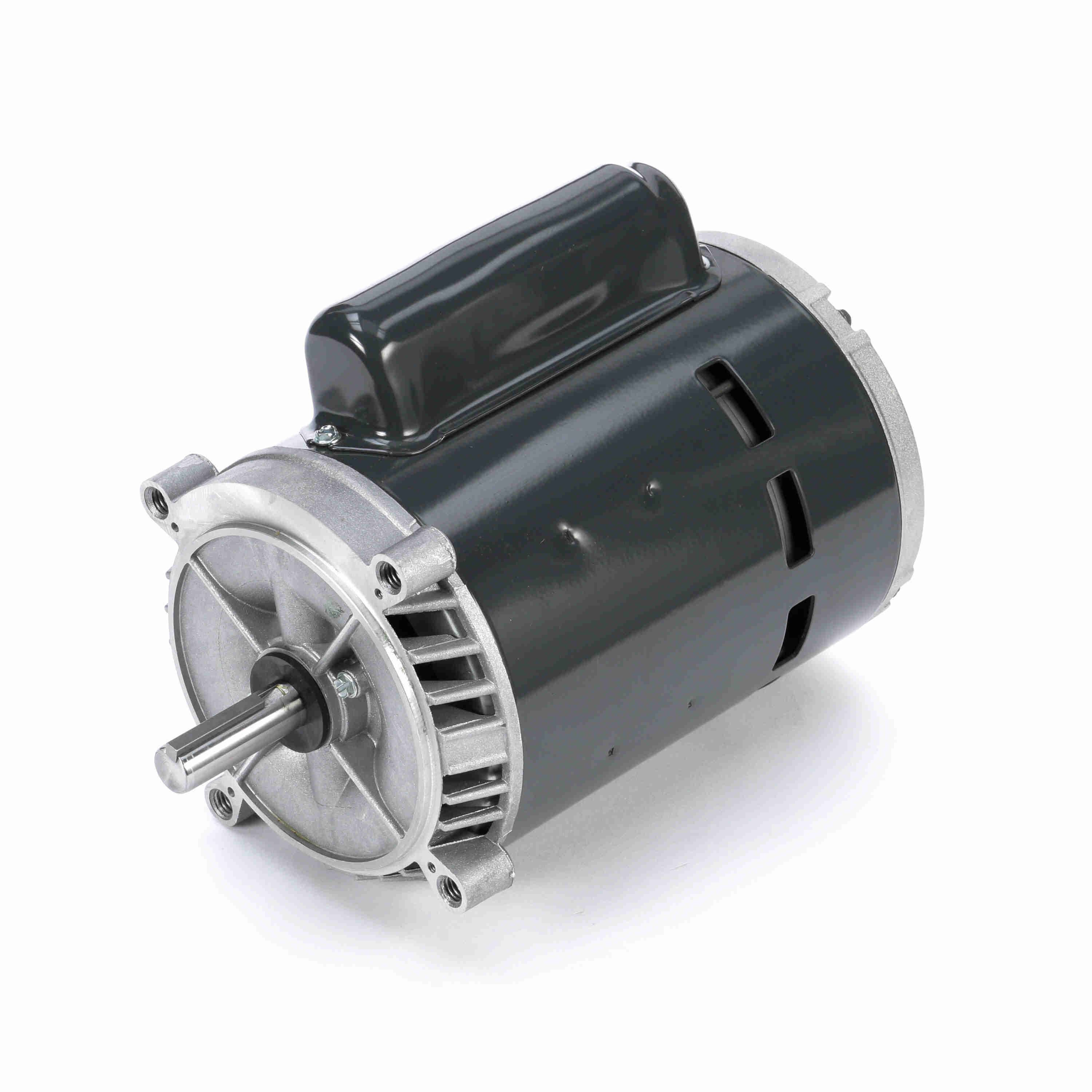

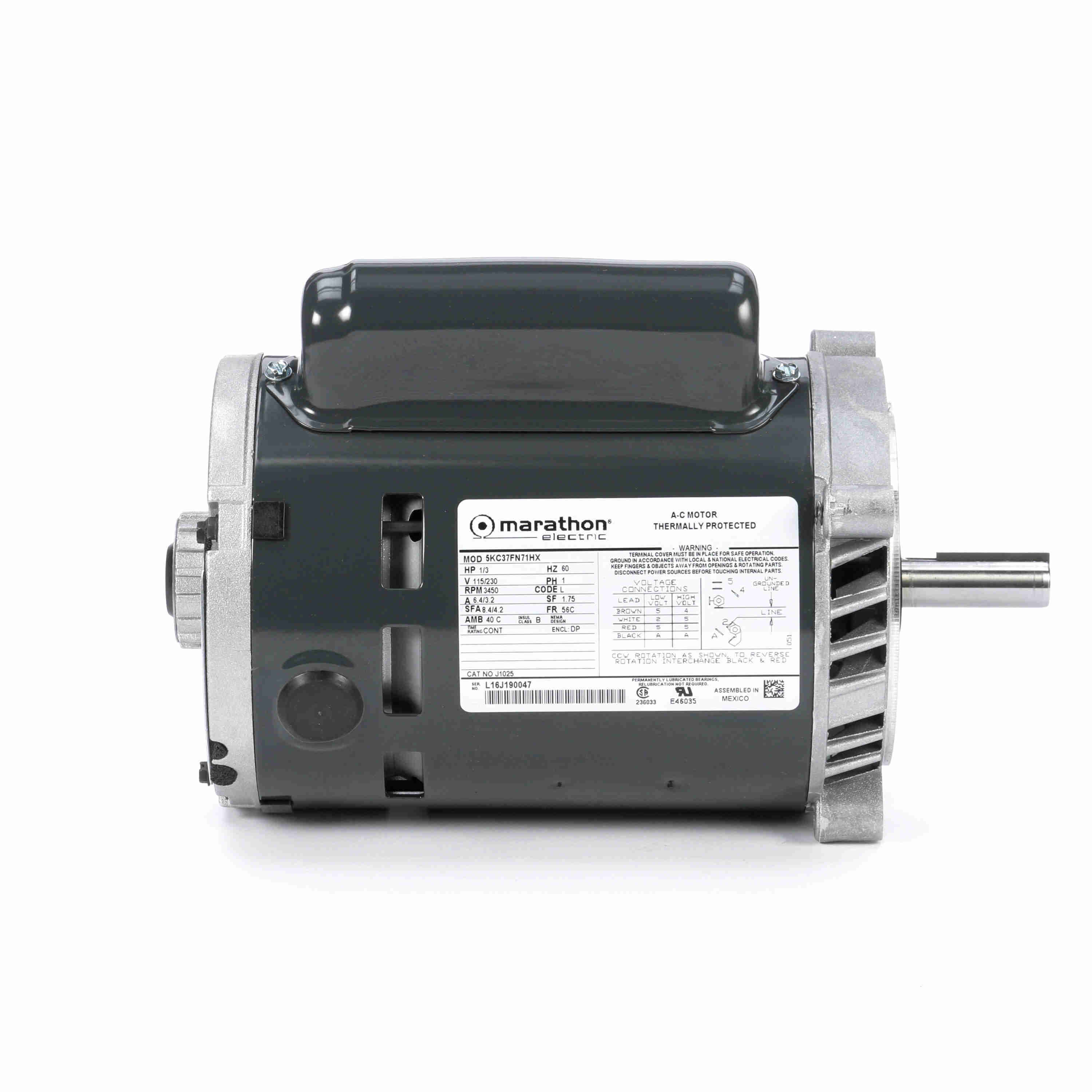

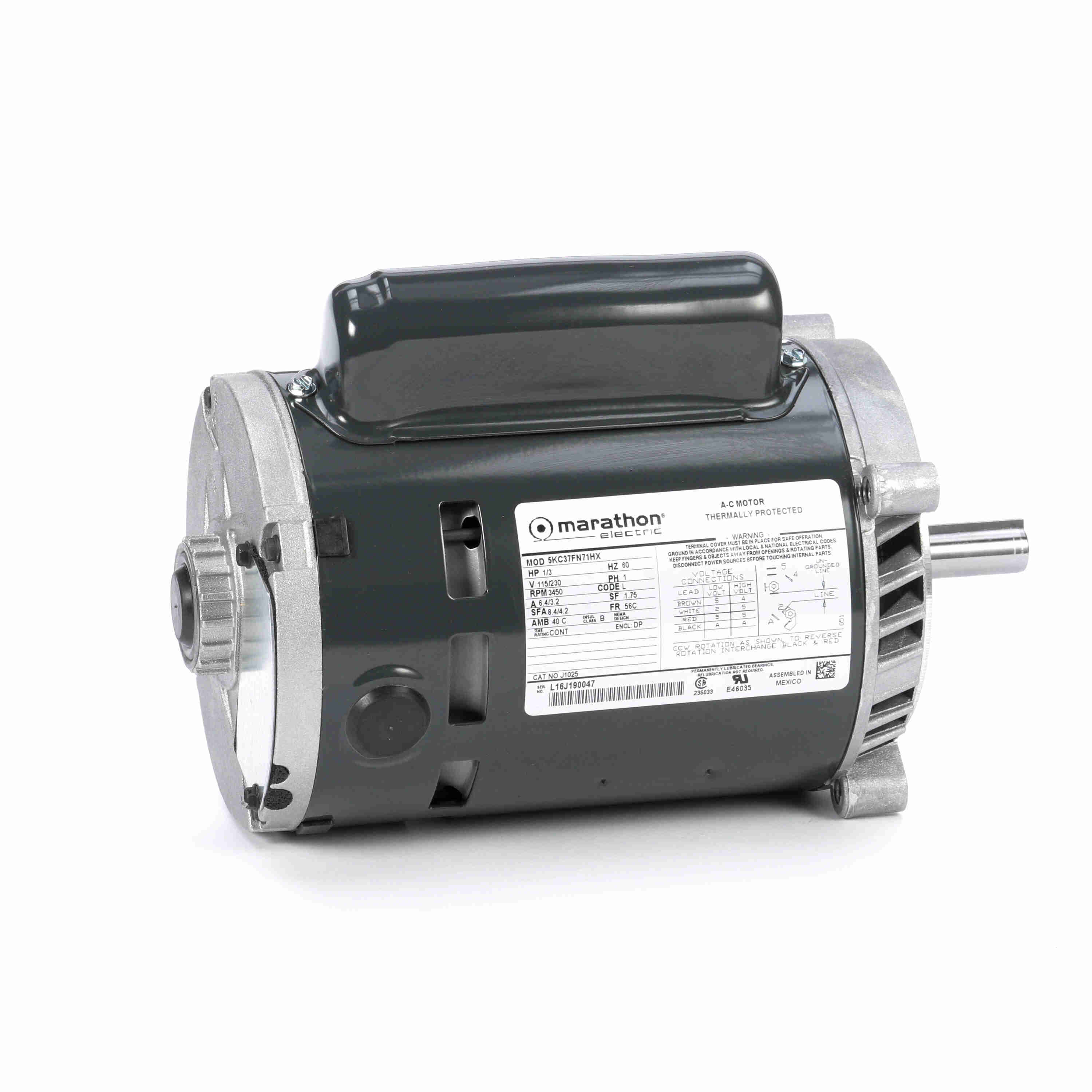

J1025 Marathon 1/3HP HVAC/R Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: J1025

Selected accessories will also be added to cart
$259.97 / Each
Quantity:
ODP, 56C Frame, 115/230VAC Single Phase 60Hz

Features

  • Double sealed ball bearings, mechanically locked on shaft end
  • Drip cover not included, see Accessories Section
  • 56J = 416 stainless steel threaded shaft with slinger
  • Automatic reset thermal protector
  • 56C = carbon steel shaft with key

General Specifications

UPC:722856048875Weight:16.00 LB
Packaged Length:13.69 INPackaged Width:7.13 IN
Packaged Height:7.5 IN

Nameplate Specifications

Output HP:1/3 HpOutput KW:0.25 kW
Frequency:60 HzVoltage:115/230 V
Current:6.4,3.2 ASpeed:3450 rpm
Service Factor:1.75Phase:1
Efficiency:56.6 %Power Factor:0
Duty:ContinuousInsulation Class:B
KVA Code:LFrame:56C
Enclosure:Drip ProofThermal Protection:AUTO
Ambient Temperature:40 ?CDrive End Bearing Size:6203
Opp Drive End Bearing Size:6203UL:Recognized
CSA:YesCE:N

Technical Specifications

Electrical Type:Capacitor Start Induction RunStarting Method:SM
Poles:2Rotation:Clockwise/Counterclockwise
Mounting:RoundMotor Orientation:ANY
Drive End Bearing:LOCKEDOpp Drive End Bearing:BALL
Frame Material:Rolled SteelOverall Length:10.71 in
Frame Length:6.62 inShaft Diameter:0.63 in
Shaft Extension:1.88 inThru-bolts Extension:0 in

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Frame
56C
Horsepower
1/3HP
Input Voltage
115VAC
Input Voltage
230VAC
