/Products/Electric Motors/Single Phase/Century/Farm Duty/Extra High Torque/K102V1 Century 1HP Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: K102V1

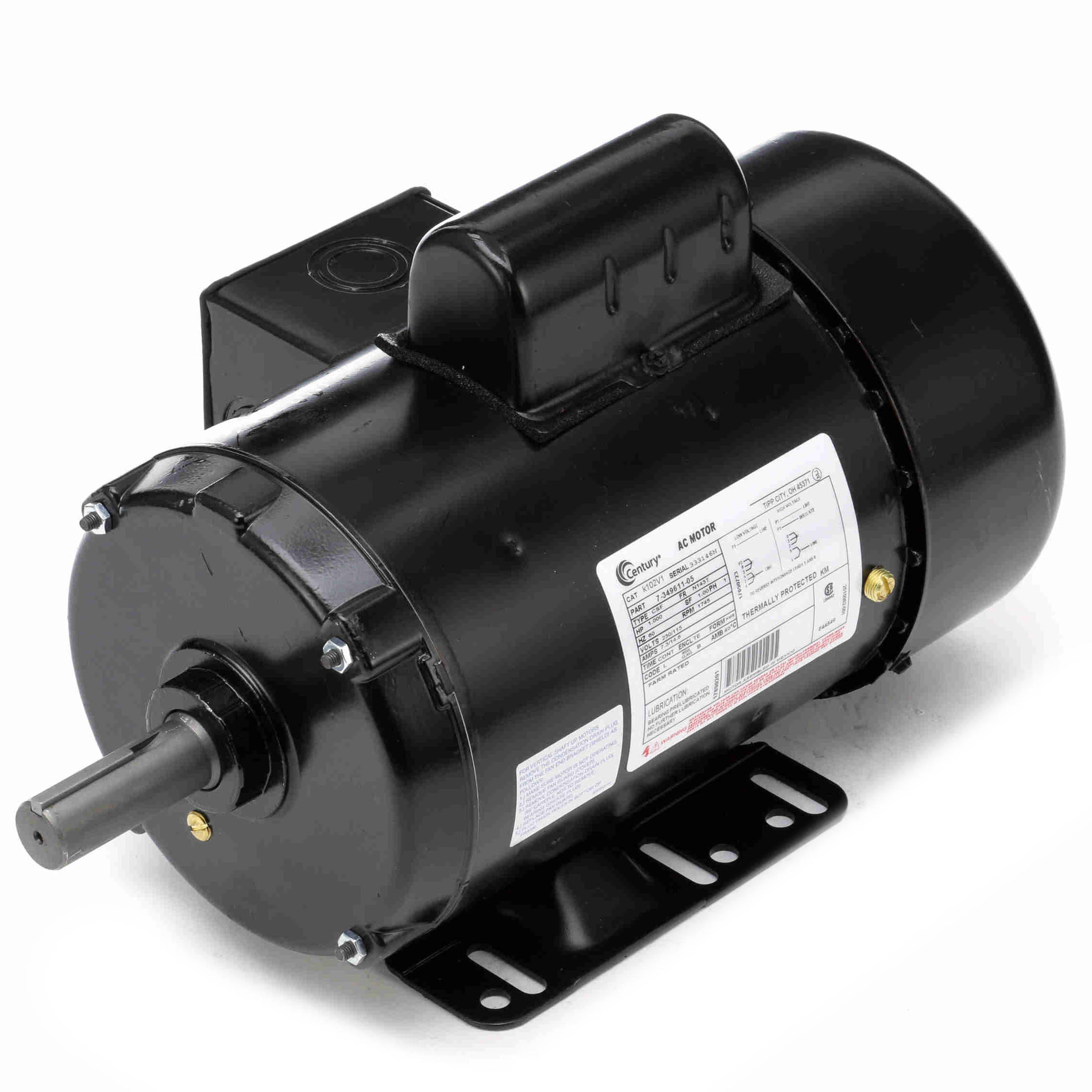

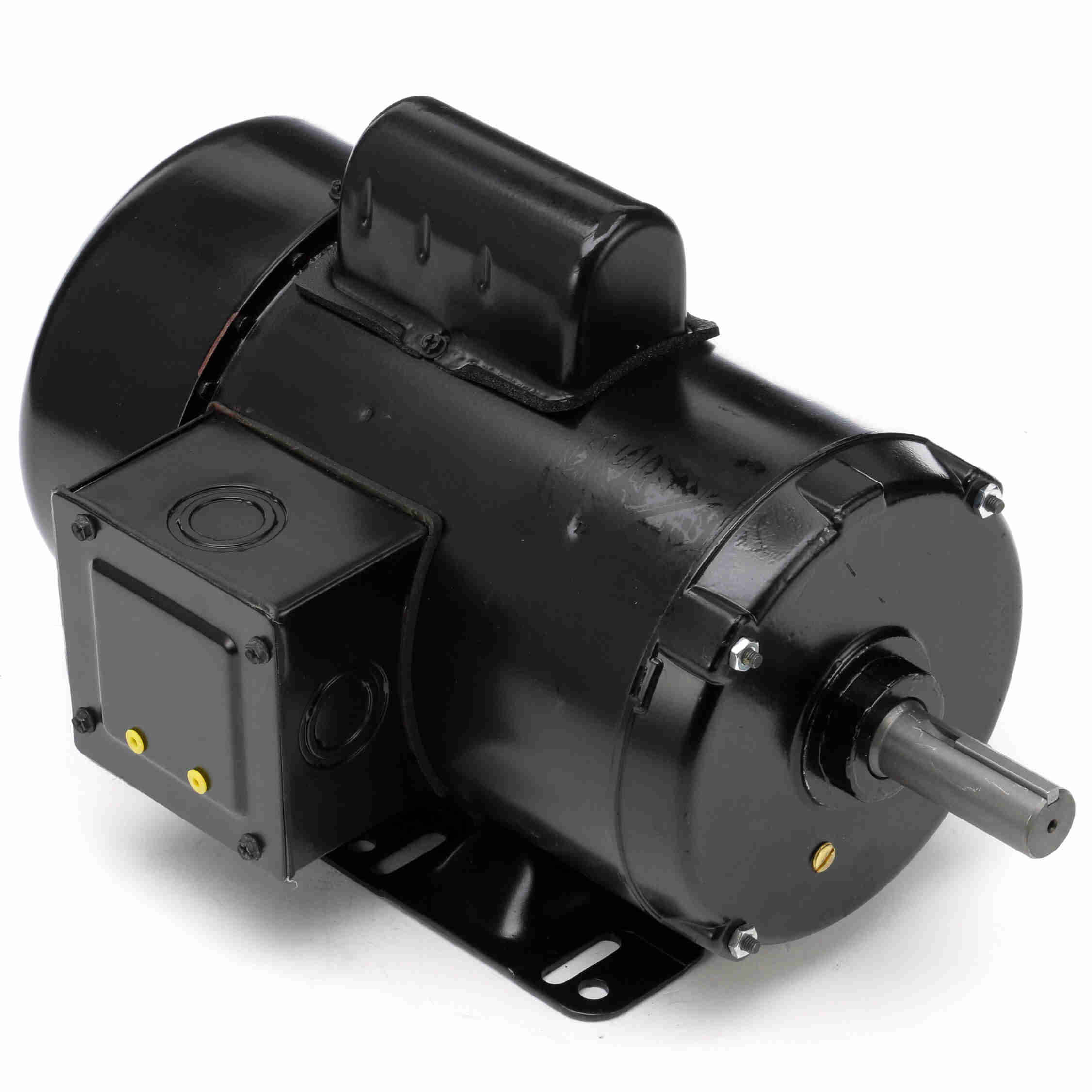

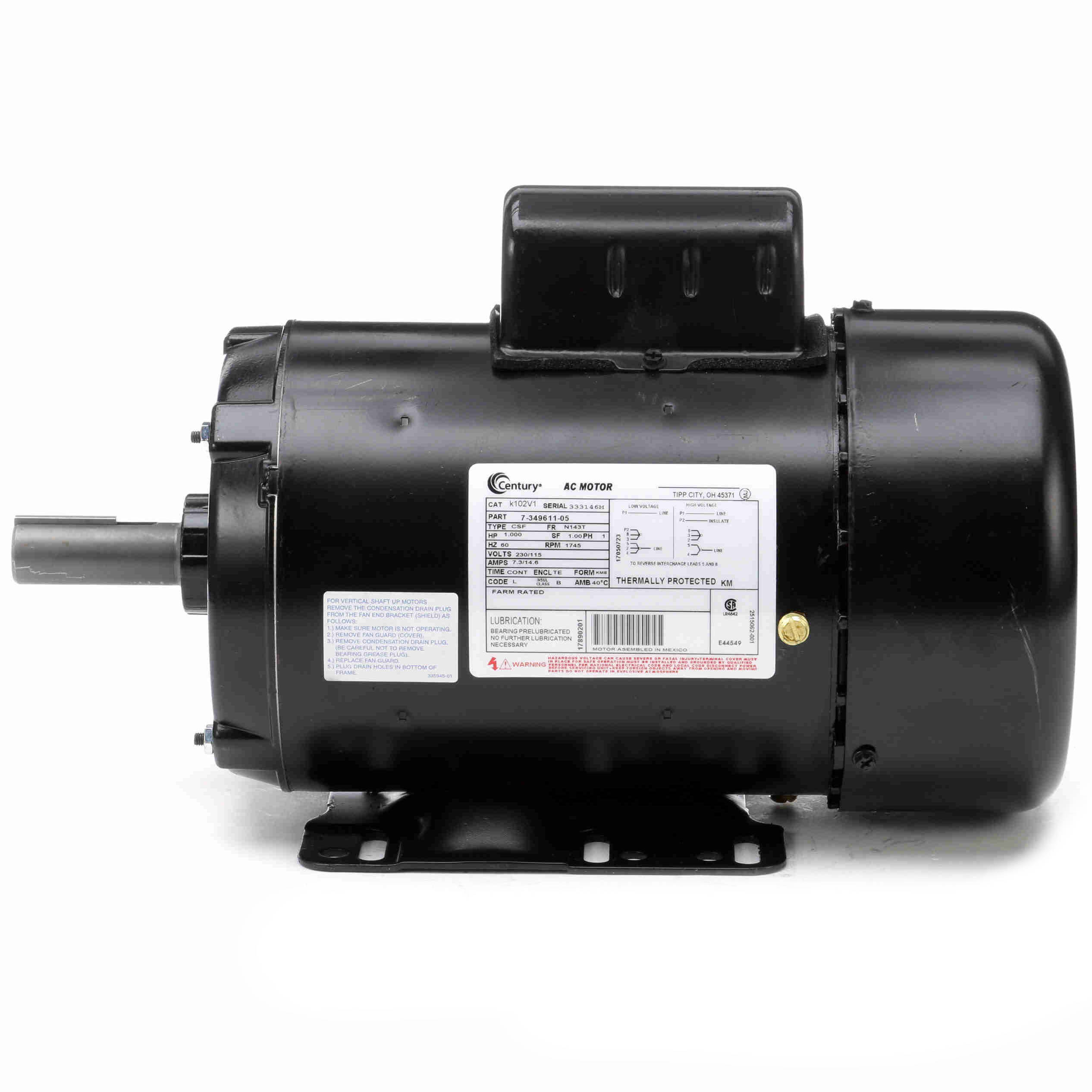

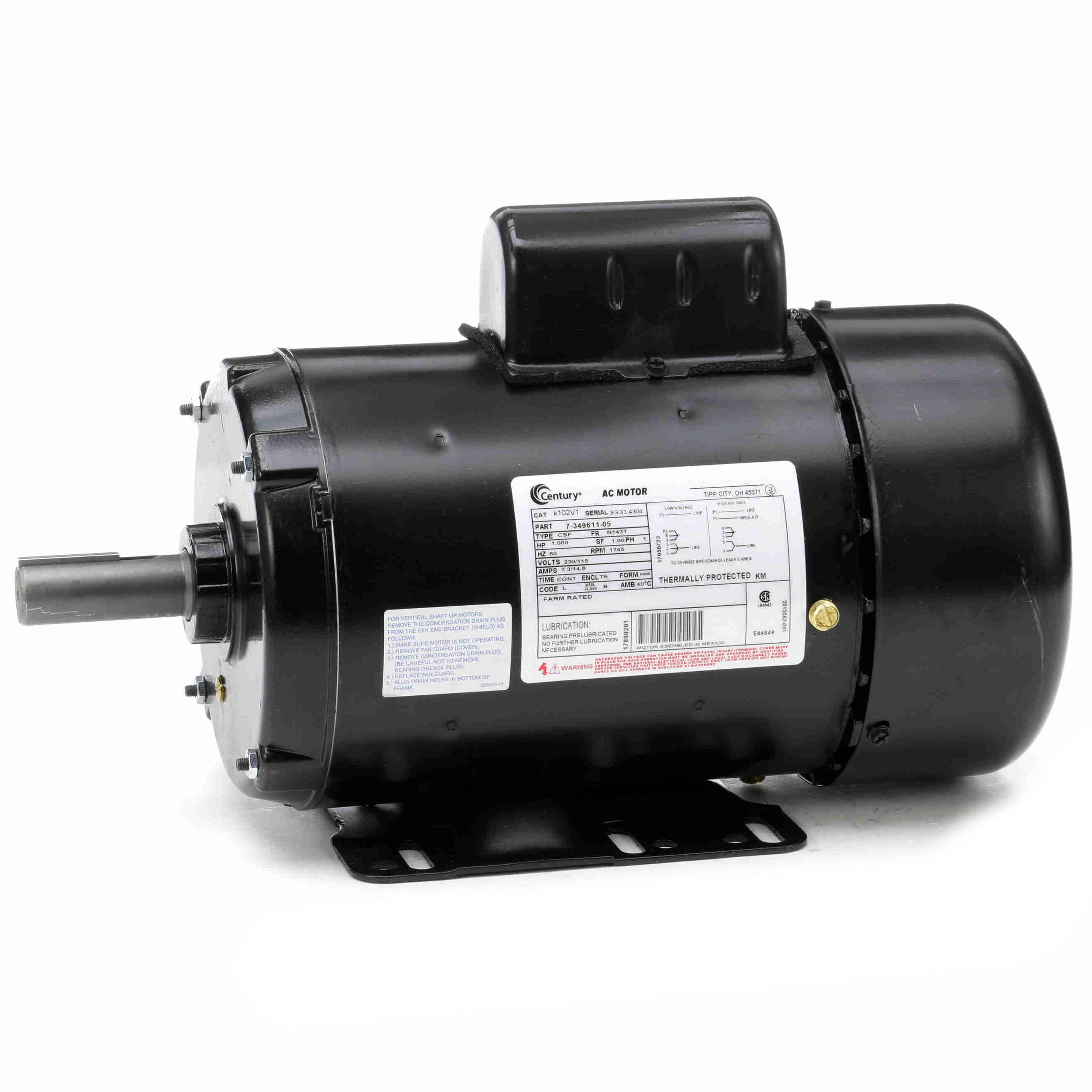

K102V1 Century 1HP Farm Duty Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K102V1

Selected accessories will also be added to cart
$662.97 / Each
Quantity:
TEFC, 143T Frame, 115/230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 7/8" Keyed Shaft

Features

  • High starting torque
  • Removable condensate drain plugs
  • Manual reset thermal protector
  • All parts are corrosion resistant

General Specifications

UPC: 786674070548 Weight: 38.00 LB
Packaged Length: 19 IN Packaged Width: 12 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1.000 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 7.3/14.6 A Speed: 1745 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: N143T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.23 in
Frame Length: 7.25 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Horsepower
1HP
Horsepower
1HP
Enclosure
TEFC
Frame
143T
Input Voltage
115VAC, 230VAC
Input Voltage
115VAC
Input Voltage
230VAC
