/Products/Electric Motors/Single Phase/Century/Farm Duty/Extra High Torque/K204M2 Century 2HP Farm Duty Electric Motor, 1740RPM
Click Image to Expand

Product ID: K204M2

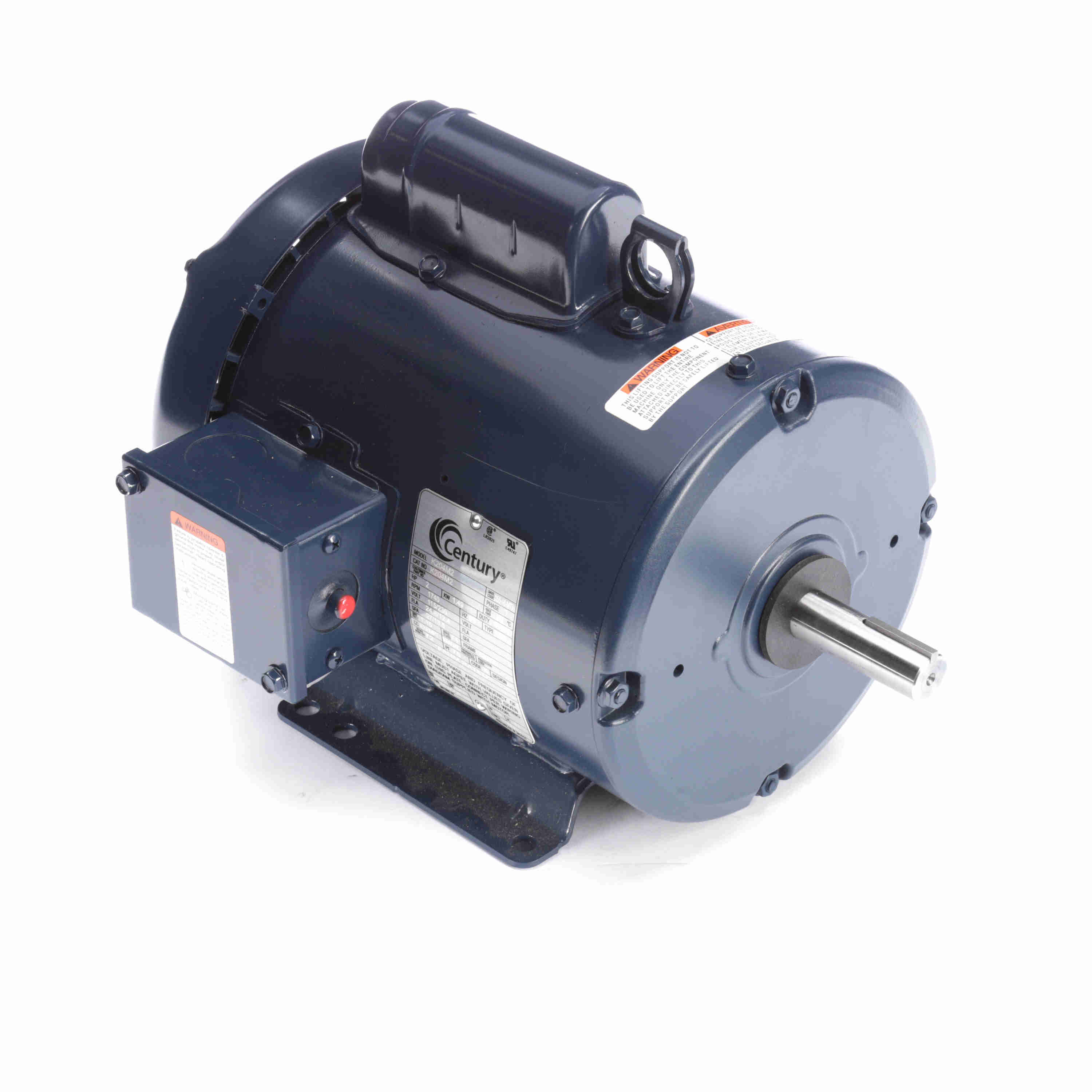

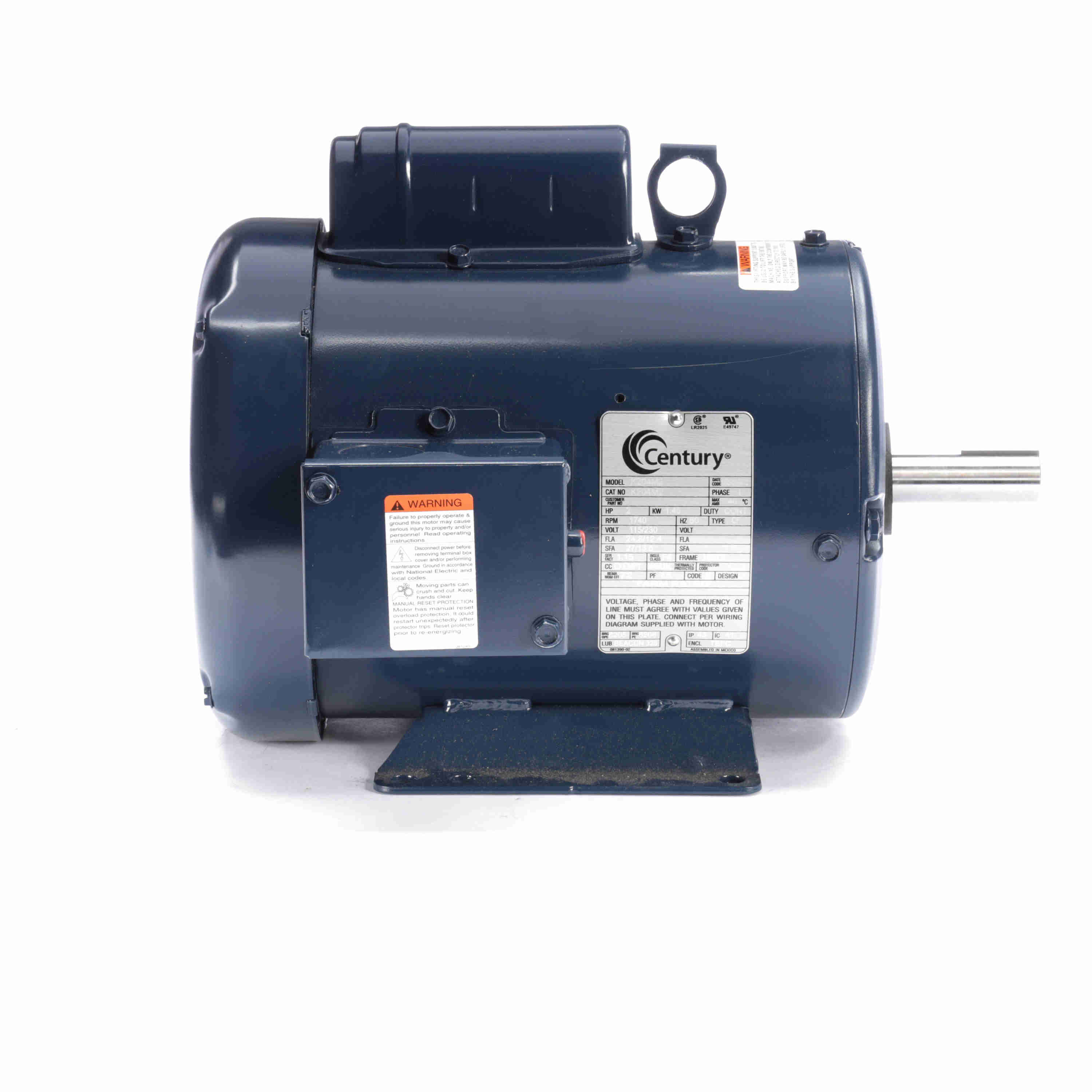

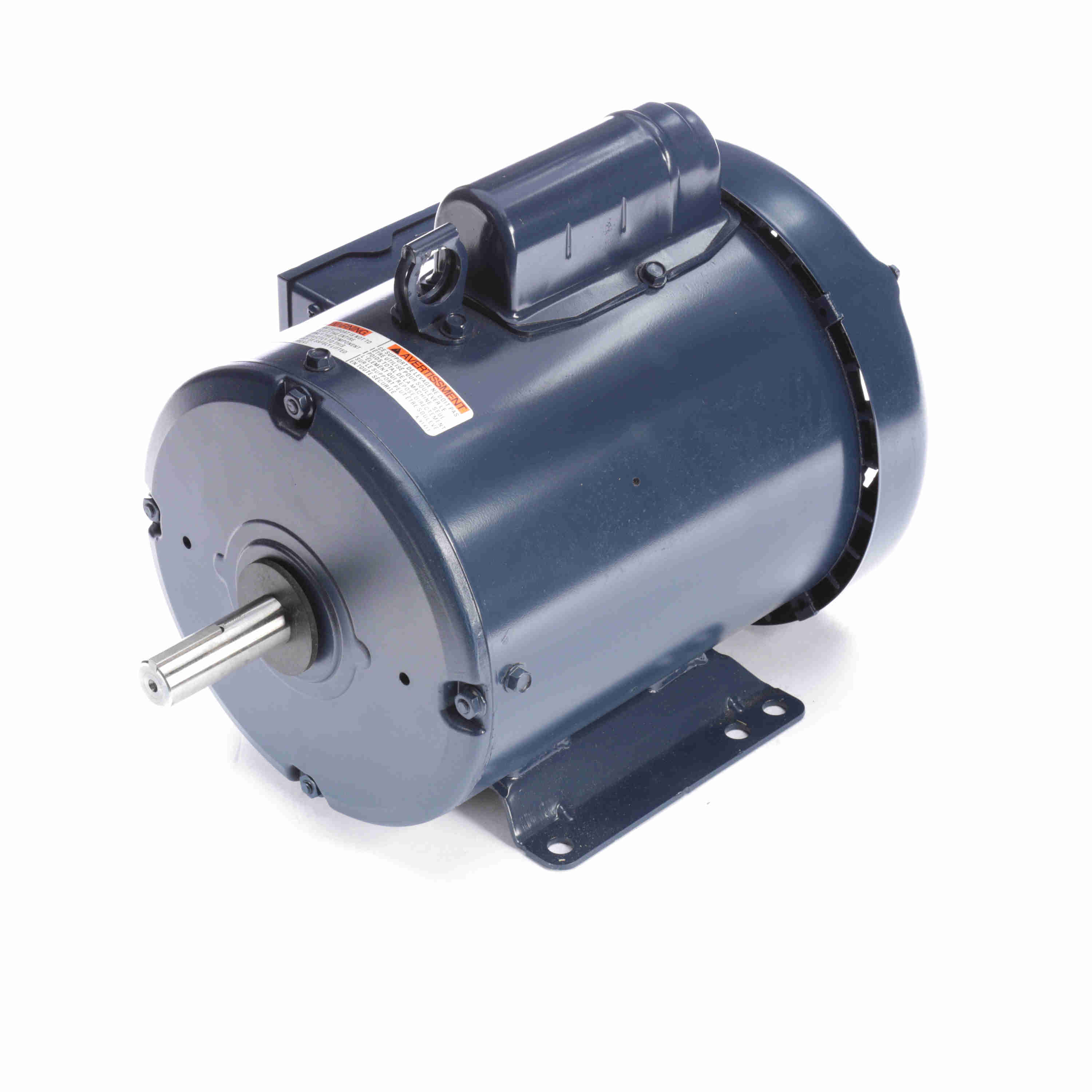

K204M2 Century 2HP Farm Duty Electric Motor, 1740RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K204M2

Selected accessories will also be added to cart
$1,044.97 / Each
Quantity:
TEFC, 182TZ Frame, 115/230VAC Single Phase 60Hz, Foot Mount, Rolled Steel

Features

Features
  • High starting torque
  • Removable condensate drain plugs
  • Manual reset thermal protector
  • All parts are corrosion resistant

General Specifications

General Specifications
K204M2
2,1740,TEFC,182TZ,1/60/115/230 Single Phase
Yes

Nameplate Specifications

Nameplate Specifications
2 HP 1.5 kW
60 Hz 115/230 V
24.8/12.4 A 1740 RPM
1.15 1
Continuous F
182TZ Totally Enclosed Fan Cooled
Manual 40 °C
Recognized Y
N

Technical Specifications

Technical Specifications
Capacitor Start Induction Run Across The Line
4 Counterclockwise
Rigid base Ball
Ball Rolled Steel
Keyed 14.46 in
9.00 in 0.875 in
2.81 in 786674066787
65.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Application
Farm Duty
Enclosure
TEFC
Horsepower
2HP
Enclosure
TEFC
Frame
182TZ
Speed
1740RPM
Input Voltage
115VAC, 230VAC
Input Voltage
115VAC
Input Voltage
230VAC
