KBAC-29 Hybrid AC Drive, A Digital Drive with Analog Interface

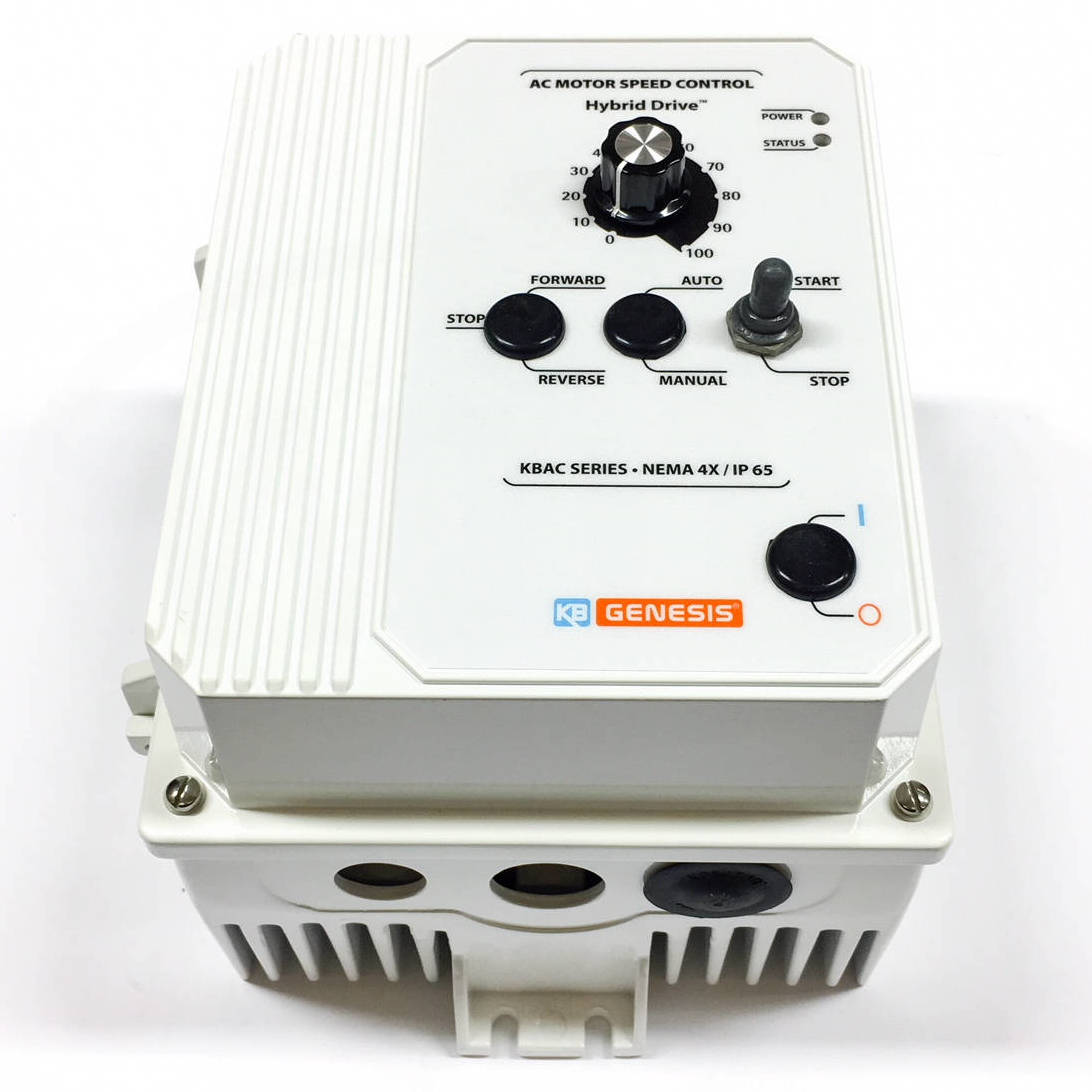

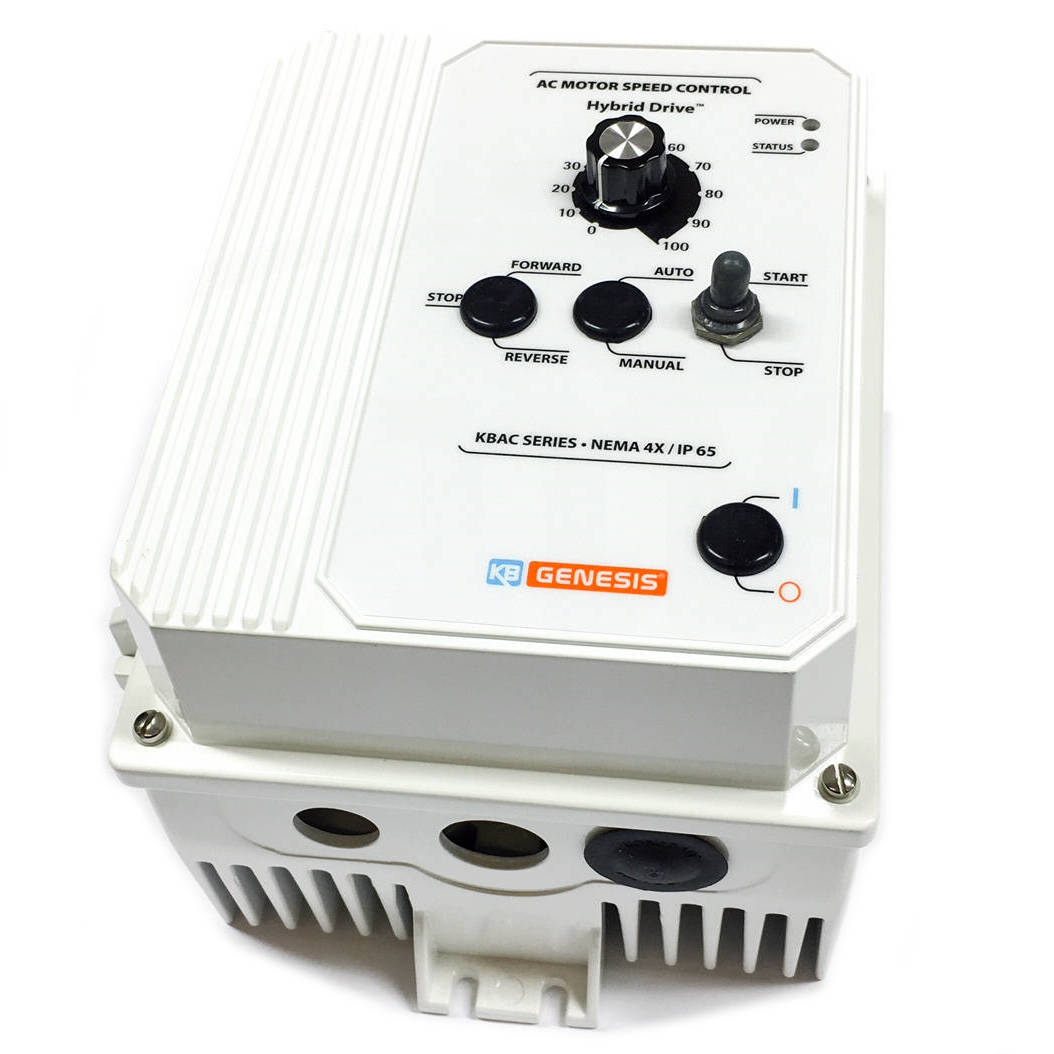

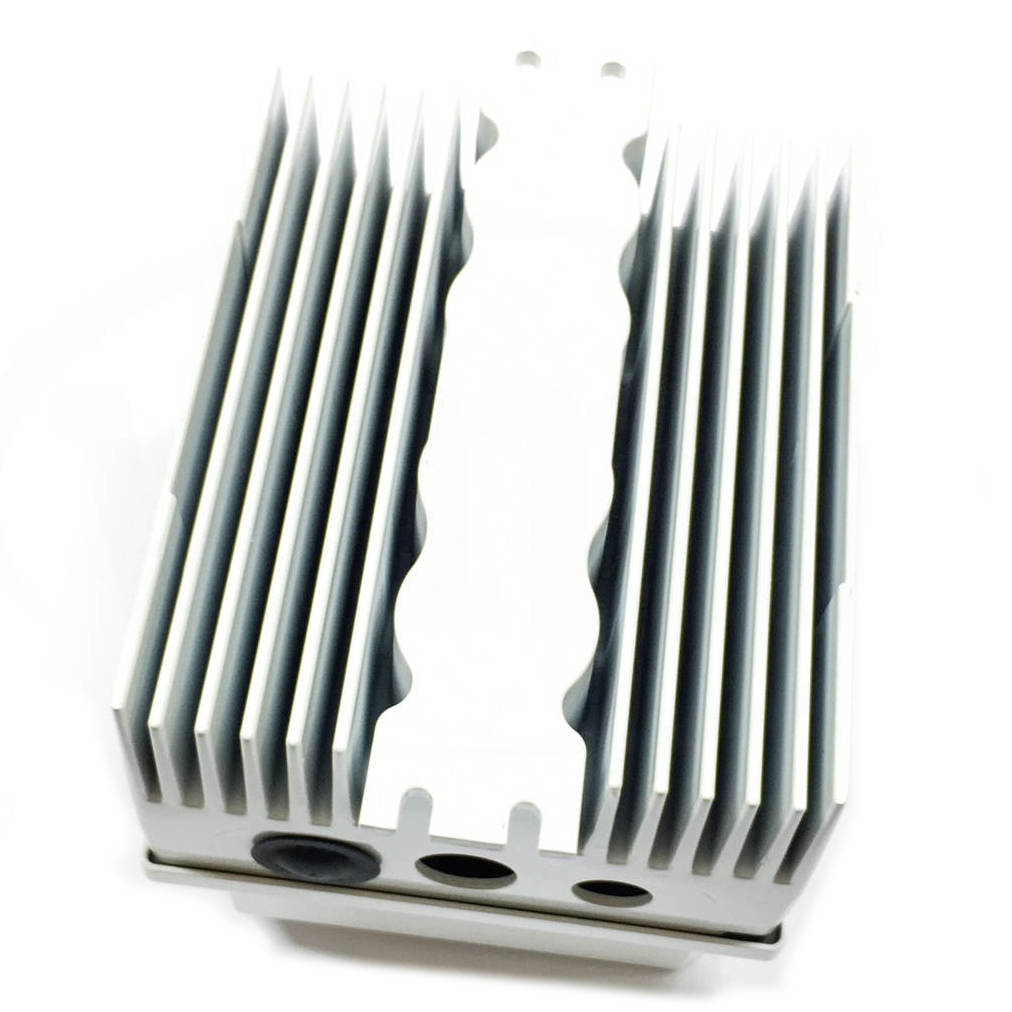

Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.

Primary Features:
• Horsepower 1/2 to 3 HP, Jumper Selectable
• 1Ø or 3Ø Input 208/230 VAC, 50/60 Hz
• 3Ø Output 0-230 VAC, 0-50, 60, 100 or 120Hz
• Rated 6.7 Amps/Phase @ 2 HP - 1Ø or 9.0 Amps/Phase @ 3 HP - 3Ø
• Start/Stop Switch
• 200% Starting Torque
• Diagnostic LED Status Indicators

Additional Features:
• Sensorless Flux Vector Control
• Electronic Inrush Current Limit (EICLTM) Protection
• Run/Fault Relay Output Contacts
• Holding Torque at Zero Speed in "Stop" mode
• Undervoltage and Overvoltage Protection
• Short Circuit Protection, phase to phase
• Ride-Through momentary power loss
• Regeneration eliminates tripping
• Basic, Programmable, Trimpot Adjustments

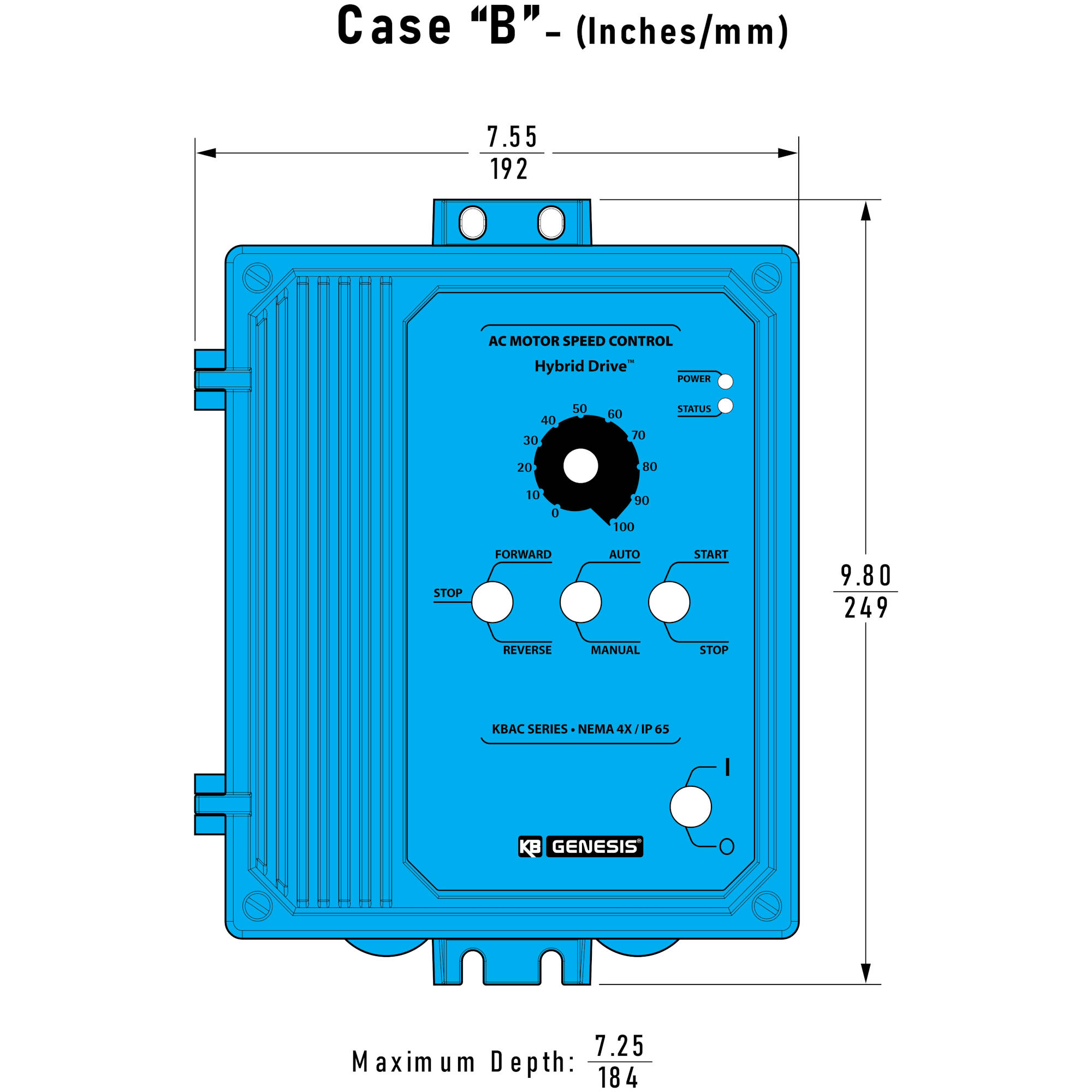

Dimensions approx. 9.8" X 7.6" X 7.3".
Agency approvals: UL, CE, CSA, C-Tick.
