/Products/Electric Motors/Single Phase/Lincoln/TEFC, Rigid Base/LM24627 Lincoln 1/2HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

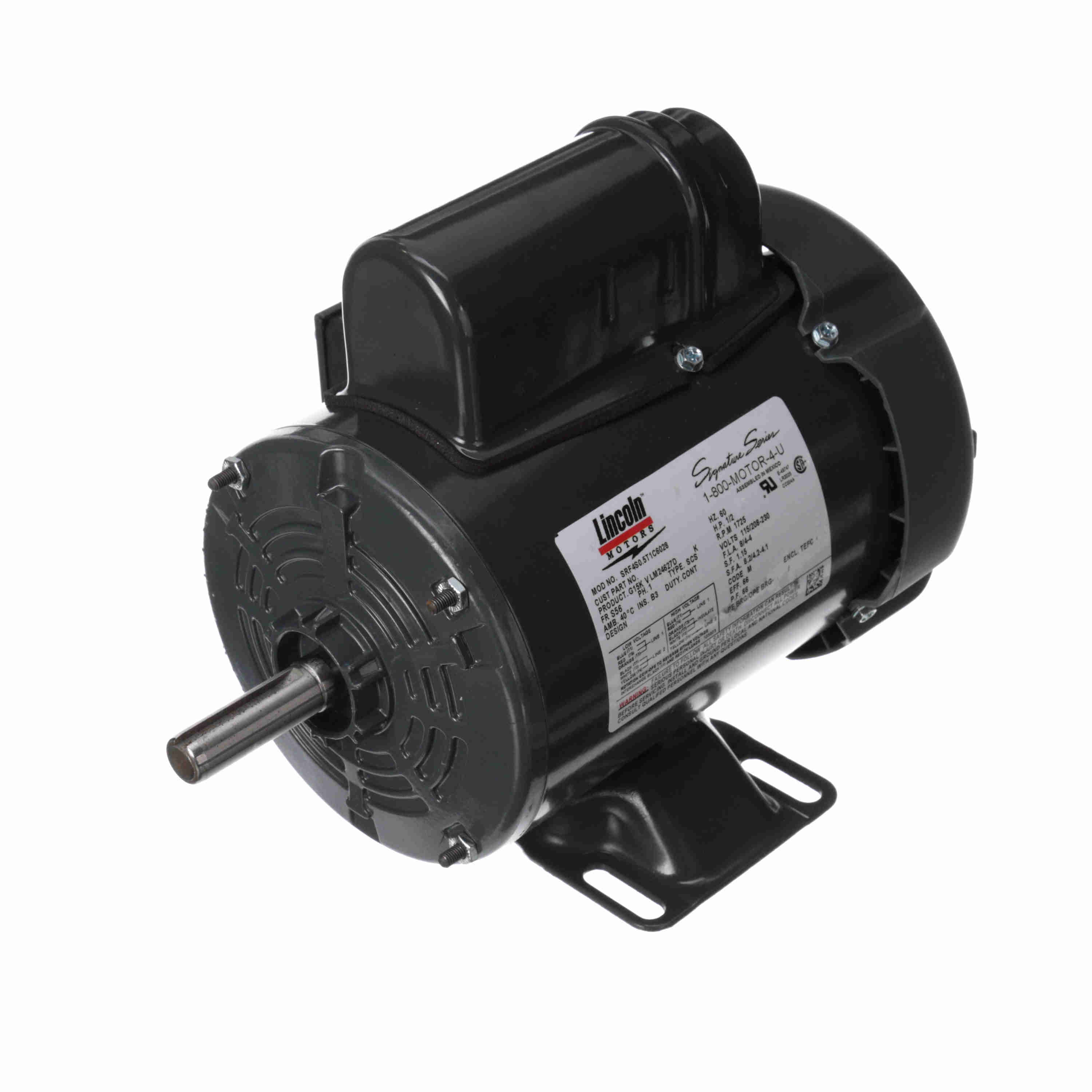

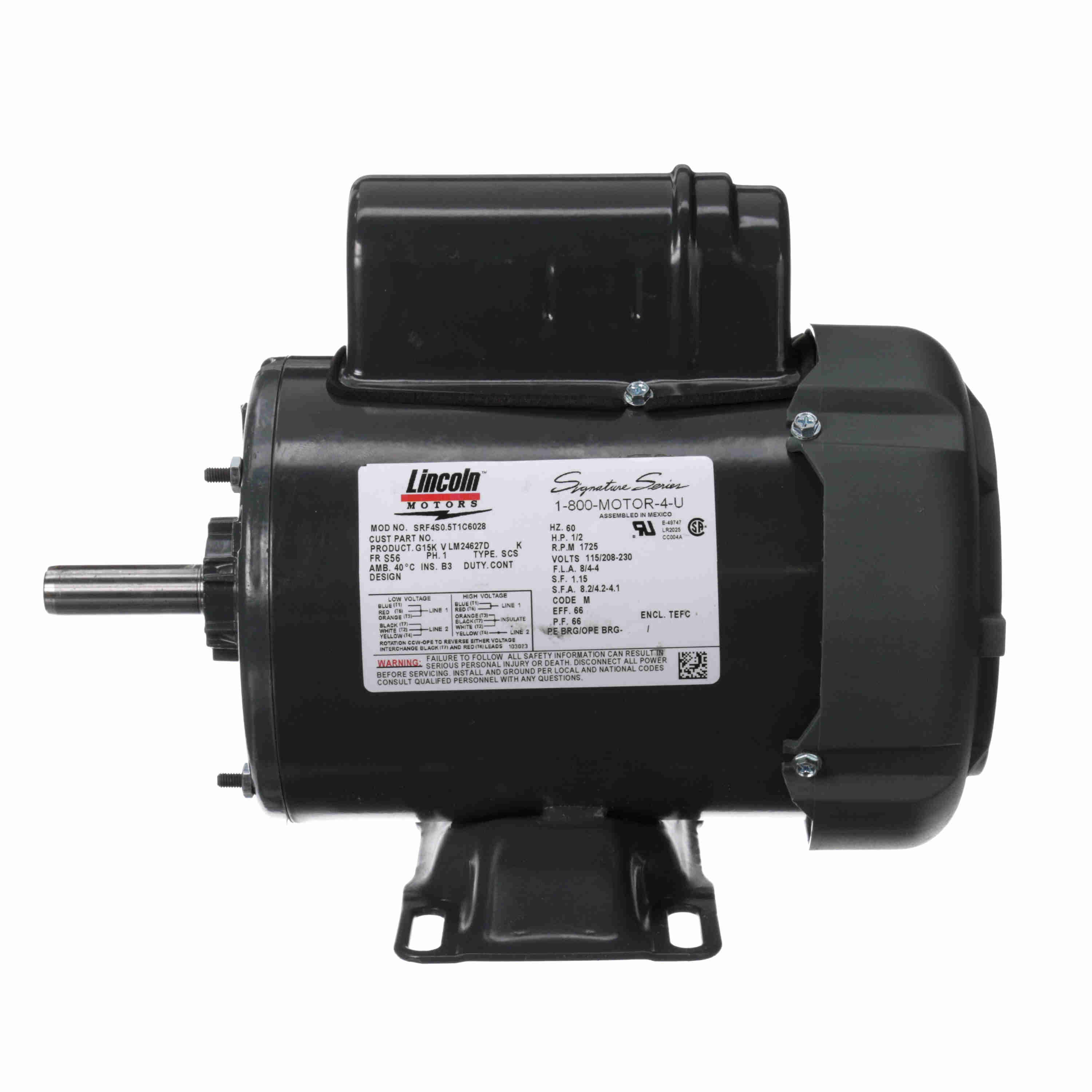

LM24627 Lincoln 1/2HP General Purpose Electric Motor, 1800RPM

Product ID: LM24627

MFG: Lincoln Motors
MFG Part Number: LM24627

Selected accessories will also be added to cart
$179.97 / Each
Quantity:
TEFC, 56Z Frame, 115/208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 5/8" Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720106051 Weight: 24.00 LB
Packaged Length: 12.75 IN Packaged Width: 9.5 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 8.0/4.0-4.0 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 66 % Power Factor: 66
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: M
Frame: 56Z Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 11.22 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 22.00 89.00 0 4.60 0.50
Pull-Up 11.70 52.40 1,393 2.00 0.50
Break-Down 9.60 58.50 1,543 1.70 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 % 200 %
Current (Amps) 2.55 2.70 2.90 3.20 4.00 4.10 4.15 4.81 5.64 6.88
Rated Output (KW) 0.11 0.21 0.31 0.43 0.55 0.63 0.68 0.82 1.00 1.25
Efficiency (%) 0.0 45.6 60.7 65.2 66.0 68.5 69.3 68.0 65.4 59.7
Power Factor (%) 18.1 33.6 46.8 58.0 66.0 67.5 70.5 74.5 77.1 79.0
Speed (RPM) 1,800 1,785 1,775 1,763 1,751 1,740 1,735 1,715 1,690 1,649
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 80.0 85.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 5.90 11.90 17.90 24.00 27.80 30.30 36.80 43.60 51.00
