/Products/Electric Motors/DC/Leeson/Parallel Shaft Gearmotor/M1135107.00 Leeson 0.13HP Parallel Shaft DC Gearmotor, 14 RPM
Click Image to Expand

Product ID: M1135107.00

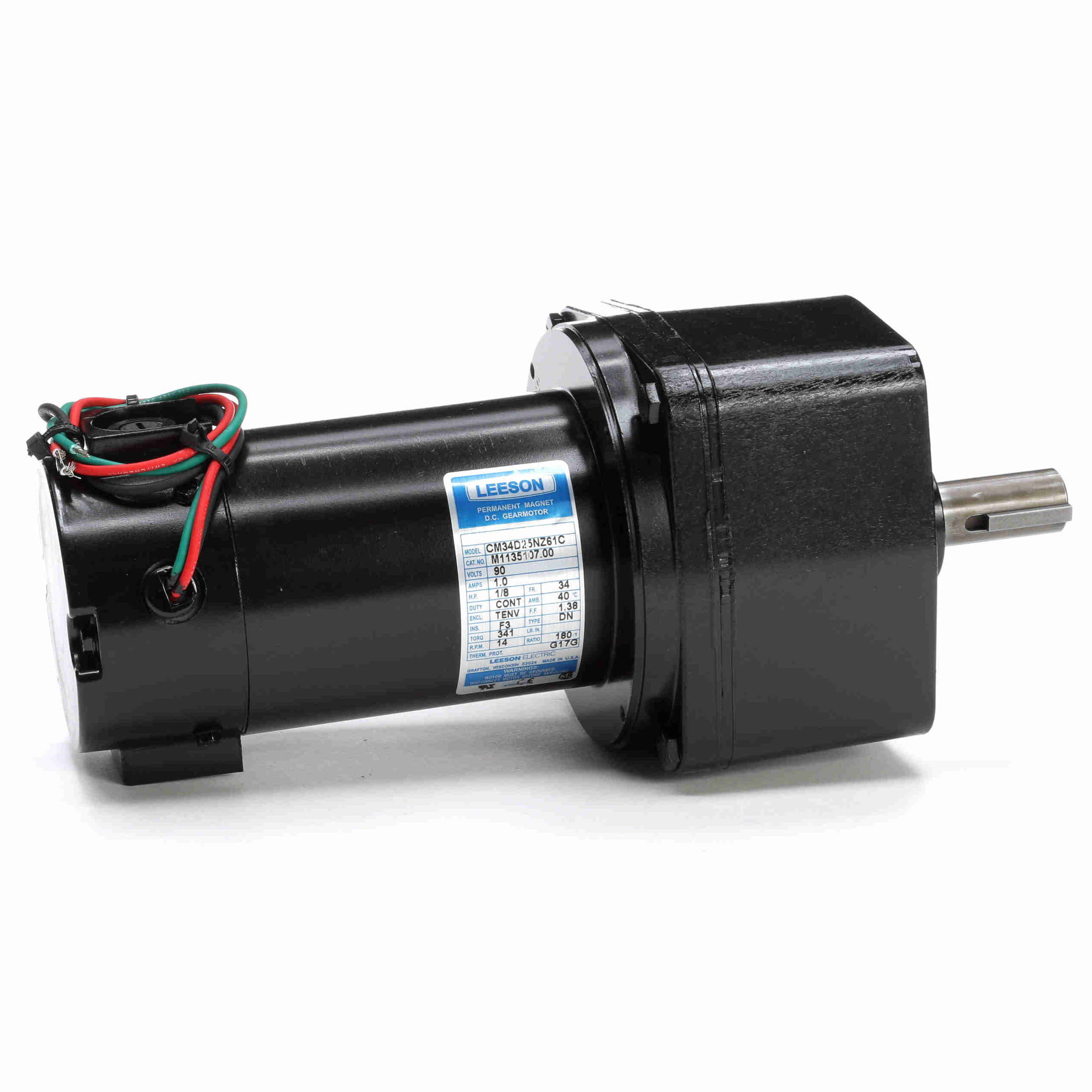

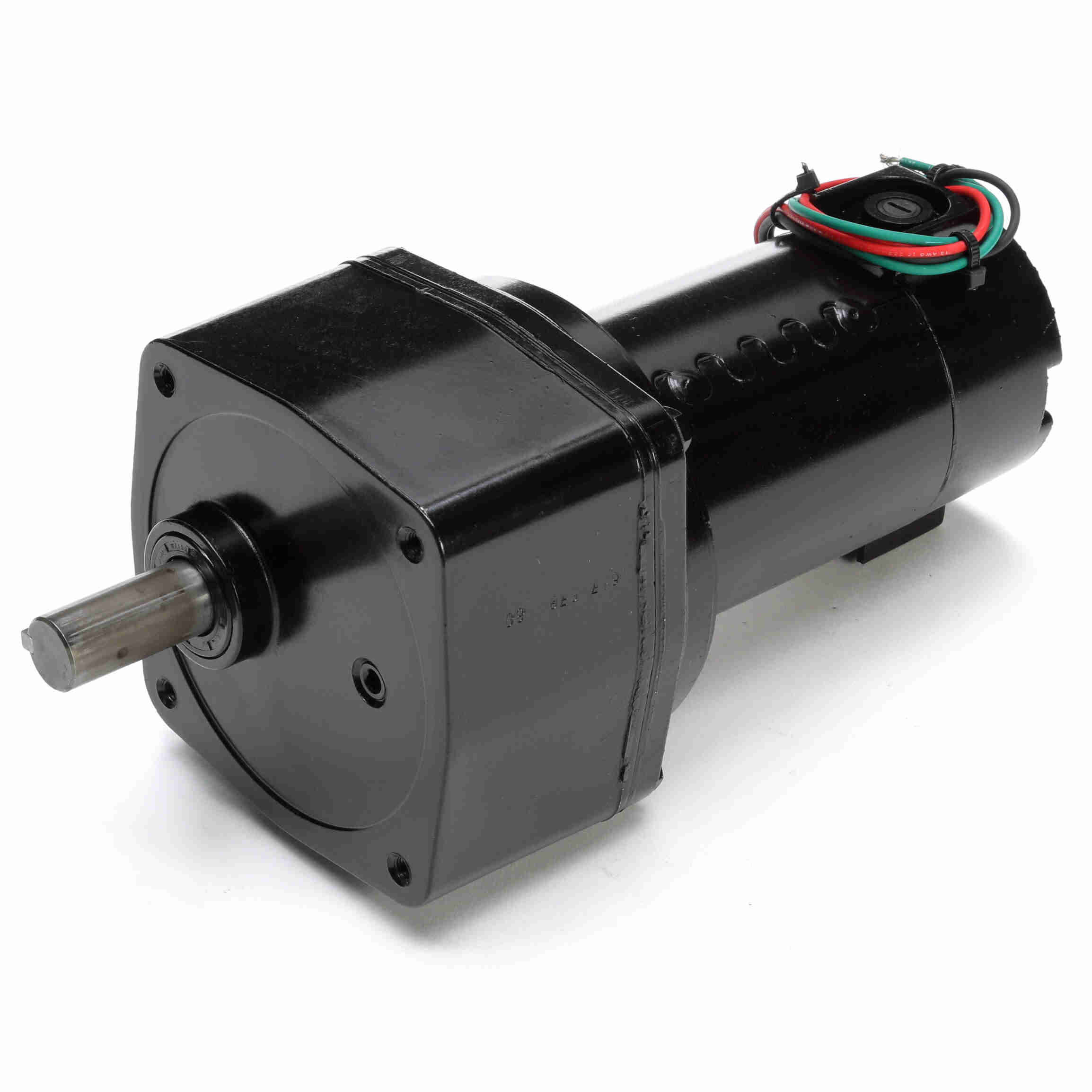

M1135107.00 Leeson 0.13HP Parallel Shaft DC Gearmotor, 14 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1135107.00

Selected accessories will also be added to cart
$799.97 / Each
Quantity:
TENV, 34 Frame, 90VDC, 3/4" Keyed Shaft

Features

  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing, hardened for maximum load capability
  • All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity
  • All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
  • Heavy duty industrial oil seals keep lubricant in and dirt out
  • Gears and bearings are splash lubricated with permanent, heavy duty gear oil
  • Optional conduit box available

General Specifications

UPC: 691720091838 Weight: 12.00 LB
Packaged Length: 16.5 IN Packaged Width: 7.68 IN
Packaged Height: 6.69 IN

Nameplate Specifications

Output HP: 0.13 Hp Output KW: 0.10 kW
Voltage: 90 V Current: 1.0 A
Speed: 14 rpm Service Factor: 1
Efficiency: 47.2 % Duty: Continuous
Insulation Class: F Frame: 34
Enclosure: Totally Enclosed Non Ventilated Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6201
Opp Drive End Bearing Size: 608 UL: Recognized
CSA: Y CE: Y

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Parallel Overall Length: 11.31 in
Frame Length: 4.06 in Shaft Diameter: 0.750 in
Shaft Extension: 1.625 in

Speed & Load Characteristics
