/Products/Electric Motors/DC/Leeson/Parallel Shaft Gearmotor/M1135110.00 Leeson 1/4HP Parallel Shaft DC Gearmotor, 62 RPM, 220 lb-in

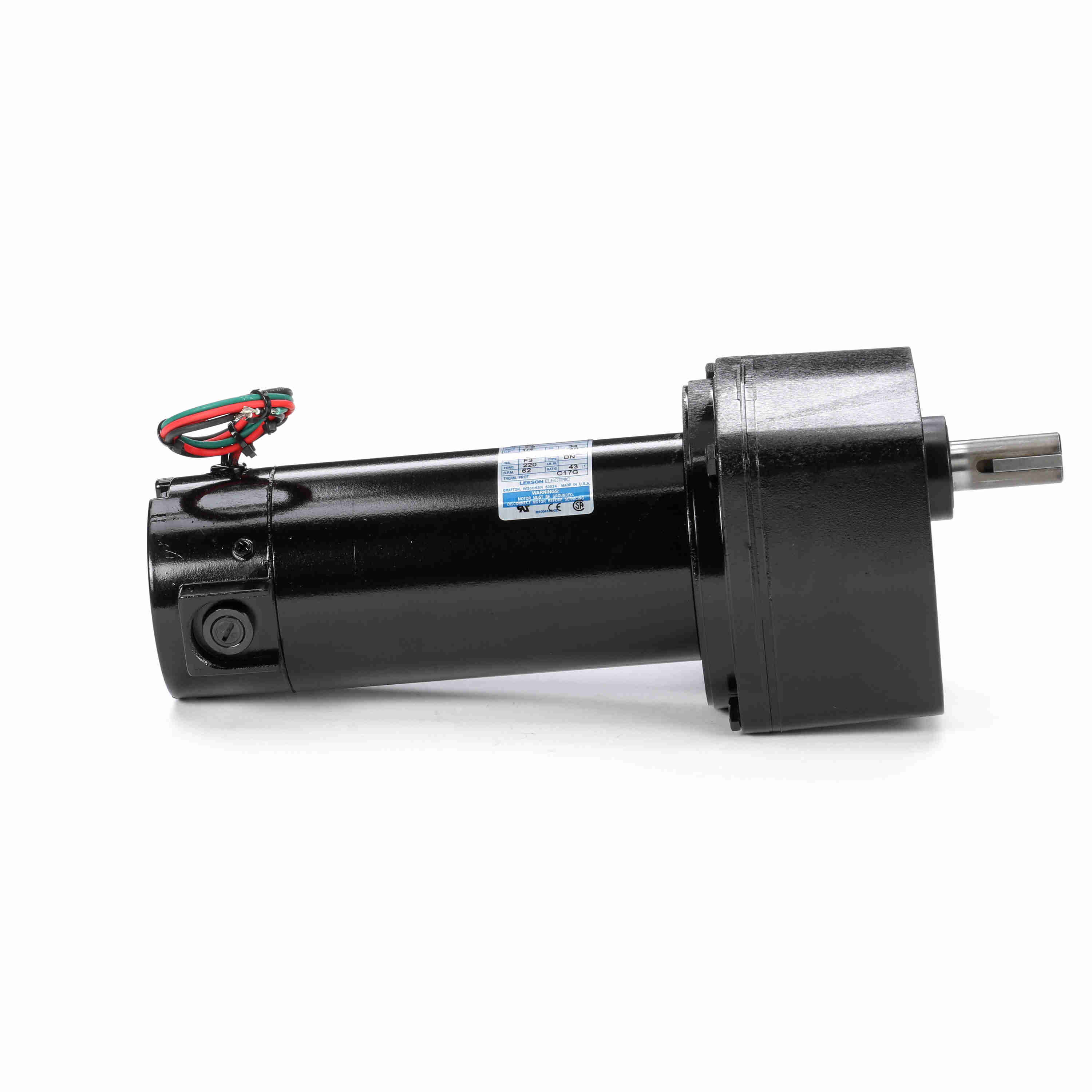

Click Image to Expand

Product ID: M1135110.00

M1135110.00 Leeson 1/4HP Parallel Shaft DC Gearmotor, 62 RPM, 220 lb-in

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1135110.00

Selected accessories will also be added to cart
$779.97 / Each
Quantity:
TENV, 34 Frame, 90VDC, CM34D25NZ55B

Features

Features
  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing, hardened for maximum load capability
  • All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity
  • All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
  • Heavy duty industrial oil seals keep lubricant in and dirt out
  • Gears and bearings are splash lubricated with permanent, heavy duty gear oil
  • Optional conduit box available

General Specifications

General Specifications
Model :CM34D25NZ55B Catalog No :M1135110.00
Part Description :...43:1.62RPM.220LBIN.1/4HP.34...DC GEARMOTORS SUB-FHP.90V..TENV.CM34D25NZ55B Category :PE350 Series
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.25 Hp Output KW :0.19 kW
Voltage :90 V Current :2.3 A
Speed :62 rpm Service Factor :1
Efficiency :69.2 % Duty :Continuous
Insulation Class :F Frame :34
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6201
Opp Drive End Bearing Size :608 UL :Recognized
CSA :Y CE :Y

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Special
Shaft Type :Parallel Overall Length :13.31 in
Frame Length :6.06 in Shaft Diameter :0.750 in
Shaft Extension :1.625 in UPC :691720091869
Weight :18.00 LB
