/Products/Electric Motors/DC/Leeson/Right-Angle Gearmotor/12VDC, TENV/M1135251.00 Leeson 0.25HP Right Angle DC Gearmotor, 62RPM

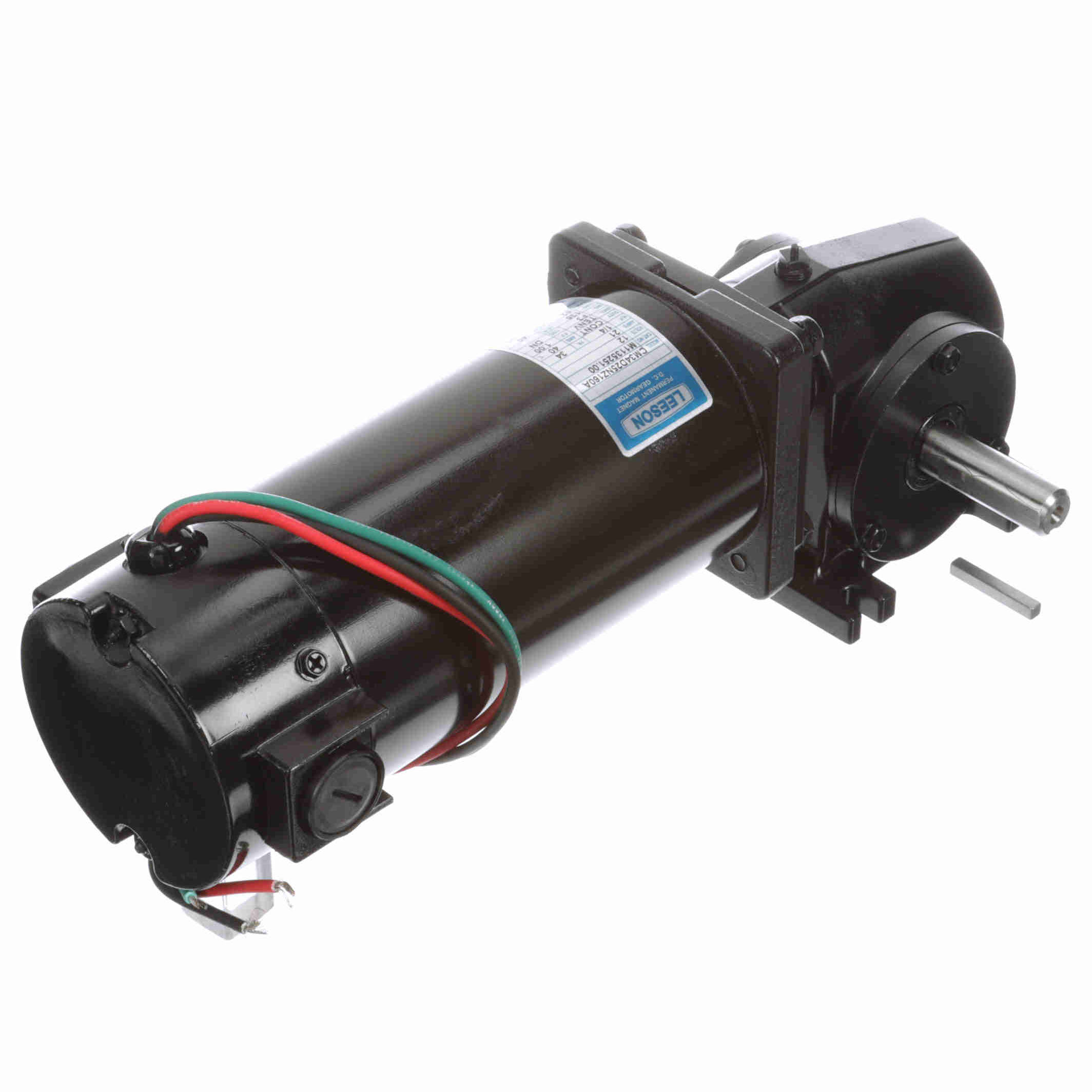

Click Image to Expand

Product ID: M1135251.00

M1135251.00 Leeson 0.25HP Right Angle DC Gearmotor, 62RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1135251.00

Selected accessories will also be added to cart
$729.97 / Each
Quantity:
TENV, 34 Frame, 12VDC, M34D25NZ160, 5/8" Keyed Shaft

Features

  • Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
  • Precision machined aluminum gear housing
  • Lubrication is permanent with an oil bath
  • Gearbox has all ball bearings
  • Output shaft is field interchangeable from left hand to right hand style by reassembly
  • Double output shaft available as a factory option
  • Optional conduit box available

General Specifications

UPC: 691720152614 Weight: 14 LB
Packaged Length: 15.25 IN Packaged Width: 7.13 IN
Packaged Height: 5.63 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Voltage: 12 V Current: 21.0 A
Speed: 62 rpm Service Factor: 1
Efficiency: 30 % Duty: Continuous
Insulation Class: F Frame: 34
Enclosure: Totally Enclosed Non Ventilated Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6201
Opp Drive End Bearing Size: 608 UL: Recognized
CSA: Y CE: N

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Right Angle Overall Length: 12.64 in
Frame Length: 5.81 in Shaft Diameter: 0.625 in
Shaft Extension: 1.8 in
