/Products/Electric Motors/DC/WEG/Permanent Magnet/M1600/ML1601 WEG 1/20HP Permanent Magnet DC Electric Motor, 1800RPM
Click Image to Expand

Product ID: ML1601

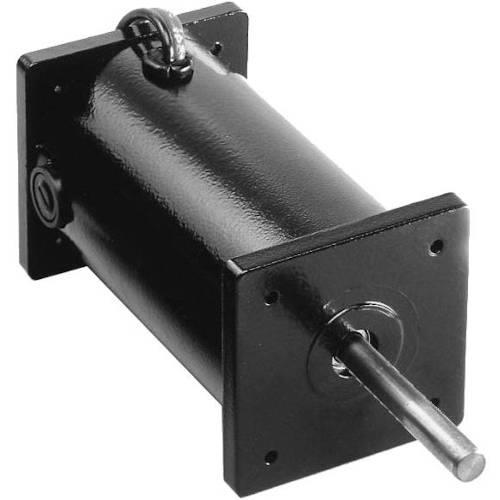

ML1601 WEG 1/20HP Permanent Magnet DC Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: ML1601

Selected accessories will also be added to cart
$171.00 / Each
Quantity:
TENV, IP55, 12VDC, 4.50 FLA, 14475882, 5/16" Shaft

Description

The M1600 Series Permanent Magnet Motor features a compact 2.375” diameter design that provides continuous duty torque ratings.

Features

  • High Energy Ceramic Magnets
  • Double Shielded Ball Bearings
  • Dynamically Balanced Armature
  • Reversible Design
  • 36" Cord
  • TENV Design
  • Square End Bells
  • Externally Replaceable Brushes
  • Auto-Hook Tang Type Commutator
  • 1.00” Standard Pilot Diameter
  • Class “F” Insulation

Specifications

Documents
