/Products/Ball Bearings/Bearing Retainer Nuts/N-08 Bearing Retaining Nut
Click Image to Expand

Product ID: N-08

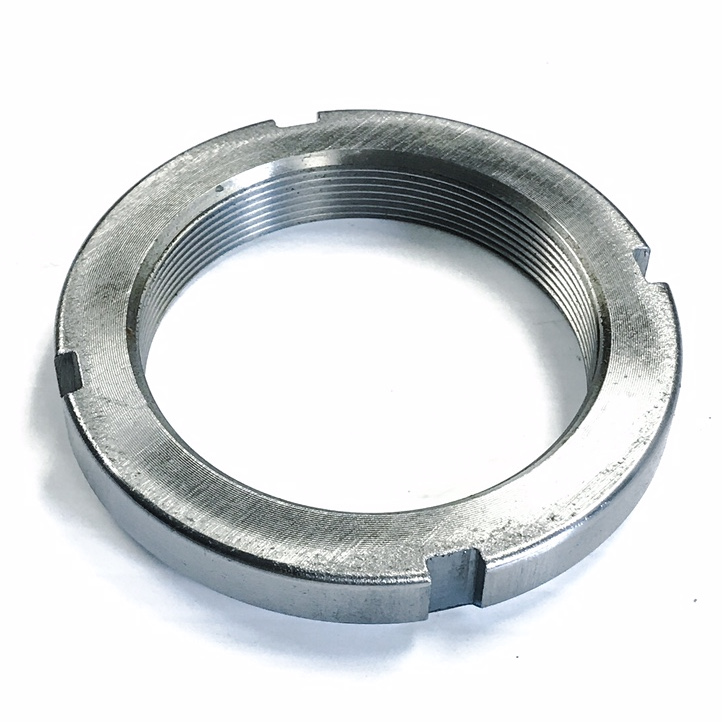

N-08 Bearing Retaining Nut

Available Stock: 1
Selected accessories will also be added to cart
$10.00 / Each


Bearing Retainer Nut Number(s) N08

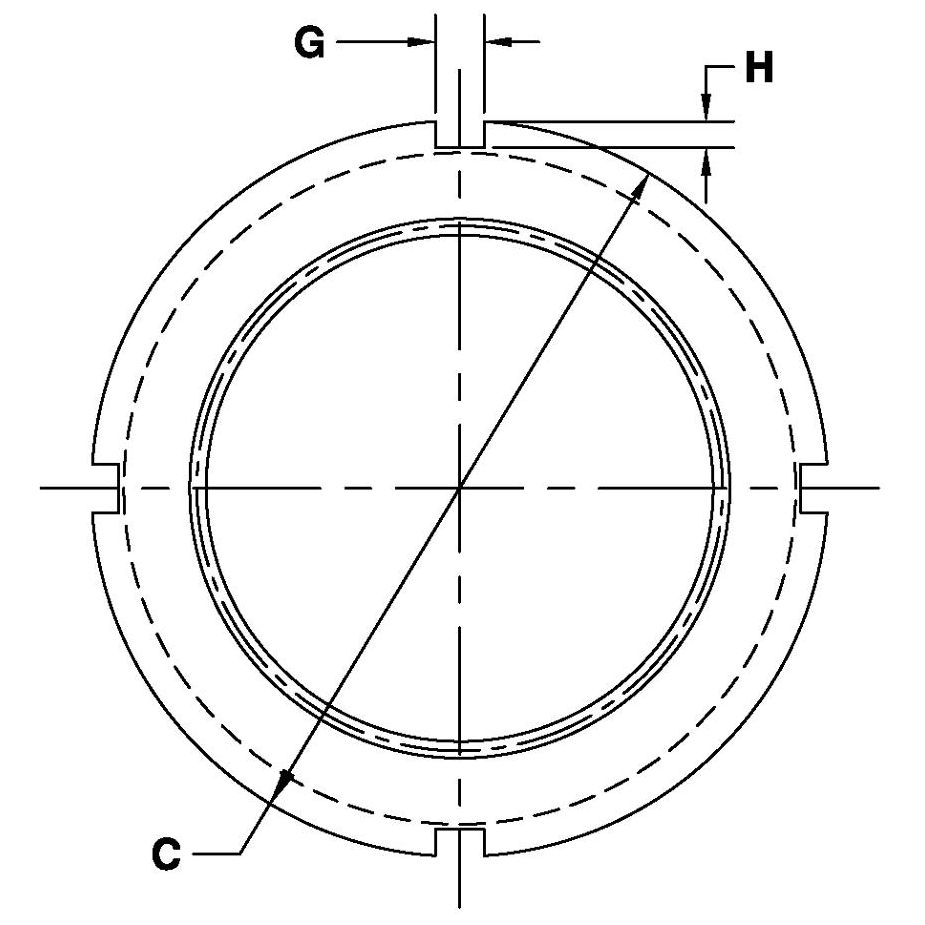

Major Diameter (d) 1.563" Minimum
Threads Per Inch (K1) 18
Outside Diameter (C) 2.250"
Face Diameter (E) 2.000" Maximum
Nut Width (D) 0.448" Maximum
Slot Width (G) 0.240" Maximum
Slot Depth (H) 0.104" Maximum
Face Runout (Sd) 0.004” Maximum
Weight 0.225 lbs
Axial Load 23,700 lbs
Bearing Retainer Lock Washer W-08
