Product ID: N-09

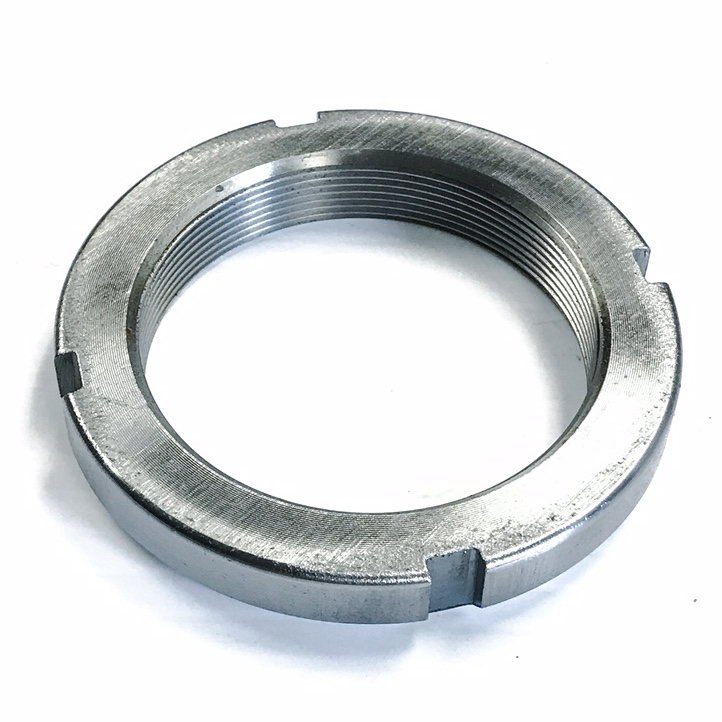

N-09 Bearing Retaining Nut

Available Stock: 4
Selected accessories will also be added to cart
$7.30 / Each


Bearing Retainer Nut Number(s) N09

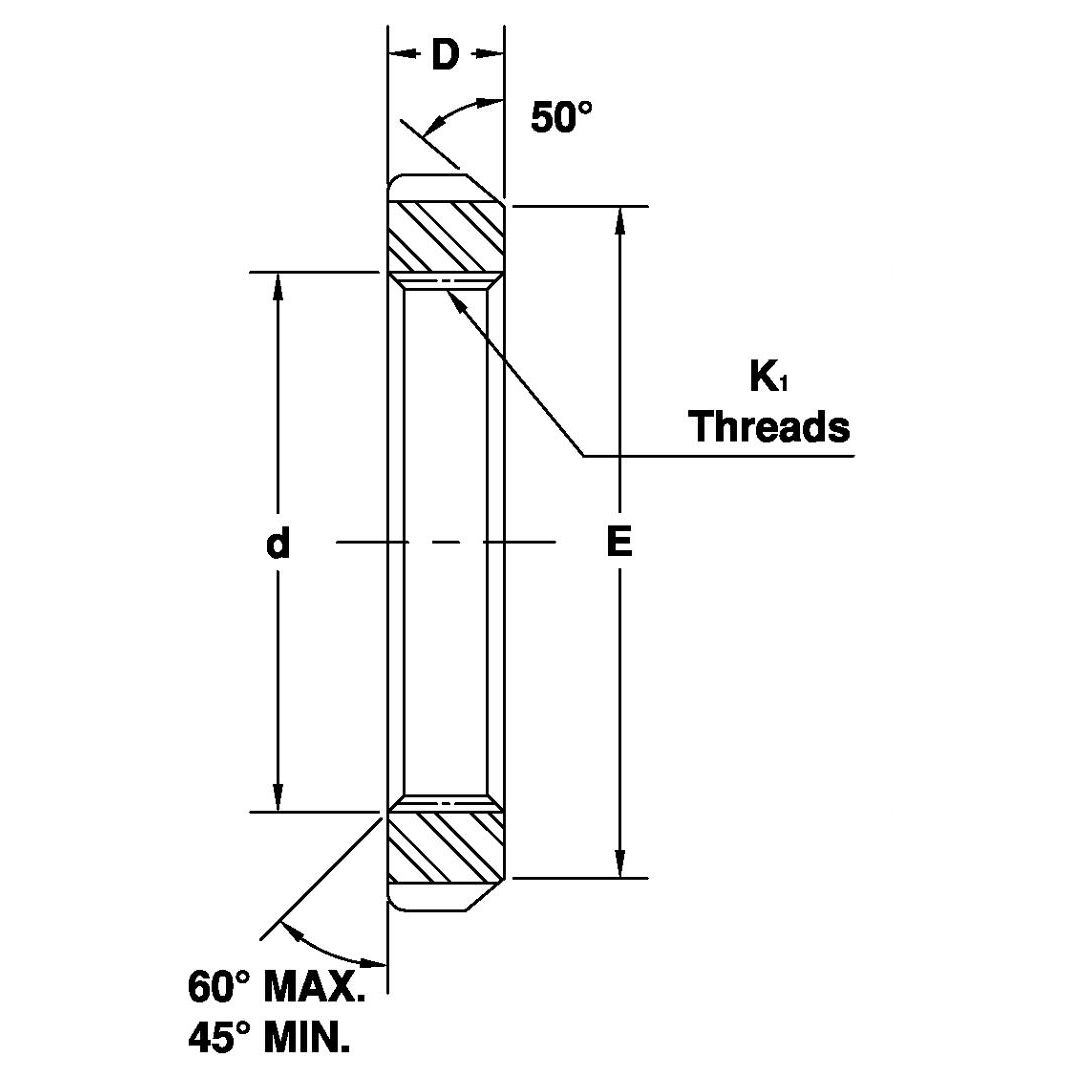

Major Diameter (d) 1.767" Minimum
Threads Per Inch (K1) 18

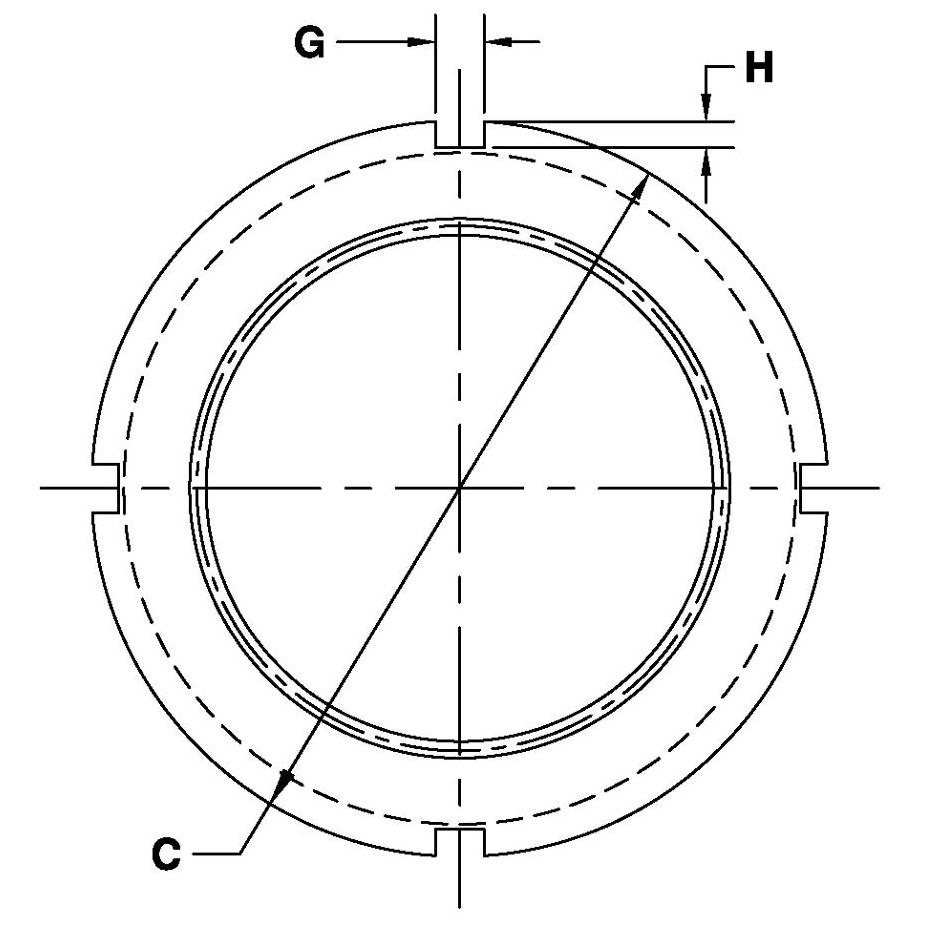

Outside Diameter (C) 2.531"
Face Diameter (E) 2.281" Maximum
Nut Width (D) 0.448" Maximum
Slot Width (G) 0.240" Maximum
Slot Depth (H) 0.104" Maximum
Face Runout (Sd) 0.004” Maximum
Weight 0.29 lbs
Axial Load 26,500 lbs
Bearing Retainer Lock Washer W-09
