/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O102 Marathon 1/6HP Oil Burner Electric Motor, 3450RPM
Click Image to Expand

Product ID: O102

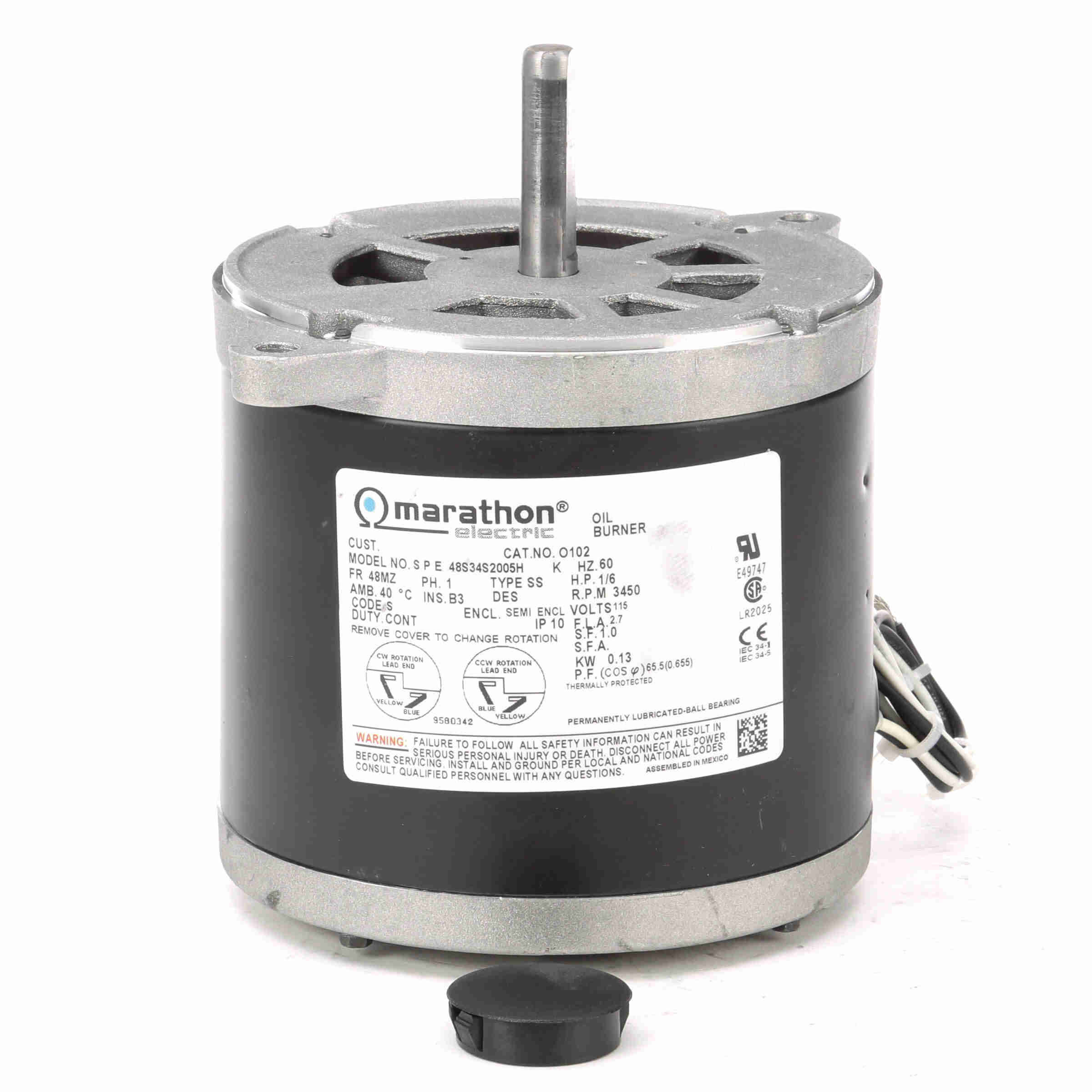

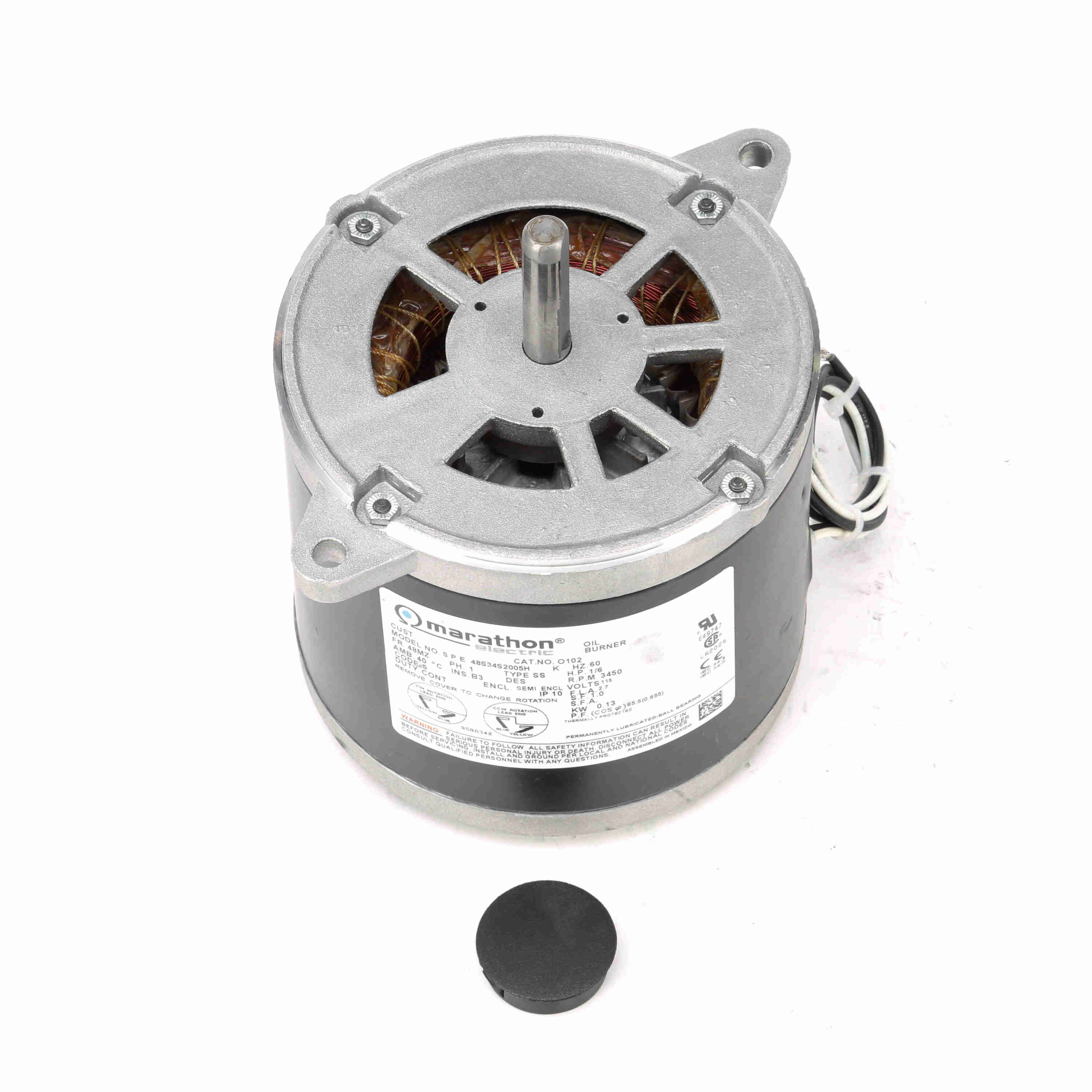

O102 Marathon 1/6HP Oil Burner Electric Motor, 3450RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O102

Selected accessories will also be added to cart
$189.97 / Each
Quantity:
Semi Enclosed, 48M Frame, 115V Single Phase 60Hz, 048S34S2005

Features

Features
  • Semi- enclosed steel frame
  • 20” Long leads from a 1/2” NPT opening
  • Split phase design
  • Two-bolt, NEMA N- or M-Flange direct

General Specifications

General Specifications
Model :048S34S2005 Catalog No :O102
Part Description :1/6,3450,SEMI,48M,1/60/115 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.17 Hp Output KW :0.13 kW
Frequency :60 Hz Voltage :115 V
Current :2.7 A Speed :3450 rpm
Service Factor :1 Phase :1
Efficiency :62 % Duty :Continous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :S Frame :48MZ
Enclosure :Semi Enclosed Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :10

Technical Specifications

Technical Specifications
Electrical Type :Split Phase Starting Method :Across The Line
Poles :2 Rotation :Selective Clockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :7.25 in Frame Length :4.00 in
Shaft Diameter :0.500 in Shaft Extension :1.99 in
Assembly/Box Mounting :F1 Only UPC :722856041586
Weight :11.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down3.629.303,0570.670.17
Pull-Up10.408.944572.050.17
Locked-Rotor10.409.0602.040.17
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.06
  • 0.062
  • 0.0
  • 26.2
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 2.10
  • 0.543
  • 5.8
  • 224.8
  • 3,563
  • 0.0
  • 1.00
  • 50 %
  • 2.24
  • 0.576
  • 10.9
  • 223.6
  • 3,543
  • 0.0
  • 2.00
  • 75 %
  • 2.42
  • 0.613
  • 15.3
  • 220.3
  • 3,522
  • 0.0
  • 3.00
  • 100 %
  • 2.68
  • 0.202
  • 62.0
  • 65.5
  • 3,498
  • 55.0
  • 4.00
  • 125 %
  • 2.98
  • 0.243
  • 64.7
  • 70.9
  • 3,472
  • 0.0
  • 5.10
  • 150 %
  • 3.34
  • 0.289
  • 64.5
  • 75.2
  • 3,440
  • 0.0
  • 6.10
  • 175 %
  • 3.78
  • 0.339
  • 64.2
  • 78.0
  • 3,403
  • 0.0
  • 7.20
  • 200 %
  • 4.36
  • 0.402
  • 62.1
  • 80.2
  • 3,350
  • 0.0
  • 8.40
