/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O211 Marathon 1/3HP Oil Burner Electric Motor, 3600RPM
Click Image to Expand

Product ID: O211

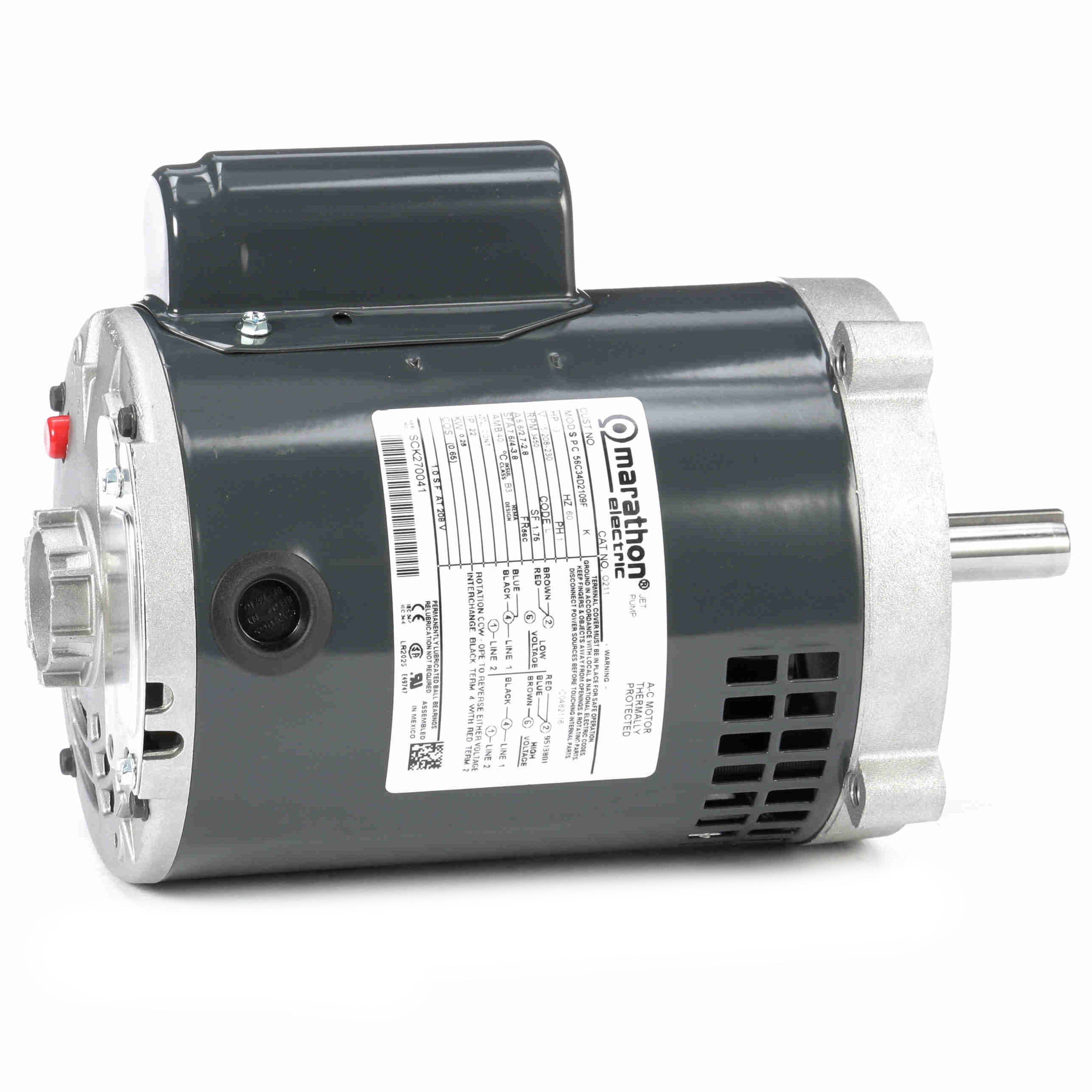

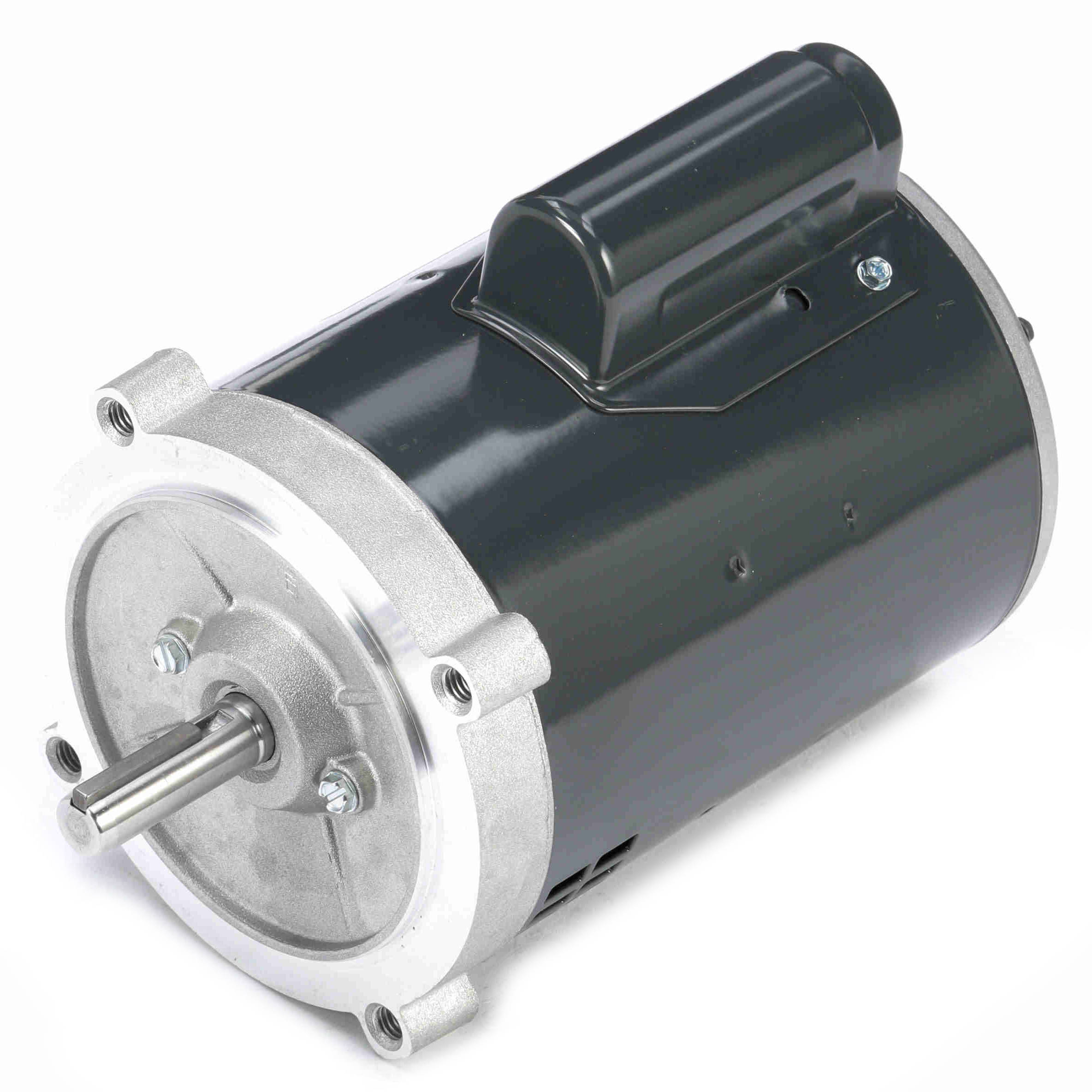

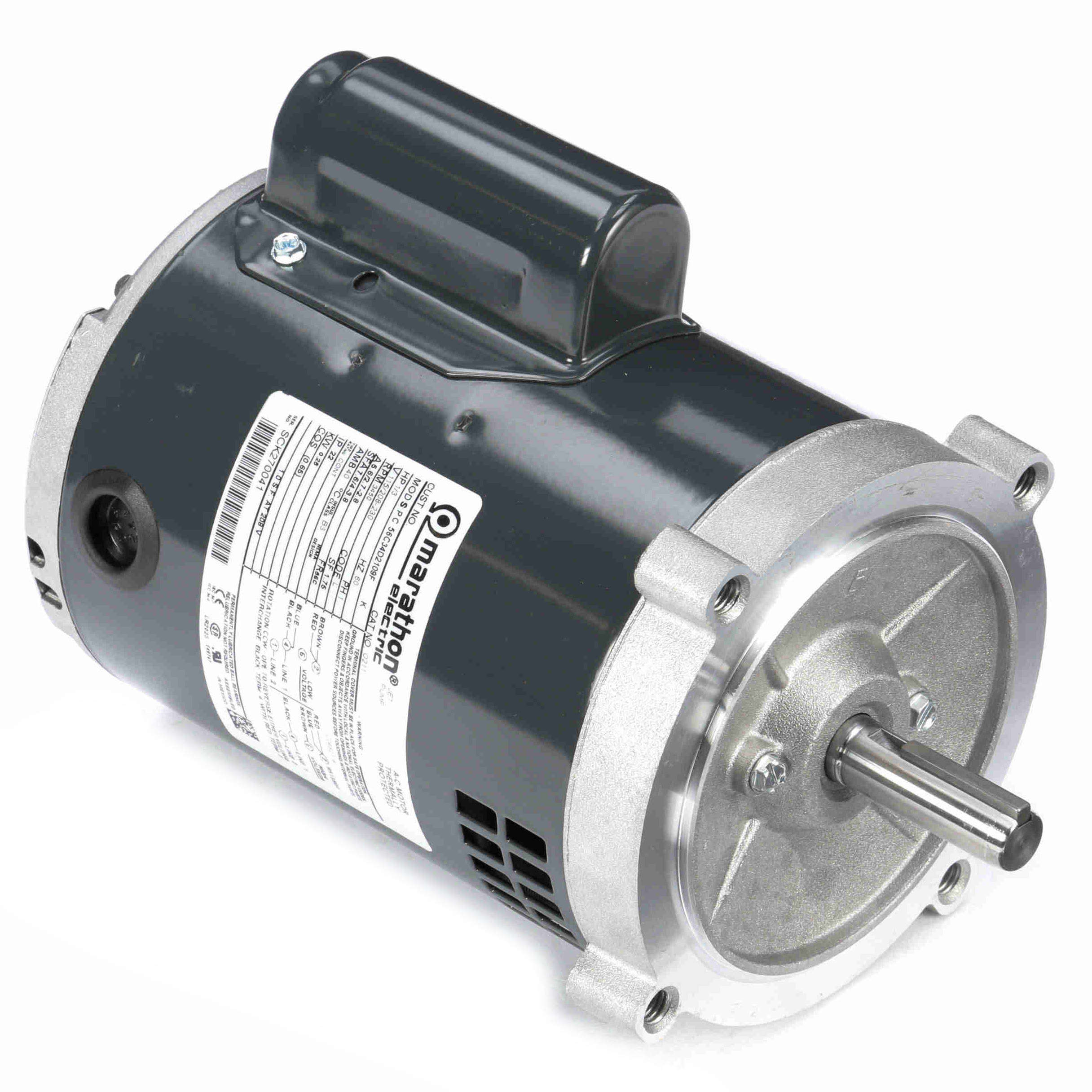

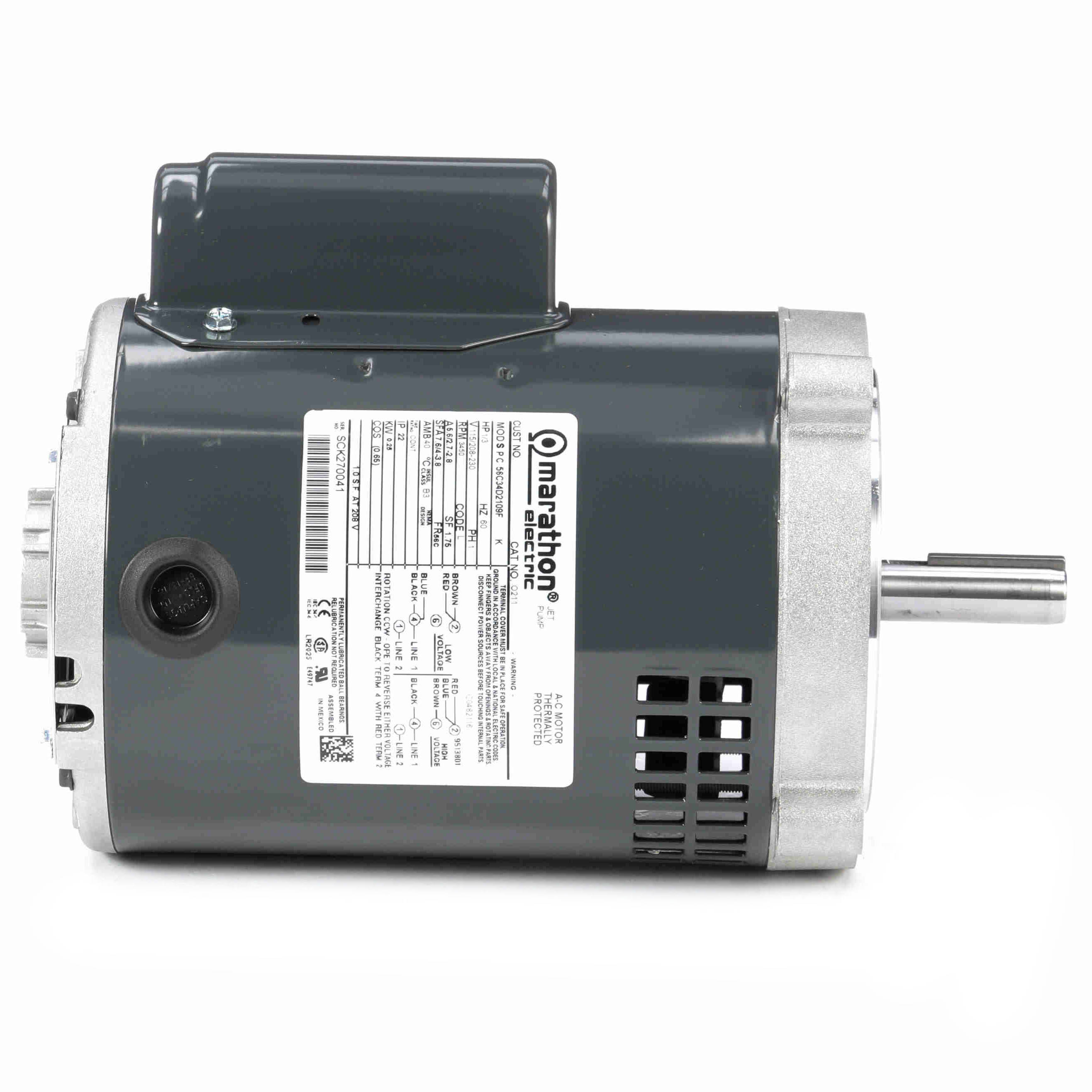

O211 Marathon 1/3HP Oil Burner Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O211

Temporarily out of stock
Selected accessories will also be added to cart
$209.97 / Each
Quantity:
Drip Proof, 56C Frame, 115/208-230V Single Phase 60Hz, C-Face, 056C34D2109

Features

Features
  • Moderate starting torque
  • Capacitor start induction run design
  • NEMA 56C direct mounting
  • NEMA Jet Pump Service Factors

General Specifications

General Specifications
Model :056C34D2109 Catalog No :O211
Part Description :1/3,3600,DP,56C,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.33 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :5.6/2.7-2.8 A Speed :3450 rpm
Service Factor :1.75 Phase :1
Efficiency :64 % Duty :Continous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :L Frame :56C
Enclosure :Drip Proof Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :10.44 in Frame Length :6.50 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
Assembly/Box Mounting :F1 Only UPC :722856041654
Weight :14.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down7.1923.003,2001.440.33
Locked-Rotor14.1014.3002.860.33
Pull-Up14.1013.502292.860.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.20
  • 0.130
  • 0.0
  • 25.0
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 2.30
  • 0.200
  • 33.0
  • 36.0
  • 3,577
  • 0.0
  • 2.00
  • 50 %
  • 2.35
  • 0.250
  • 48.0
  • 48.0
  • 3,564
  • 0.0
  • 4.00
  • 75 %
  • 2.50
  • 0.320
  • 57.0
  • 58.0
  • 3,550
  • 0.0
  • 6.00
  • 100 %
  • 2.80
  • 0.390
  • 63.0
  • 65.0
  • 3,530
  • 30.0
  • 8.00
  • 115 %
  • 2.90
  • 0.450
  • 64.0
  • 68.0
  • 3,520
  • 35.0
  • 10.00
  • 135 %
  • 3.10
  • 0.500
  • 64.0
  • 72.0
  • 3,505
  • 40.0
  • 10.40
  • 150 %
  • 3.40
  • 0.570
  • 62.5
  • 76.0
  • 3,480
  • 45.0
  • 12.00
  • 175 %
  • 3.80
  • 0.680
  • 62.0
  • 82.0
  • 3,440
  • 50.0
  • 14.30
  • 180 %
  • 3.80
  • 0.700
  • 62.0
  • 82.0
  • 3,435
  • 55.0
  • 14.50
  • 200 %
  • 4.10
  • 0.780
  • 61.0
  • 84.0
  • 3,420
  • 0.0
  • 16.30
