/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O212 Marathon 1/2HP Oil Burner Electric Motor, 3600RPM
Click Image to Expand

Product ID: O212

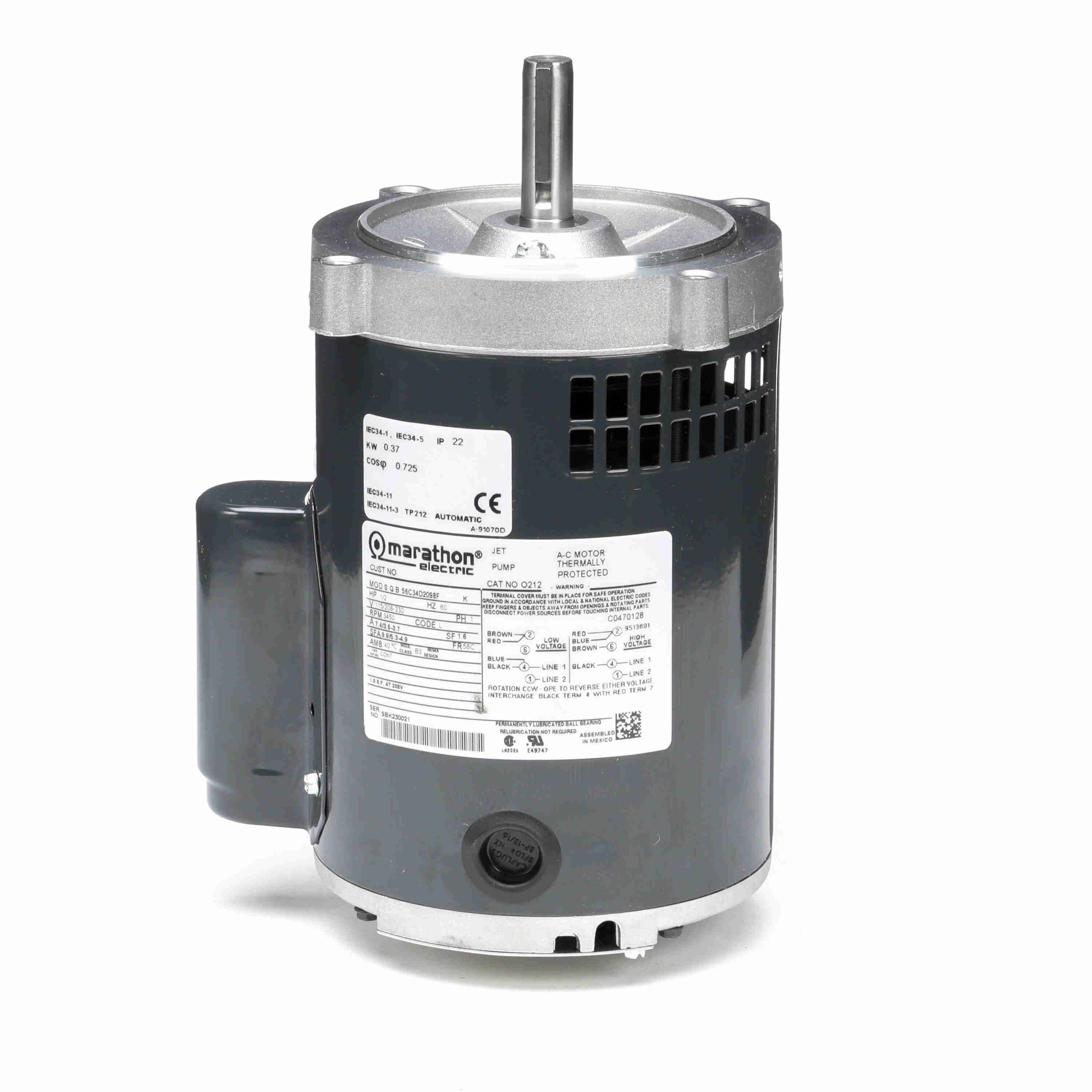

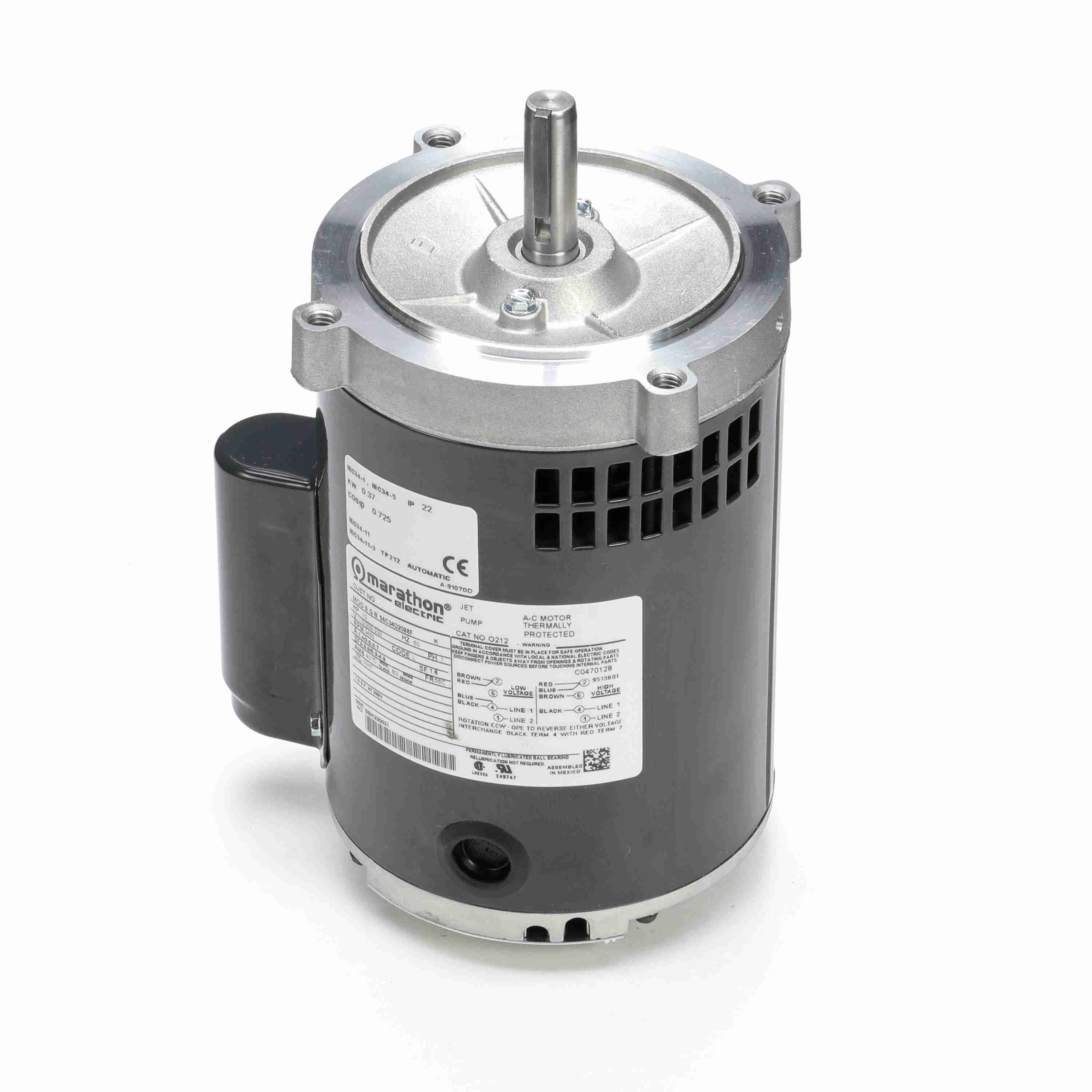

O212 Marathon 1/2HP Oil Burner Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O212

Temporarily out of stock
Selected accessories will also be added to cart
$179.97 / Each
Quantity:
Drip Proof, 56C Frame, 115/208-230V Single Phase 60Hz, 056C34D2098, Split Phase, Capacitor Start

Features

Features
  • Moderate starting torque
  • Capacitor start induction run design
  • NEMA 56C direct mounting
  • NEMA Jet Pump Service Factors

General Specifications

General Specifications
Model :056C34D2098 Catalog No :O212
Part Description :1/2,3600,DP,56C,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :7.4/3.5-3.7 A Speed :3450 rpm
Service Factor :1.6 Phase :1
Efficiency :62 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :L Frame :56C
Enclosure :Drip Proof Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :10.69 in Frame Length :6.75 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
Assembly/Box Mounting :F1 ONLY UPC :722856041661
Weight :17.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down10.1031.103,1572.000.50
Pull-Up19.0021.702433.900.50
Locked-Rotor19.1022.9003.900.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.66
  • 0.182
  • 0.0
  • 0.0
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 2.71
  • 0.267
  • 0.0
  • 0.0
  • 3,572
  • 0.0
  • 3.00
  • 50 %
  • 2.89
  • 0.370
  • 0.0
  • 0.0
  • 3,556
  • 0.0
  • 5.90
  • 75 %
  • 3.17
  • 0.480
  • 0.0
  • 0.0
  • 3,538
  • 0.0
  • 8.90
  • 100 %
  • 3.70
  • 0.601
  • 62.0
  • 72.5
  • 3,520
  • 50.0
  • 12.00
  • 125 %
  • 4.01
  • 0.732
  • 0.0
  • 0.0
  • 3,493
  • 70.0
  • 15.10
  • 150 %
  • 4.60
  • 0.878
  • 0.0
  • 0.0
  • 3,466
  • 0.0
  • 18.20
  • 160 %
  • 4.90
  • 0.939
  • 64.0
  • 84.0
  • 3,455
  • 0.0
  • 19.50
  • 200 %
  • 6.18
  • 1.240
  • 0.0
  • 0.0
  • 3,389
  • 0.0
  • 24.90
