/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O600 Marathon 1/8HP Oil Burner Electric Motor, 1725RPM
Click Image to Expand

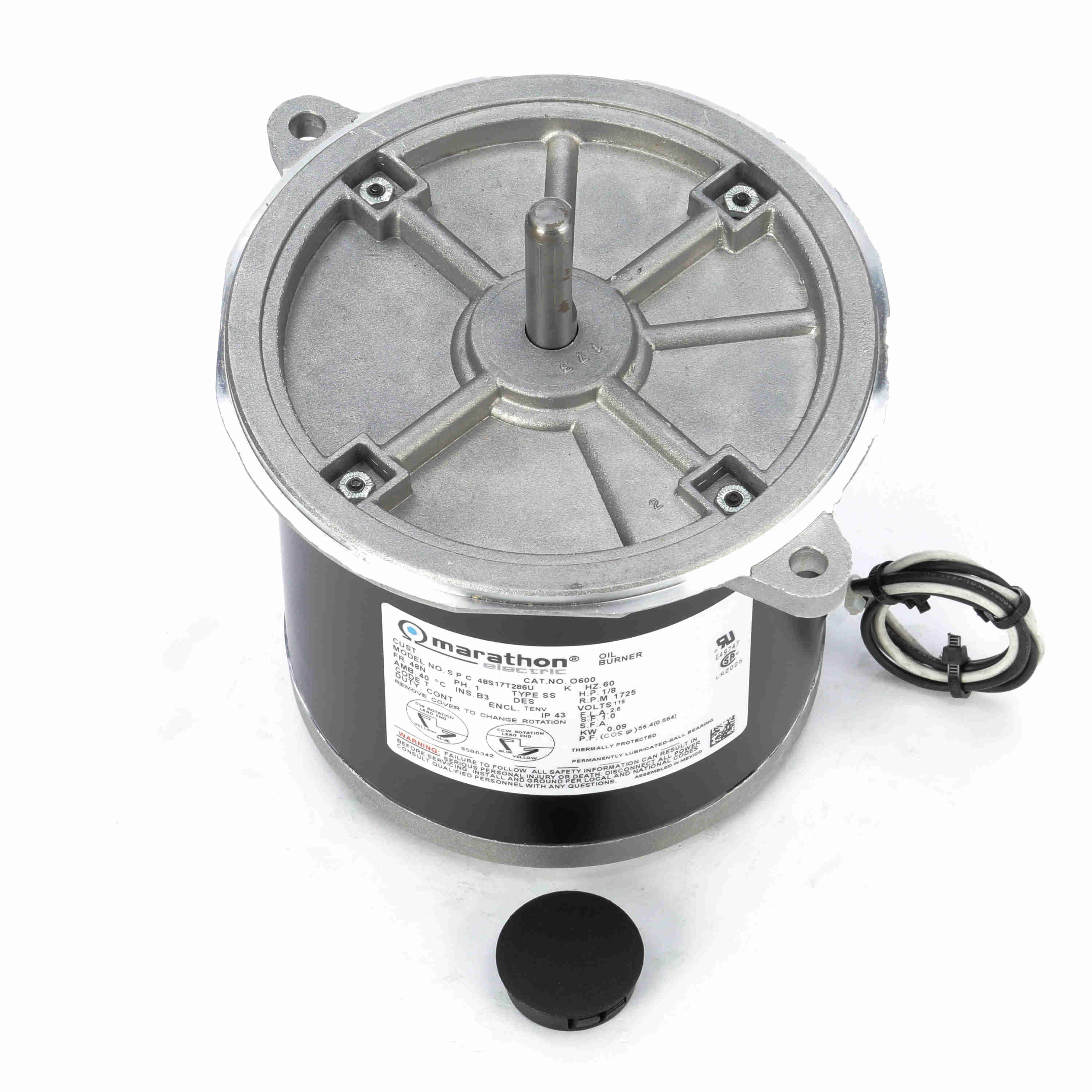

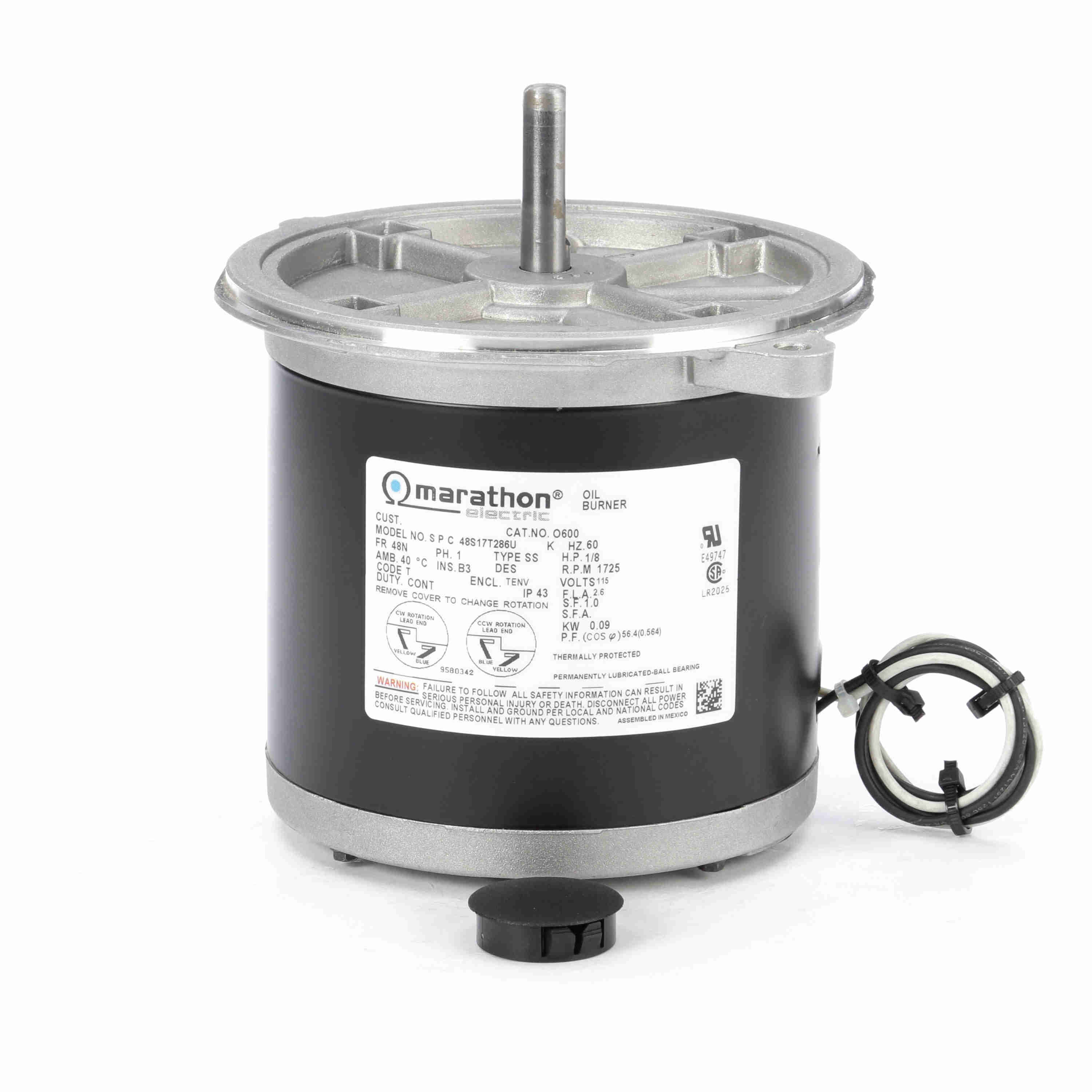

O600 Marathon 1/8HP Oil Burner Electric Motor, 1725RPM

Product ID: O600

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O600

Selected accessories will also be added to cart
$189.97 / Each
Quantity:
TENV, 48N Frame, 115V Single Phase 60Hz, 048S17T286

Features

Features
  • Totally enclosed steel frame
  • 20” Long leads from a 1/2” NPT opening
  • Split phase design
  • Two-bolt, NEMA N- or M-Flange direct
  • Consult factory for accessory kit and/or modification selection

General Specifications

General Specifications
Model :048S17T286 Catalog No :O600
Part Description :1/8,1725,TENV,48N,1/60/115 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.13 Hp Output KW :0.09 kW
Frequency :60 Hz Voltage :115 V
Current :2.6 A Speed :1725 rpm
Service Factor :1 Phase :1
Efficiency :50.5 % Duty :Continous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :T Frame :48N
Enclosure :Totally Enclosed Non Ventilated Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Split Phase Starting Method :Across The Line
Poles :4 Rotation :Selective Clockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 48
Overall Length :7.59 in Frame Length :4.25 in
Shaft Diameter :0.500 in Shaft Extension :1.97 in
Assembly/Box Mounting :F1 Only UPC :722856041593
Weight :11.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up23.2011.20432.400.13
Locked-Rotor23.4011.9002.400.13
Break-Down5.9016.201,5360.500.13
