/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/Oil Burner/O601 Marathon 1/6HP Oil Burner Electric Motor, 1725RPM

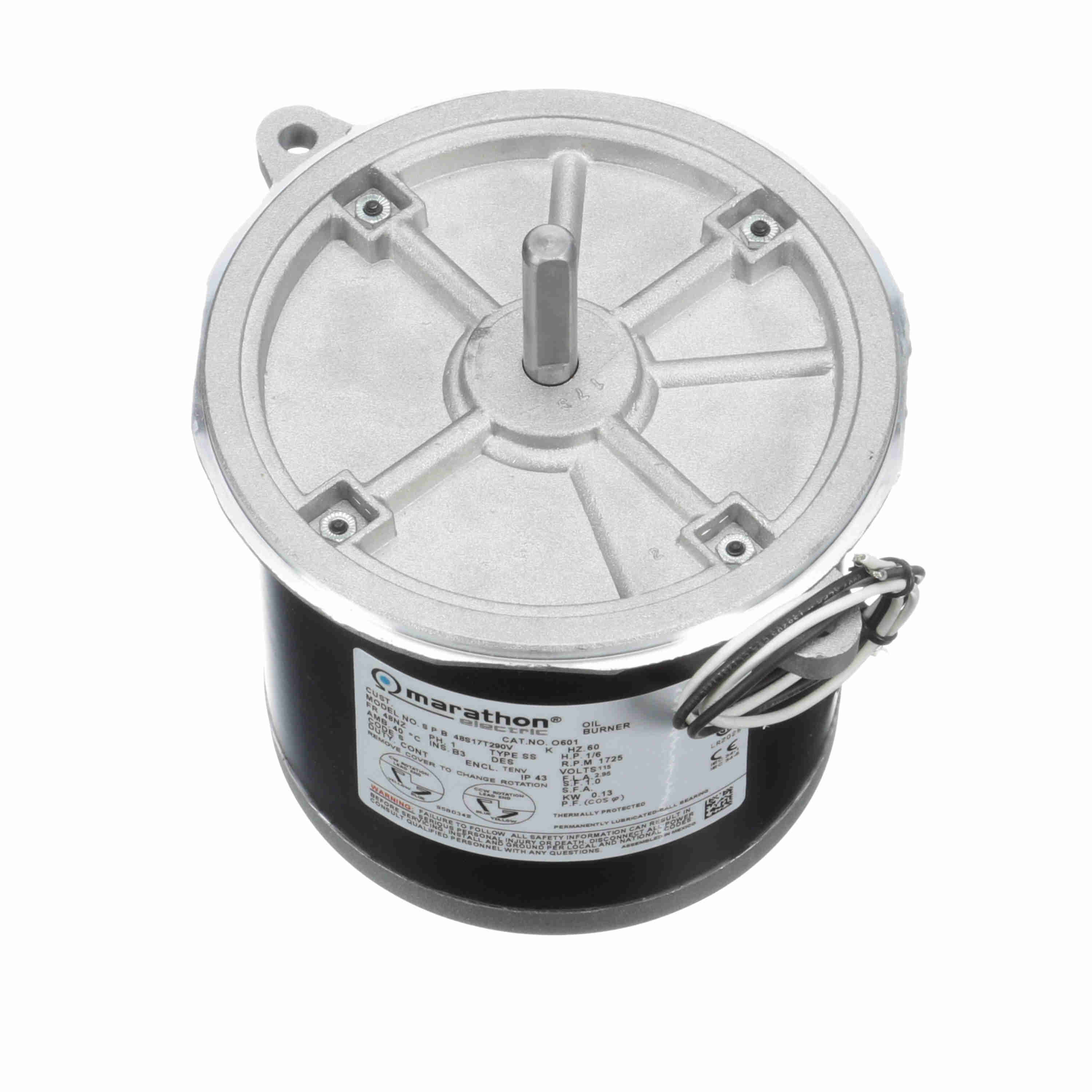

Click Image to Expand

Product ID: O601

O601 Marathon 1/6HP Oil Burner Electric Motor, 1725RPM

MFG: Marathon Electric
MFG Part Number: O601

Available Stock: 1
Selected accessories will also be added to cart
$199.97 / Each
Quantity:
TENV, 48NZ Frame, 115V Single Phase 60Hz, 048S17T290
General Specifications
Model :  048S17T290
Catalog No :  O601
Part Description :  1/6,1800,TENV,48N,1/60/115
Category :  Single Phase
Stock :  Yes
Nameplate Specifications
Output HP :  0.17 Hp
Output KW :  0.13 kW
Frequency :  60 Hz
Voltage :  115 V
Current :  2.95 A
Speed :  1725 rpm
Service Factor :  1
Phases :  1
Efficiency :  58.2 %
Duty :  CONTINUOUS
Insulation Class :  B
Design Code :  NO DESIGN CODE
KVA Code :  S
Frame :  48NZ
Enclosure :  TENV
Overload Protector :  MANUAL
Ambient Temperature :  40 ?C
Drive End Bearing Size :  6203
Opp Drive End Bearing Size :  6203
UL :  Recognized
CSA :  Y
CE :  Y
IP Code :  43
Technical Specifications
Electrical Type :  SPLIT PHASE
Starting Method :  ACROSS THE LINE
Poles :  4
Rotation :  SELECTIVE CW
Mounting :  ROUND
Motor Orientation :  HORIZONTAL
Drive End Bearing :  BALL
Opp Drive End Bearing :  BALL
Frame Material :  ROLLED STEEL
Shaft Type :  SGL SPL EXT
Overall Length :  7.59 in
Frame Length :  4.25 in
Shaft Diameter :  0.5 in
Shaft Extension :  1.97 in
Assembly/Box Mounting :  F1 ONLY
UPC :  722856041609
Type
Electric Motor
Input Phase
Single Phase
Speed
1725RPM
Enclosure
TENV
Horsepower
1/6HP
Frame
48NZ
