/Products/VFD's & Soft Starters/Fuji/Options/OPC-PRT2 Fuji ProfiNet Communication Card
Click Image to Expand

Product ID: OPC-PRT2

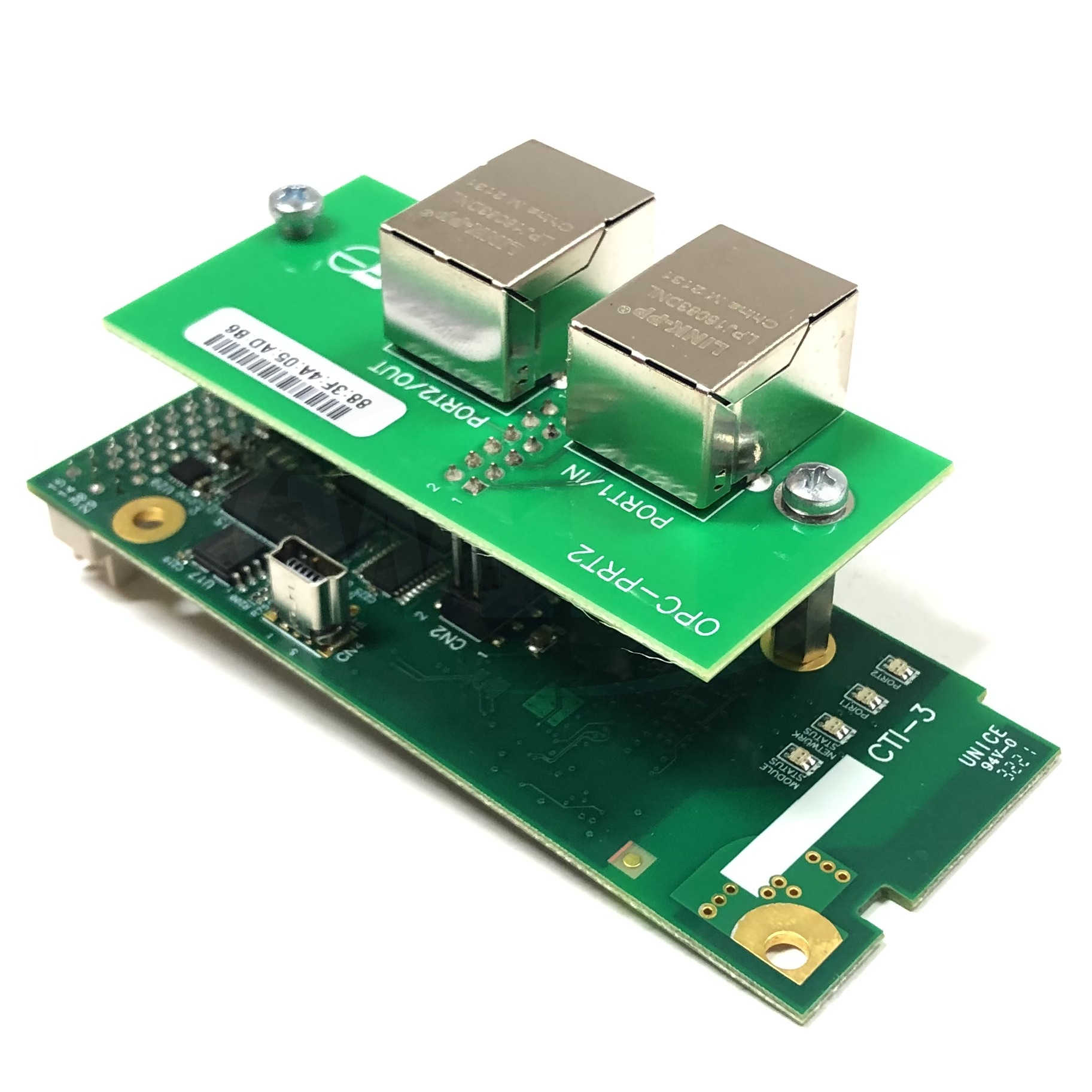

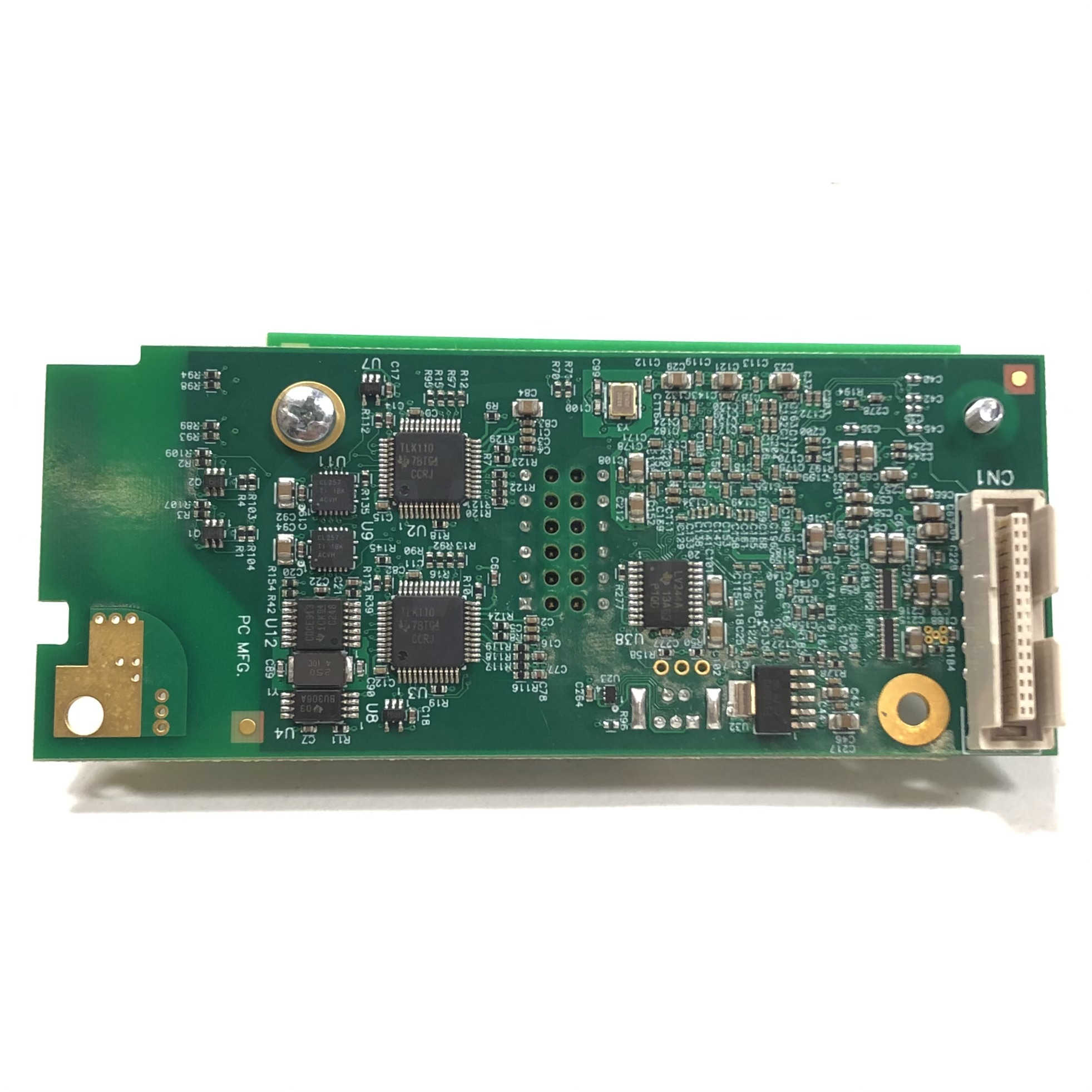

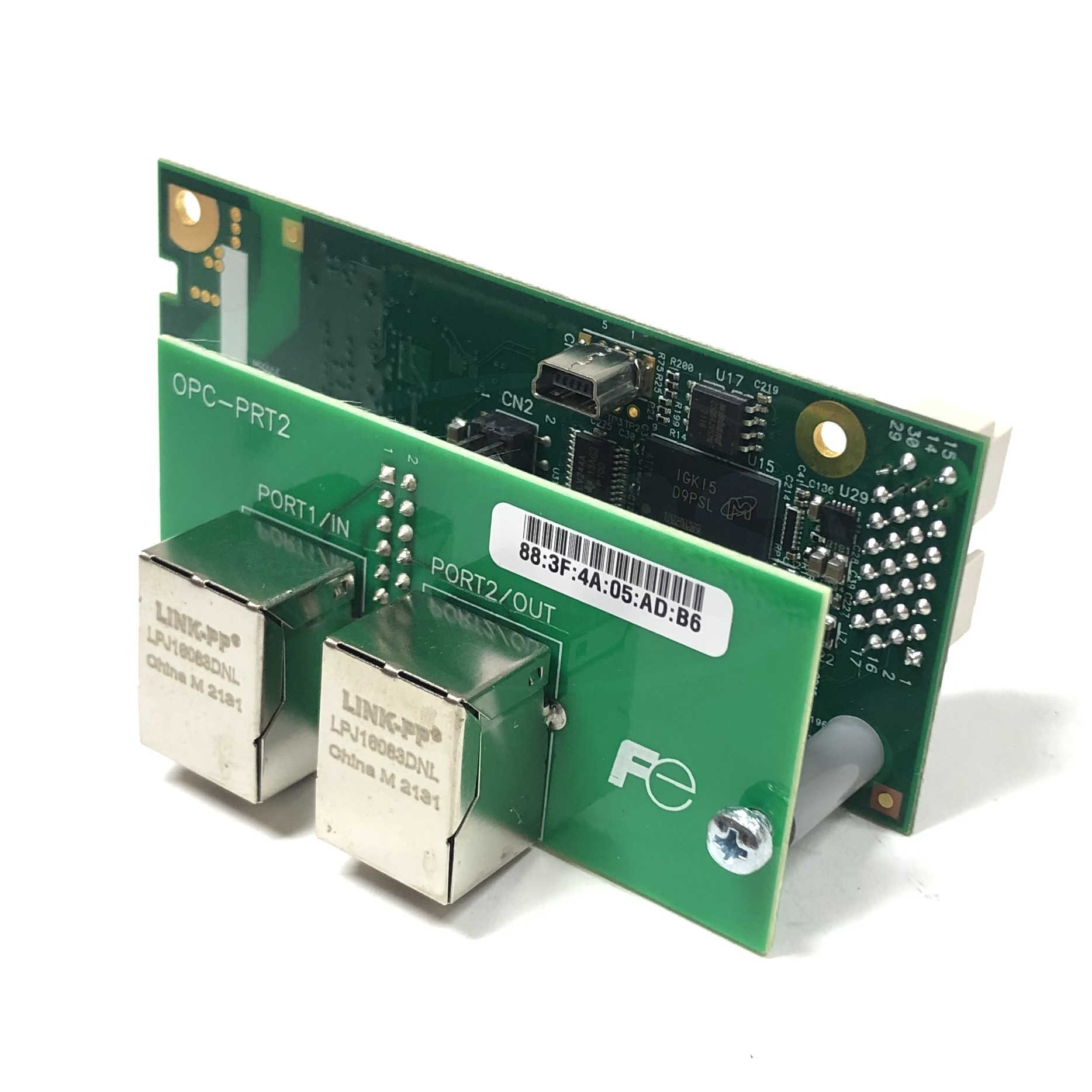

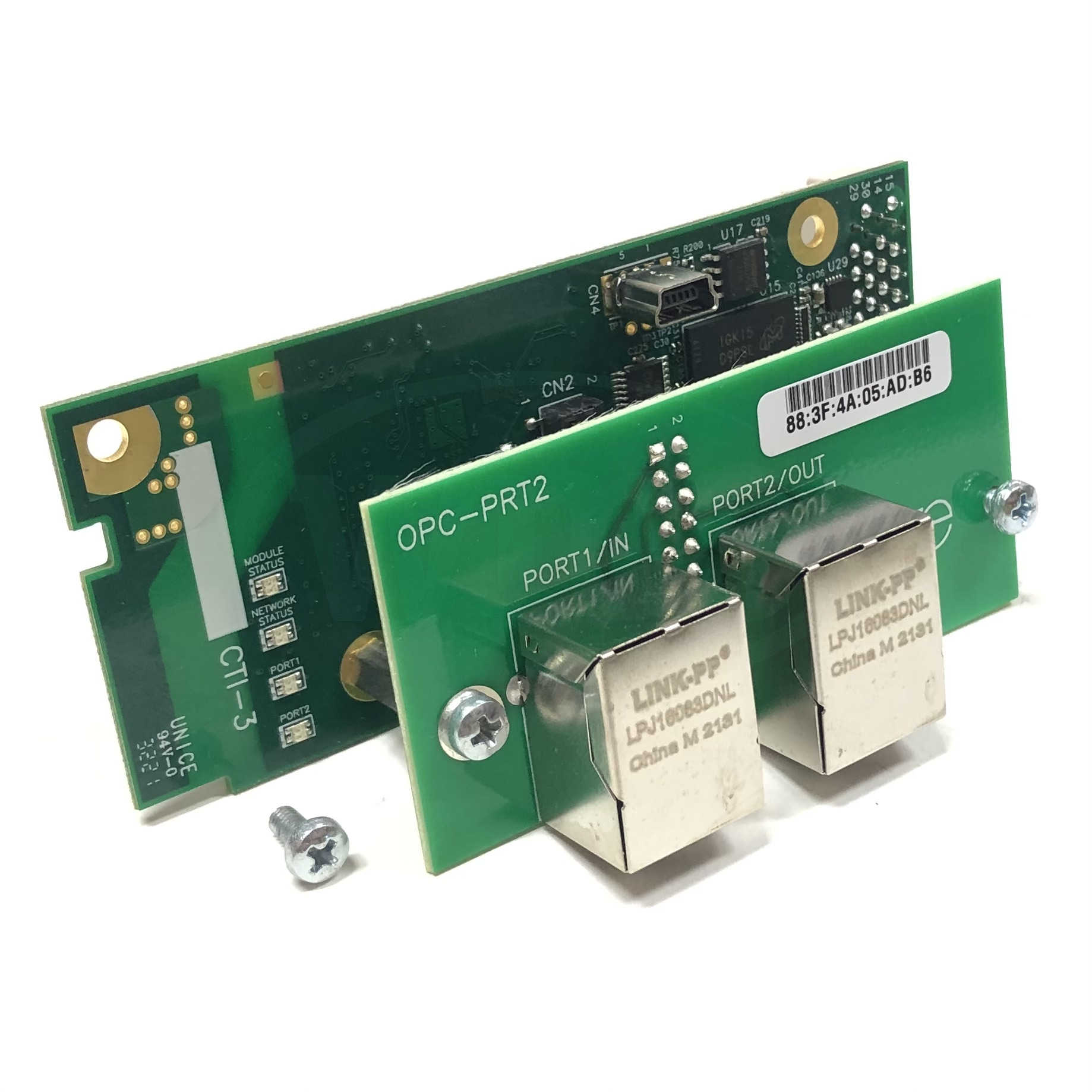

OPC-PRT2 Fuji ProfiNet Communication Card

MFG: Fuji Electric Corp. of America
MFG Part Number: OPC-PRT2

Selected accessories will also be added to cart
$346.50 / Each
Quantity:

The OPC-PRT2 multiprotocol communication interface provides Ethernet-based network connectivity to Fuji FRENIC-MEGA and FRENIC-HVAC adjustable speed drives.
The OPC-PRT2 currently provides support for the following Ethernet networks:
Modbus/TCP
BACnet/IP
EtherNet/IP (DLR)
Allen Bradley CSP (also known as "PCCC" and "AB Ethernet")
PROFINET IO (MRP)
Documents
Brochure
Brochure (PDF, 1 Page, 300KB)
Manual
User's Manual (October 28, 2019, PDF, 115 Pages, 14MB)
Function Code Register List - Available in the Fuji Configuration Studio
RS-485 User's Manual 24A7-E-0082 - Applicable for the OPC-PRT2 (PDF, 171 Pages, 1.83MB)
Version Information
Version Info (December 3, 2019, PDF, 4 Pages, 96KB)
Network Documents
EtherNet/IP EDS (V1.1, ZIP, 8KB)
PROFINET GSDML (September 13, 2016, ZIP, 13KB)
XTPro Specification (PDF, 21 Pages, 320KB)
Web Server
Default Web Server, Version 7 (ZIP, 260KB)
XTPro Example (ZIP, 610KB)
Sample Application Programs
RSLogix 5000 Examples (ZIP, 1.59MB)
RSLogix 5000 Add-On Instructions (ZIP, 516KB)
RSLogix 500 Examples (ZIP, 53KB)
Software
Fuji Configuration Studio
Firmware
The latest firmware is included in the latest Fuji Configuration Studio
Features
Network
MRP (Media Redundancy Protocol) and DLR (Device Level Ring) allows for fast recovery and high availability.
Dual RJ-45 ports with embedded IEEE 802.3 10BASE-T/100BASE-TX Ethernet switch supports star, daisy-chain, and redundant ring topologies. Shielded RJ-45 connectors accept standard CAT5-type 8-conductor unshielded twisted-pair (UTP) patch cables.
MDI/MDI-X auto-crossover allows the use of any combination of straight-through and cross-over Ethernet cables.
Supports multiple protocols simultaneously.

Graphical User Interface
The Configuration Studio software reduces the user's learning curve.
Easily discover, configure, and update units via USB and Ethernet.

USB
USB 2.0 port with mini-B connector provides composite USB device functionality. USB connection allows for product identification, configuration, and firmware updating.
Enumerates as a standard USB mass storage device ("flash drive") for configuration and web page customization.
FTP
Remote configuration, web server content, and firmware updating.
Remote access to the unit's file system.
Field-Upgradeable
As new firmware becomes available, the unit can be upgraded in the field by the end-user.
Custom Embedded Web Server
Open XML-based socket data transfer allows end users to create their own custom web server content and load it onto the unit's internal file system.
The factory-default web server provides real-time inverter function code monitoring/control via standard web browsers such as Microsoft Internet Explorer and Mozilla Firefox.
Dashboard
A variety of gauges, meters, and graphs can be configured to provide an at-a-glance graphical overview of critical application variables in real-time. A total of ten gauge windows are available (two at a time) and each gauge window can be configured to display one of six different gauge types.
A virtual keypad interface provides quick access to control and monitor information.
Network Timeout Action
A configurable network timeout action can be programmed that allows function codes to have their own unique "fail-safe" conditions in the event of a network interruption.
Indicators
1 bicolor red/green module status LED.
1 bicolor red/green network status LED.
2 bicolor red/green Ethernet LEDs.
ROHS Compliant
The OPC-PRT2 is lead-free.
