/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Pool and Spa/PCJ105H WEG 1/2HP High Service Factor Electric Motor, 3600RPM

Product ID: PCJ105H

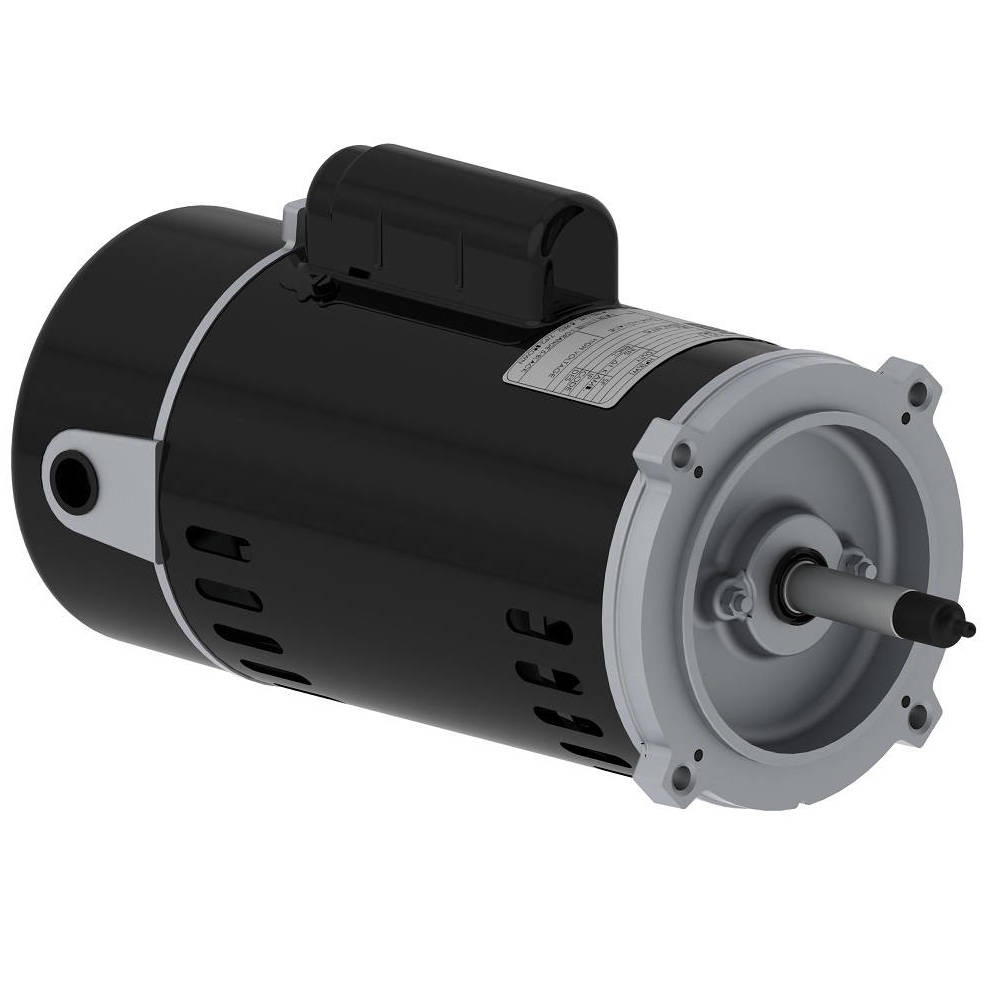

PCJ105H WEG 1/2HP High Service Factor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: PCJ105H

Selected accessories will also be added to cart

$210.04 / Each

Quantity:

IC01-ODP, IP21, K56J Frame, 115/230V, 60Hz, Single Phase

Electric Motors

Frame	K56J
Output	0.5 HP (0.37 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3515 rpm
Slip	2.36 %
Rated voltage	115/230 V
Rated current	9.10/4.55 A
L. R. Amperes	53.7/26.8 A
LRC	5.9x(Code N)
No load current	7.70/3.85 A
Rated torque	0.737 ft.lb
Locked rotor torque	210 %
Breakdown torque	400 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.0233 sq.ft.lb
Insulation Class	B
Service factor	1.60
Temperature rise	70 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP21
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	CCW
Noise level?	58.0 dB(A)
Approx. weight?	22.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
45.0	54.0	60.4

Power factor

50%	75%	100%
0.43	0.52	0.59

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	AISI 316 Stainless Steel
Painting
Grounding Lugs	Single
Tropicalized Painting	Without
Fan material	Nylon
Bearing cap	No-Without Bearing Cap
Balancing Method	Not Balanced
Drip Cover	Without
Shaft End	threaded
Resilient Base	Without

Bearing details

	Drive End	Non Drive End
Bearing type	6203 2RS	6203 2RS
Sealing	Without Bearing Seal	Without Bearing Seal
Lubrication interval	-	-
Lubricant amount	-	-
Grease Type	Mobil Polyrex EM

6203-2RS-C3 JTEKT/Koyo Ball Bearing, Double Sealed

6203-2RS-C3 JTEKT/Koyo Ball Bearing, Double Sealed

40mm x 17mm x 12mm
Available Stock: 81

MFG: The Timken Company

6203-2RS

$8.98 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

3600RPM

Enclosure

ODP

Horsepower

1/2HP

Frame

K56J
