/Products/Pumps/Ashland Pump/Pedestal Pumps/PED33B Ashland 1/3HP Bronze Pedestal Sump Pump, 115VAC Single Phase

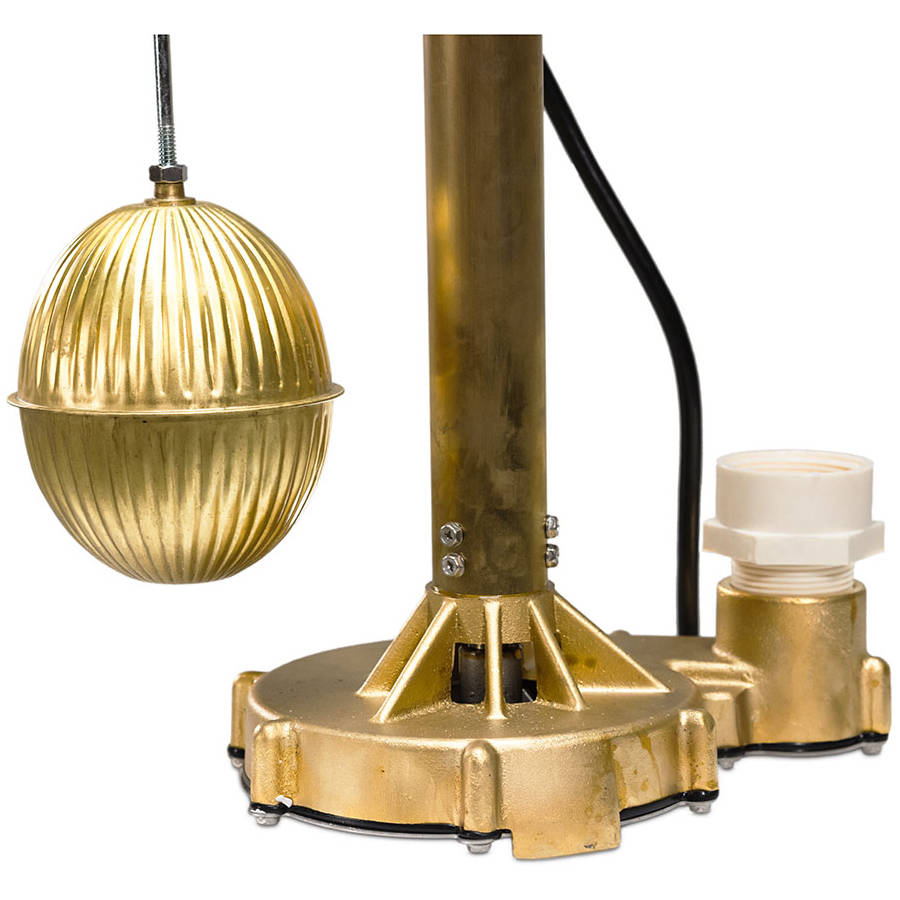

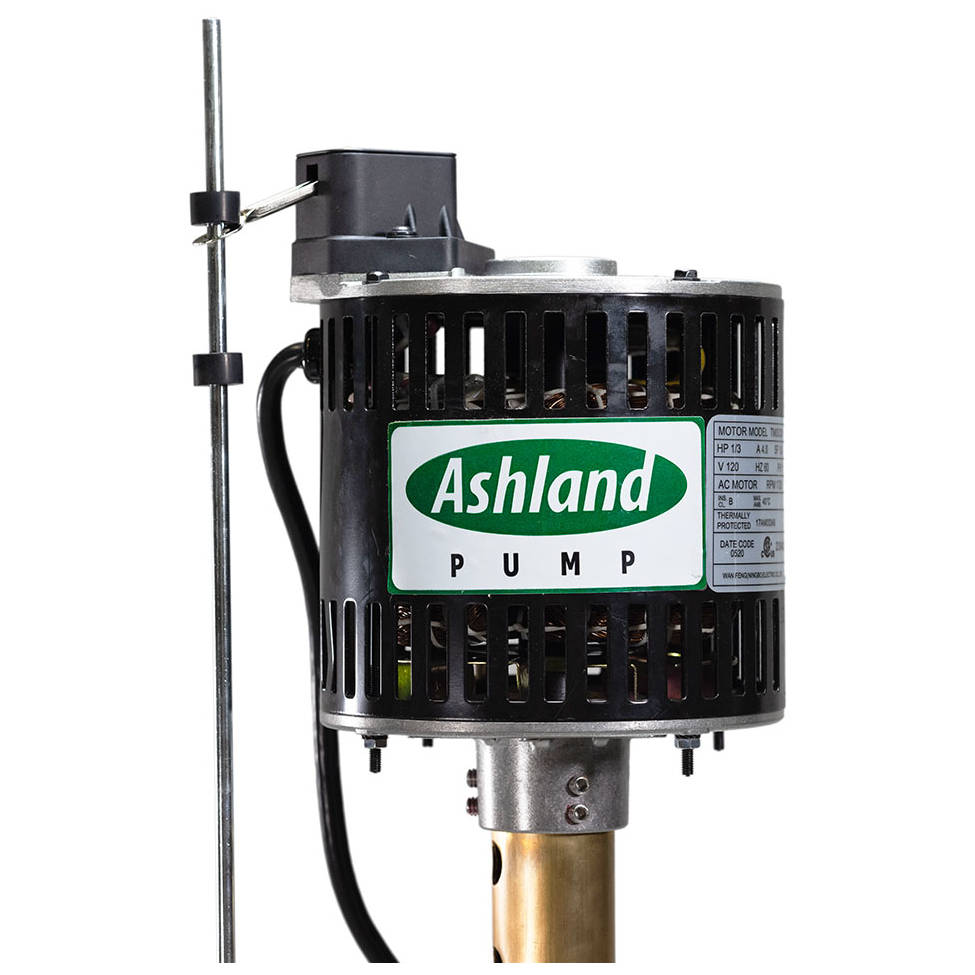

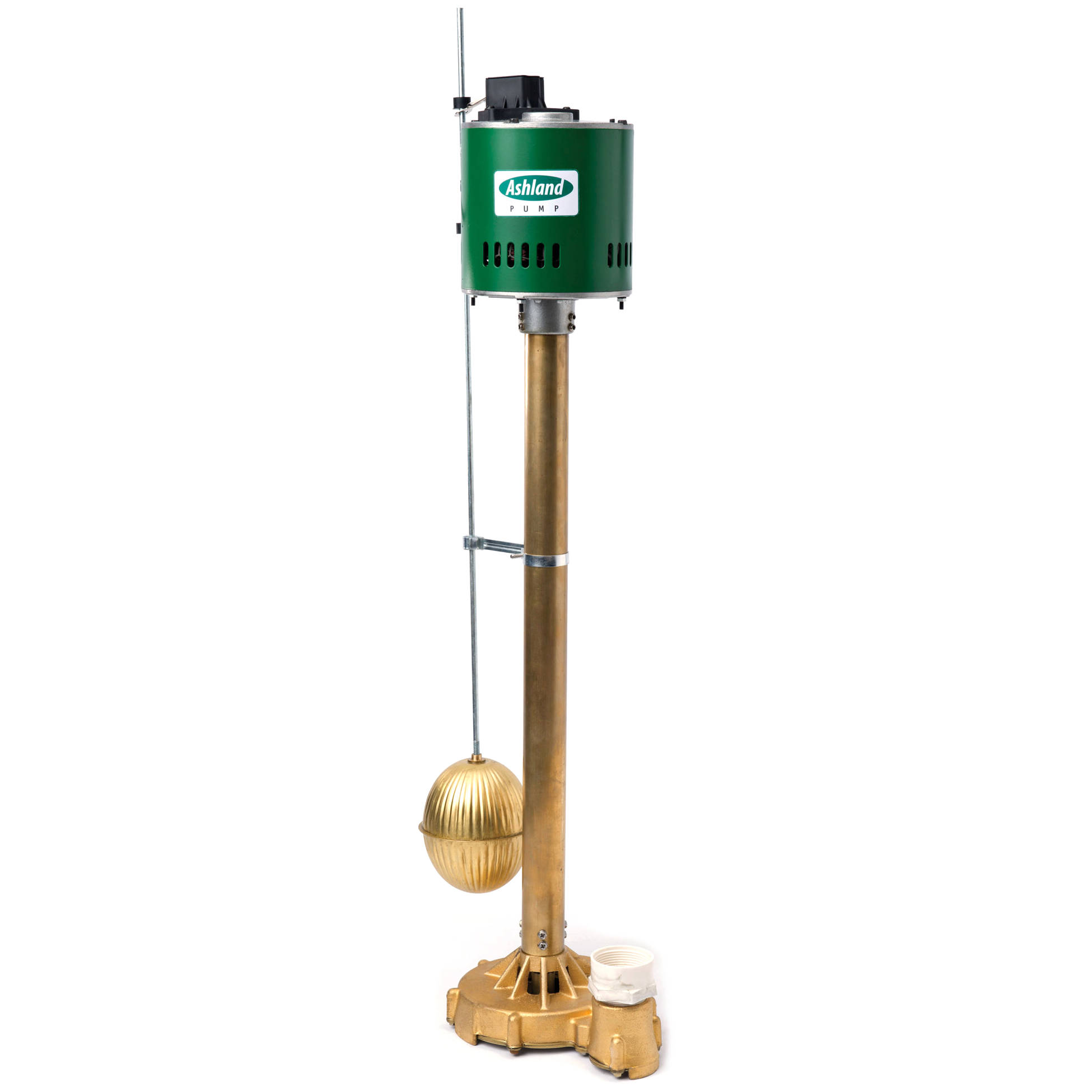

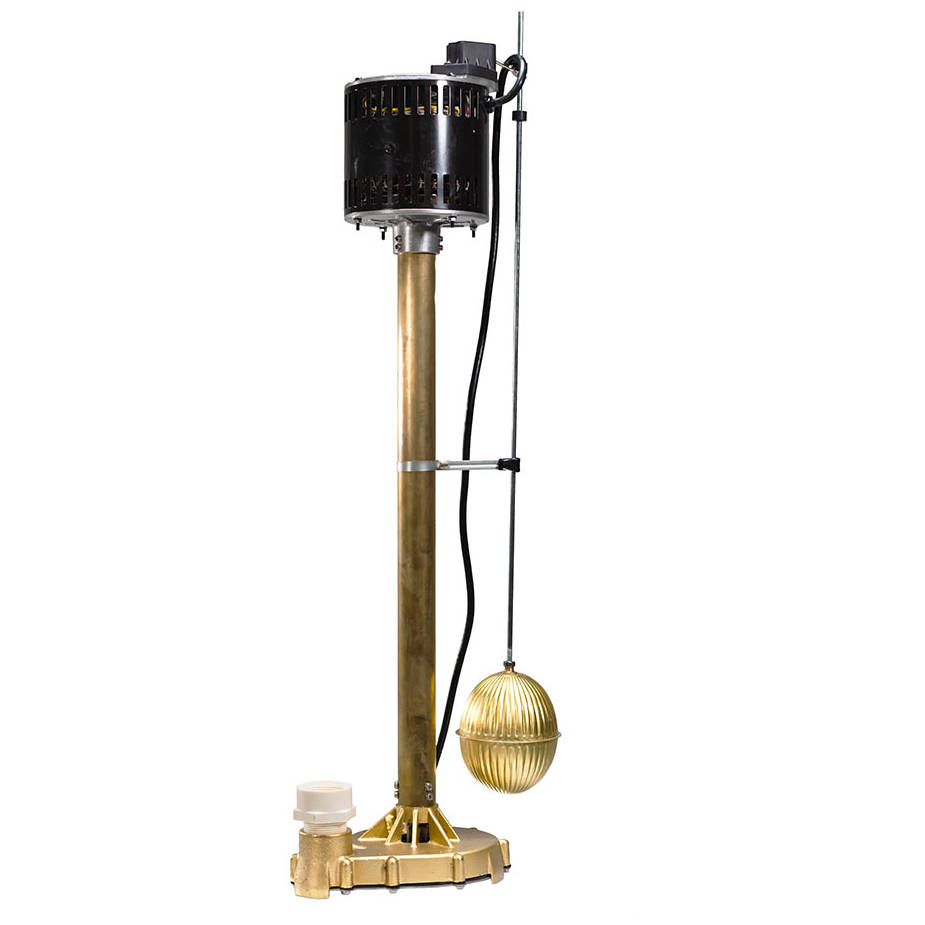

PED33B Ashland 1/3HP Bronze Pedestal Sump Pump, 115VAC Single Phase
Enlarge Photo

Product ID: PED33B

PED33B Ashland 1/3HP Bronze Pedestal Sump Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: PED33B

Selected accessories will also be added to cart
$464.00 / Each
Quantity:
1-1/4" NPT Discharge & 1-1/2" Adapter, Top Mounted Adjustable Vertical Switch

Features

  • Column style sump pump for sumps with a minimum 11" in diameter and maximum 24" deep
  • Continuous duty rated PSC motor; higher efficiency
  • Top mounted adjustable vertical switch

Specifications

Brand Ashland Pump
Model PED33B
Switch Type Top Mounted Adjustable Vertical
Voltage 115VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 4.0Amps
Discharge Size 1-1/4” NPT
1-1/2” NPT Adapter
Impeller Type Vortex Stainless Steel
Cable Length 8'
Solids Handling 3/16"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Power Cord Size SJT
Motor Housing Steel
Casing Bronze
Impeller Stainless Steel
Motor Shaft SST
Hardware Steel
O-Rings NBR
Seal Lip
Upper Bearing 6202
Lower Bearing 6202
RPM 1750 RPM
Motor Type PSC (Single Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1/3HP
Service Factor 1.00

Dimensions

PED33B Pump Dimensions

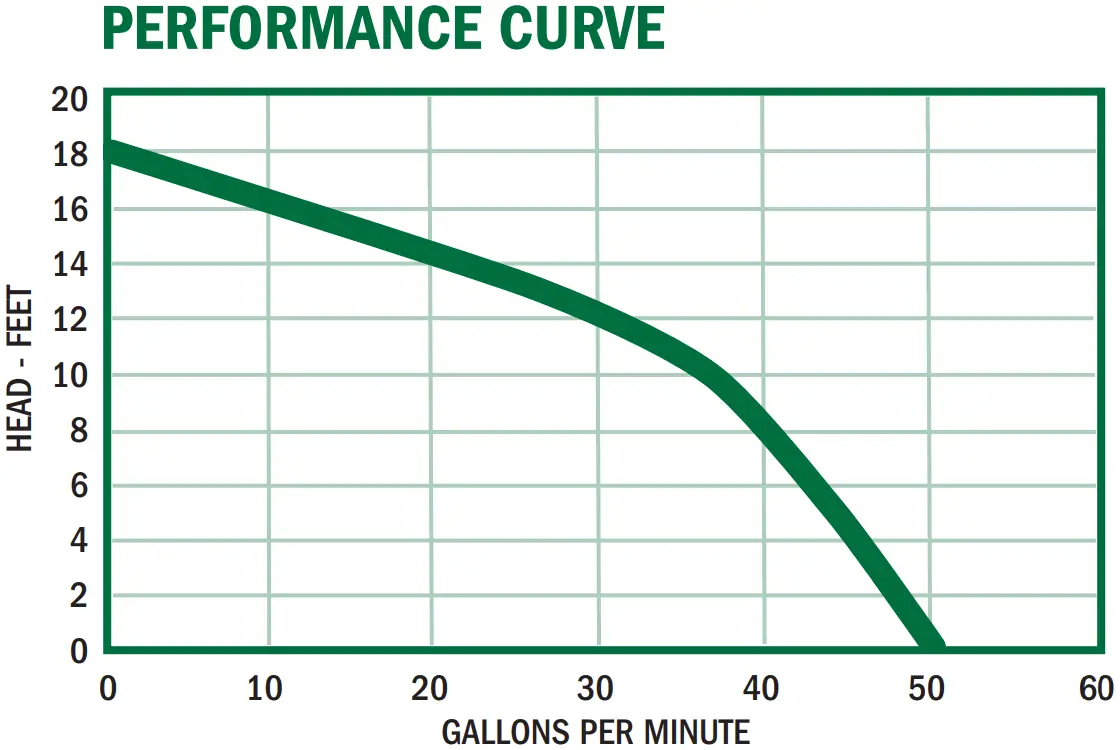

Performance Curve

PED33B Performance Curve Graph
