/Products/Pumps/Seals/PS-360 U.S. Seal Mfg 1" Pump Seal
Click Image to Expand

Product ID: PS-360

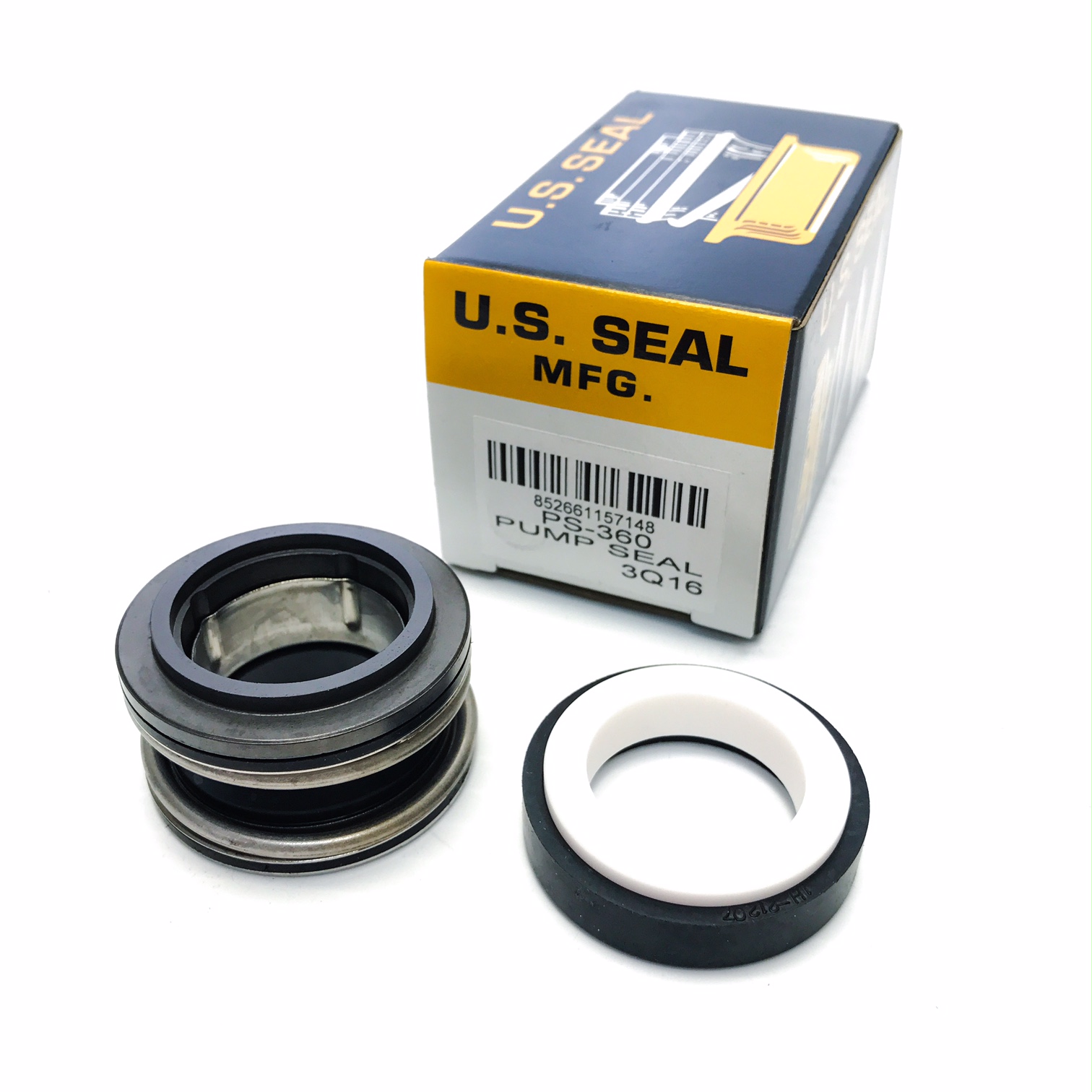

PS-360 U.S. Seal Mfg 1" Pump Seal

MFG: U.S. Seal
MFG Part Number: PS-360

Temporarily out of stock
Selected accessories will also be added to cart
$39.69 / Each

Description

General Pool Applications
Industry Standard
  • Used for years by pool pump manufacturers

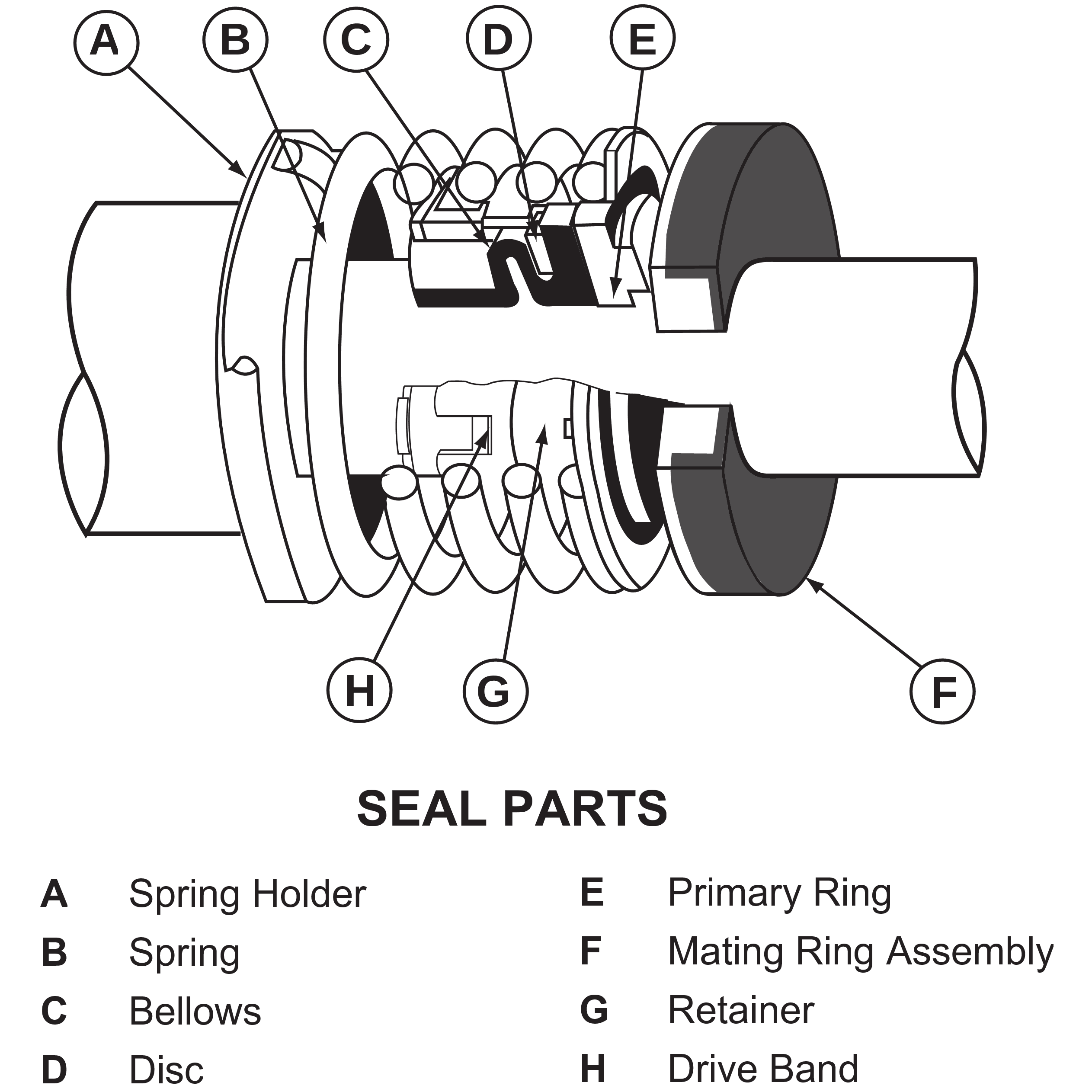

  • Materials of Construction: Buna Elastomers, Molded Plastic Primary Ring, Ceramic Seat, Stainless Steel Hardware
  • Proven Reliability in residential chlorine pools
  • Good For low temperatures

Specifications

Seal Size 1"

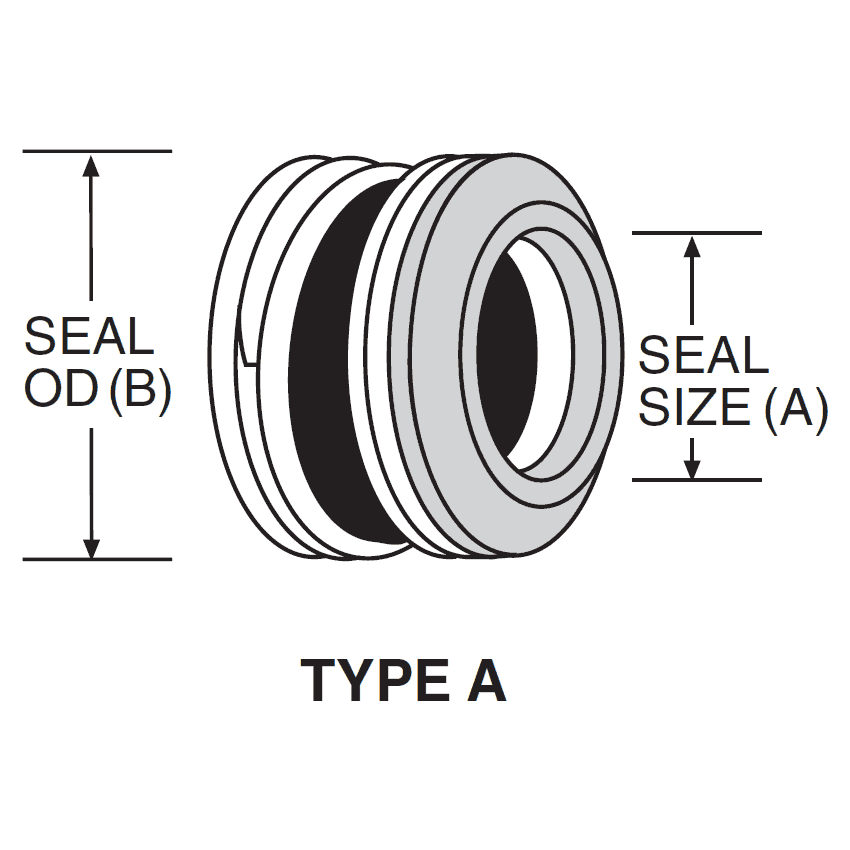

Head Figure A
Head Outside Diameter 1.687"
Head Operating Height 0.812"
Mating Ring Figure 1
Mating Ring Bore 1.625"
Mating Ring Thickness 0.437"
Material Code BCFJF
Buna Secondary Seals
Carbon rimary Rings
Stainless Steel Metal Parts
Ceramic Mating Rings
Stainless Steel Springs
Notes
UPC 852661157148
Weight lbs
Pressure Rating PSI
Temperature °F to °F
Country of Origin Mexico
U.S. Seal Manufacturer Part Number(s) PS-360 (General Service)
PS-4266 (Carbon Upgrade)
PS-3874 (Ozone / Salt Service)
PS-1909 (SCS Series)
VG-360 (Value Guard)
Pump Nameplate Data Cross Reference ACE PUMP CORPORATION BCH-300, 500, 750, 1000, 100S, 133S, 150S, 175S
CARVER PUMP CO. KN-3LC
EAST SIDE MFG. Series C, CM and CH
LANCASTER PUMP CO. Type M-907 and M-908
LOCKWOOD PUMP CM Pump
MIDLAND PRODUCTS 5M, 7M and 18M
MOYNO, INC. EC-67
PUREX / HYDROTECH C Series
Cross Reference A-C PUMP 52-104-969-806, 52-104-969-816
BERKELEY S08742, S09583, S20795, S20796
CARTER PUMPS, INC. 2S-5050, 2S-5054, 2S-5089, 2S-5112
CENTREX 201-491, 201-493
EAST SIDE MFG. P-28175
FRANKLIN ELECTRIC CO., INC. 240180
GARDNER DENVER 60BT-11
GORMAN-RUPP CO. S2147
HALE PRODUCTS, INC. 296-5010-00, 296-5011-00-0
HOMELITE CORP. A-62403
HYPRO CORPORATION 2120-0054, 24607
LANCASTER PUMP CO. 7561
MANITOWOC CO., INC. 003705011
MIDLAND PRODUCTS 6007-0
PUREX / HYDROTECH 071725
SCOT PUMP 101.000.159
STONE CONST. 32224, 322241H
SYNCROFLO 13-650-0610
TACO®, INC. 170-021, 170-095
TEEL PUMP 5NC01, 5P417
VULCAN HART 97505
