/Products/Pumps/Seals/PS-416A U.S. Seal Mfg 1-1/4" Pump Seal
Click Image to Expand

Product ID: PS-416A

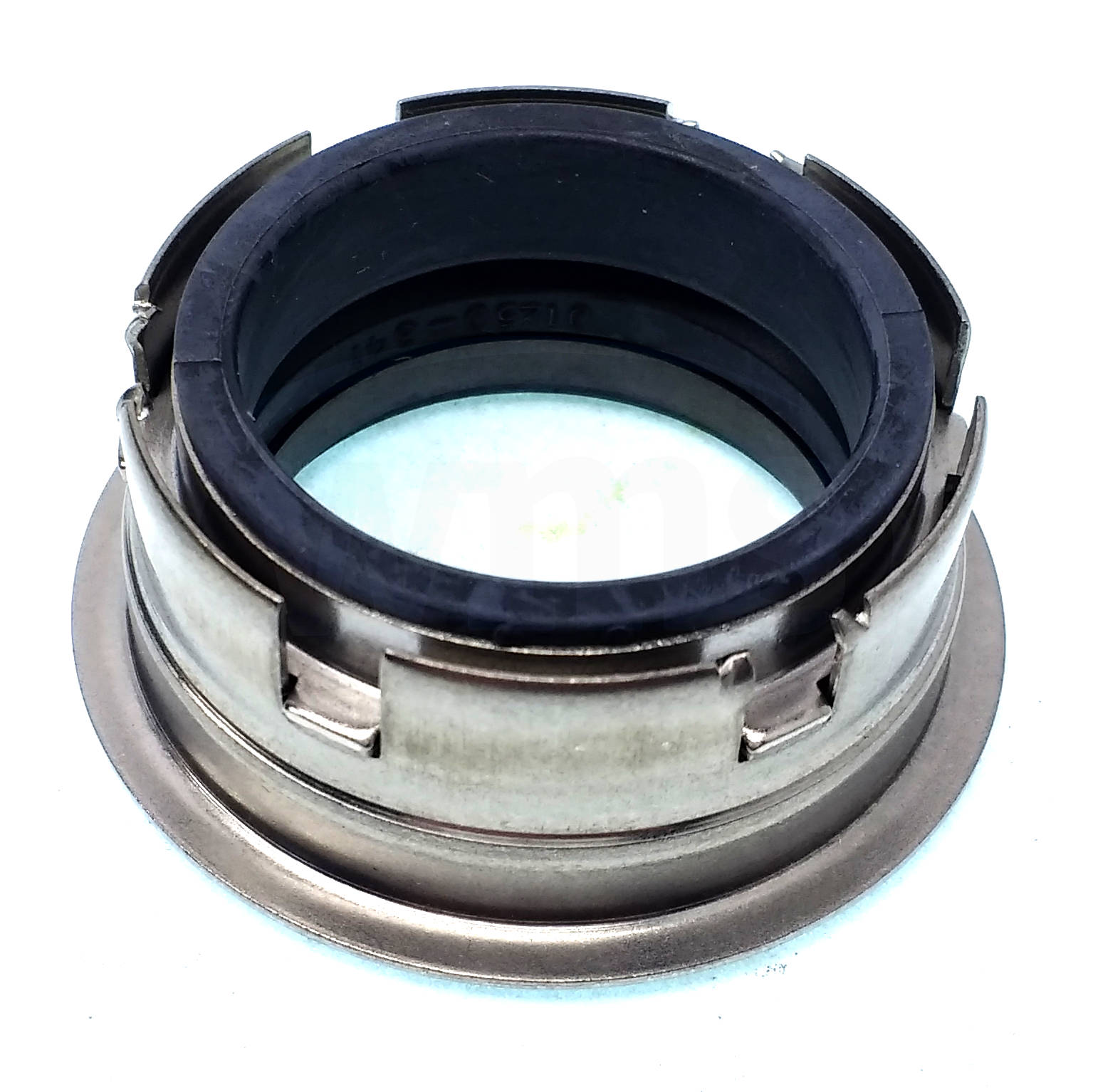

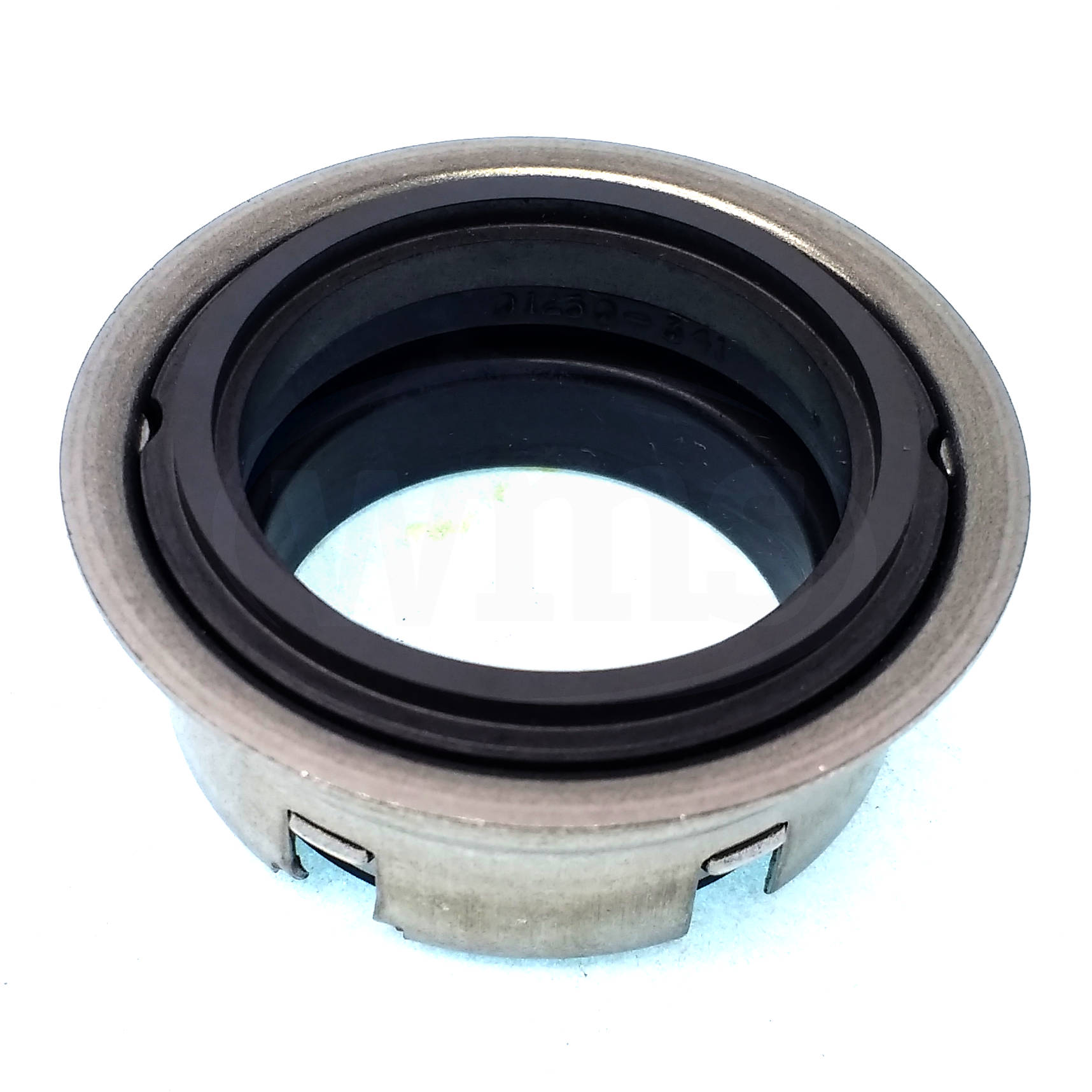

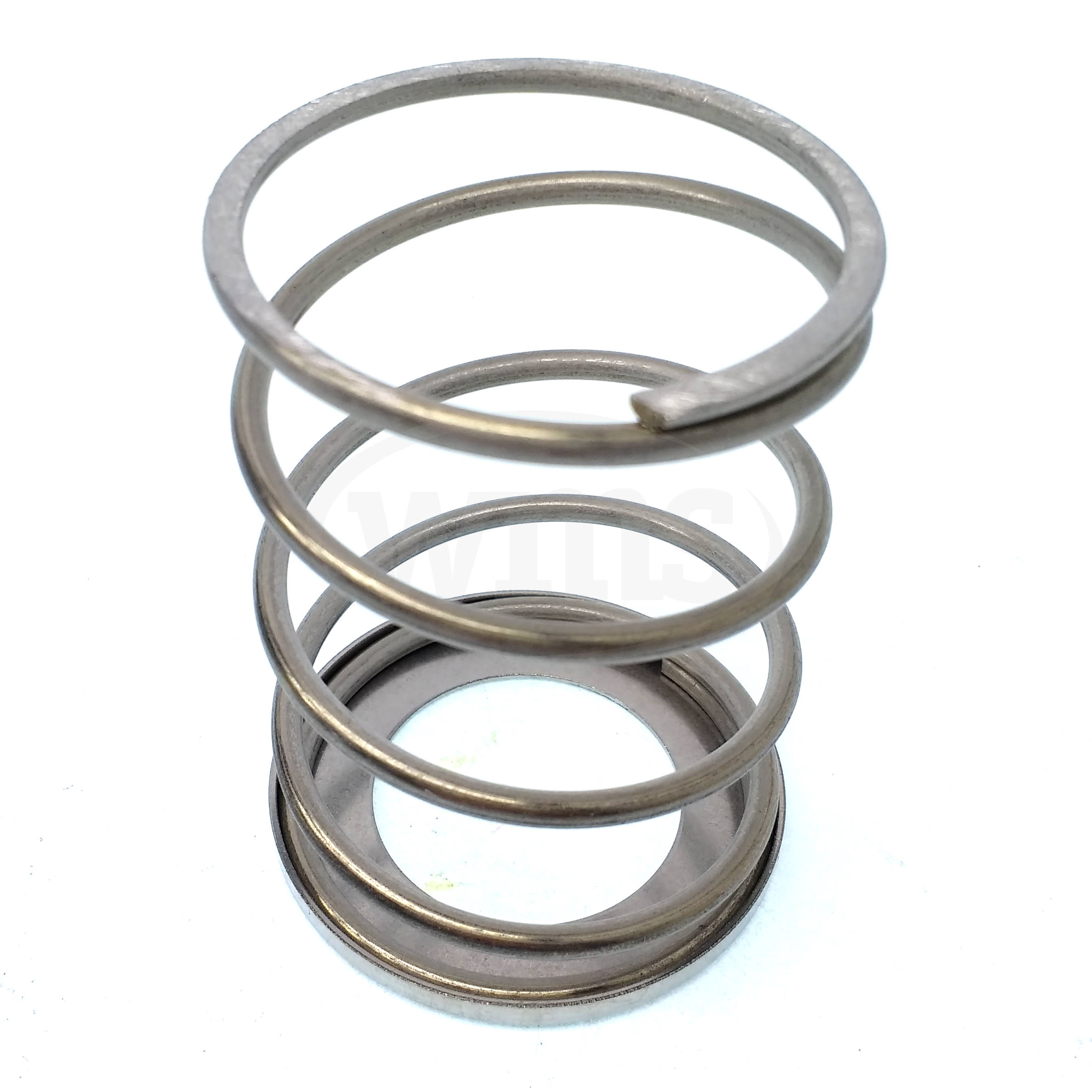

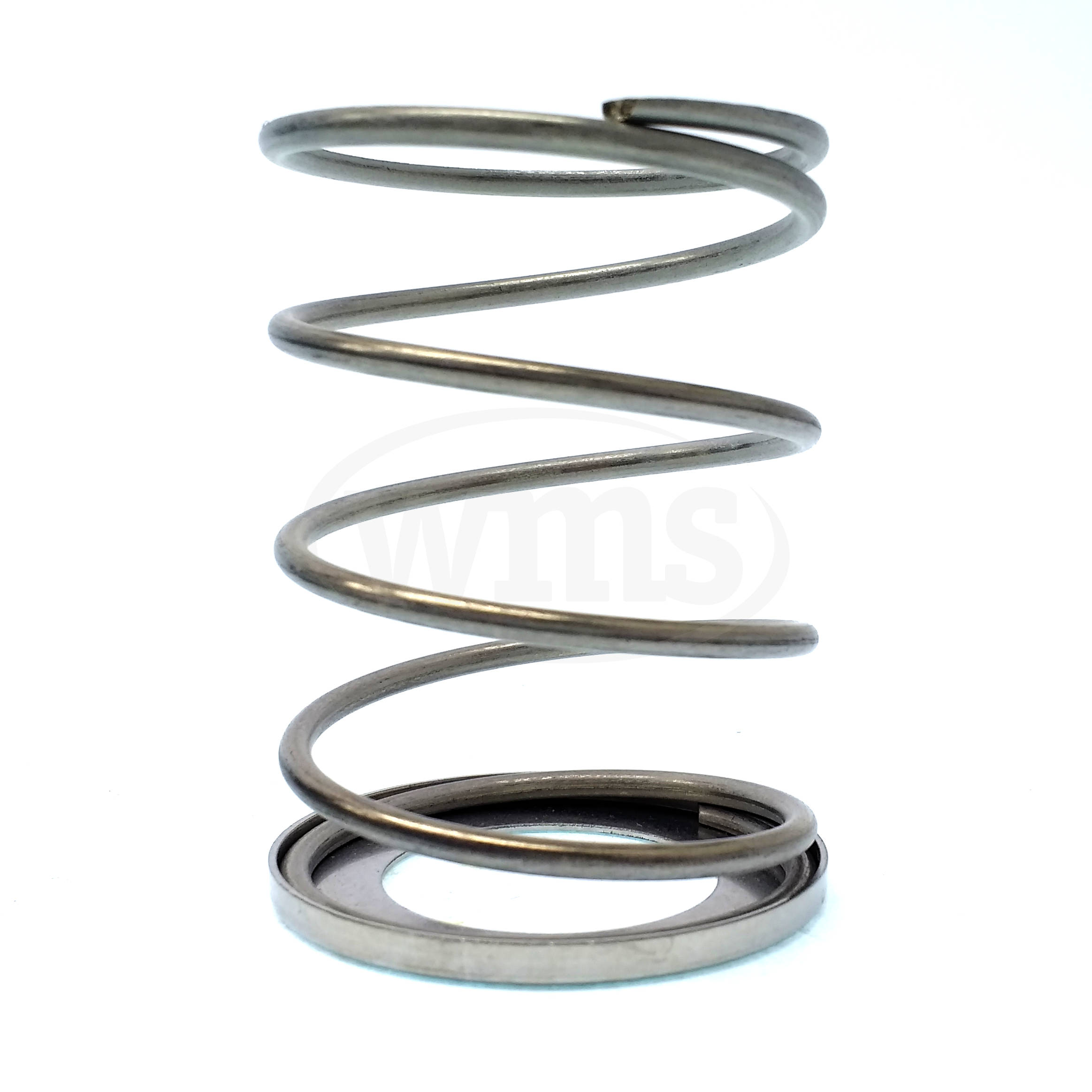

PS-416A U.S. Seal Mfg 1-1/4" Pump Seal

MFG: U.S. Seal
MFG Part Number: PS-416A

Available Stock: 2
Selected accessories will also be added to cart
$147.15 / Each
Quantity:
ITT Industries/Marlow Pump Seal

Description

General Pool Applications
Carbon Upgrade
  • Materials of Construction: Buna Elastomers, Carbon Primary Ring, Ceramic Seat, Stainless Steel Hardware
  • Better Chemical Resistance

Specifications

Seal Size1-1/4”
1.250”
Head FigureD
Head Outside Diameter2.000”
Head Operating Height1-1/16”
1.062”
Mating Ring Figure25
Mating Ring Bore2-1/4”
2.250”
Mating Ring Thickness5/8”
0.625”
Material CodeBCFJF
Buna Secondary Seals
Carbon Primary Rings
Stainless Steel Metal Parts
Ceramic Mating Rings
Stainless Steel Springs
Notes
UPC
Weight0.50 lbs
Pressure Rating PSI
Temperature°F to °F
Country of OriginMexico
U.S. Seal Mfg Cross ReferencePS-416A (Carbon Upgrade)
PS-1910 (SCS Series)
VG-416A (Value Guard)

Cross Reference

ManufacturerPump Nameplate DataMfg Part Number
Marlow (ITT Industries)3B Series27223-00, 27224-00, 27225-00, 3B28EC-C2
