QPX4444
by Burndy
Catalog ID: QPX4444

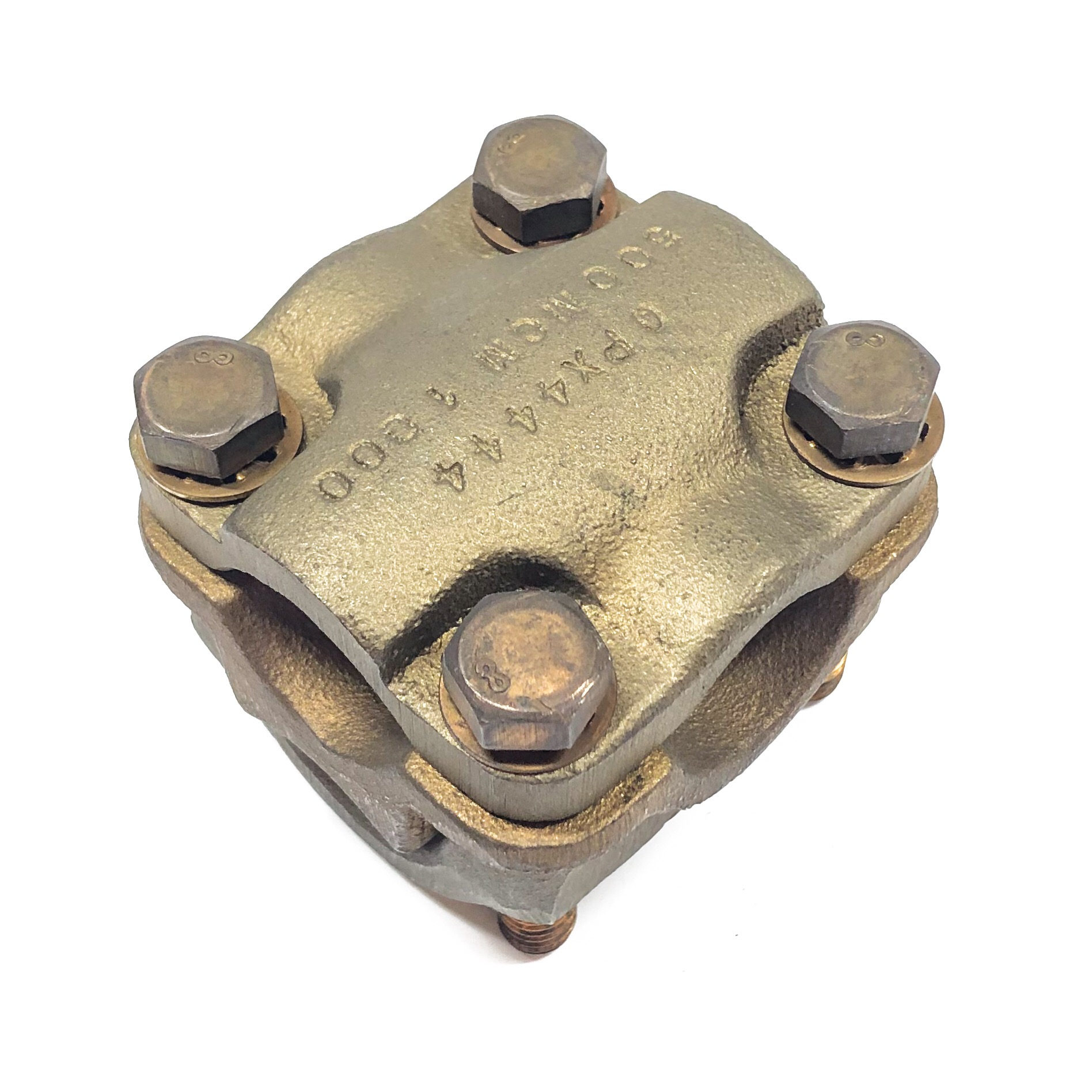

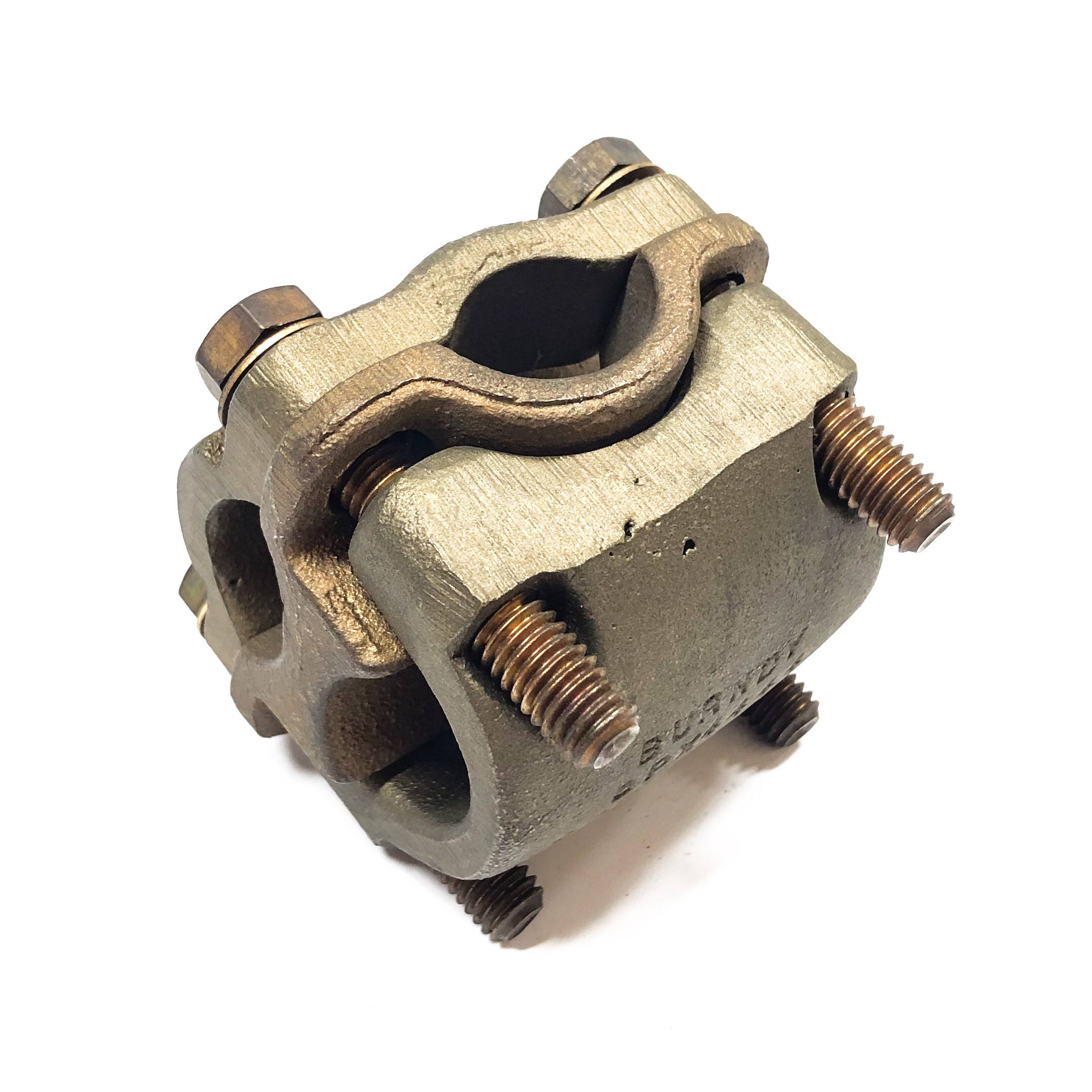

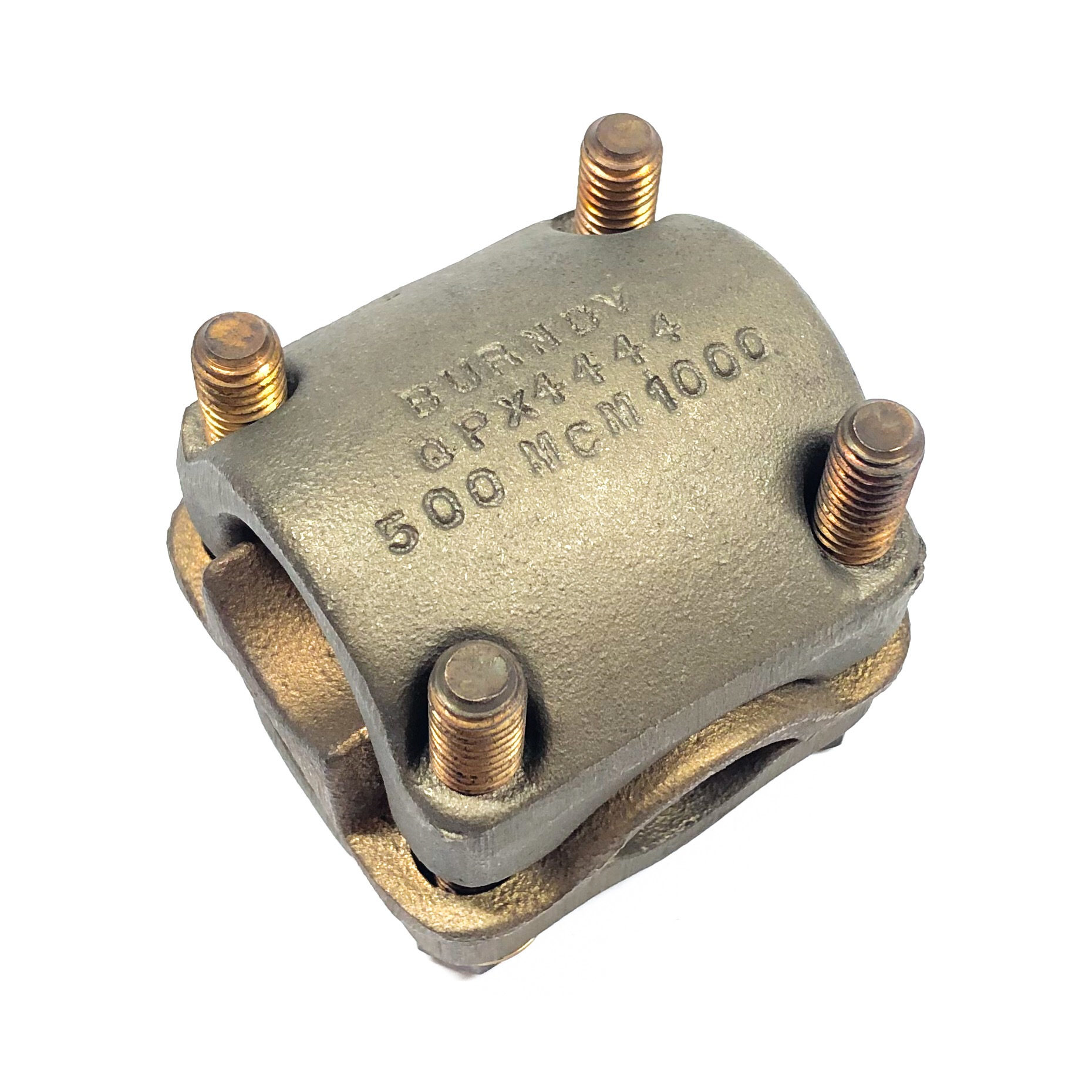

Parallel Clamp, Copper: 500-1000 kcmil (Run)/ 500-1000 kcmil (Tap).

Features: The Versitap Type QPX Is Recommended For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking, Only 10 Connectors Required To Accommodate Conductor Sizes From #6 AWG Stranded To 1000 KCMIL, Edges Are Rounded For Easy Taping, Made Of High Strength, High-Conductivity Copper Alloy And Silicon Bronze DURIUM Hardware, Number Of Bolts: 4, Installation Torque: 300 IN-LB, Conductor Type: Run: Copperweld - Copper, Copperweld, Commercial Stranded Copper, Tap: Copperweld - Copper, Copperweld, Commercial Stranded Copper, Length: 2-5/8 IN, Height: 3-7/16 IN, Width: 2-9/16 IN

QPX4444
Burndy
Copper Clamp
Run/Tap:
Min: 500 kcmil
Max: 1000 kcmil
Dimensions:
B: 2.62"
H: 3.44"
J: .375"
W: 2.56"
Wrench Size: 9/16
Torque IN-LB: 240
