/Products/Pumps/Ashland Pump/Sewage Pumps/SWHD150 1.5HP Dual Seal/SWHD150M3-20 Ashland 1.5HP Dual Seal Sewage Pump, 230VAC 3 Phase
Click Image to Expand

Product ID: SWHD150M3-20

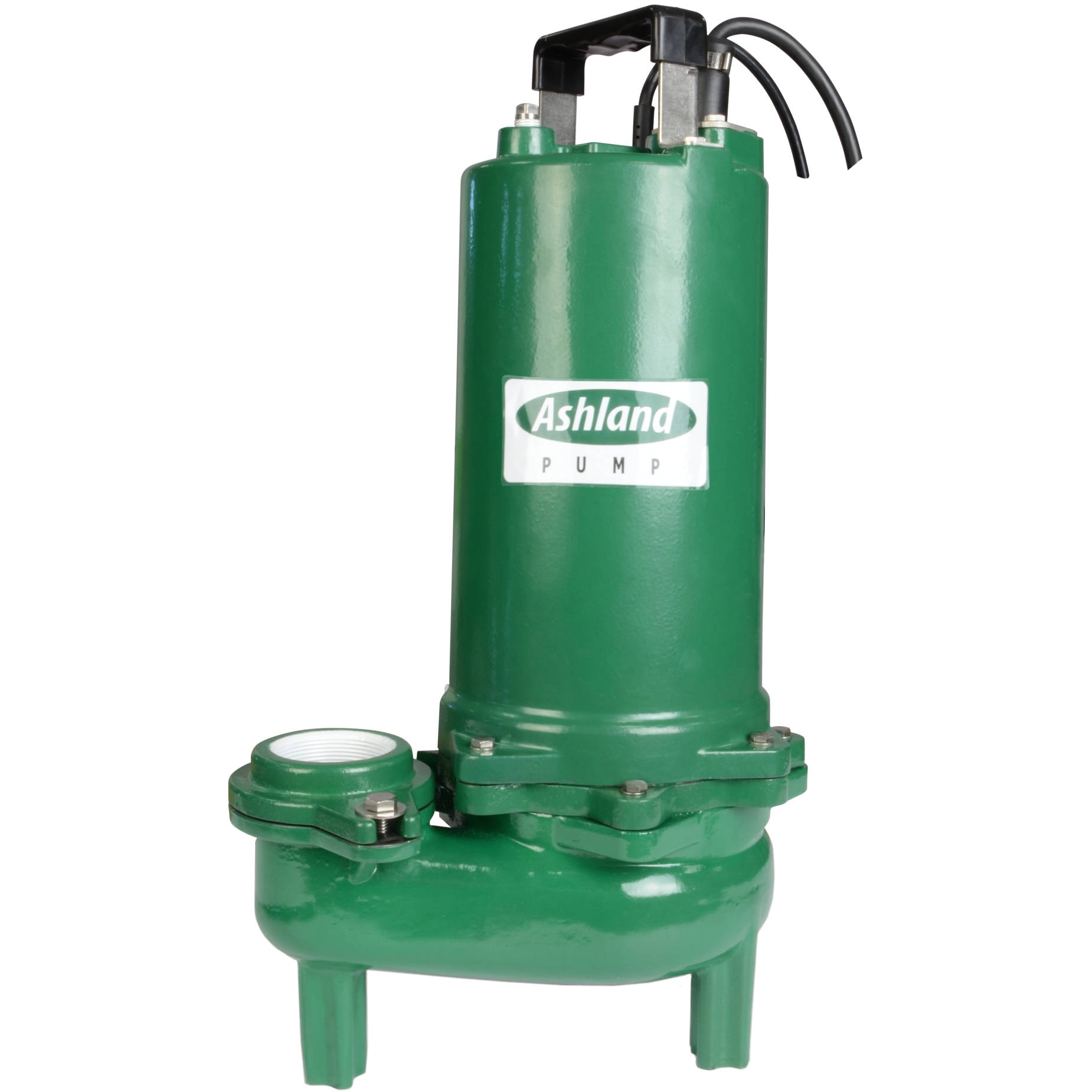

SWHD150M3-20 Ashland 1.5HP Dual Seal Sewage Pump, 230VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SWHD150M3-20

Selected accessories will also be added to cart
$1,788.15 / Each
Quantity:
2" NPT Flanged Discharge. Cast Iron Construction, 3450RPM

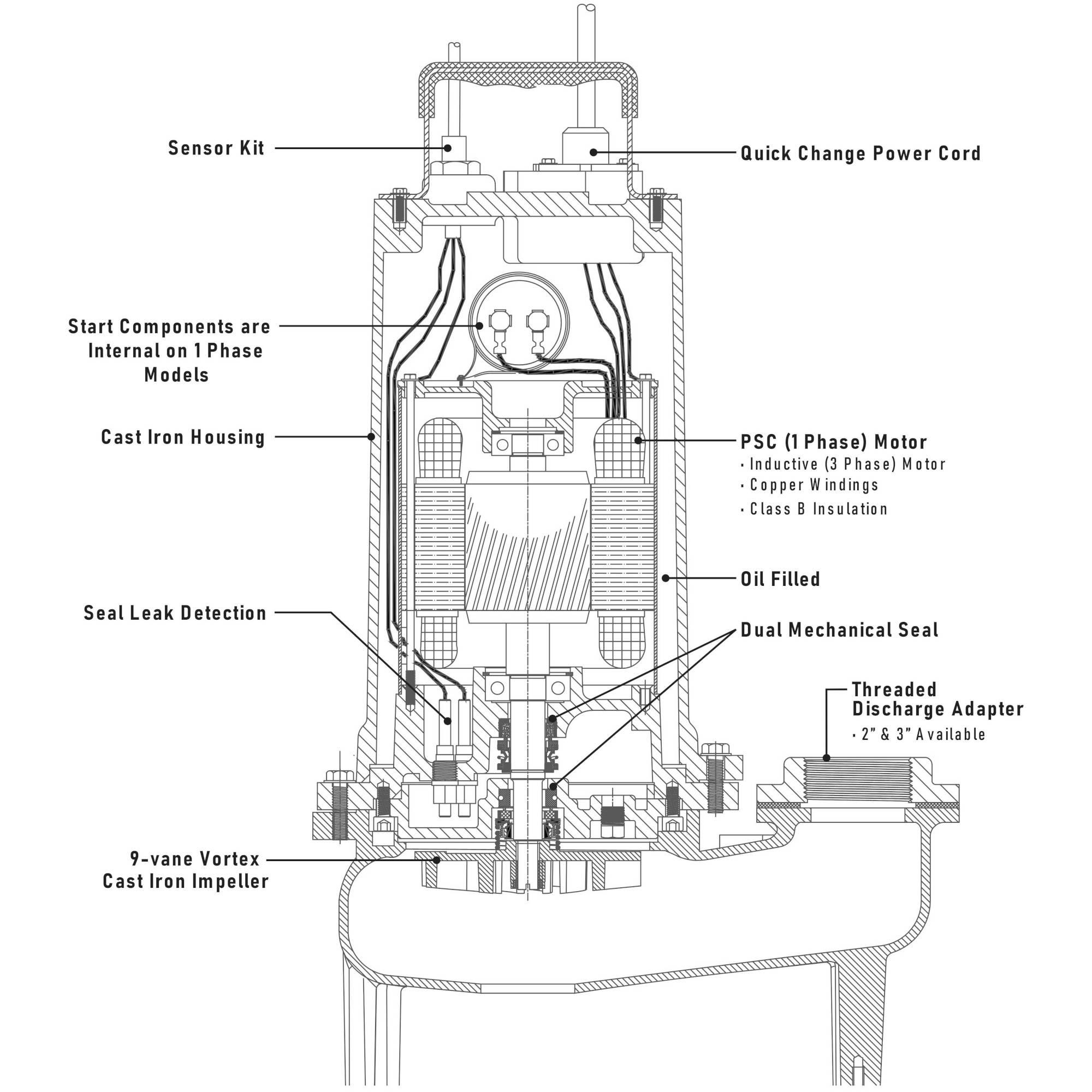

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC/Induction motor
  • 9 Vane vortex cast iron impeller
  • 2? solids handling
  • 2? NPT Flanged Discharge
  • Mechanical Carbon Ceramic Seal
  • 20? Cord

Specifications

BrandAshland Pump
ModelSWHD150M3-20
HP1.5HP
Voltage230VAC 60Hz 3 Phase
RPM3450 RPM
NEMA Start CodeP
Full Load Amps7.6 Amps
Cord Power Size16AWG/4C
Cord TypeSOW
Cord O.D.0.46"
Discharge Size2" NPT Flanged
3? NPT Optional
Impeller Type9-Vane Vortex
Cast Iron
Cable Length20'
Solids Handling2"
Maximum Liquid Temperature104?F - Intermittent
Acceptable pH Range6 - 8
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftSS416
HardwareSST
O-RingsNBR
Mechanical SealDual Mechanical
Carbon Ceramic
Upper Bearing6203
Lower Bearing6203
RPM3450 RPM
Motor TypePSC (Single Phase)
Induction (3 Phase)
Gen Insulation ClassB
Stator Winding ClassB
Maximum Stator Temperature130?C
Voltage Tolerance+/-10%
Motor ProtectionThermally Protected
HP1.5 HP
Service Factor1.00

Dimensions

SWHD150 Pump Dimensions

Performance Curve

SWHD150 Performance Curve Graph

Links

Speed
3450RPM
Input Phase
3-Phase
Input Voltage
230VAC
Horsepower
1.5HP
Type
Sewage Pump
Color
Green
