Simplex Time Recorder Company

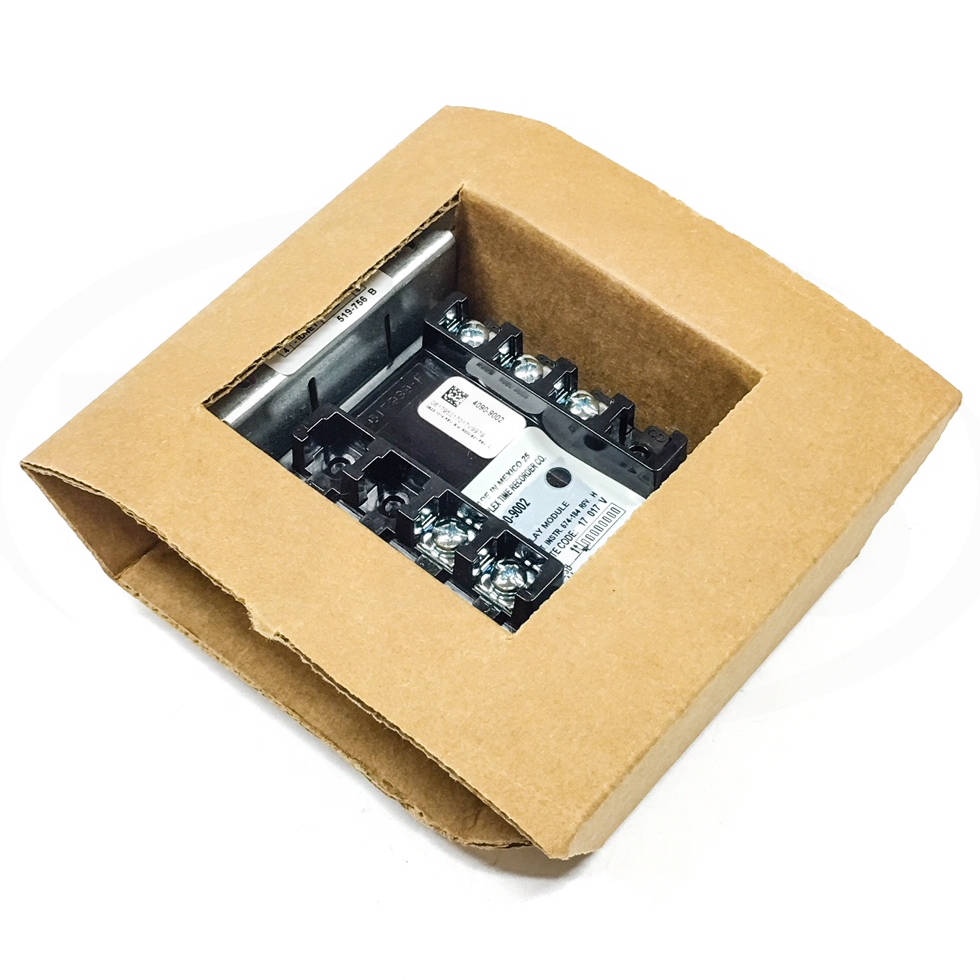

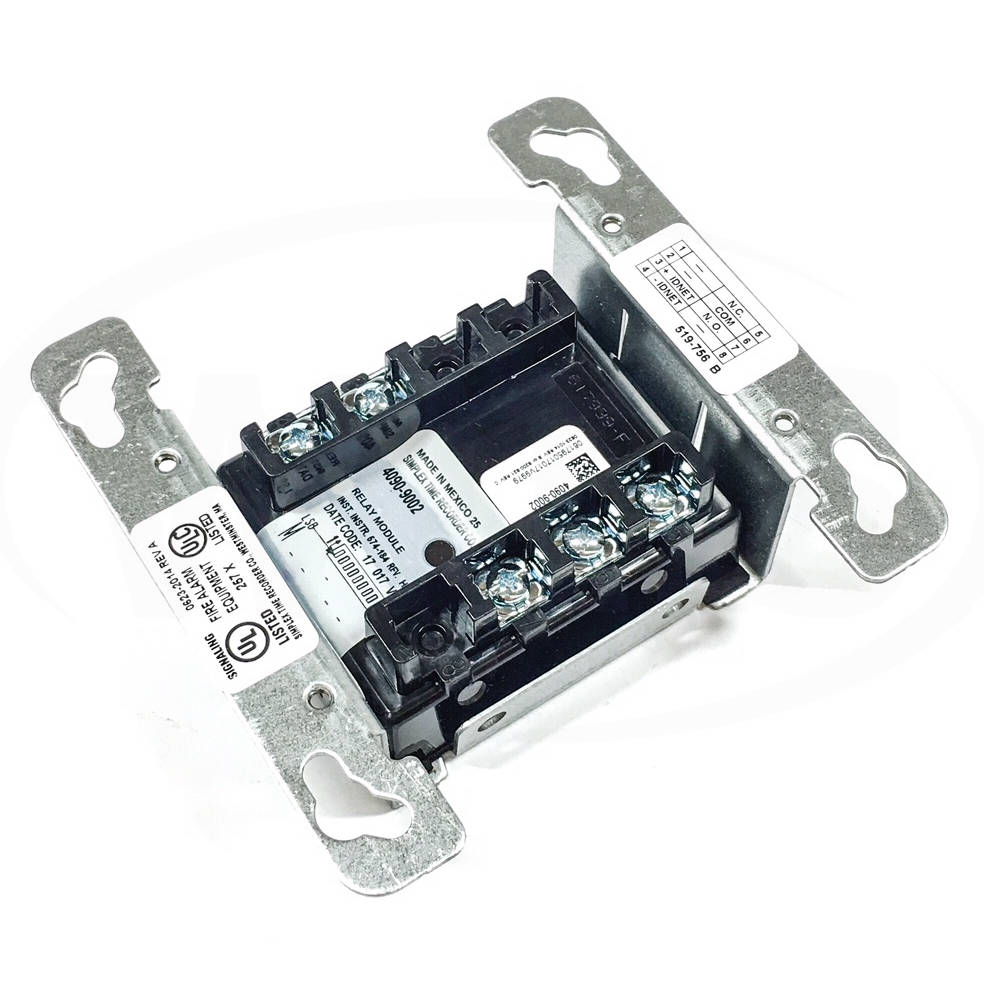

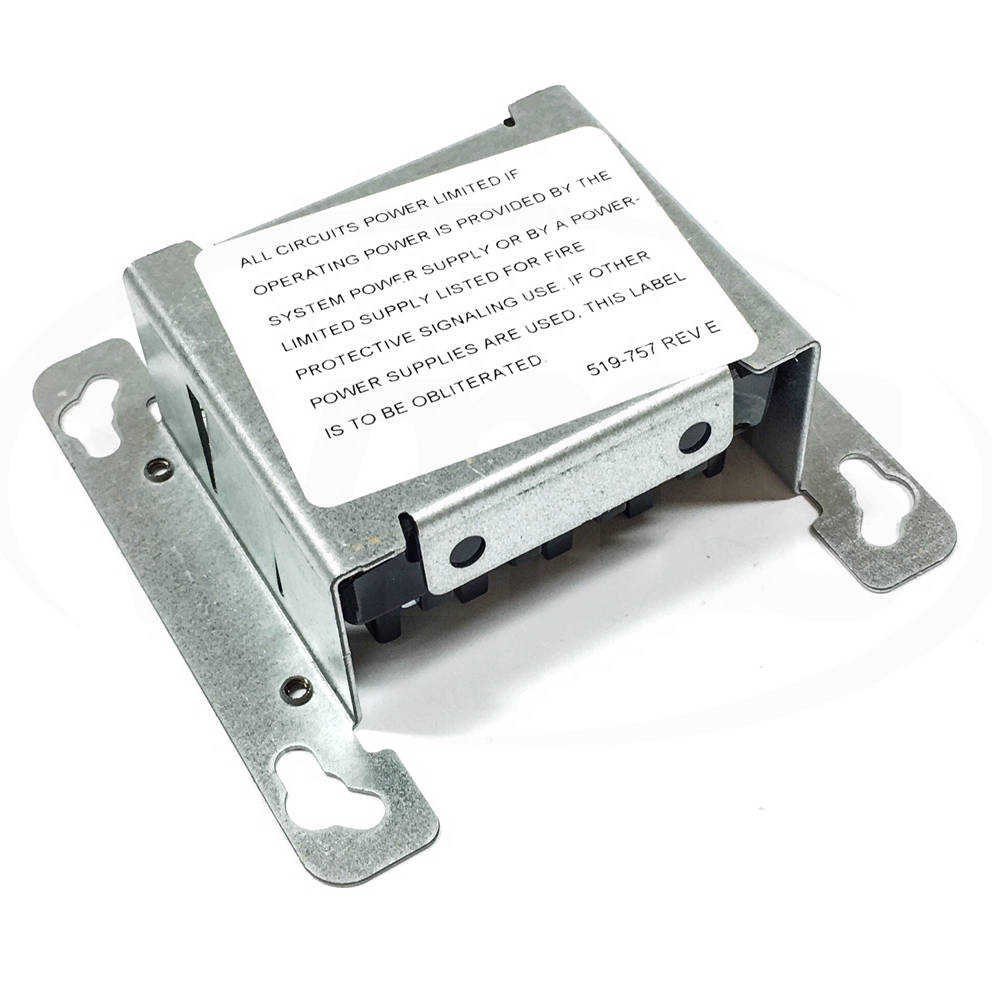

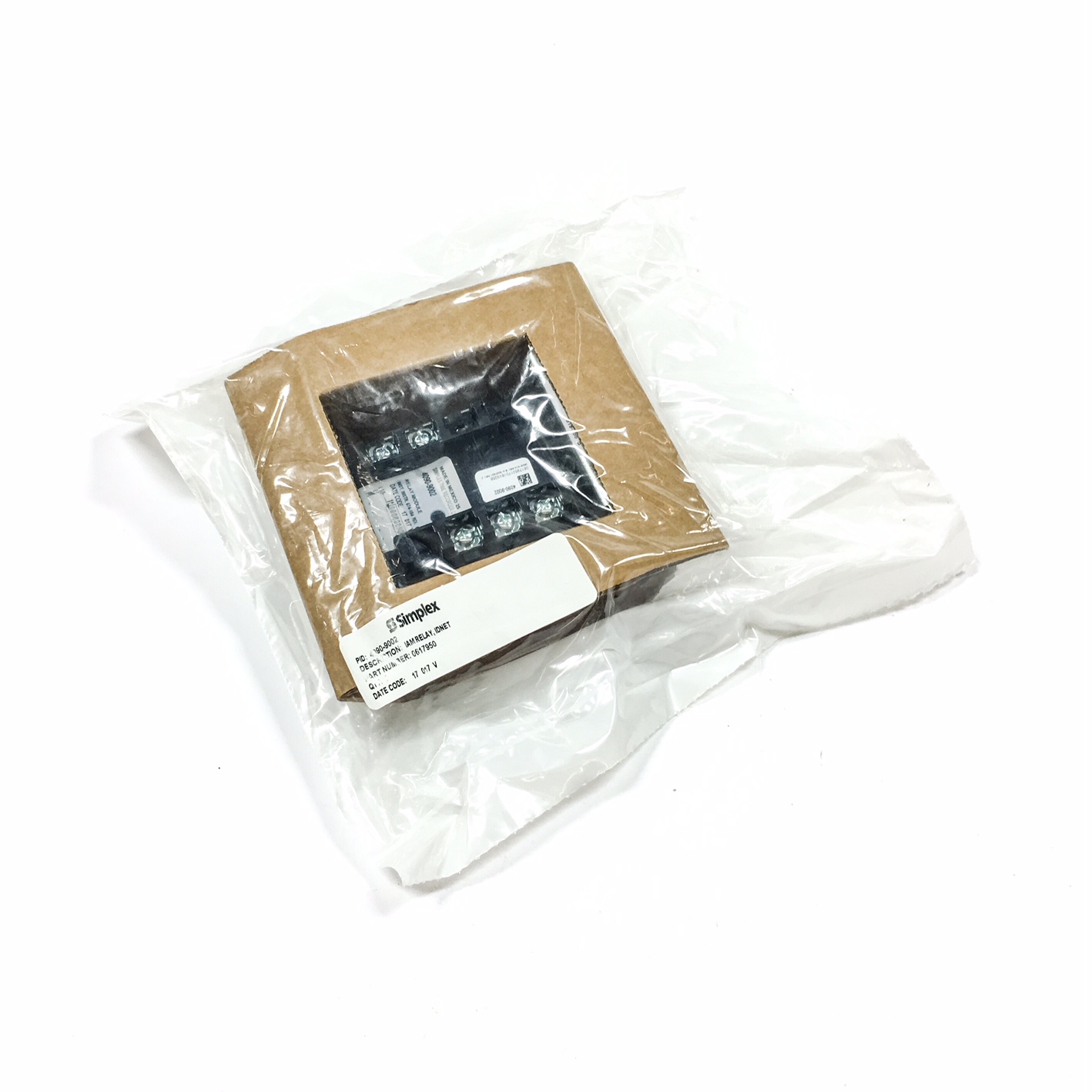

4090-9002 Relay Module
Installation Instructions 574-184 Rev H.

Features:
Individual Addressable Relay Module (Relay IAM):
• IDNet addressable control for use with Simplex® fire alarm control panel models 4100ES, 4010ES, 4100U, 4008, and 4010
• A single addressable point provides control and status tracking of a Form “C” contact
• Low power latching relay design allows IDNet communications to supply both data and module power
• Relay is set to OFF on initial power up and upon loss of IDNet communications
Compact, sealed construction:
• Enclosed design minimizes dust infiltration
• Mounts in standard 4” (102 mm) square electrical box, optional adapter bracket is available to mount in a 4 11/16” (119 mm) square electrical box
• Screw terminals for wiring connections
• Visible LED flashes to indicate communications
• Optional covers are available to allow LED to be viewed after installation
UL listed to Standard 864

Description:
IDNet Relay IAMs allow fire alarm control panels to control a remotely located Form “C” contact using IDNet addressable communications for both data and module power. Typical applications would be for switching local power for control functions such as elevator capture, or control of HVAC components, pressurization fans, dampers, etc. Relay status is also communicated requiring only one device address.
