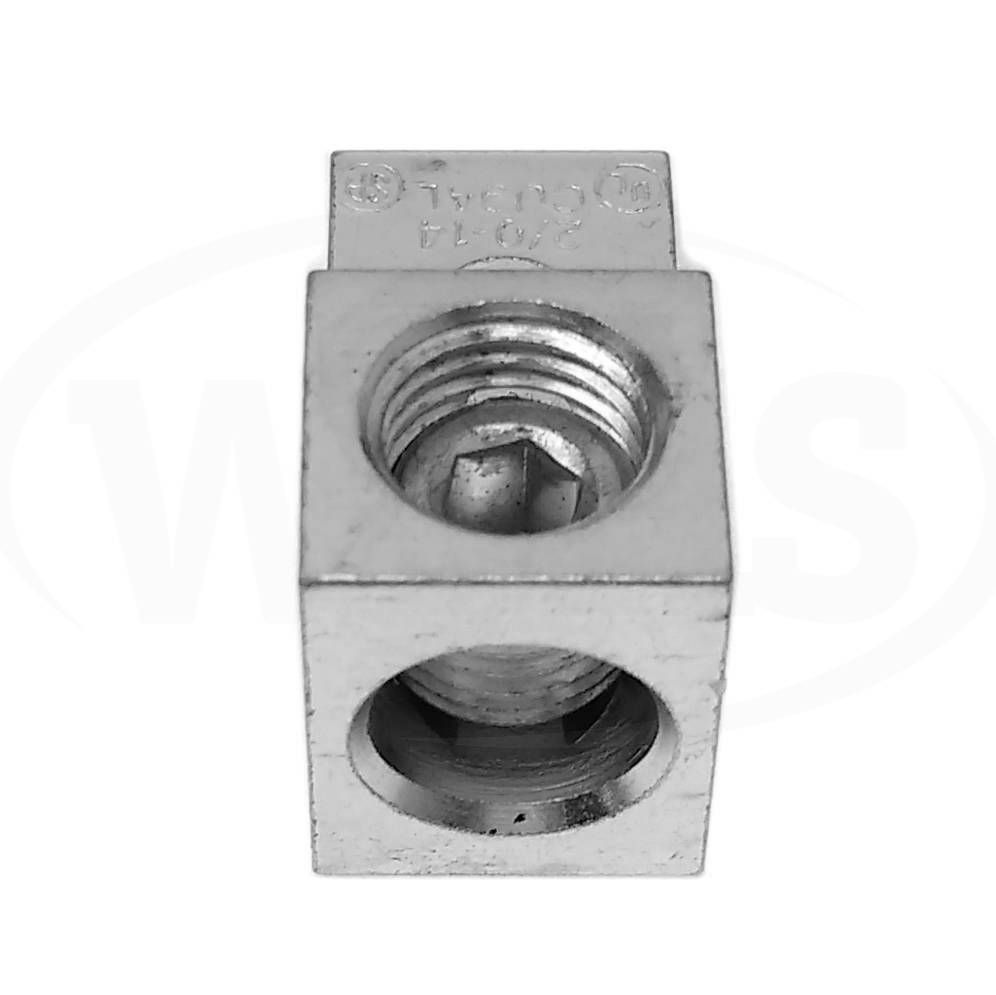

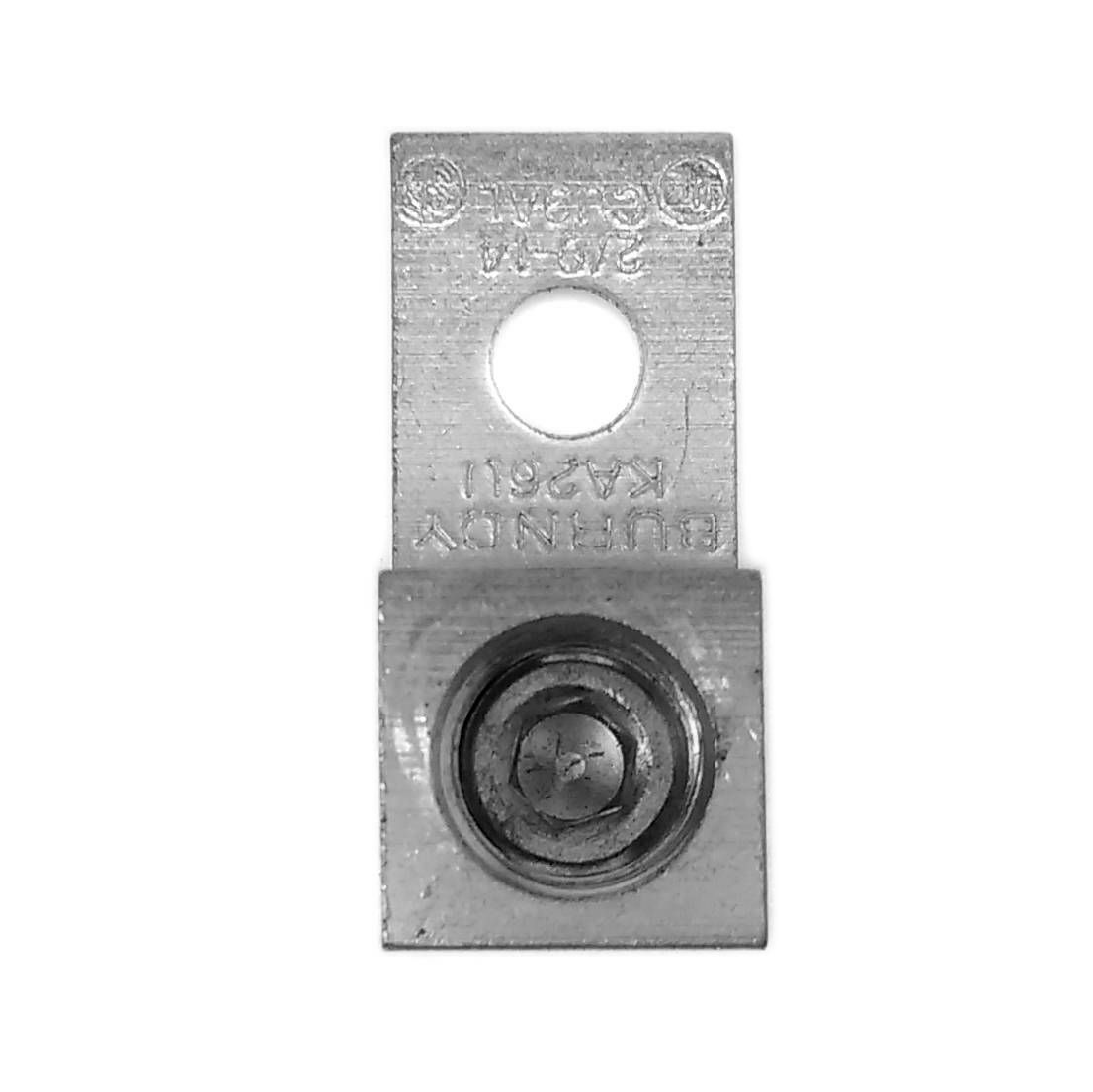

TA-2/0 Aluminum Universal Terminal Lug, 1/4" Eye

Product ID: TA-2/0

MFG: Burndy LLC (Hubbell)
MFG Part Number: TA-2/0

Available Stock: 65
Selected accessories will also be added to cart
$2.76 / Each
Quantity:
Burndy KA26U
Dimensional
 Width (in) 0.63
 Length (in) 1.47
 Bolt Hole Size (in) 0.25
 Thickness 0.19
 D - in 0.81
 Pad Width (in) 0.64
 N (in) 0.45
General
 Number of Conductors 1
 Number of Holes 1
 Product Description Aluminum Universal Terminal, 1 Hole, 6-2/0 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated
Conductor(s)
 Aluminum Size (Range) 14 STR- 2/0 STR
 Copper Solid Size (Range) N/A
 Copper Stranded (Range) 14-2/0
Physical
 Installation Torque 120
 Type of Plating Tin
 Connector Type Terminal
 Bolt Hole Size 1/4
 Plated (Yes or No) Y
 Product Material Aluminum
Approvals / Certifications
 Rated for Direct Burial N
 UL Listed Y
 CSA Certified Y
 ROHS Compatible Exempt
 Industry Standards UL468A-468B
