/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face/191567.00 Leeson 1.5HP Stainless Steel Electric Motor, Washdown Duty
Click Image to Expand

Product ID: 191567.00

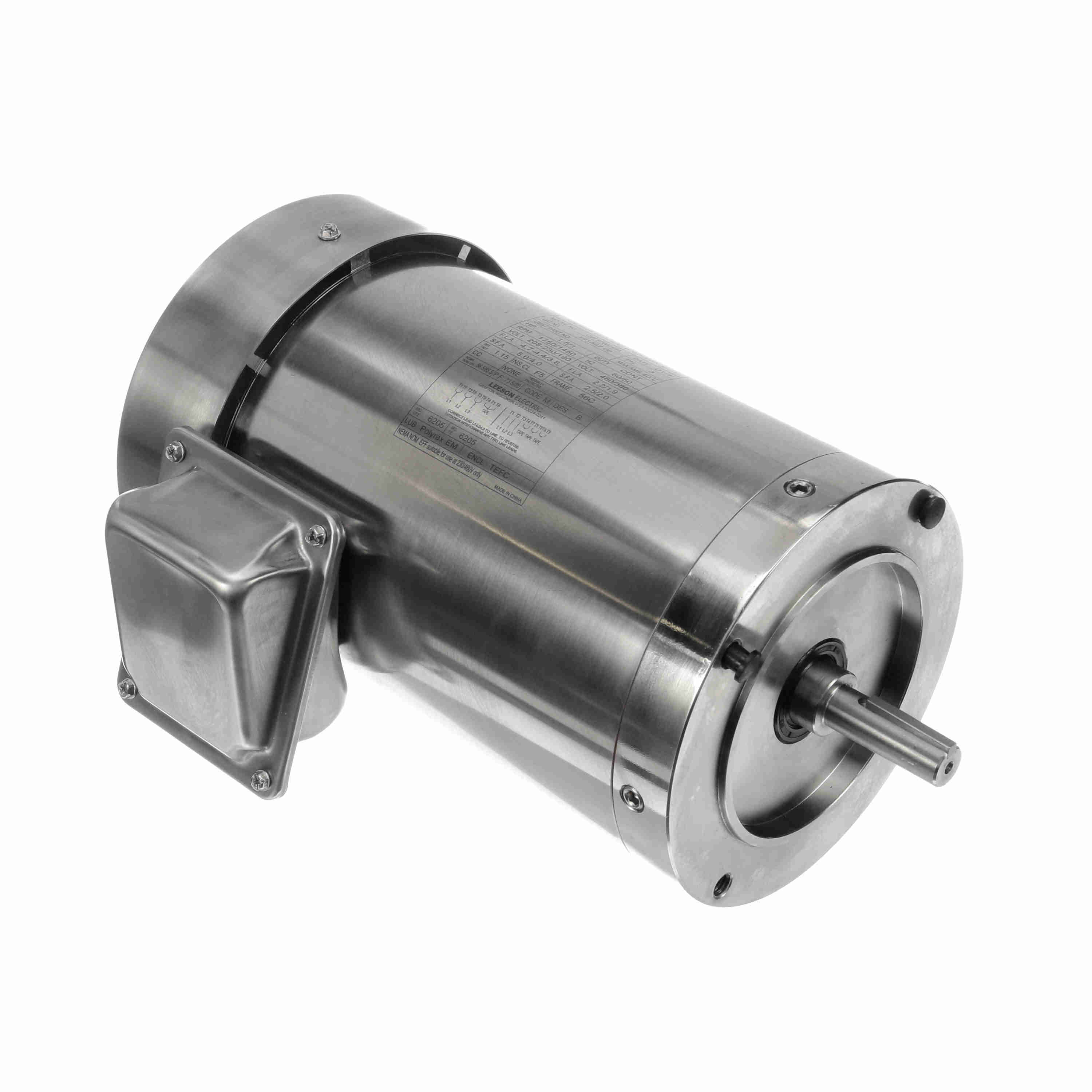

191567.00 Leeson 1.5HP Stainless Steel Electric Motor, Washdown Duty

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T17WC48

Selected accessories will also be added to cart
$1,354.00 / Each
Quantity:
1800 RPM, 56C Frame, TEFC, 3 Phase, 230/460VAC

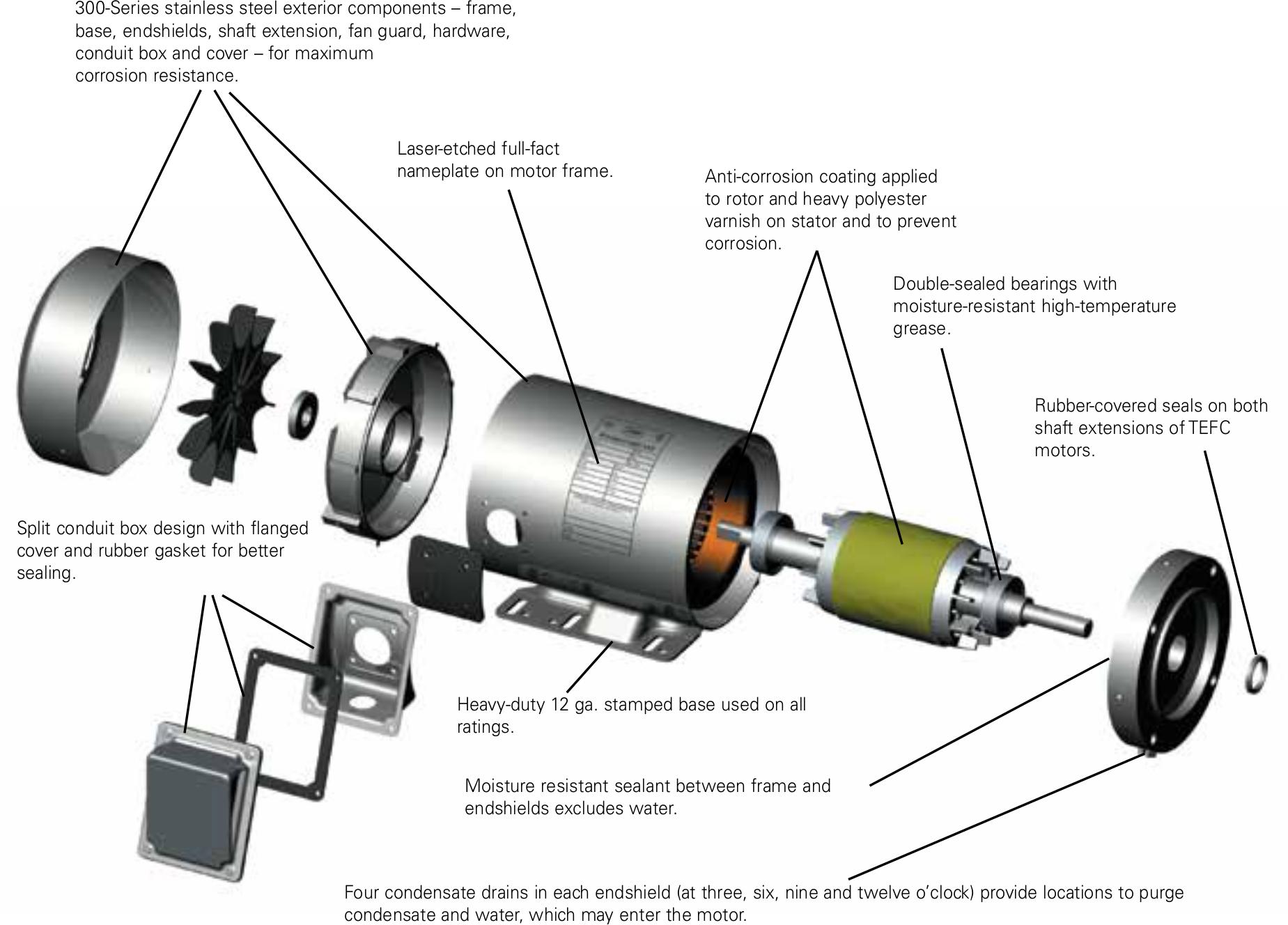

Features

Features
  • Extended Thru-bolts
  • Auto Reset Protectors
  • TEAO designs
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

General Specifications
Model :C6T17WC63ACatalog No :191567.00
Part Description :..1 1/2HP..1740RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.....WASHGUARD-ALL STAINLESS.NOT.......Category :Paint Free
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1.50 HPOutput KW :1.1 kW
Frequency :60 HzVoltage :208-230/460 V
Current :4.8-4.4/2.2 ASpeed :1750 RPM
Service Factor :1.15 Phase :3
Efficiency :86.5 %Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :M Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °CDrive End Bearing Size :6205
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :NEMA 56
Overall Length :13.77 inFrame Length :7.99 in
Shaft Diameter :0.625 inShaft Extension :1.88 in
Assembly/Box Mounting :F1/F2 CAPABLE UPC :691720104071
Weight :67.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load2.20100.04.51100.01,7451.3275.51.50
Pull-Up19.40882.015.28339.02579.6061.91.50
Locked-Rotor19.90905.018.10401.009.5059.51.50
Break-Down12.50568.021.05467.01,2868.3083.31.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.30
  • 0.106
  • 0.0
  • 10.2
  • 0
  • 0.0
  • 0.00
  • 25 %
  • 1.40
  • 0.398
  • 70.5
  • 35.7
  • 1,785
  • 0.0
  • 1.11
  • 50 %
  • 1.60
  • 0.694
  • 79.5
  • 54.4
  • 1,773
  • 0.0
  • 2.19
  • 75 %
  • 1.90
  • 1.003
  • 84.1
  • 66.3
  • 1,759
  • 0.0
  • 3.38
  • 100 %
  • 2.20
  • 1.323
  • 84.6
  • 75.5
  • 1,745
  • 53.2
  • 4.51
  • 115 %
  • 2.48
  • 1.540
  • 83.8
  • 77.9
  • 1,735
  • 0.0
  • 5.24
  • 125 %
  • 2.60
  • 1.659
  • 84.6
  • 80.1
  • 1,730
  • 0.0
  • 5.71
  • 150 %
  • 3.00
  • 2.011
  • 83.5
  • 84.1
  • 1,713
  • 0.0
  • 6.90
Type
Electric Motor
Frame
56C
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
1.5HP
Speed
1800RPM
