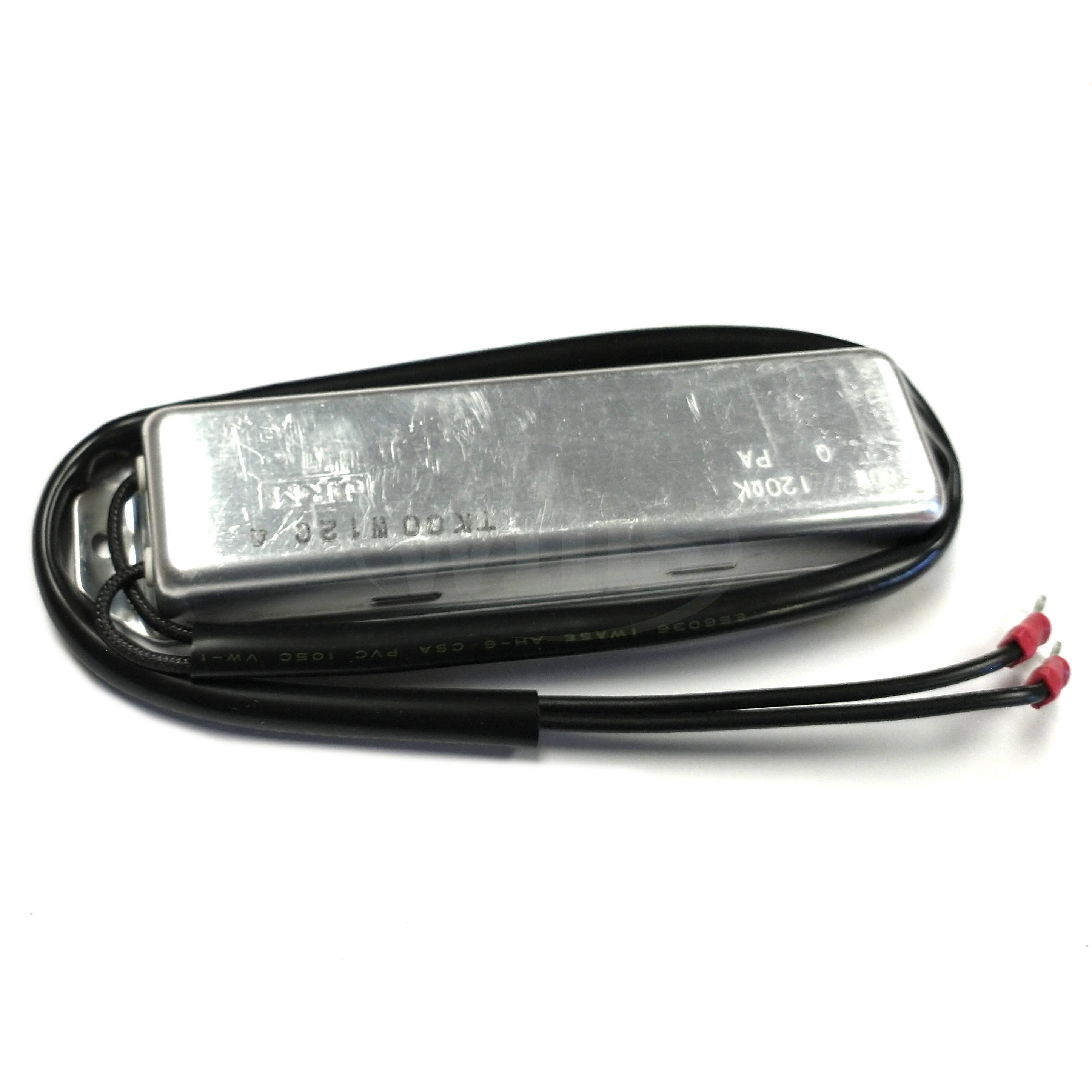

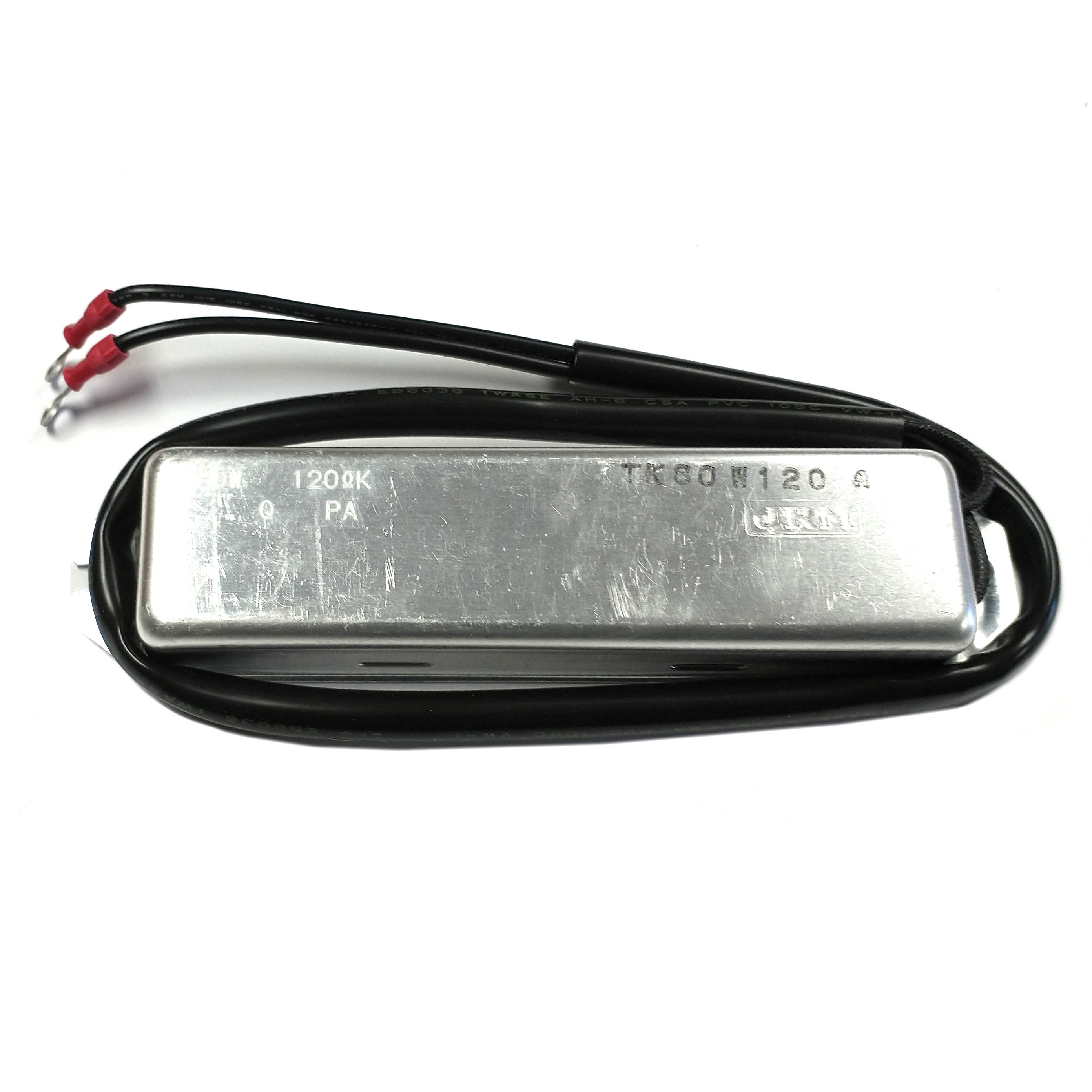

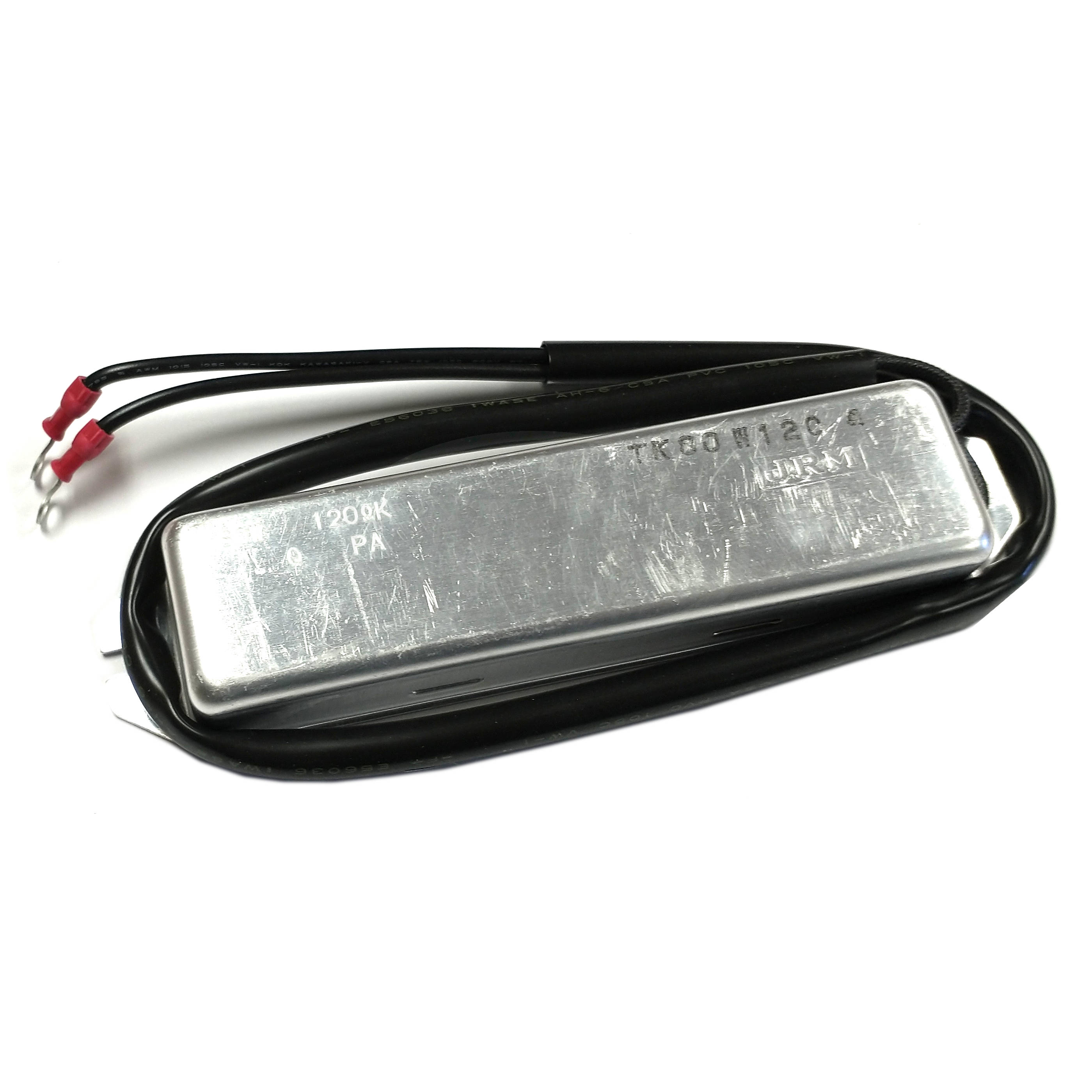

Braking Resistor (Compact Type)
The dynamic braking option has been designed to allow faster deceleration rates than could be achieved via a coast stop or typical deceleration. This option consists of dynamic braking resistors and utilizes the built-in dynamic braking transistor (applicable for ratings >1/2 hp @ 115 vac & 230 vac input ratings).
The standard option has been designed for stopping a load with an inertia equal to or less than applied motor’s rotor inertia.
High inertia or overhauling loads may cause extended deceleration times which could cause option overheating and tripping of the drive unit.
This option is not a holding brake. It will not prevent a motor at rest from rotating.
Note: Refer to drives instructions manual installation and connection section for details.
| Manufacturer |
Fuji Electric |
| Model Number |
TK80W12? |
| Total Ohms |
120 ? |
| Total kW |
.08 |
| Average Braking Torque |
150 % - FRN0003C2S-6U, FRN0004C2S-2U, FRN0004C2S-7U
130% - FRN0005c2S-6U, FRN0006C2S-2U, FRN0006C2S-7U
100 % - FRN0010C2S-2U, FRN0010C2S-7U
65% - FRN0012C2S-2U, FRN0012C2S-7U
45% - FRN0020C2S-2U |
| Duty Cycle |
15% - FRN0003C2S-6U, FRN0004C2S-2U, FRN0004C2S-7U
5% - FRN0005C2S-6U, FRN0006C2S-2U, FRN0006C2S-7U, FRN0010C2S-2U, FRN0010C2S-7U, FRN0012C2S-2U, FRN0012C2S-7U, FRN0020C2S-2U |
| Allowable Continuous Braking Time |
15 Seconds – FRN003C2S-6U, FRN0005C2S-6U, FRN0004C2S-2U, FRN0004C2S-7U, FRN0006C2S-2U, FRN0006C2S-7U
10 Seconds – FRN0010C2S-2U, FRN0010C2S-7U, FRN0012C2S-2U, FRN0012C2S-7U, FRN0020C2S-2U |
