/Products/Electric Motor Parts/Shaft Seals/VA-038 Dichtomatik 38MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-038

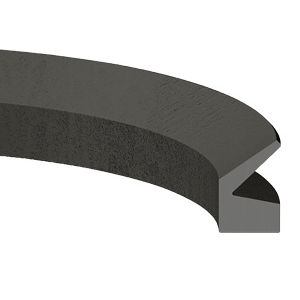

VA-038 Dichtomatik 38MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-038

Available Stock: 5
Selected accessories will also be added to cart
$4.78 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-038
VA-038-BX

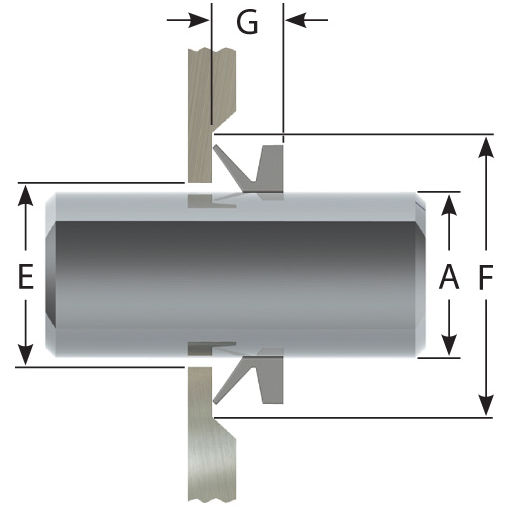

Shaft Diameter 36.00 - 38.00 mm
Seal Inside Diameter “B” 34.00 mm
Seal Outside Diameter “C” 42.00 mm
Seal Height “D” 7.50 mm
Housing Inside Diameter “E” "A" + 3.00 mm
Housing Outside Diameter “F” "A" + 15.00 mm
Housing Width “G” 7.00 mm ± 1.00 mm
UPC 750886191162
Weight 0.02 lbs
Country of Origin Taiwan
