/Products/Electric Motor Parts/Shaft Seals/VA-040 Dichtomatik 40MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-040

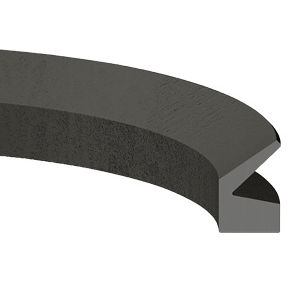

VA-040 Dichtomatik 40MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-040-BX

Available Stock: 17
Selected accessories will also be added to cart
$6.04 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-040
VA-040-BX

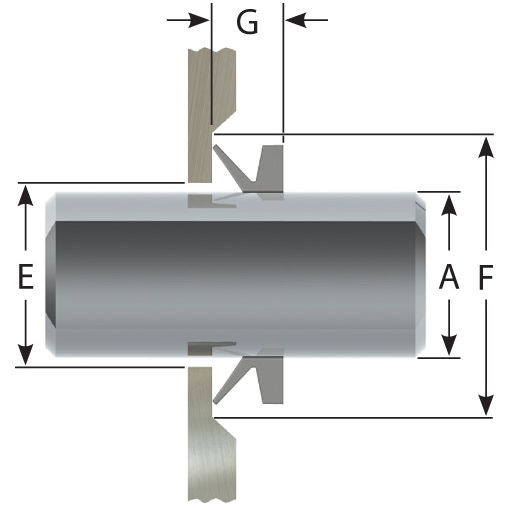

Shaft Diameter 38.00 - 43.00 mm
Seal Inside Diameter “B” 36.00 mm
Seal Outside Diameter “C” 46.00 mm
Seal Height “D” 9.00 mm
Housing Inside Diameter “E” ”A” + 3.00 mm
Housing Outside Diameter “F” ”A” + 15.00 mm
Housing Width “G” 7.00 mm ± 1.00 mm
UPC 750886191193
Weight 0.03 lbs
Country of Origin Taiwan
