Product ID: VA-045

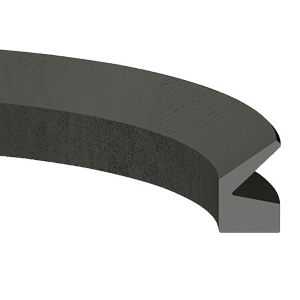

VA-045 Dichtomatik 45MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-045-BX

Available Stock: 6
Selected accessories will also be added to cart
$8.86 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-045
VA-045-BX

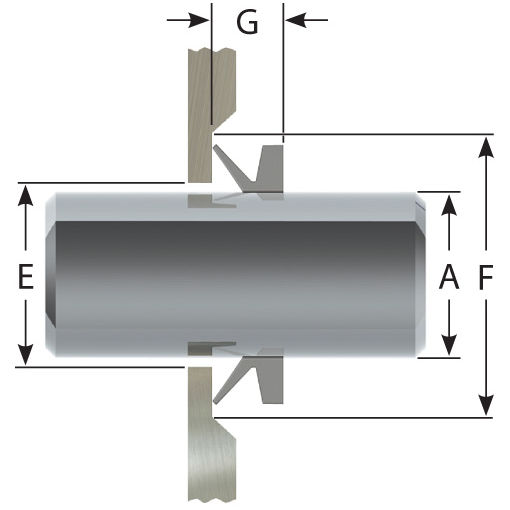

Shaft Diameter 43.00 - 48.00 mm
Seal Inside Diameter “B” 40.00 mm
Seal Outside Diameter “C” 50.00 mm
Seal Height “D” 9.00 mm
Housing Inside Diameter “E” ”A” + 3.00 mm
Housing Outside Diameter “F” ”A” + 15.00 mm
Housing Width “G” 7.00 mm ± 1.00 mm
UPC 750886191223
Weight 0.04 lbs
Country of Origin Taiwan
