/Products/Electric Motor Parts/Shaft Seals/VA-050 Dichtomatik 50MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-050

VA-050 Dichtomatik 50MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-050-BX

Available Stock: 12
Selected accessories will also be added to cart
$6.52 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-050
VA-050-BX

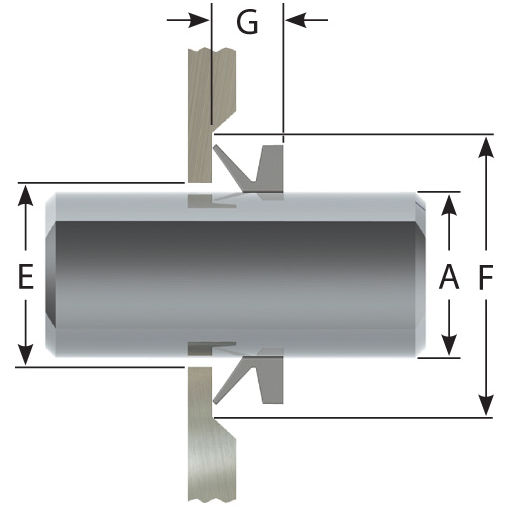

Shaft Diameter 48.00 - 53.00 mm
Seal Inside Diameter “B” 45.00 mm
Seal Outside Diameter “C” 55.00 mm
Seal Height “D” 9.00 mm
Housing Inside Diameter “E” ”A” + 3.00 mm
Housing Outside Diameter “F” ”A” + 15.00 mm
Housing Width “G” 7.00 mm ± 1.00 mm
UPC 750886191254
Weight 0.04 lbs
Country of Origin Taiwan
