/Products/Electric Motor Parts/Shaft Seals/VA-060 Dichtomatik 60MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-060

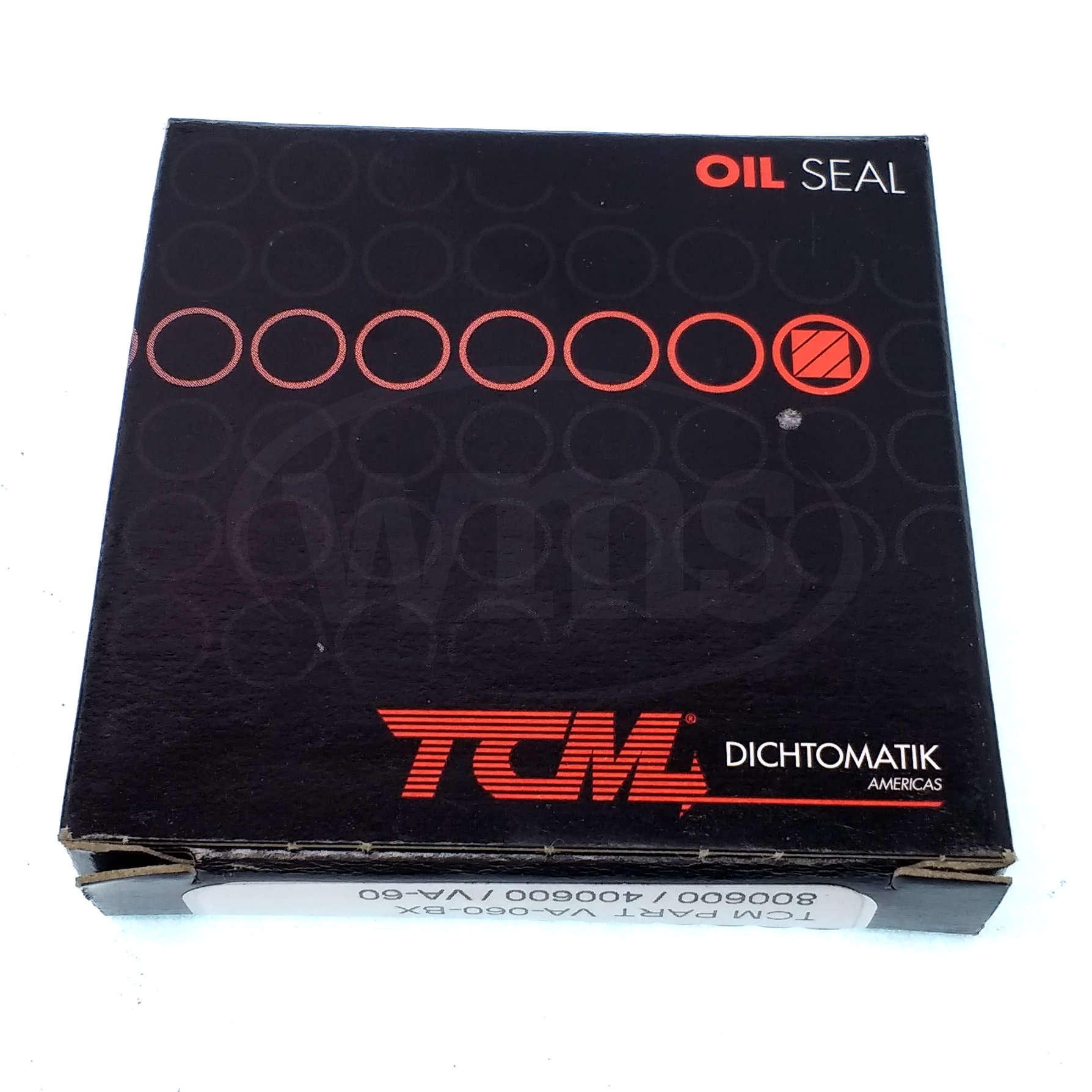

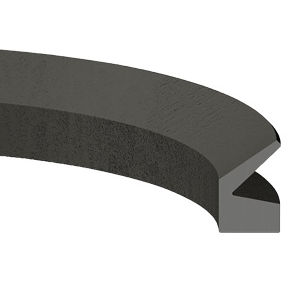

VA-060 Dichtomatik 60MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-060-BX

Available Stock: 4
Selected accessories will also be added to cart
$11.24 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-060
VA-060-BX

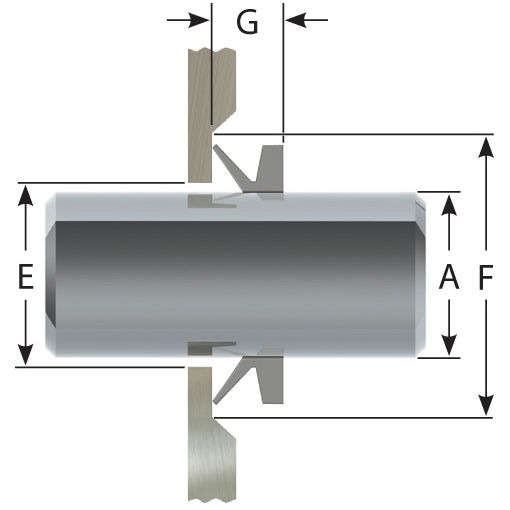

Shaft Diameter 58.00 - 63.00 mm
Seal Inside Diameter “B” 54.00 mm
Seal Outside Diameter “C” 64.00 mm
Seal Height “D” 9.00 mm
Housing Inside Diameter “E” ”A” + 3.00 mm
Housing Outside Diameter “F” ”A” + 15.00 mm
Housing Width “G” 7.00 mm ± 1.00 mm
UPC 750886191315
Weight .05 lbs
Country of Origin Taiwan
