Product ID: VA-070

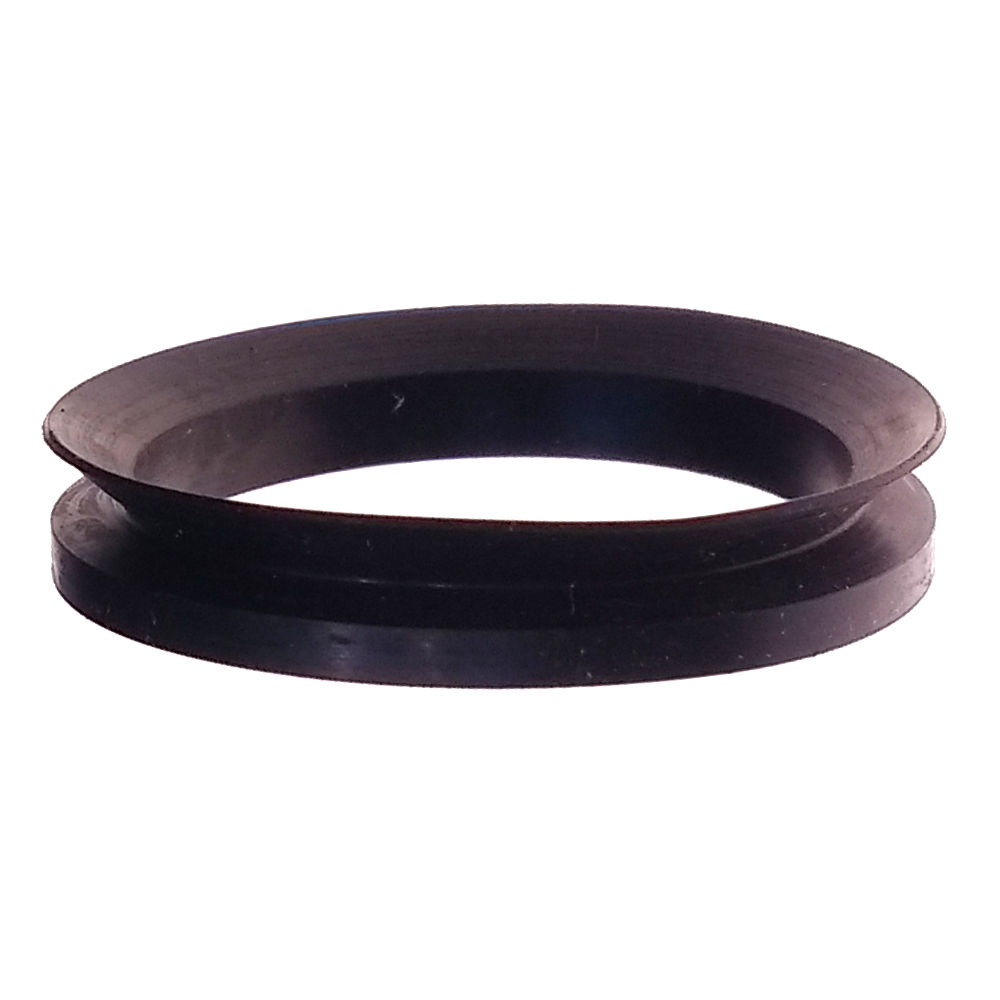

VA-070 Dichtomatik 70MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-070-BX

Available Stock: 3
Selected accessories will also be added to cart
$14.50 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-070
VA-070-BX

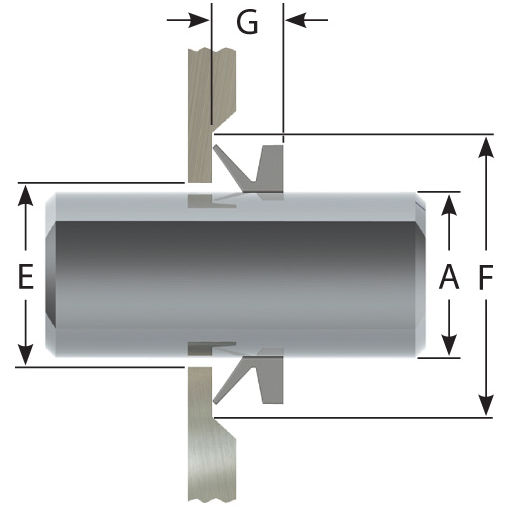

Shaft Diameter 68.00 - 73.00 mm
Seal Inside Diameter “B” 63.00 mm
Seal Outside Diameter “C” 75.00 mm
Seal Height “D” 11.00 mm
Housing Inside Diameter “E” ”A” + 4.00 mm
Housing Outside Diameter “F” ”A” + 18.00 mm
Housing Width “G” 9.00 mm ± 1.20 mm
UPC 750886191377
Weight 0.05 lbs
Country of Origin Taiwan
