/Products/Electric Motor Parts/Shaft Seals/VA-085 Dichtomatik 85MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-085

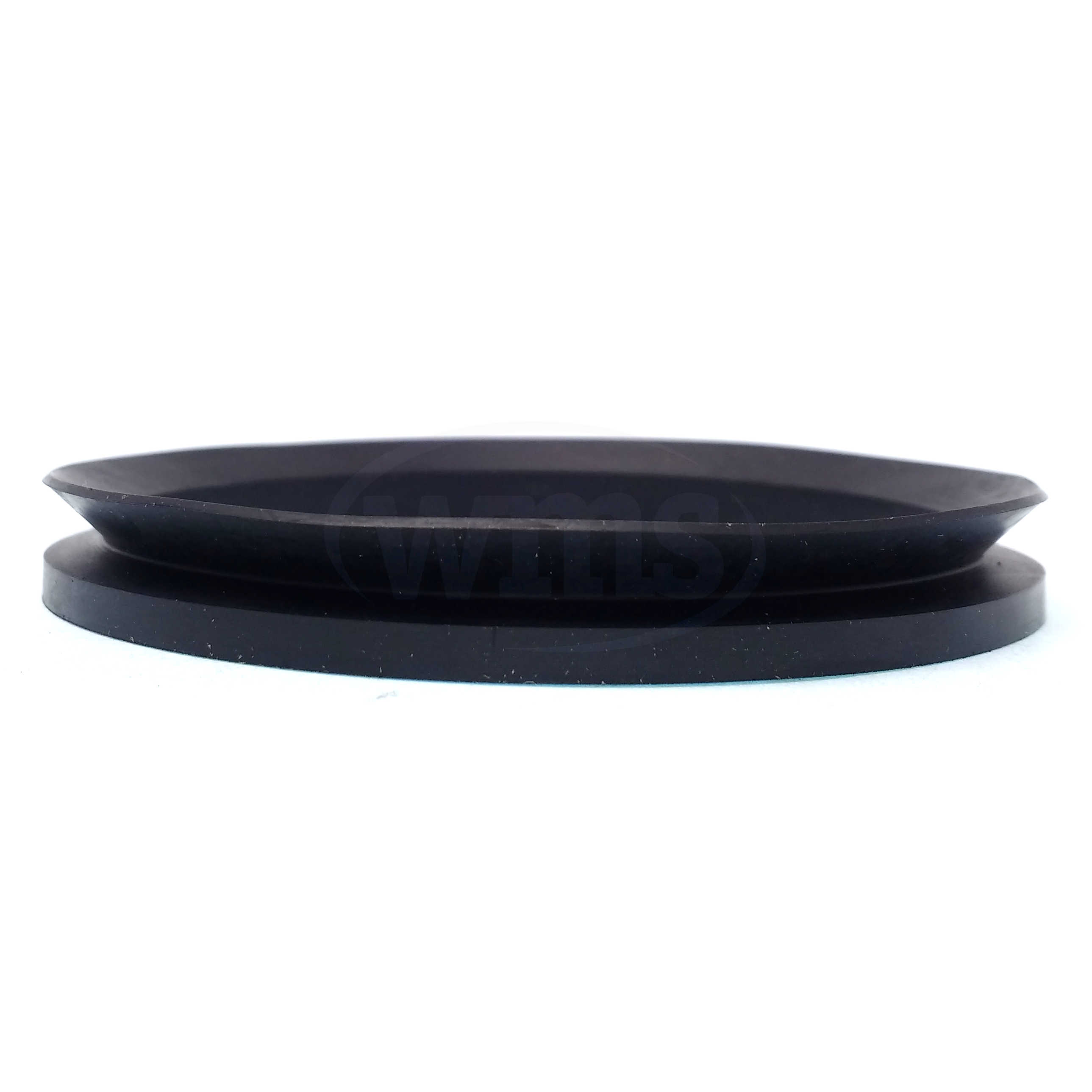

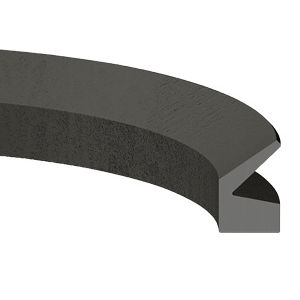

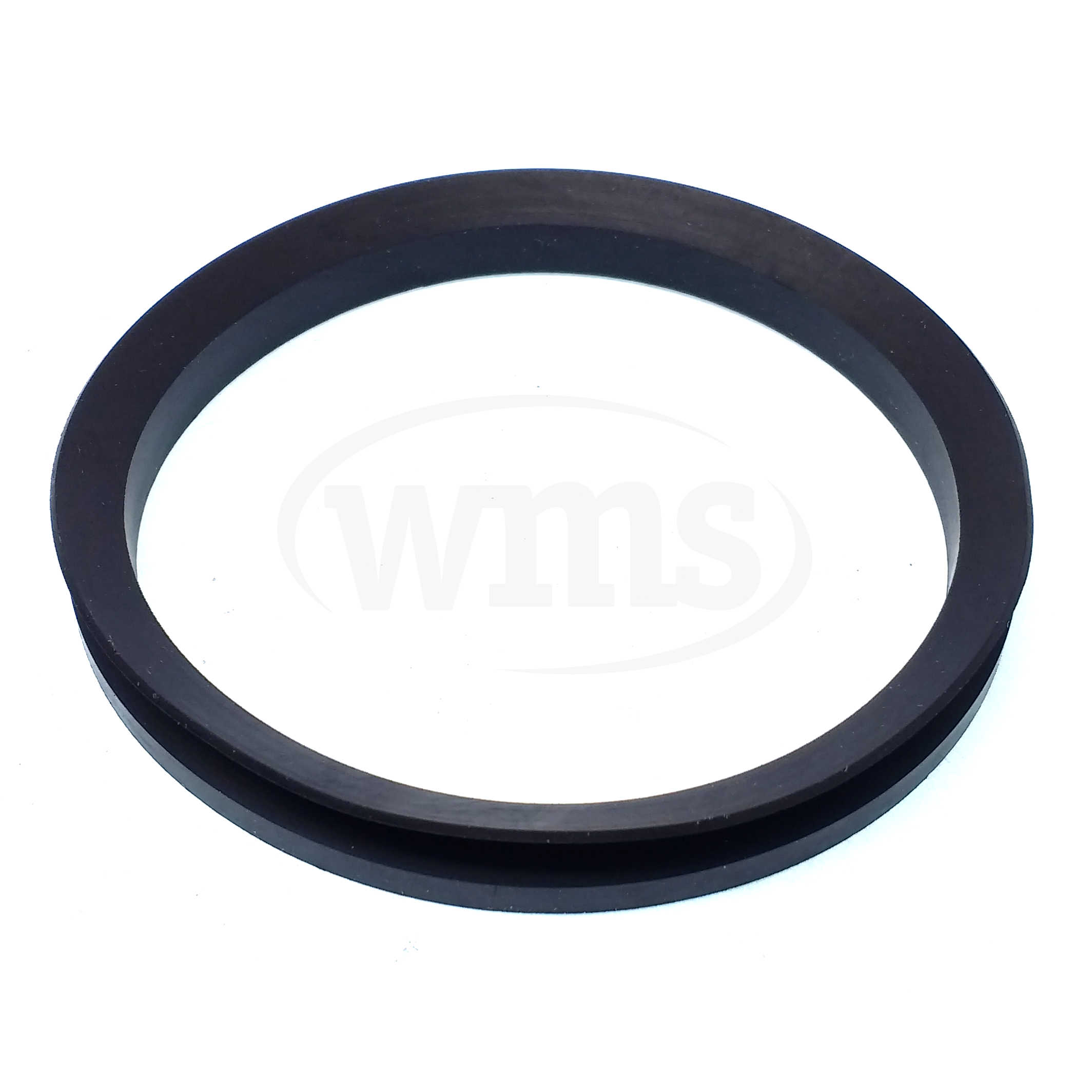

VA-085 Dichtomatik 85MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-085-BX

Available Stock: 4
Selected accessories will also be added to cart
$12.00 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-085
VA-085-BX

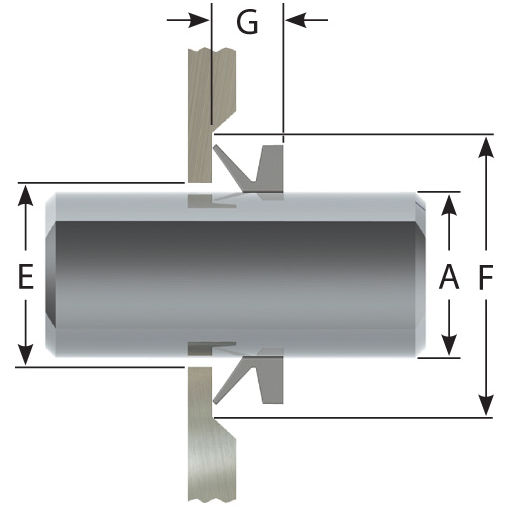

Shaft Diameter 83.00 - 88.00 mm
Seal Inside Diameter “B” 76.00 mm
Seal Outside Diameter “C” 88.00 mm
Seal Height “D” 11.00 mm
Housing Inside Diameter “E” ”A” + 4.00 mm
Housing Outside Diameter “F” ”A” + 18.00 mm
Housing Width “G” 9.00 mm ± 1.20 mm
UPC 750886191469
Weight 0.06 lbs
Country of Origin Taiwan
