/Products/Electric Motors/Single Phase/Marathon/Pedestal Fan/X920 Marathon 1/4HP Pedestal Fan Electric Motor, 1625 RPM
Click Image to Expand

Product ID: X920

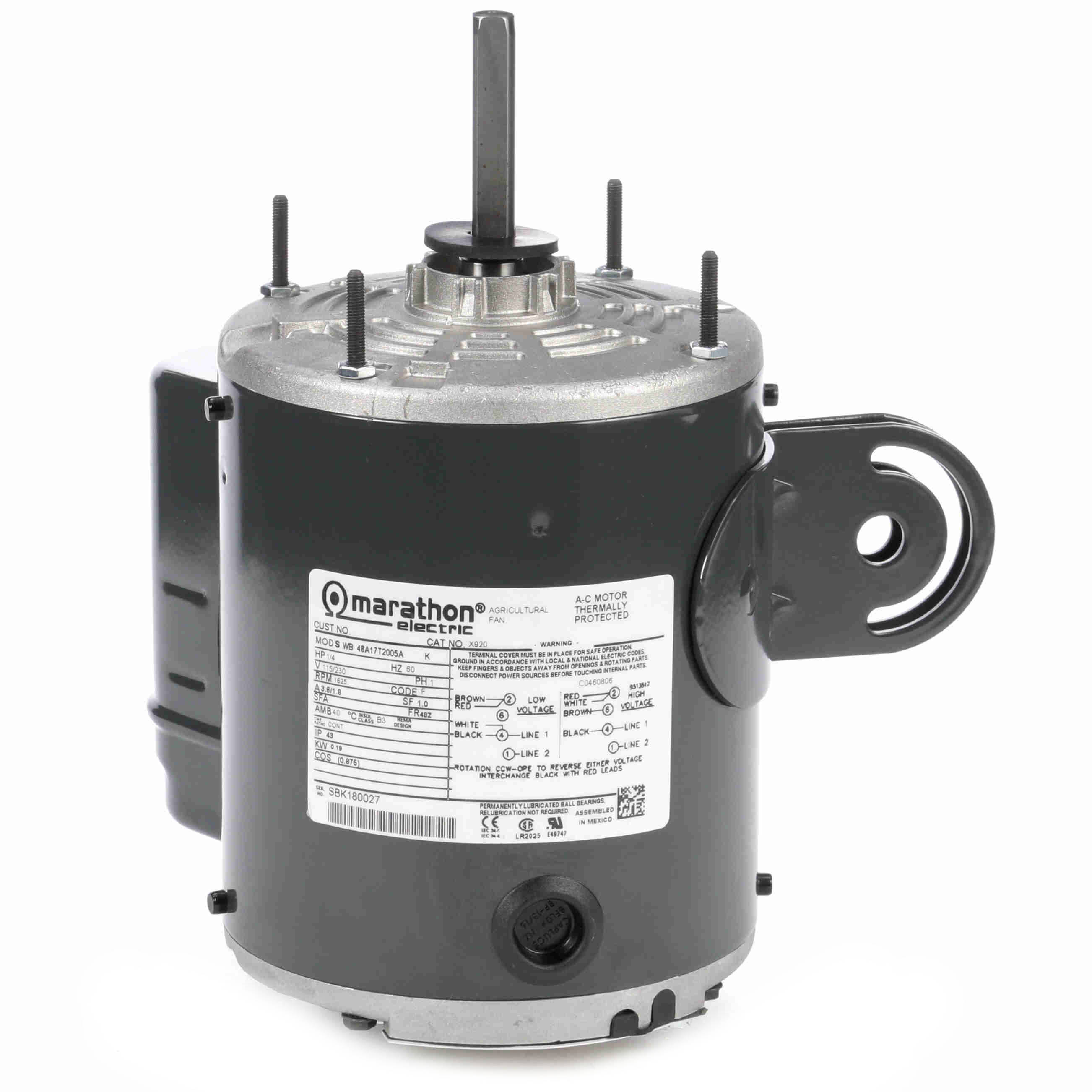

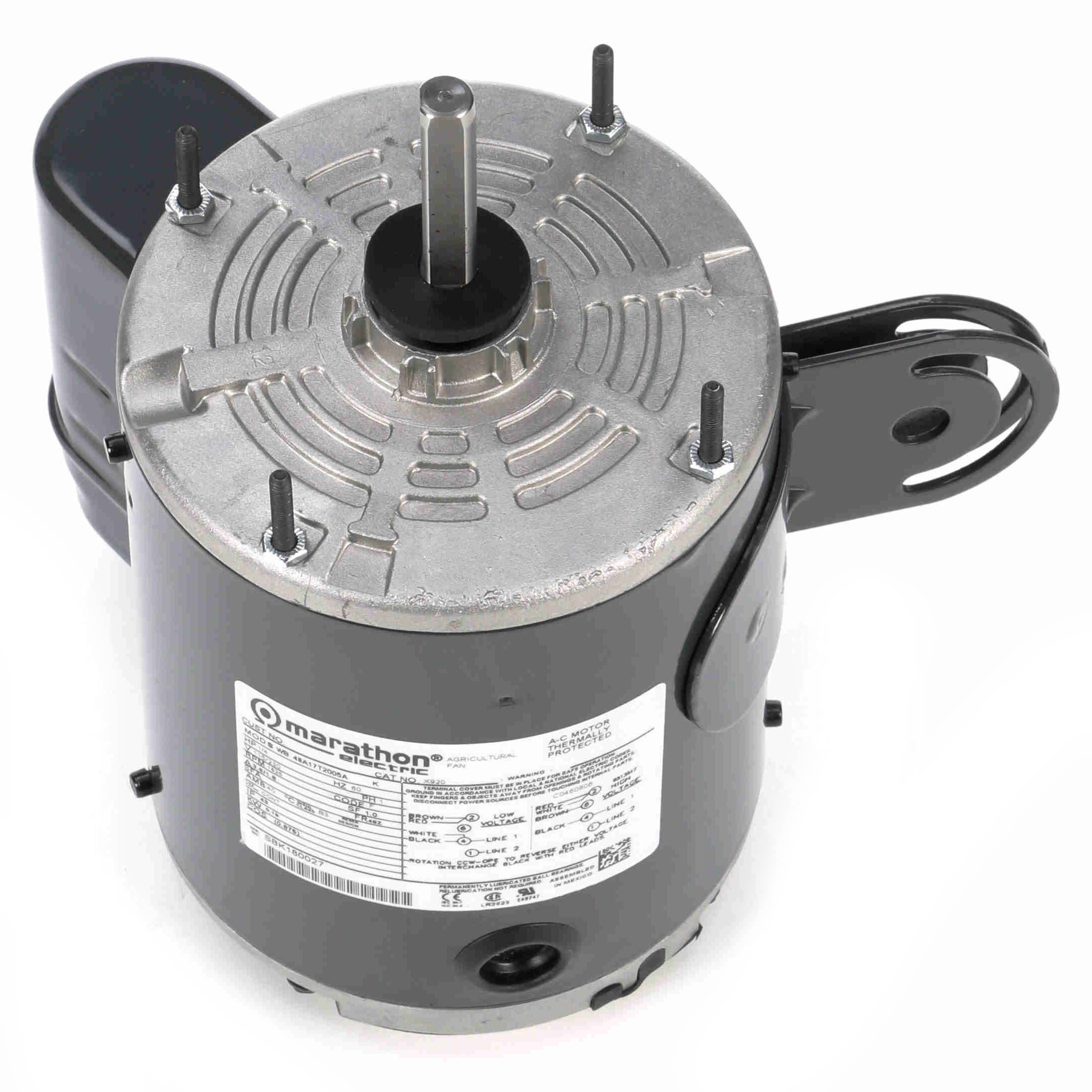

X920 Marathon 1/4HP Pedestal Fan Electric Motor, 1625 RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: X920

Selected accessories will also be added to cart
$179.97 / Each
Quantity:
TENV, 48Z Frame, 115/230V 60Hz Single Phase, 048A17T2005, Round Swing Arm

Features

Features
  • Heavy gauge steel frame and yoke fan shroud mounted by four 7/8” extended stud bolts on 5-1/8” bolt circle
  • Single speed model
  • Automatic reset thermal protector
  • 1/2” x 2-1/2” long shaft with two flats, 90° apart
  • Capacitor included

General Specifications

General Specifications
Model :048A17T2005 Catalog No :X920
Part Description :1/4,1725,TENV,48Z,1/60/115/230 Category :Pedestal Fan
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.25 Hp Output KW :0.19 kW
Frequency :60 Hz Voltage :115/230 V
Current :3.6/1.8 A Speed :1625 rpm
Service Factor :1 Phase :1
Efficiency :68 % Duty :Continous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :F Frame :48Z
Enclosure :Totally Enclosed Non Ventilated Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round - Swing Arm Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.56 in Frame Length :6.00 in
Shaft Diameter :0.500 in Shaft Extension :2.56 in
Assembly/Box Mounting :F1 Only UPC :722856042125
Weight :22.00 LB

Speed & Load Characteristics

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round - Swing Arm Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.56 in Frame Length :6.00 in
Shaft Diameter :0.500 in Shaft Extension :2.56 in
Assembly/Box Mounting :F1 Only UPC :722856042125
Weight :22.00 LB
