/Products/Electric Motors/3 Phase Explosion Proof/Marathon/Y602 Marathon 1/2HP Black Max Hazardous Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: Y602

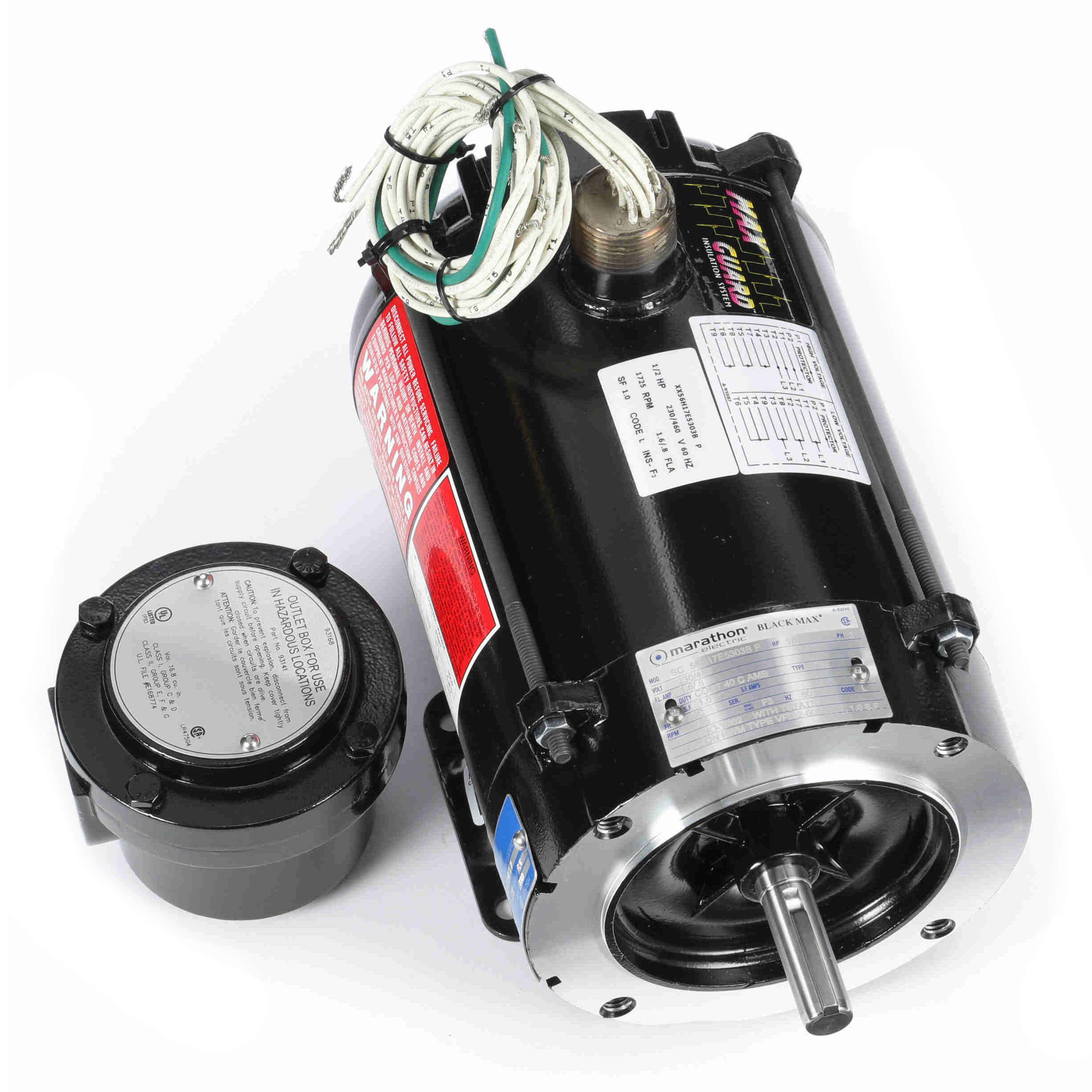

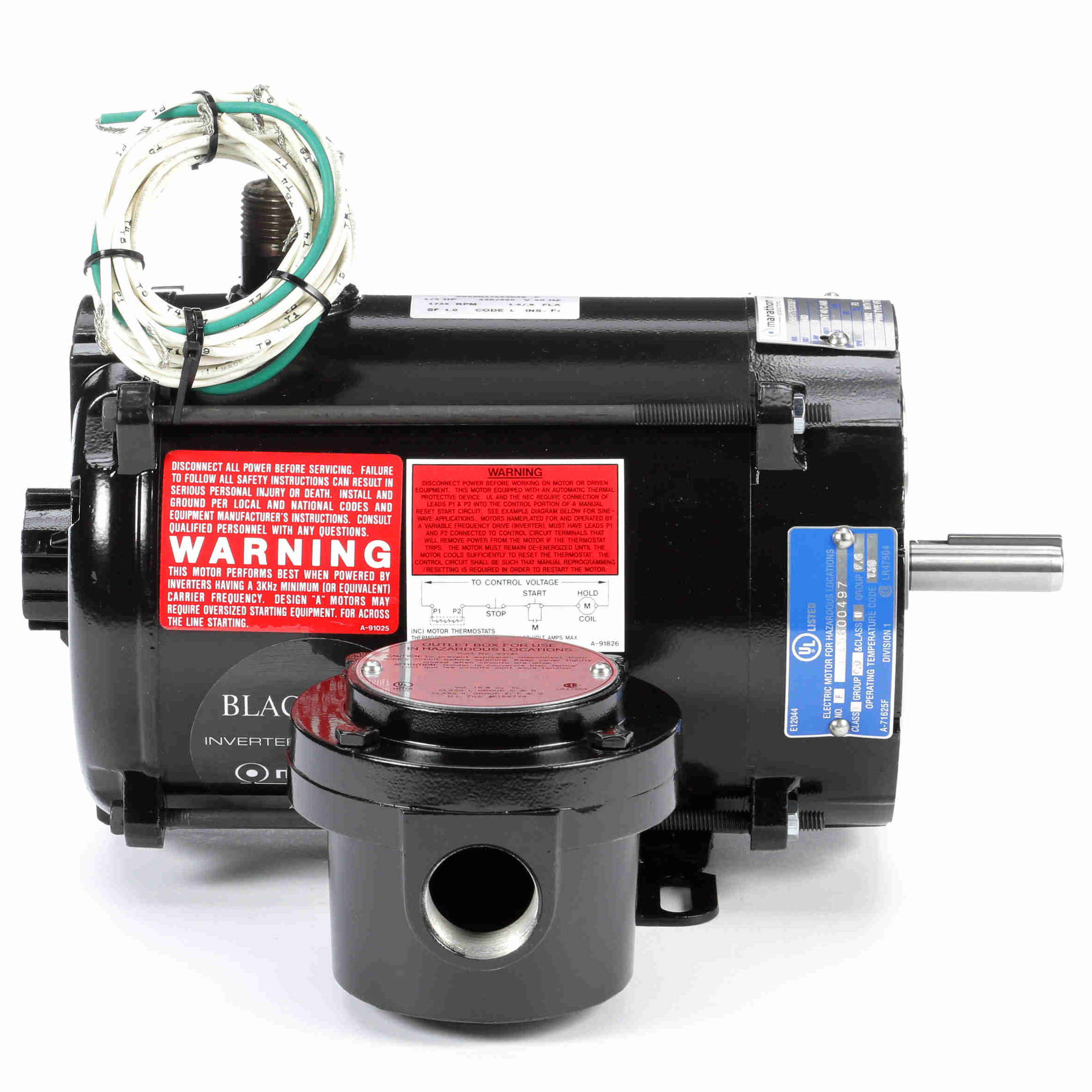

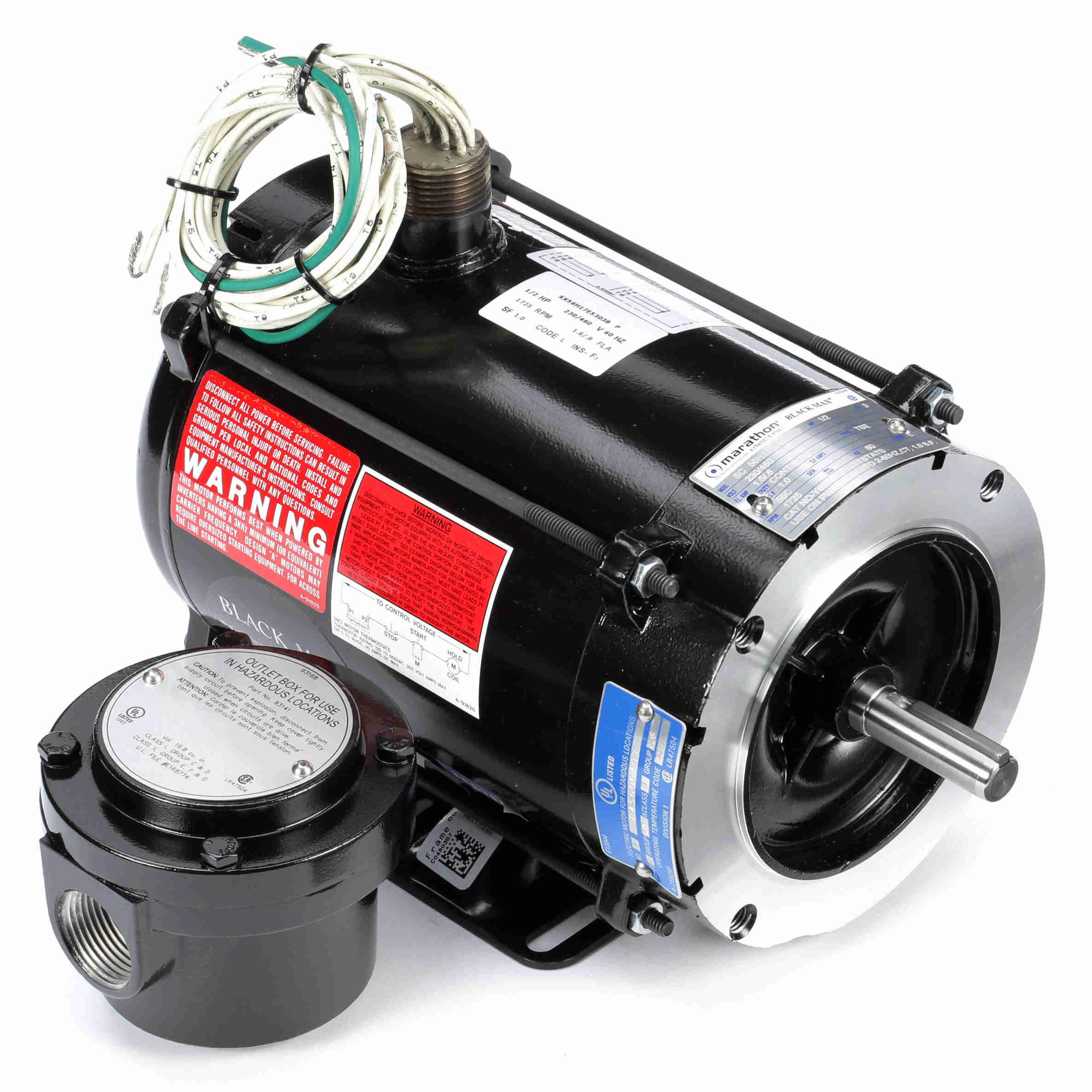

Y602 Marathon 1/2HP Black Max Hazardous Duty Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 056H17E5303

Temporarily out of stock
Selected accessories will also be added to cart
$769.97 / Each
Quantity:
EPNV, 56C Frame, 230/460V 3-Phase 60Hz, Rigid base

Features

Features
  • MAX GUARD® Class F insulation system
  • Constant torque operation from 0 to base speed on vector drive
  • Constant Horsepower operation up to twice base RPM
  • Optimized for operation with IGBT inverter (NEMA Design A)
  • Normally closed thermostats (one per phase, Class F)
  • No Encoder Provisions provided

General Specifications

General Specifications
Model :056H17E5303 Catalog No :Y602
Part Description :1/2,1800,EPNV,56C,3/60/230/460 Category :1000:1 Explosion Proof
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :230/460 V
Current :1.6/0.80 A Speed :1725 RPM
Service Factor :1 Phase :3
Efficiency :80 % Duty :Continous
Insulation Class :F Design Code :INV
KVA Code :L Frame :56C
Enclosure :Explosion Proof Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :No
CSA :N CE :N
IP Code :54

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Inverter Duty Starting Method :Inverter Only
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :12.47 in Frame Length :6.81 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
Assembly/Box Mounting :F3 UPC :722856025043
Weight :31.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
No Load0.5265.00.000.01,8000.50
2/34.80600.04.80316.01,1000.50
Full Load0.80100.01.52100.01,7350.50
Locked-Rotor5.60700.04.60303.0069.50.50
1/35.30663.03.90257.05000.50
Pull-Up5.00625.04.20276.08000.50
Break-Down3.50438.05.80382.01,33084.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.52
  • 0.050
  • 0.0
  • 11.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 0.55
  • 0.150
  • 63.5
  • 33.5
  • 1,785
  • 0.0
  • 0.37
  • 50 %
  • 0.60
  • 0.250
  • 75.0
  • 50.5
  • 1,775
  • 0.0
  • 0.75
  • 75 %
  • 0.70
  • 0.350
  • 78.5
  • 63.0
  • 1,760
  • 0.0
  • 1.10
  • 100 %
  • 0.80
  • 0.450
  • 80.0
  • 72.0
  • 1,735
  • 55.0
  • 1.52
  • 115 %
  • 0.95
  • 0.533
  • 80.1
  • 71.5
  • 1,735
  • 0.0
  • 1.70
  • 125 %
  • 1.00
  • 0.600
  • 79.5
  • 77.0
  • 1,725
  • 0.0
  • 1.90
  • 150 %
  • 1.10
  • 0.700
  • 78.5
  • 81.0
  • 1,710
  • 0.0
  • 2.30
  • 200 %
  • 1.50
  • 1.000
  • 75.5
  • 85.0
  • 1,665
  • 0.0
  • 3.20
